Square D Q232150 I-Line Circuit Breaker 240V Untested Surplus
Square D Q232150 I-Line Circuit Breaker 240V Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: Q232150
Stock #: Stock # 0626-01766
Product Specifications
- Manufacturer: Square D
- MPN / Model: Q232150
- Product Type: Thermal Magnetic Molded Case Circuit Breaker
- Amperage: 150 Amp
- Voltage: 240 VAC
- Poles: 3 Pole
- Interrupting Rating: 10kA at 240V
- Connection: I-Line Style Plug-In
- Standard: UL 489, 60 Hz
- Temperature Rating: 40 C

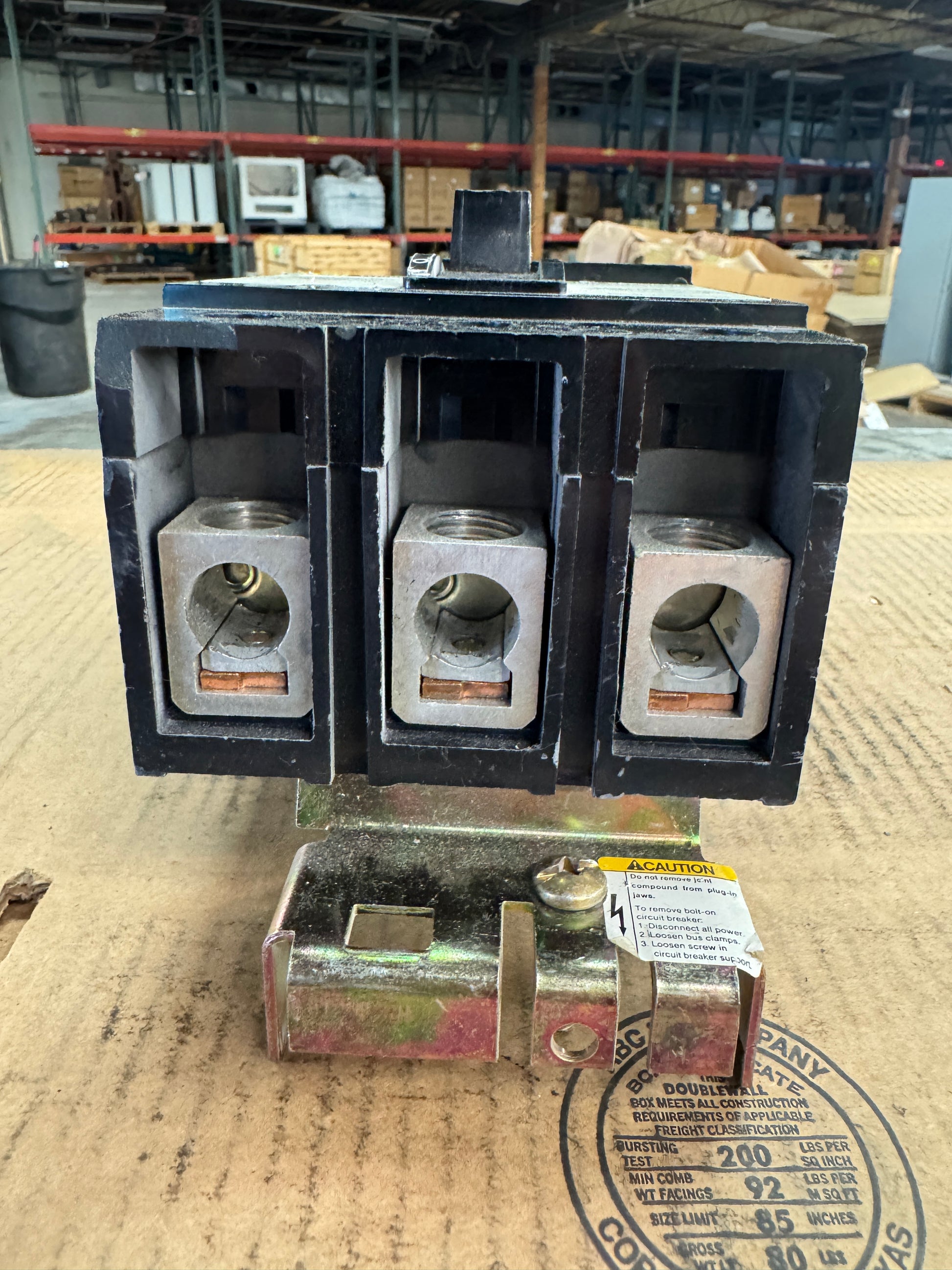

- Standard Lug Data: 1 wire, #4 to 300 kcmil CU/AL, 250 LB-IN torque, suitable for use with 75 C rated wire only
Product Description

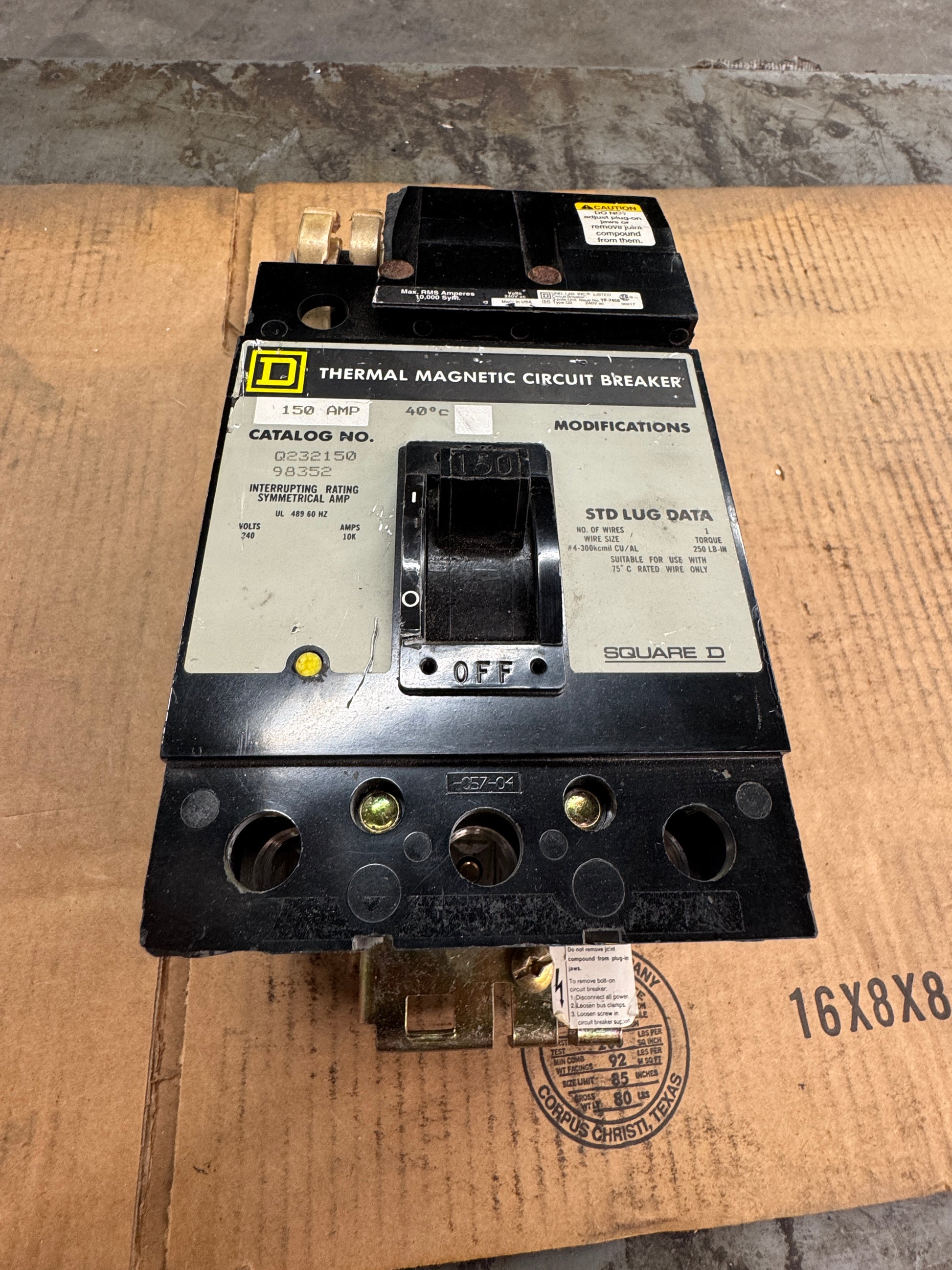

Square D Q232150 is a 150 amp, 3 pole thermal magnetic molded case circuit breaker from the Q2 series, rated 240 VAC with a 10kA at 240V interrupting rating. The nameplate confirms an I-Line style plug-in connection and UL 489 listing at 60 Hz, with standard lug data accepting a single #4 to 300 kcmil CU or AL conductor at 250 LB-IN torque, for use with 75 C rated wire only. Buyers matching the exact Square D catalog number Q232150 for I-Line panelboard applications can use the visible nameplate data, amperage, pole count, and interrupting rating to compare this unit against an existing installed breaker. Note that the higher interrupt variant Q232150H is a separate catalog number and is not the same as this unit.
