Square D Reversing Magnetic Motor Starter 8736SCO8V02S 600VAC
Square D Reversing Magnetic Motor Starter 8736SCO8V02S 600VAC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 8736SCO8V02S
Stock #: 0526-02323

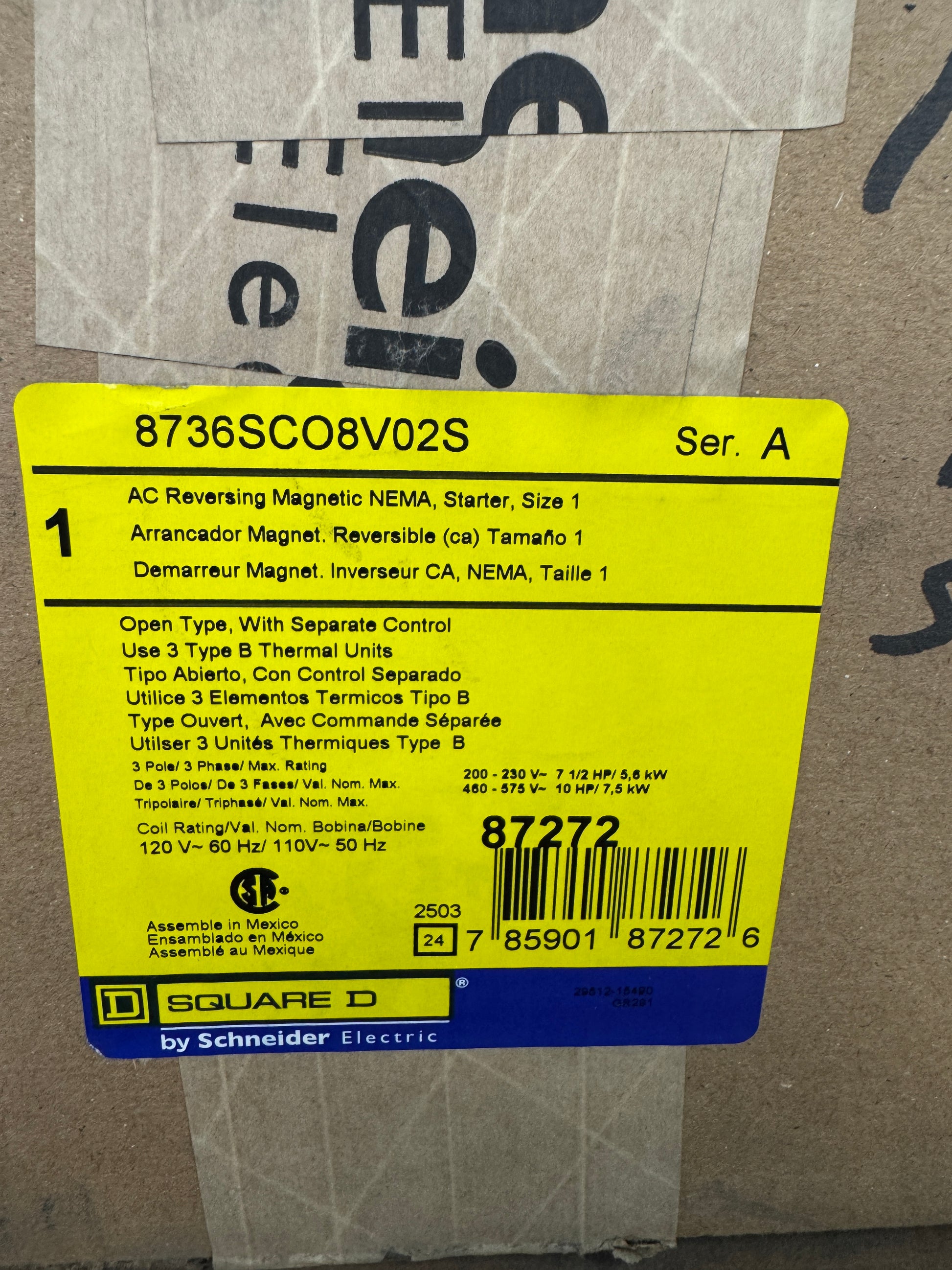

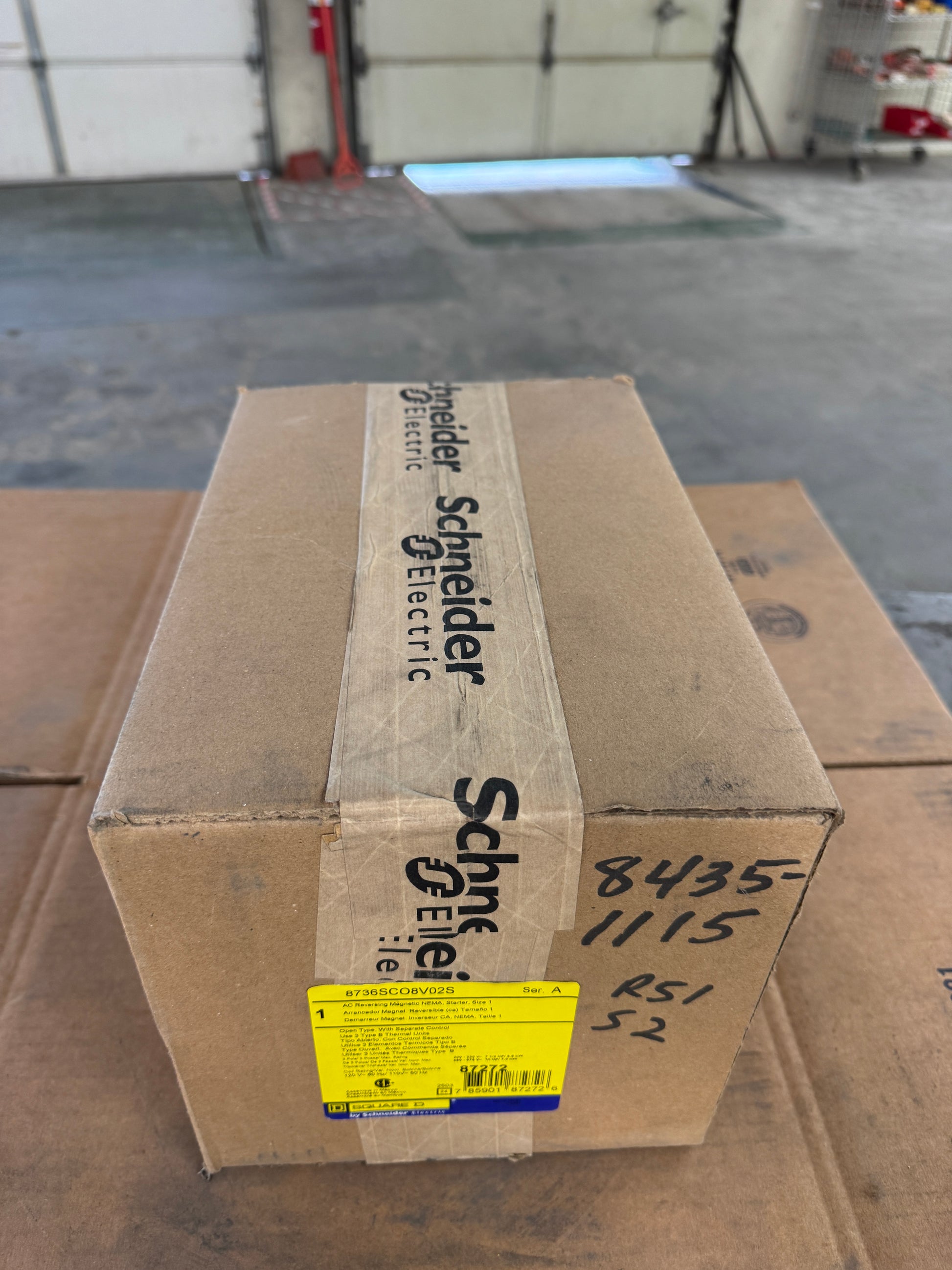

The Square D 8736SCO8V02S is a NEMA Size 1 Type S reversing magnetic motor starter manufactured under the Schneider Electric brand. This 3 pole, 3 phase open type starter carries a 27 ampere rating and is built for full voltage starting, stopping, and reversing of AC squirrel cage motors. Maximum horsepower ratings are 7 1/2 HP at 200 to 230 VAC and 10 HP at 460 to 575 VAC, with a maximum voltage rating of 600 VAC. The operating coil is rated 120 V at 60 Hz and 110 V at 50 Hz, supplied for separate source control wiring. Overload protection is provided by a melting alloy thermal overload relay using three Type B thermal units (thermal units not included). The assembly consists of two 8502S NEMA contactors that are mechanically and electrically interlocked, mounted in a horizontal arrangement. The unit carries a 5 kA maximum SCCR per UL508A when protected by an appropriate circuit breaker or fuse, and is UL Listed and CSA Certified. Form S designates the separate control configuration. Typical applications include conveyor systems, pumps, fans, hoists, machine tools, and industrial process equipment requiring forward and reverse motor direction control. The product ships in the original factory sealed Schneider Electric carton, Series A, with the Square D yellow label intact and unopened manufacturer packaging tape. Part number 8736SCO8V02S, UPC 785901872726, assembled in Mexico.
