TECO Westinghouse Vertical Hollow Shaft Motor VSTP3006 - 300 HP 1200 RPM
TECO Westinghouse Vertical Hollow Shaft Motor VSTP3006 - 300 HP 1200 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Factory Sealed
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

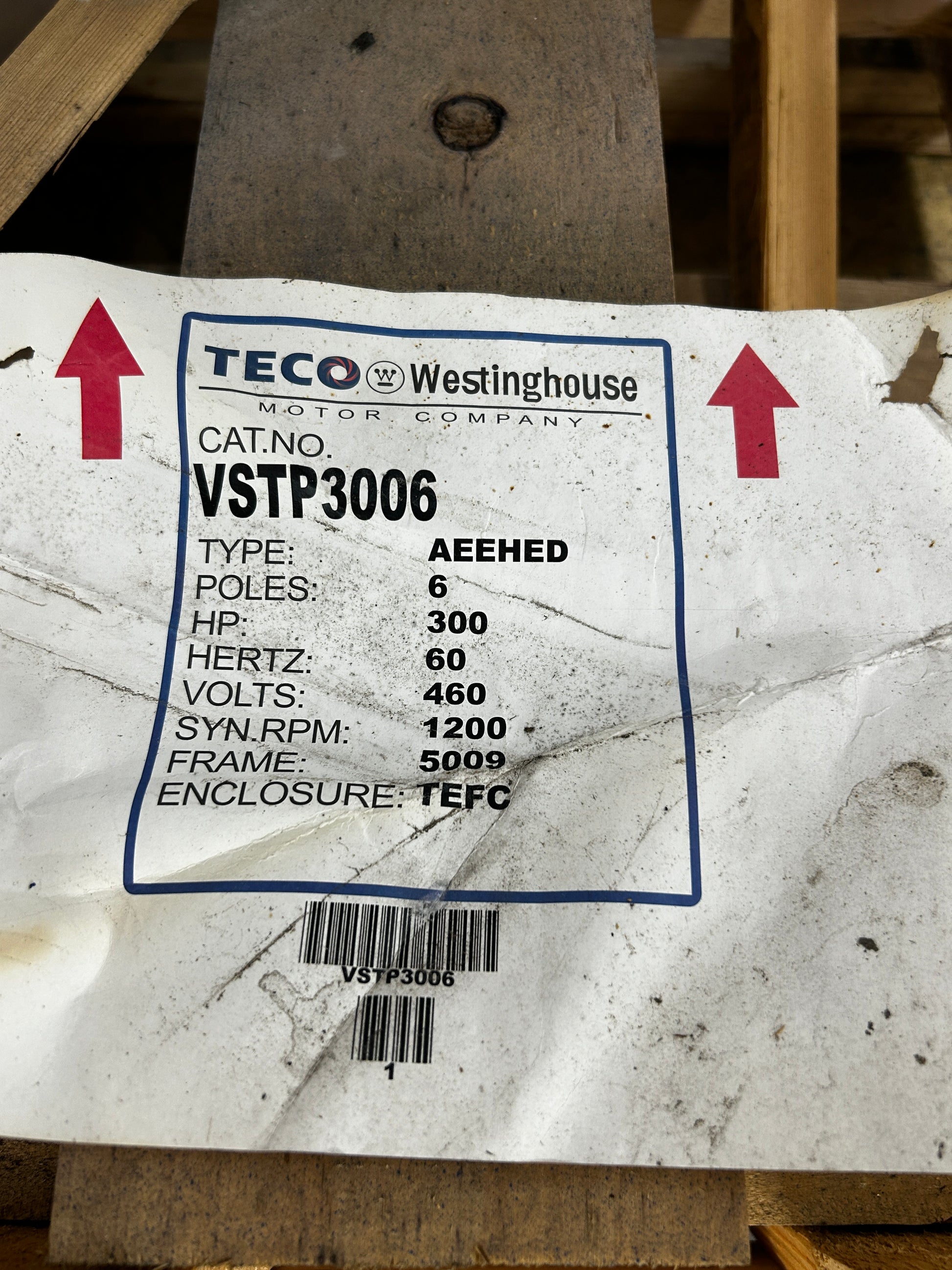

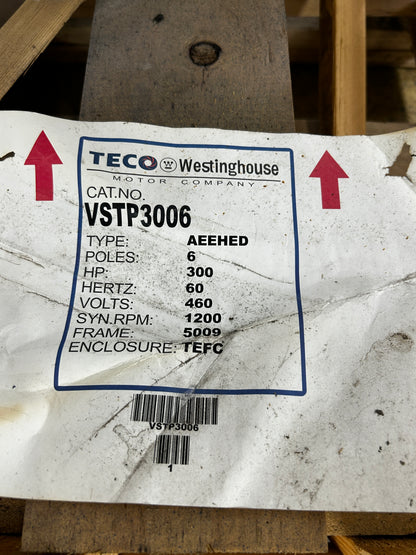

MPN: VSTP3006
Stock #: Stock # 0626-01707
Product Specifications
- Manufacturer: TECO-Westinghouse
- MPN / Model: VSTP3006
- Product Type: Vertical Hollow Shaft AC Motor
- Type: AEEHED
- Horsepower: 300 HP
- Voltage: 460 V
- Frequency: 60 Hz
- Poles: 6
- Synchronous RPM: 1200 RPM
- Frame Size: 5009
- Enclosure Rating: TEFC

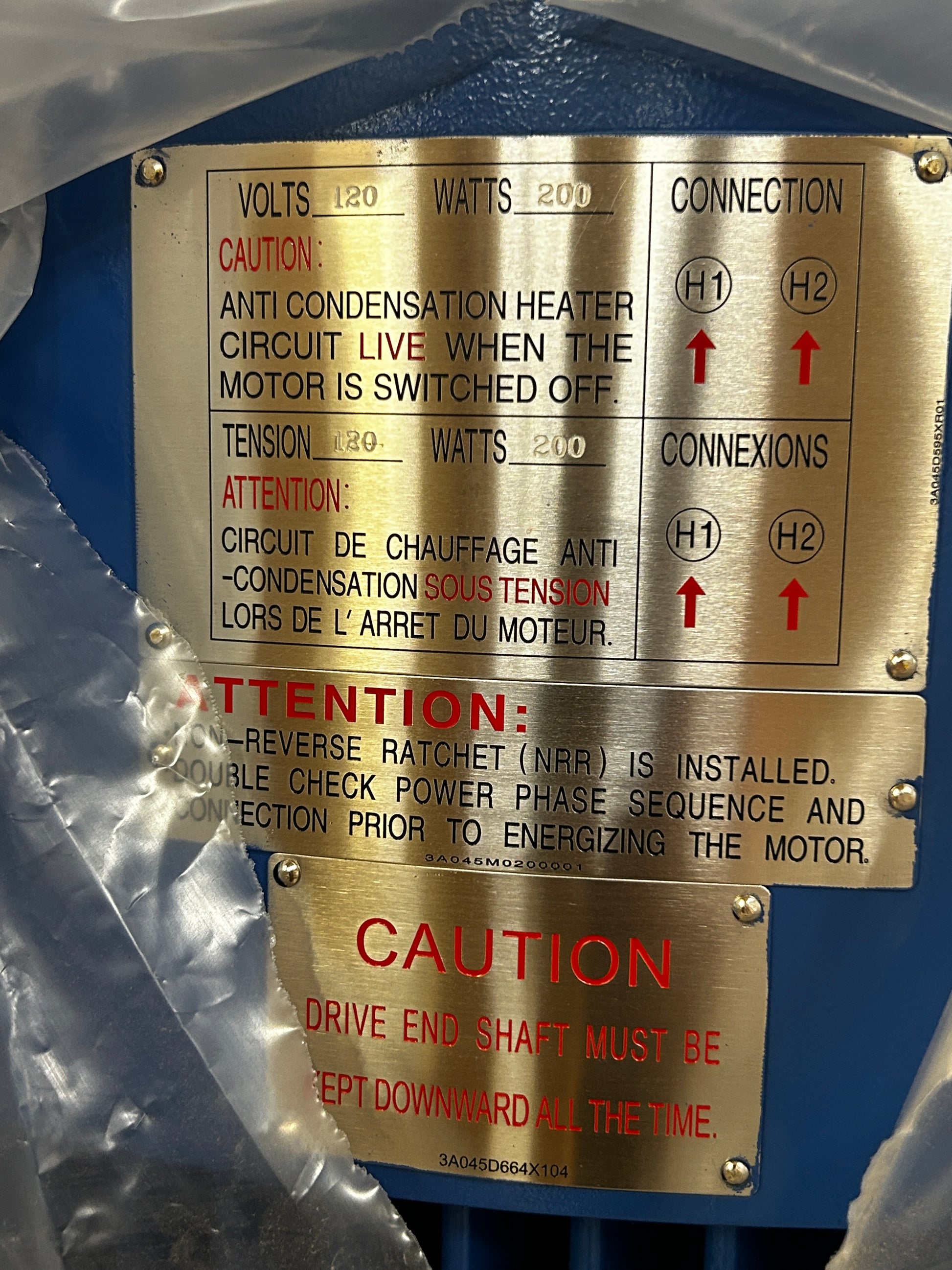

- Anti-Condensation Heater: 120V, 200W
- Non-Reverse Ratchet (NRR): Installed

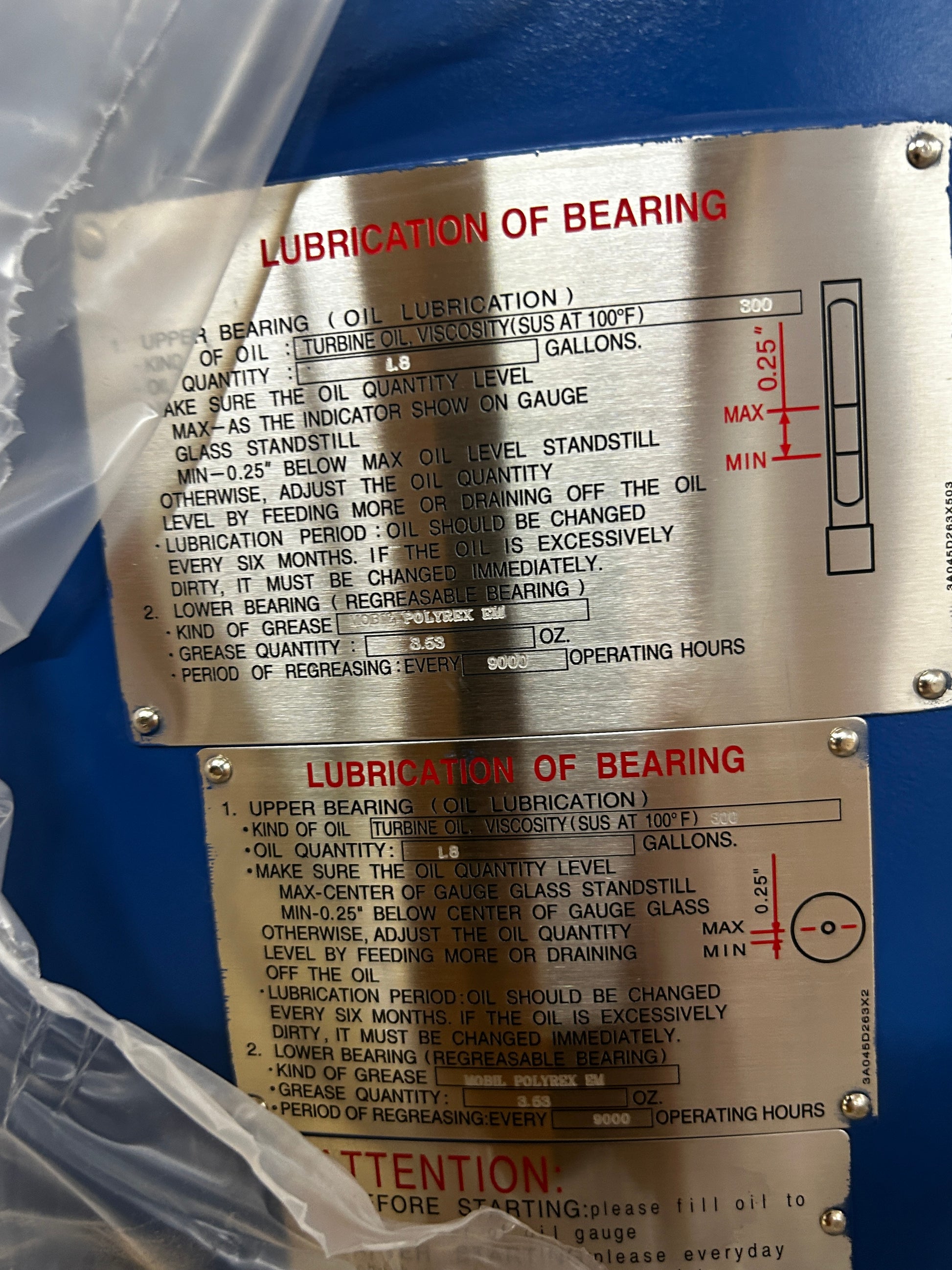

- Upper Bearing Lubrication: Oil (Turbine Oil, Viscosity SUS at 100F: 300), 1.8 Gallons
- Lower Bearing Lubrication: Regreasable, Mobil Polyrex EM, 3.65 Oz, Every 9000 Operating Hours
- Condition: New Surplus
Product Description

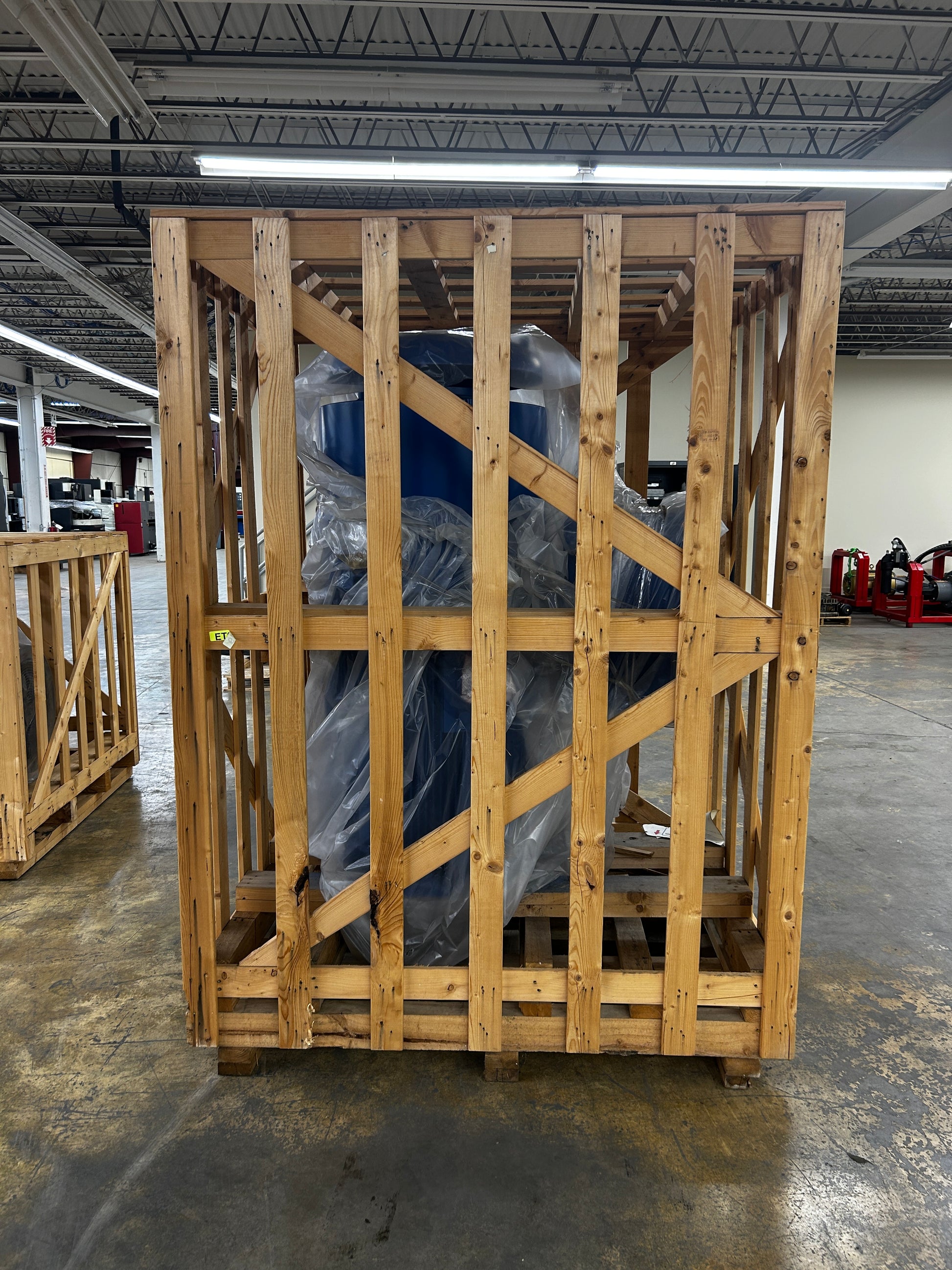

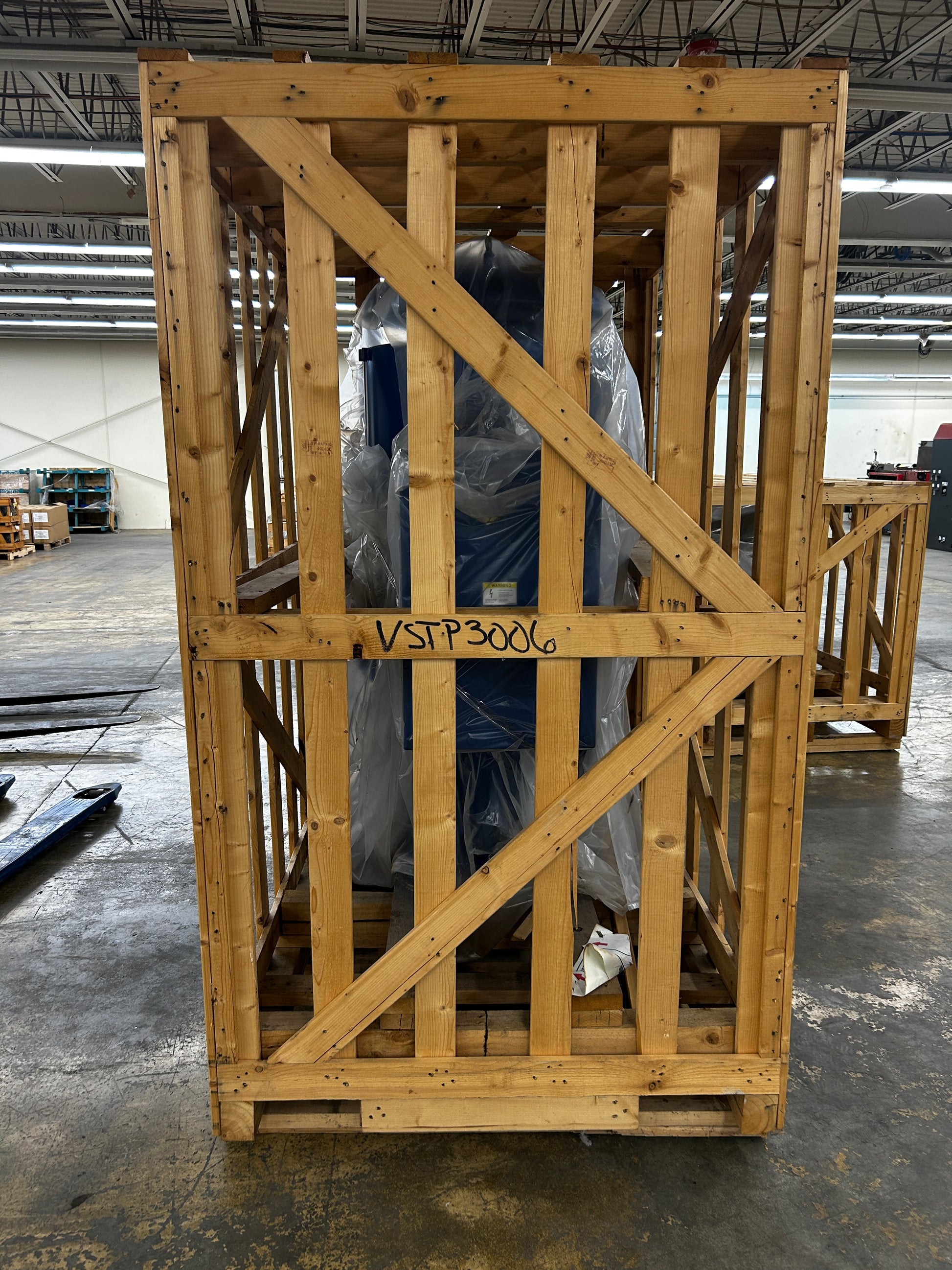

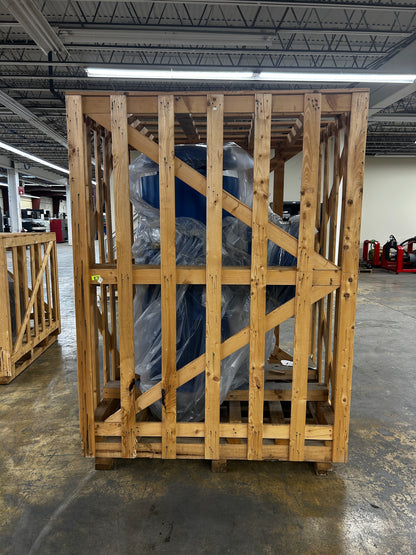

The TECO-Westinghouse VSTP3006 is a 300 HP vertical hollow shaft AC motor rated at 460V, 60 Hz with a synchronous speed of 1200 RPM (6-pole). It carries the AEEHED type designation and is built in a frame 5009 TEFC (Totally Enclosed Fan Cooled) enclosure. The unit includes an installed non-reverse ratchet (NRR) and a 120V / 200W anti-condensation heater circuit, which remains live when the motor is switched off. Upper bearing lubrication uses turbine oil (viscosity SUS at 100F: 300) at 1.8 gallons; the lower bearing is regreasable with Mobil Polyrex EM grease at 3.65 oz every 9000 operating hours. The motor is listed as New Surplus, is original-crate packaged on a pallet, and carries catalog number VSTP3006. Buyers should note the nameplate caution requiring that the drive end shaft be kept downward at all times and that power phase sequence be verified prior to energizing due to the NRR installation.
