THK Linear Guide Rail Assembly Set HSR35LU2SSC0S+1080LSP-IV / HSR35LU2SSC0S+1130LSP-IV

$999.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: HSR35LU2SSC0S
Stock #: 0426-01385

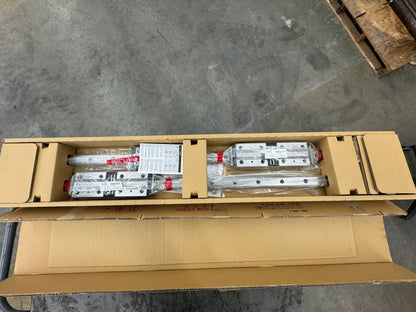

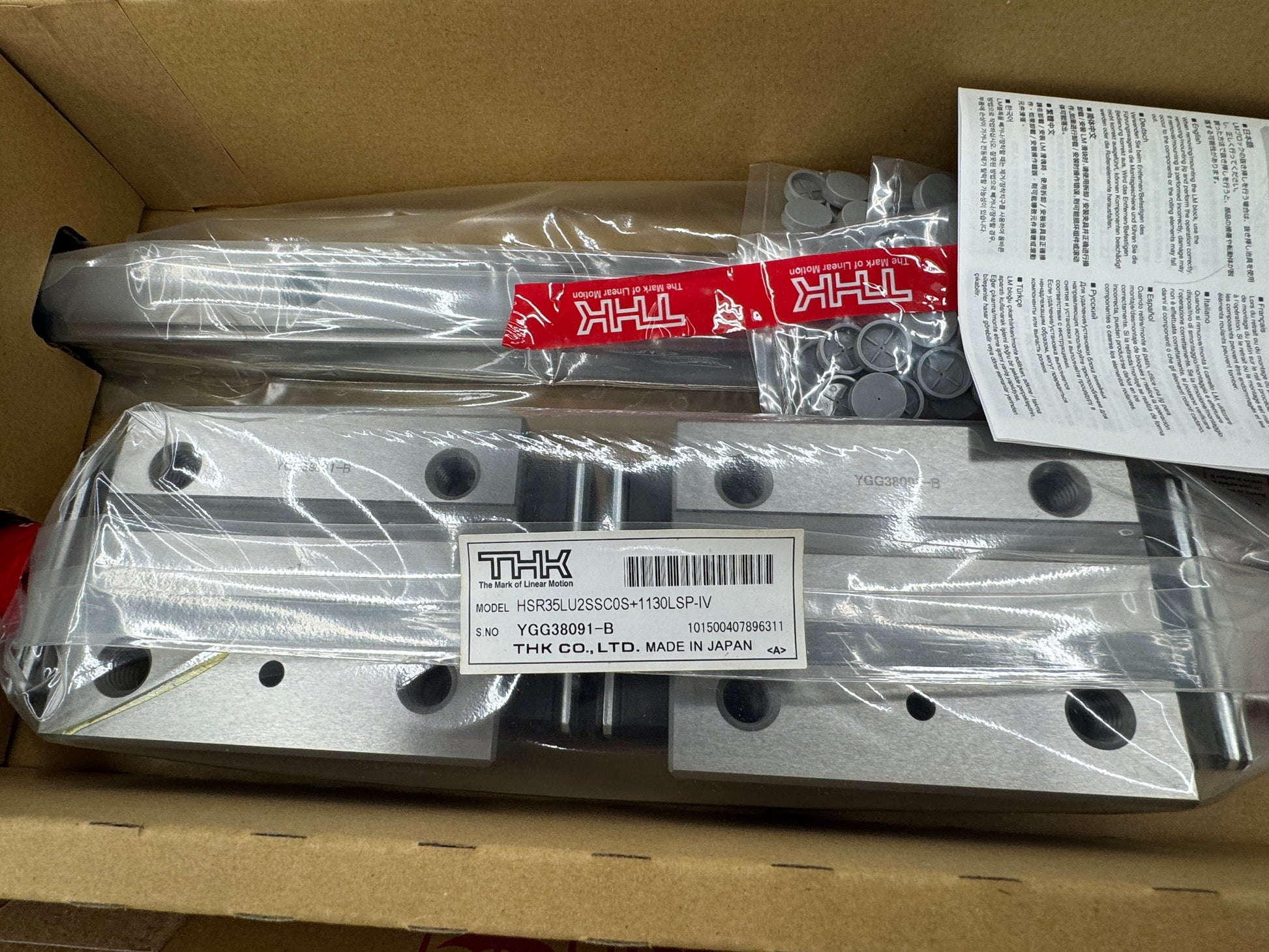

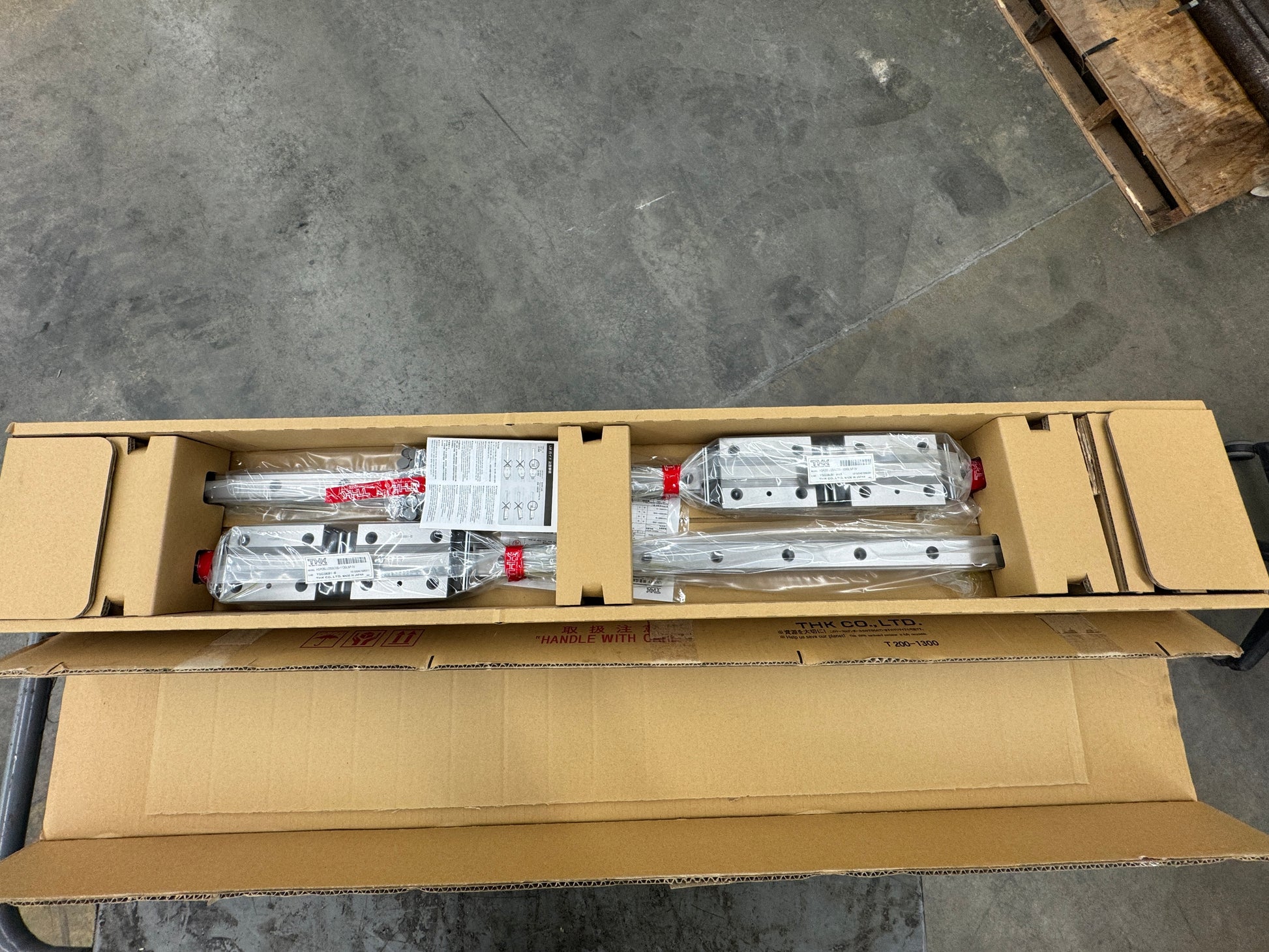

A matched pair of THK HSR35LU linear guide rail assemblies, new in original THK packaging, sourced as a complete Z-axis linear guide set for the Mazak MP6200 machining center. Mazak part number 533740003ZA references two individual THK assemblies: model HSR35LU2SSC0S+1080LSP-IV (serial number YGG38091-AKB) and model HSR35LU2SSC0S+1130LSP-IV (serial number YGG38091-B). Each assembly consists of one profiled linear rail and two LM guide blocks, yielding four blocks and two rails total in the set.

The HSR35 series is a standard-type LM guide from THK featuring four-row ball circulation and 45-degree contact angles that provide equal load ratings in radial, reverse radial, and lateral directions. The LU designation indicates an extra-long block, providing increased moment rigidity compared to standard-length carriages. Rail width is 35mm. Rail lengths are 1080mm (approximately 42.5 inches) and 1130mm (approximately 44.5 inches). The SSC0S suffix designates standard preload with stainless steel ball retainer and end seal configuration. Grade IV accuracy is marked on both assemblies.

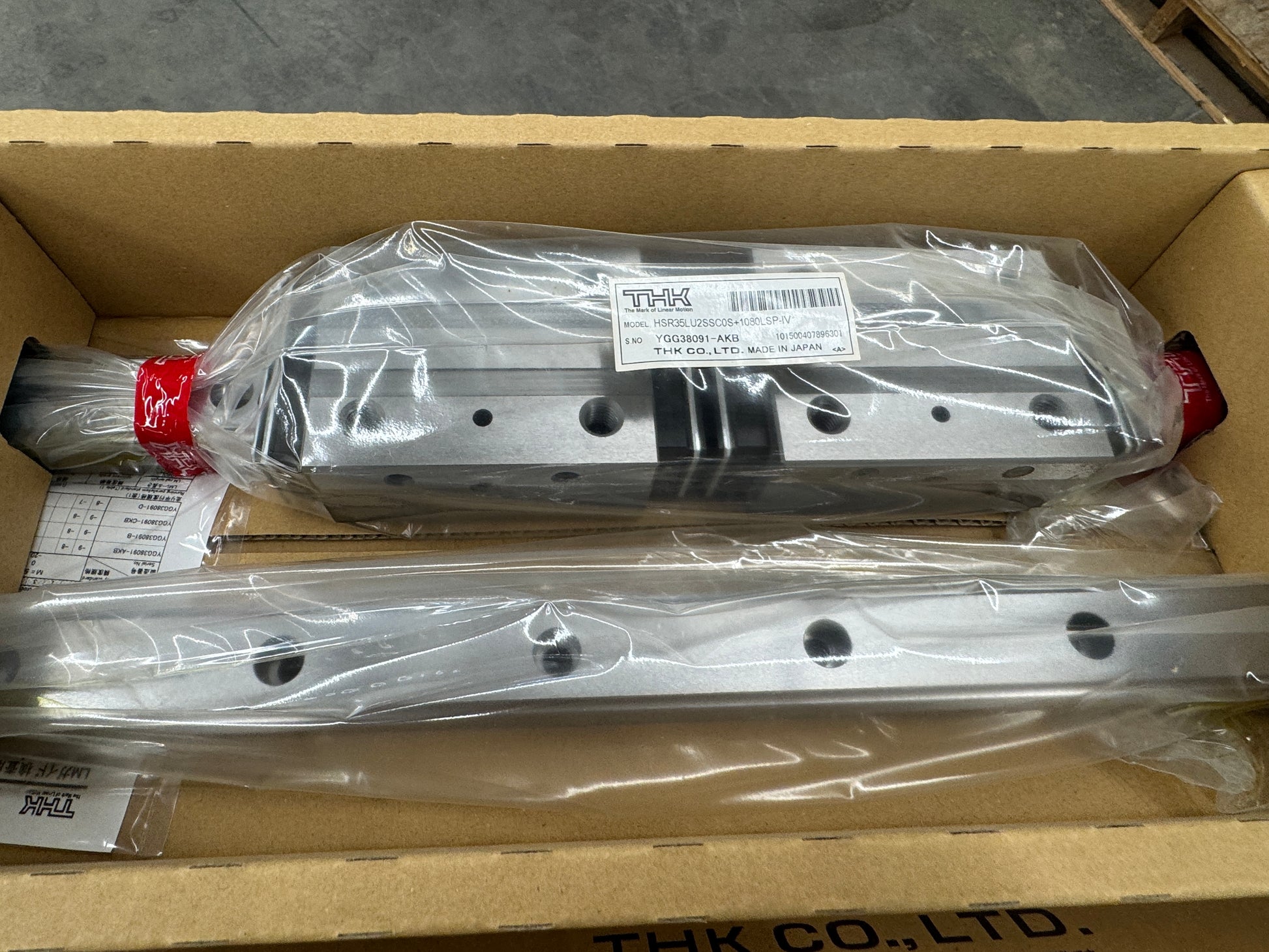

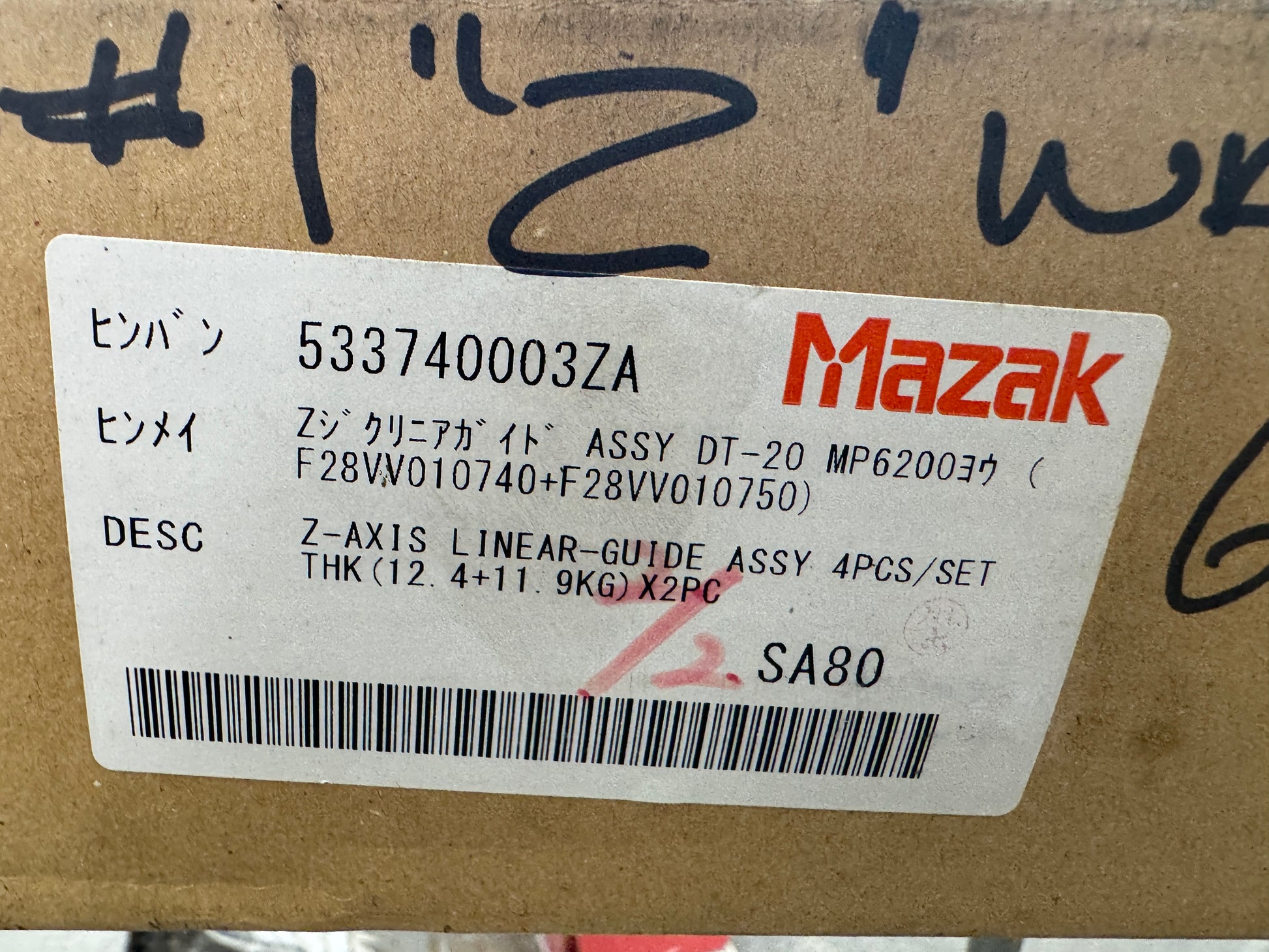

Made in Japan by THK Co., Ltd. Items remain in factory plastic wrap with original THK red tamper seals intact. The outer packaging is a Mazak-labeled OEM box marked for 4 pieces per set. Internal THK packaging boxes are present for both assemblies. Serial number YGG38091 is shared across both rails in this matched set.

Stock # 0426-01385
