Condition: Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: CM3546 Stock #: 0226-00122

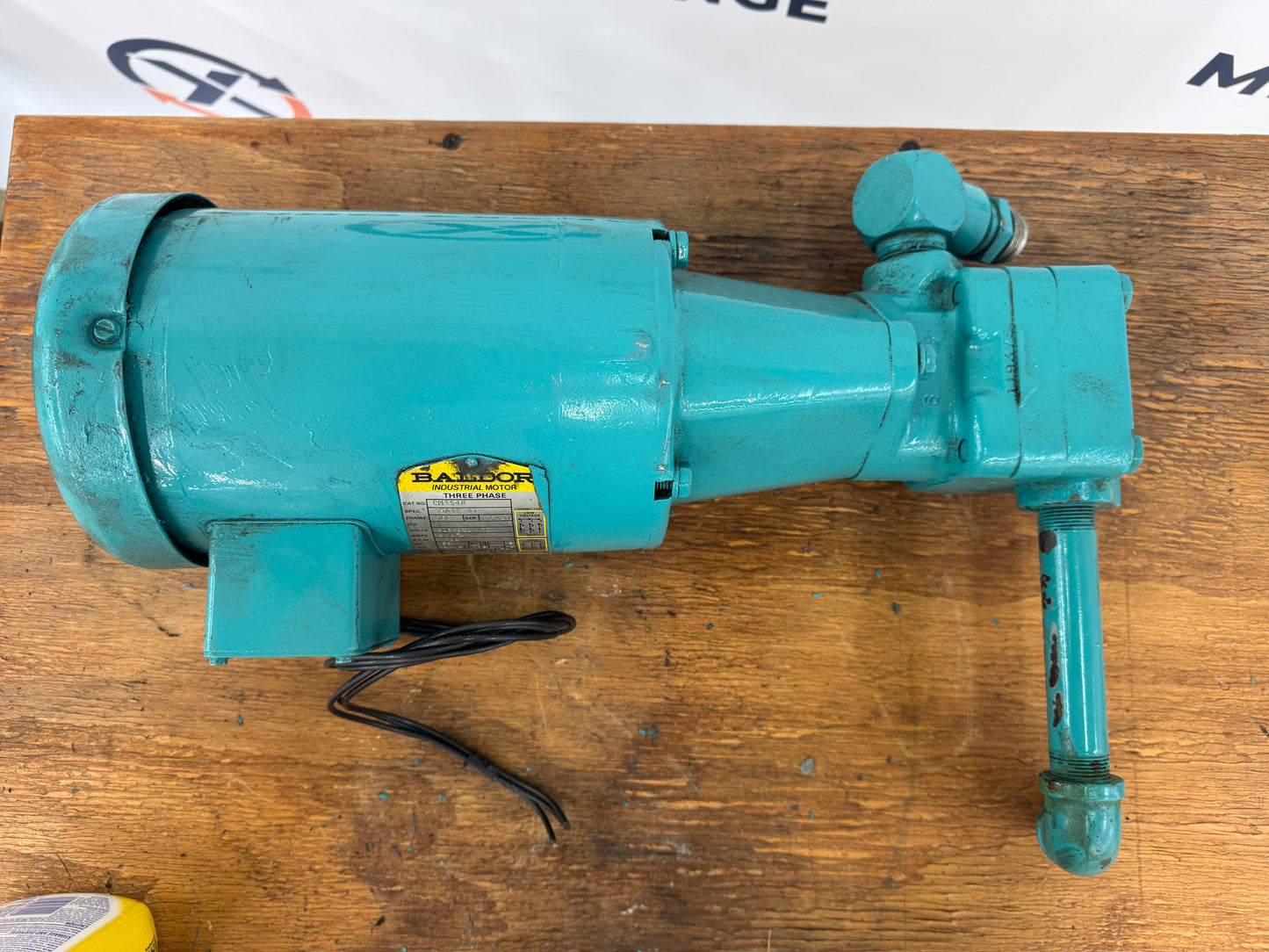

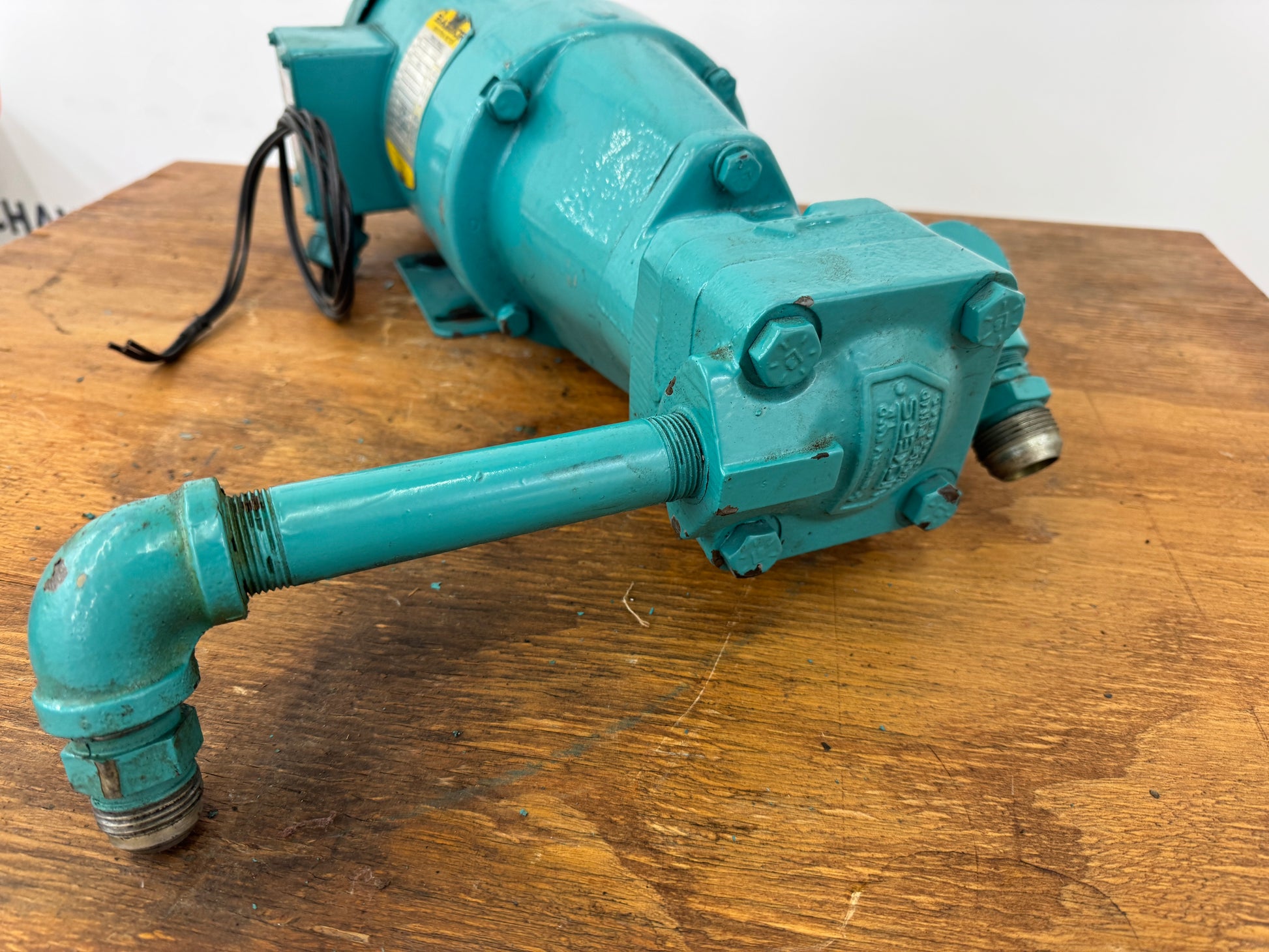

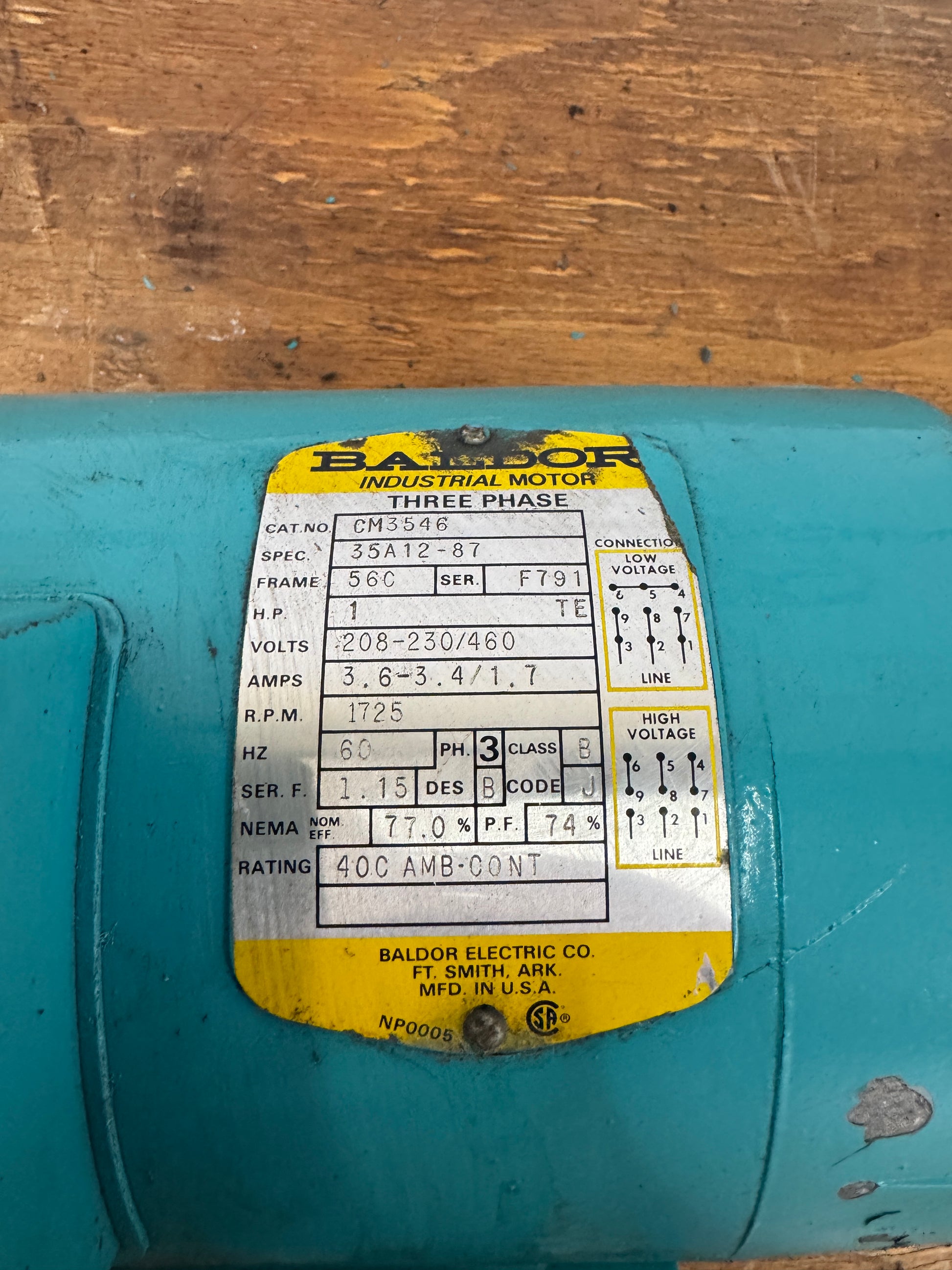

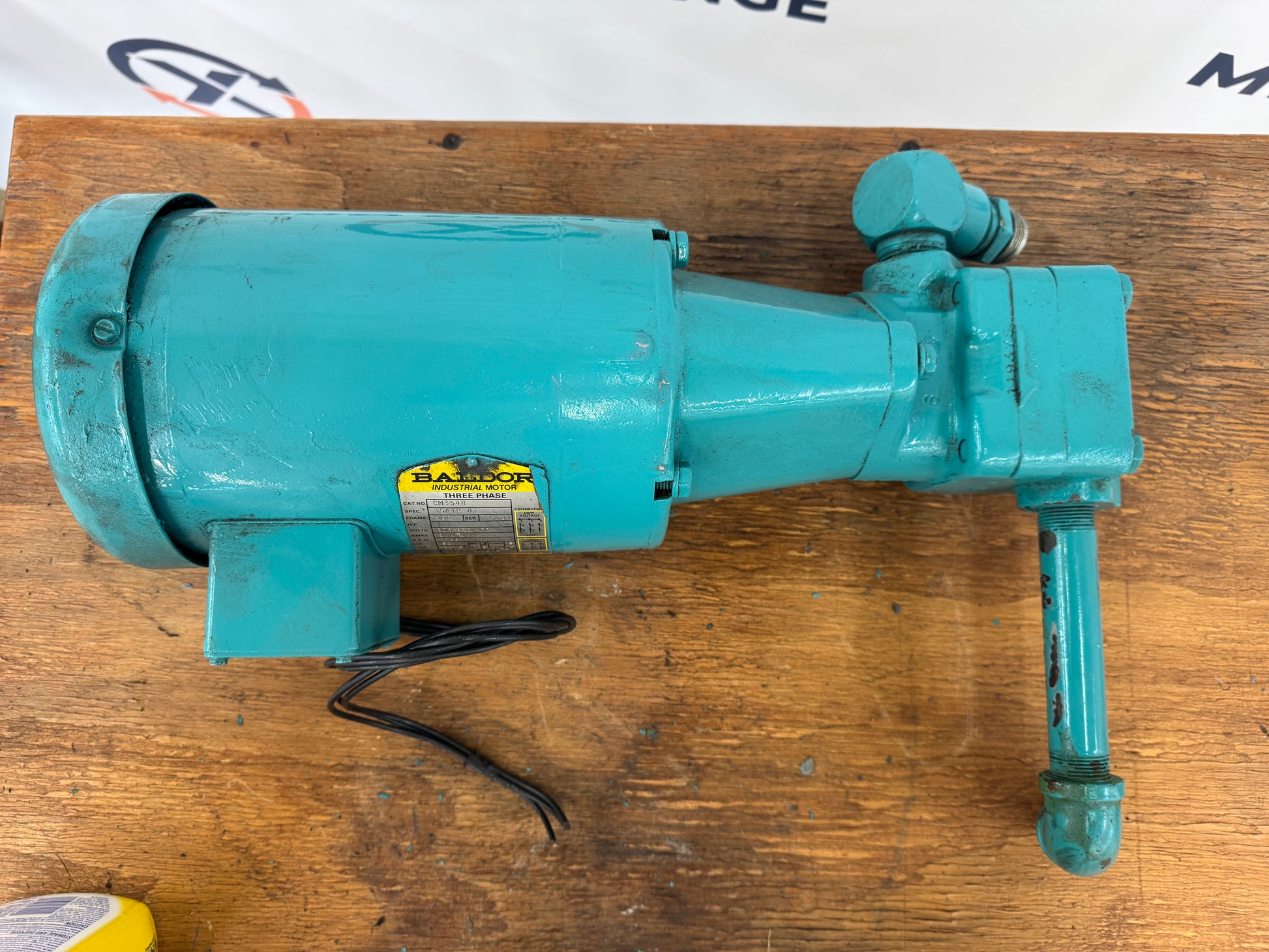

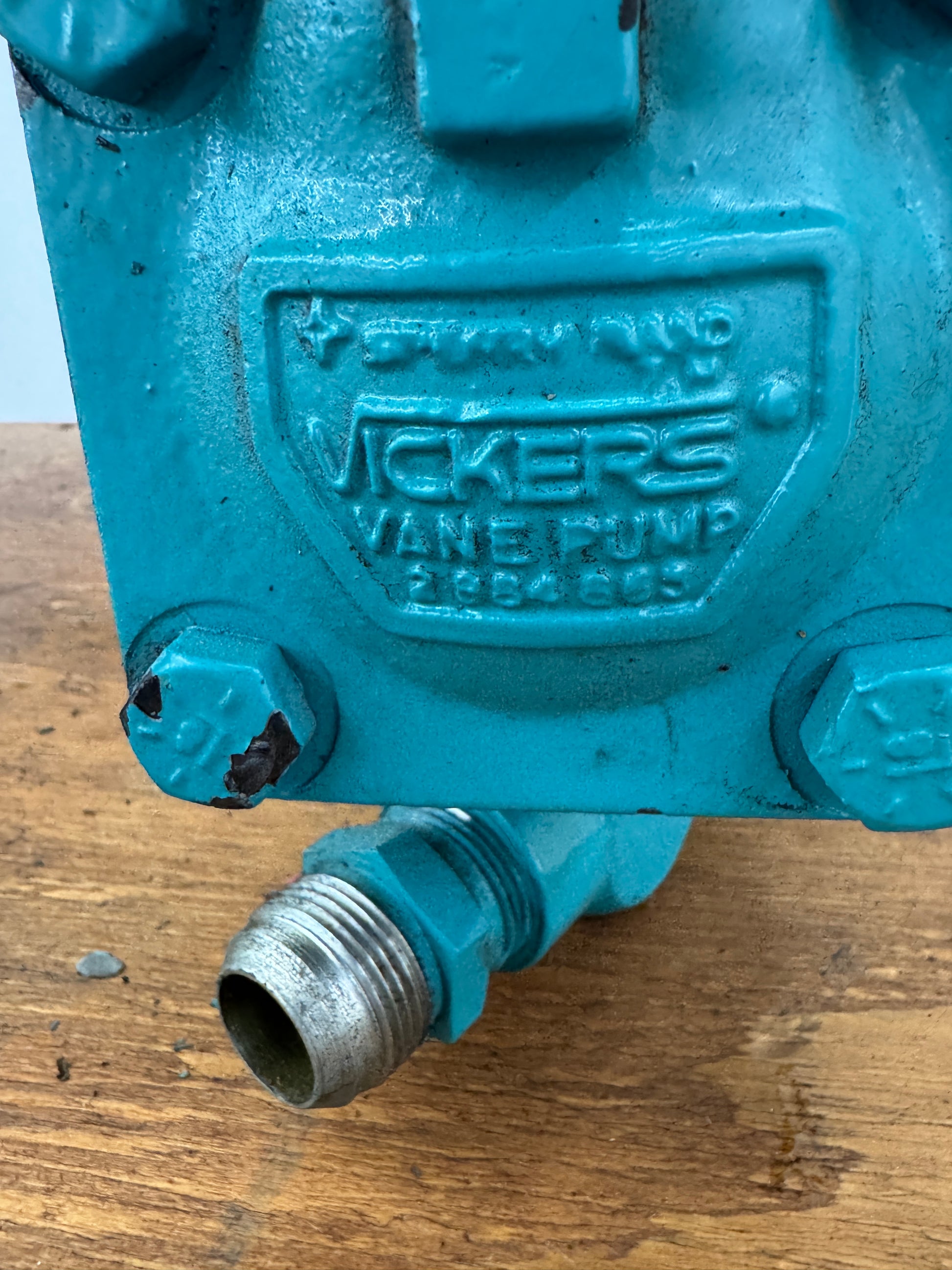

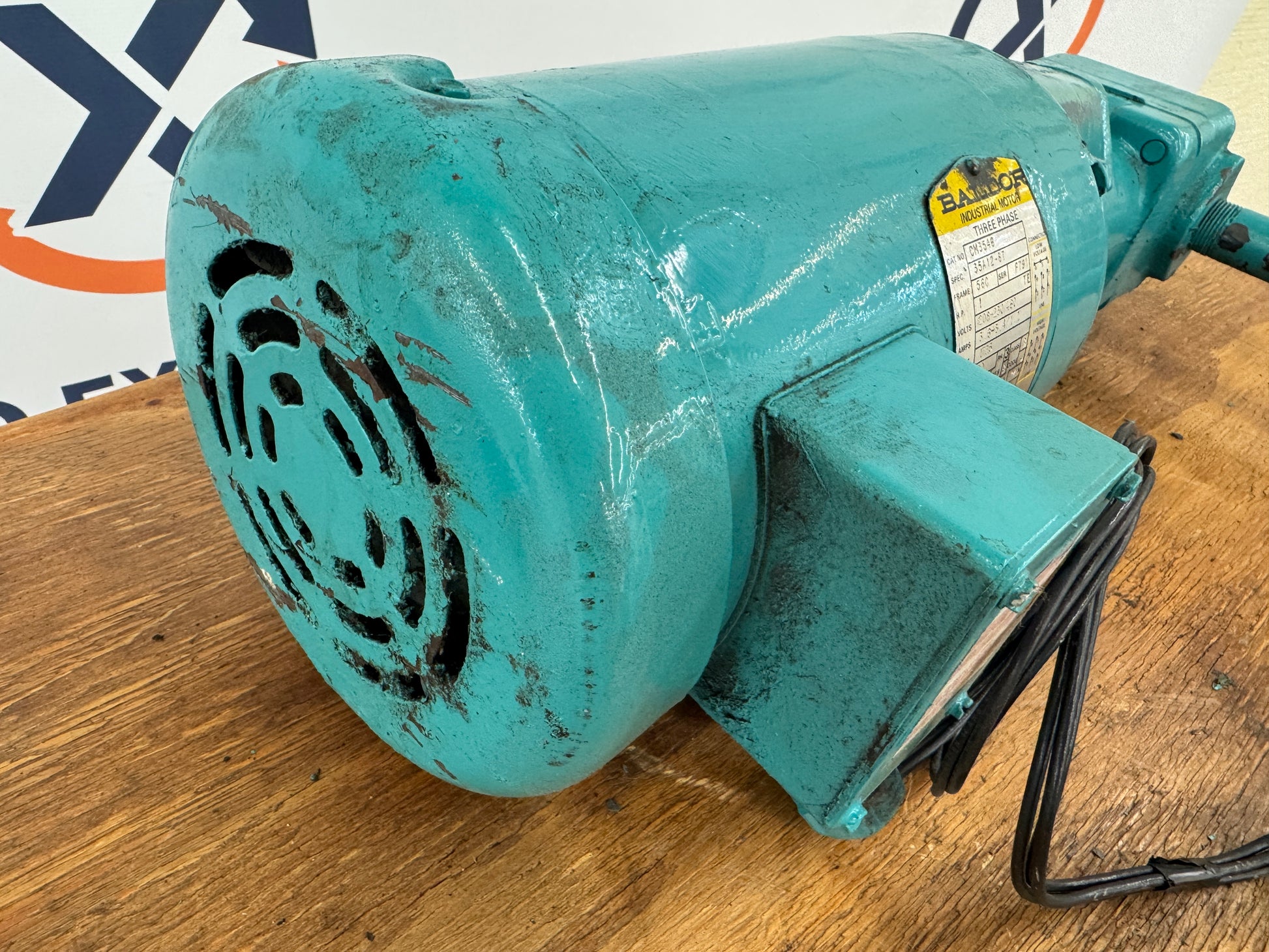

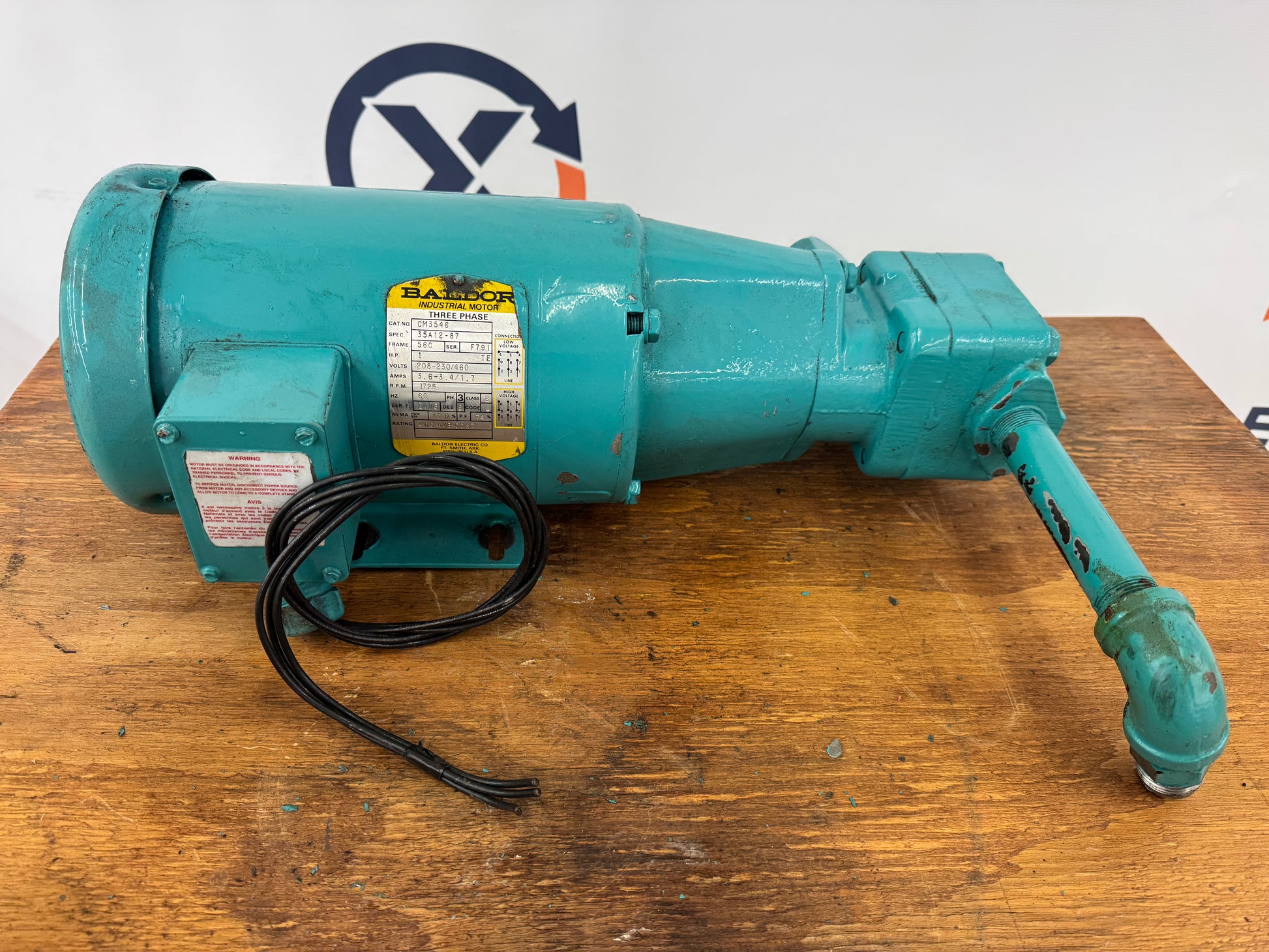

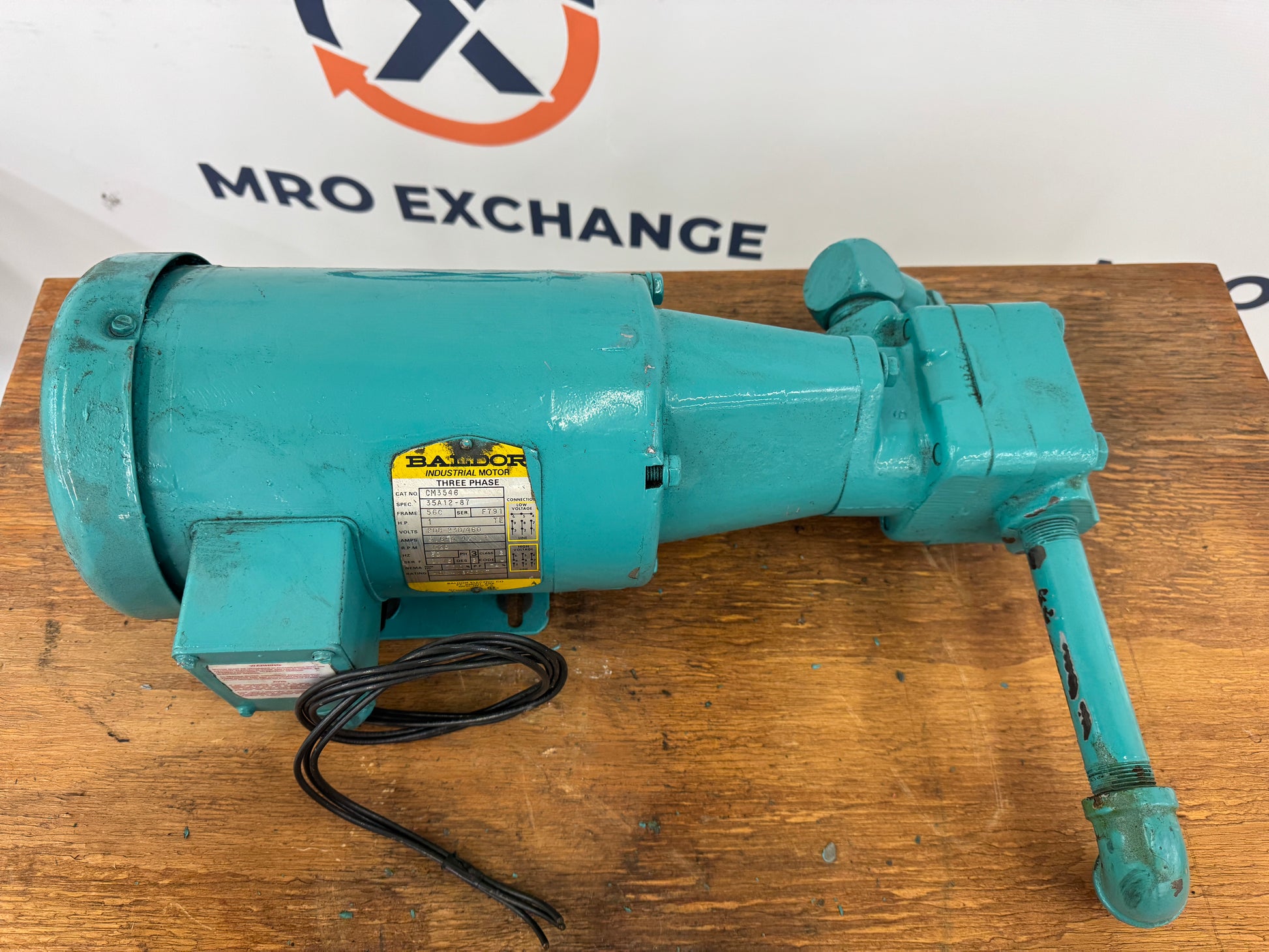

The Baldor CM3546 is a three phase TEFC industrial motor coupled to a Vickers vane pump in a complete pump and motor assembly. The motor nameplate identifies catalog number CM3546, specification 35A12 87, frame 56C, serial F791, and is rated at 1 HP. Electrical ratings shown on the rating plate include 208 to 230 / 460 volts, 3.6 to 3.4 / 1.7 amps, 60 Hz, 3 phase, 1725 RPM nameplate speed, and a service factor of 1.15. The plate lists design code B, code letter J, NEMA nominal efficiency of 77.0 percent, power factor of 74 percent, and a 40 degrees Celsius ambient continuous rating. The motor was built by Baldor Electric Co. in Fort Smith, Arkansas, and carries the marking NP0005. The motor is connected to a Vickers vane pump, identified by the cast Vickers Vane Pump logo on the pump housing. Visible cast or stamped numbers on the pump body include the partial sequence 2284 followed by additional characters that are obscured by paint and not fully legible from the available photos. The assembly is supplied with a flexible conduit whip and discharge plumbing as pictured. Typical applications for this class of motor and pump assembly include hydraulic power units, machine tool lube and coolant systems, press feeders, and small industrial hydraulic circuits where a low horsepower three phase prime mover drives a fixed displacement vane pump.
