Westinghouse HMCP003A0C Motor Circuit Protector 600 VAC / 250 VDC Untested Surplus 1757
Westinghouse HMCP003A0C Motor Circuit Protector 600 VAC / 250 VDC Untested Surplus 1757
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested

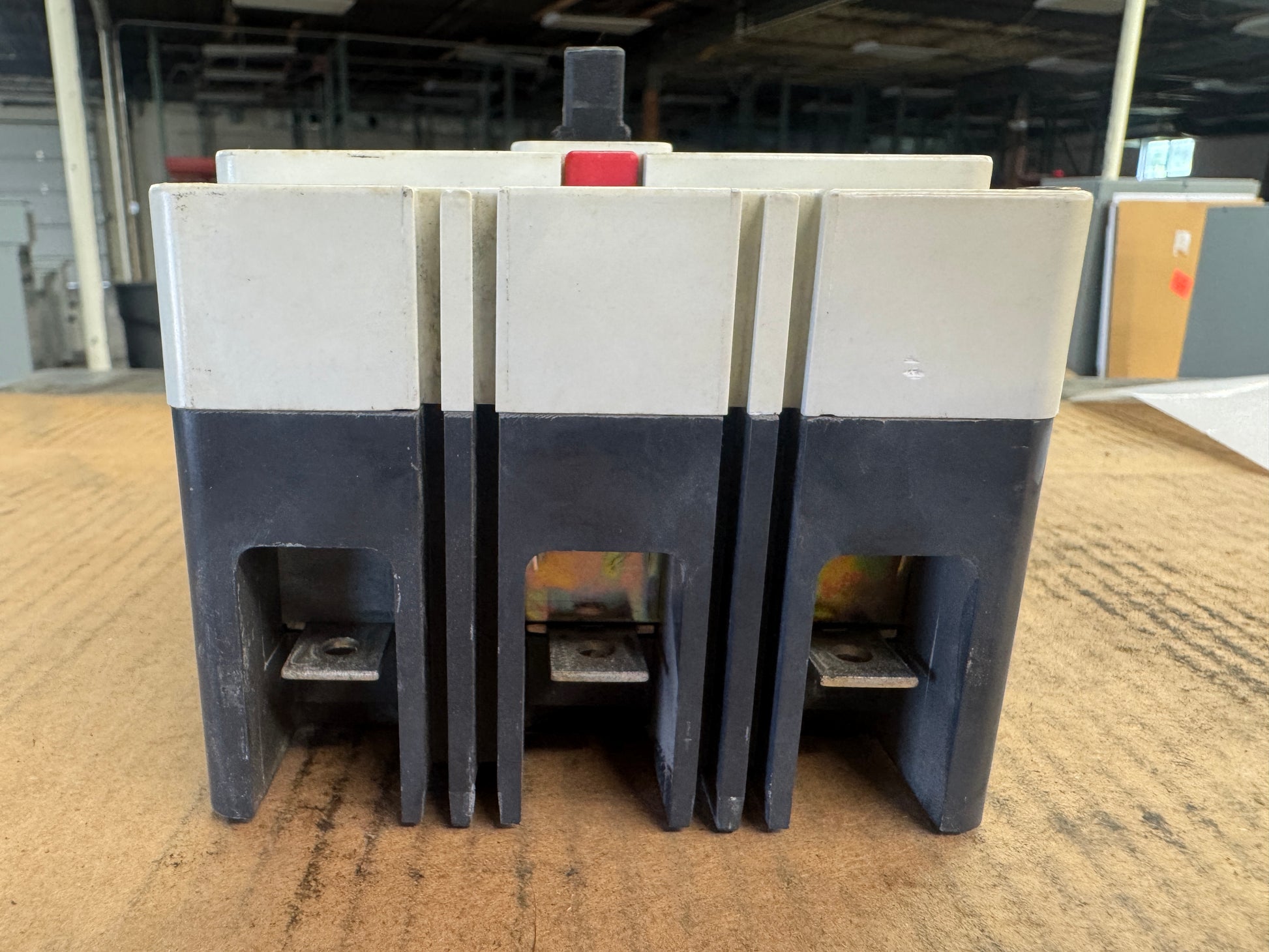

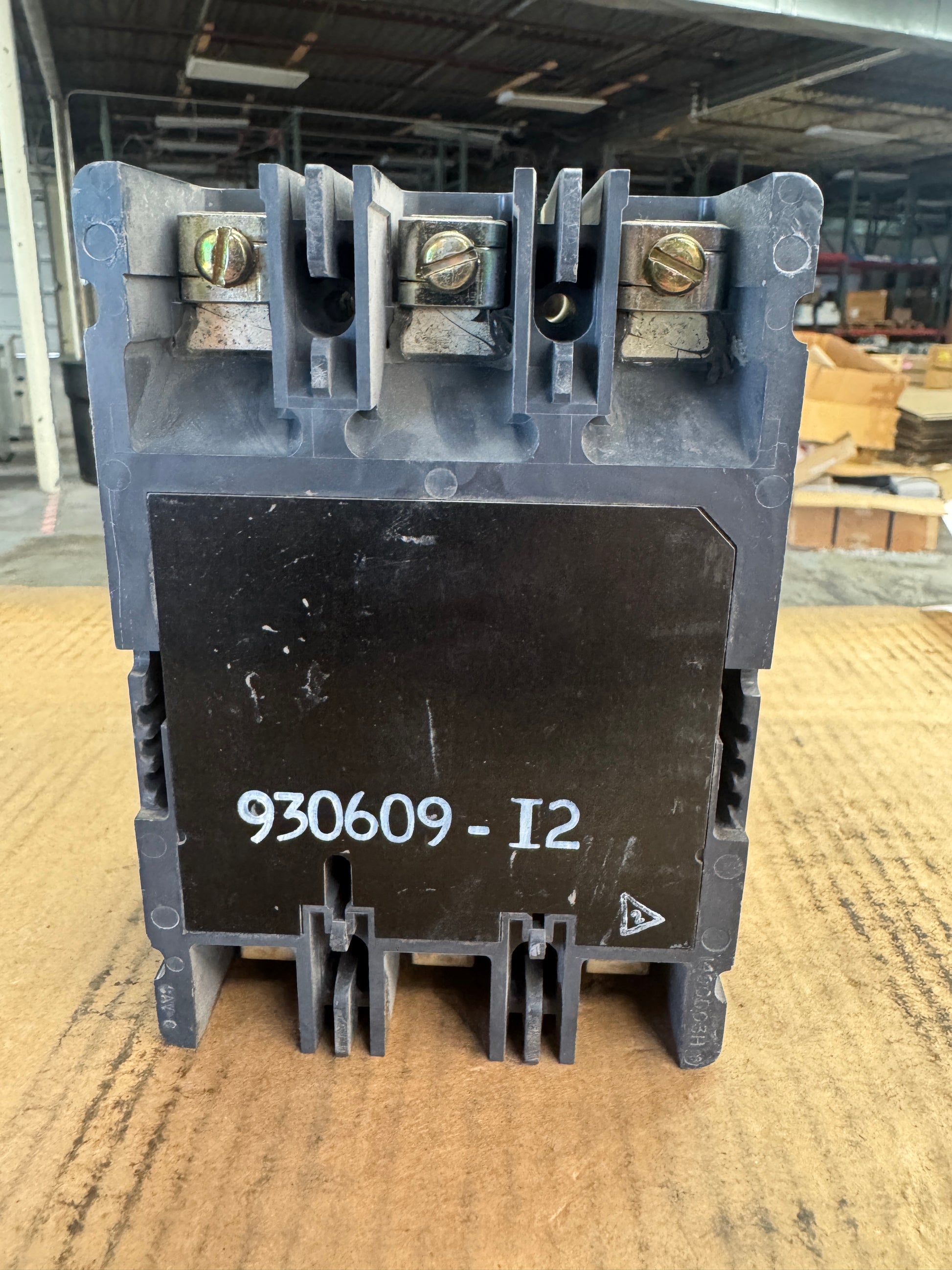

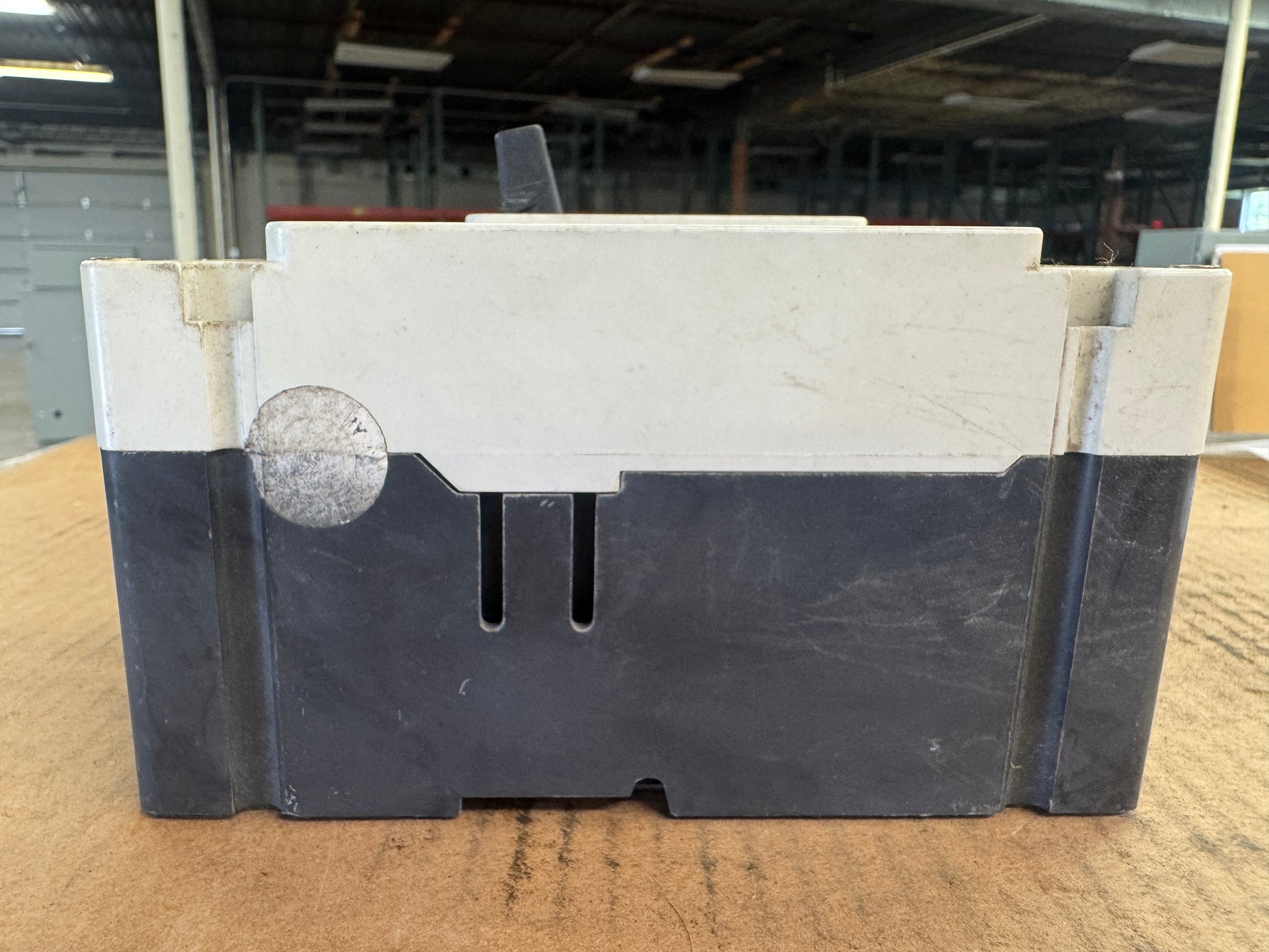

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: HMCP003A0C
Stock #: Stock # 0626-01757
Product Specifications
- Manufacturer: Westinghouse
- MPN / Model: HMCP003A0C
- Product Type: Motor Circuit Protector
- Series: Series C
- Type: HMCP
- Amperage: 3 Amps
- Poles: 3 Pole
- Voltage: 600VAC, 250VDC
- Instantaneous Trip Range: 9 to 30 Amps (Settings A through H)
- Style: 6630C87G03
- Wire Rating: 60/75C Wire CU/AL (UL), 60/75C Wire CU Only (CSA)
- Approvals: UL, CSA
Product Description

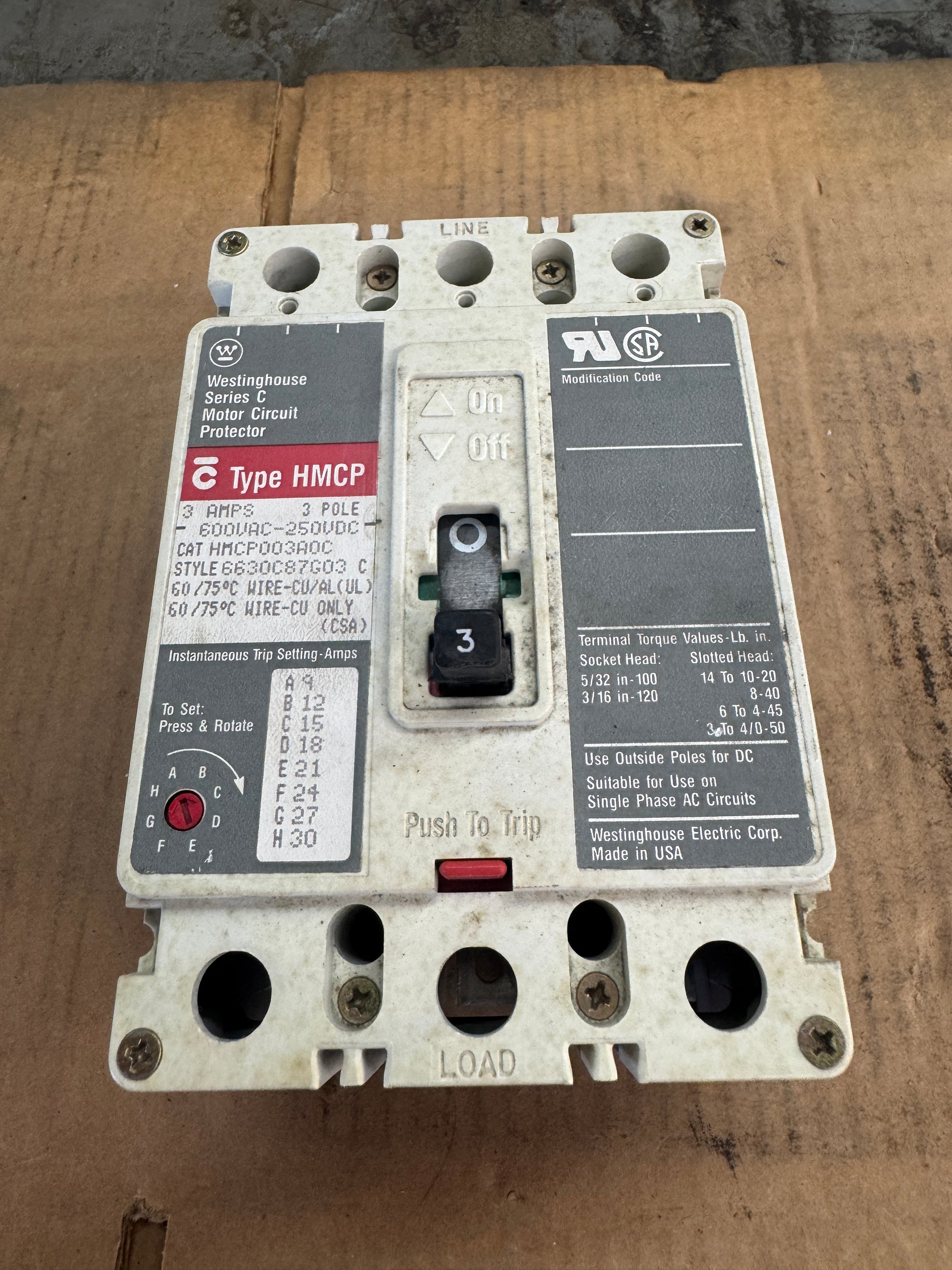

This Westinghouse Series C Motor Circuit Protector is identified by catalog number HMCP003A0C, Type HMCP, with style number 6630C87G03 confirmed on the nameplate. It is a 3 pole device rated 3 Amps at 600VAC and 250VDC, with an adjustable instantaneous trip setting covering a 9 to 30 amp range across positions A through H selected by press and rotate. The nameplate confirms 60/75C copper and aluminum wire ratings under UL and 60/75C copper only under CSA, and the unit is suitable for use on single phase AC circuits with outside poles used for DC. Buyers matching an exact Westinghouse or Cutler Hammer HMCP catalog number for motor branch circuit protection, replacement, or spare inventory can use the visible MPN and style number to confirm fitment against existing equipment.
