Westinghouse HMCP030H1C Motor Circuit Protector 600V AC / 250V DC

$889.00 USD

Sale Sold out

ConditionSurplus - Untested MPNHMCP030H1C Stock #Stock # 0626-01638

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 5.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Product Specifications

Manufacturer: Westinghouse
MPN / Model: HMCP030H1C
Product Type: Motor Circuit Protector (Type HMCP)
Series: Series C
Style: 6630C87G11
Amperage: 30 Amps
Poles: 3 Pole
Voltage: 600VAC, 250VDC Maximum
Instantaneous Trip Setting Range: 90 to 300 Amps (A 90, B 120, C 150, D 180, E 210, F 240, G 270, H 300)
Wire Rating: 60/75°C Wire CU/AL (UL), 60/75°C Wire CU Only (CSA)
Approvals: UL, CSA
Country of Origin: Made in USA

Product Description

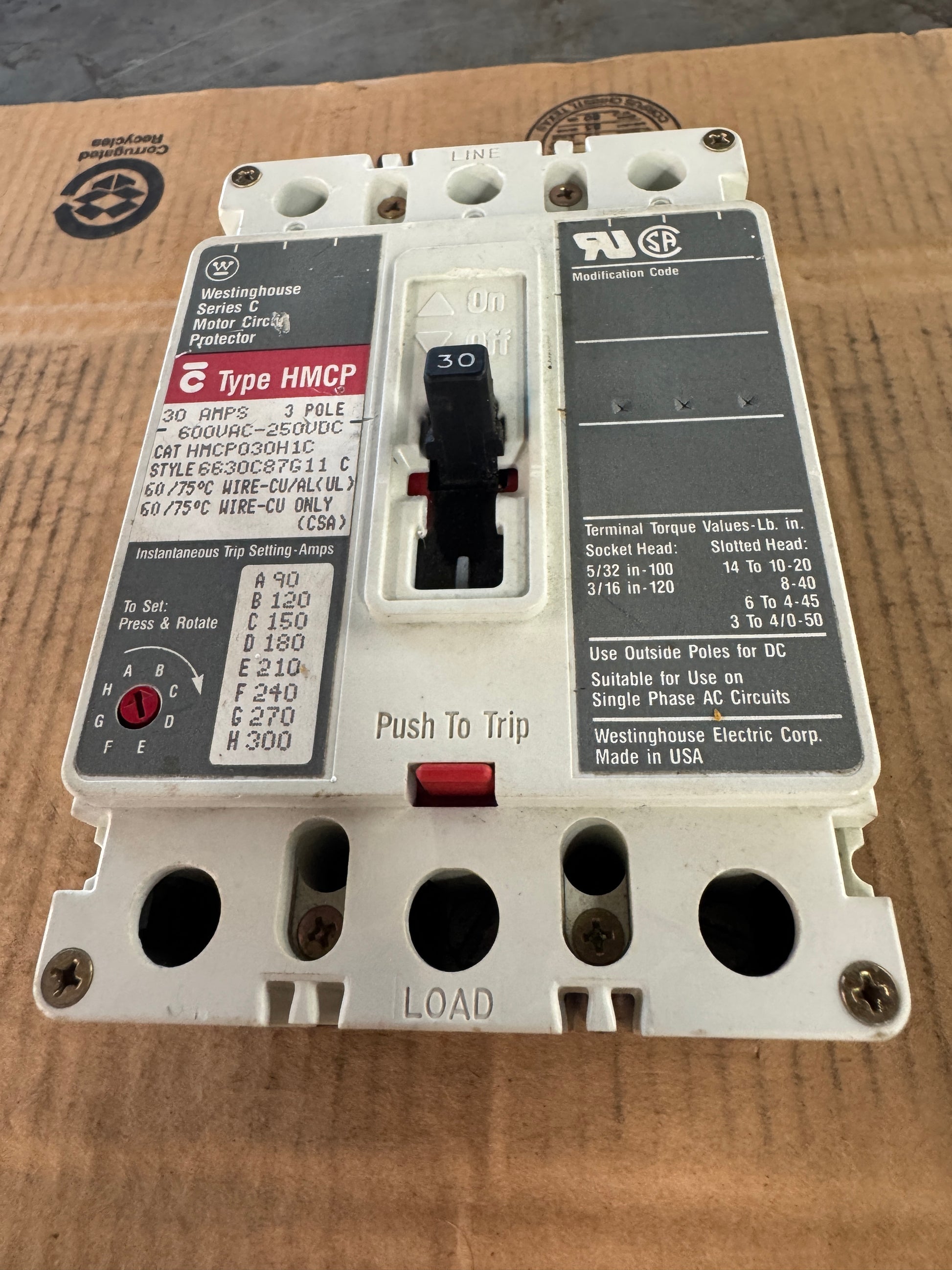

Westinghouse HMCP030H1C is a Type HMCP Series C motor circuit protector rated 30 Amps, 3 Pole, 600VAC and 250VDC maximum, identified by catalog number HMCP030H1C and style 6630C87G11. It uses an instantaneous magnetic only trip with an adjustable setting range of 90 to 300 amps, set by press and rotate through positions A 90 through H 300. The line and load terminals accept 60/75°C copper or aluminum wire per UL and copper only per CSA, and the unit carries UL and CSA approvals.

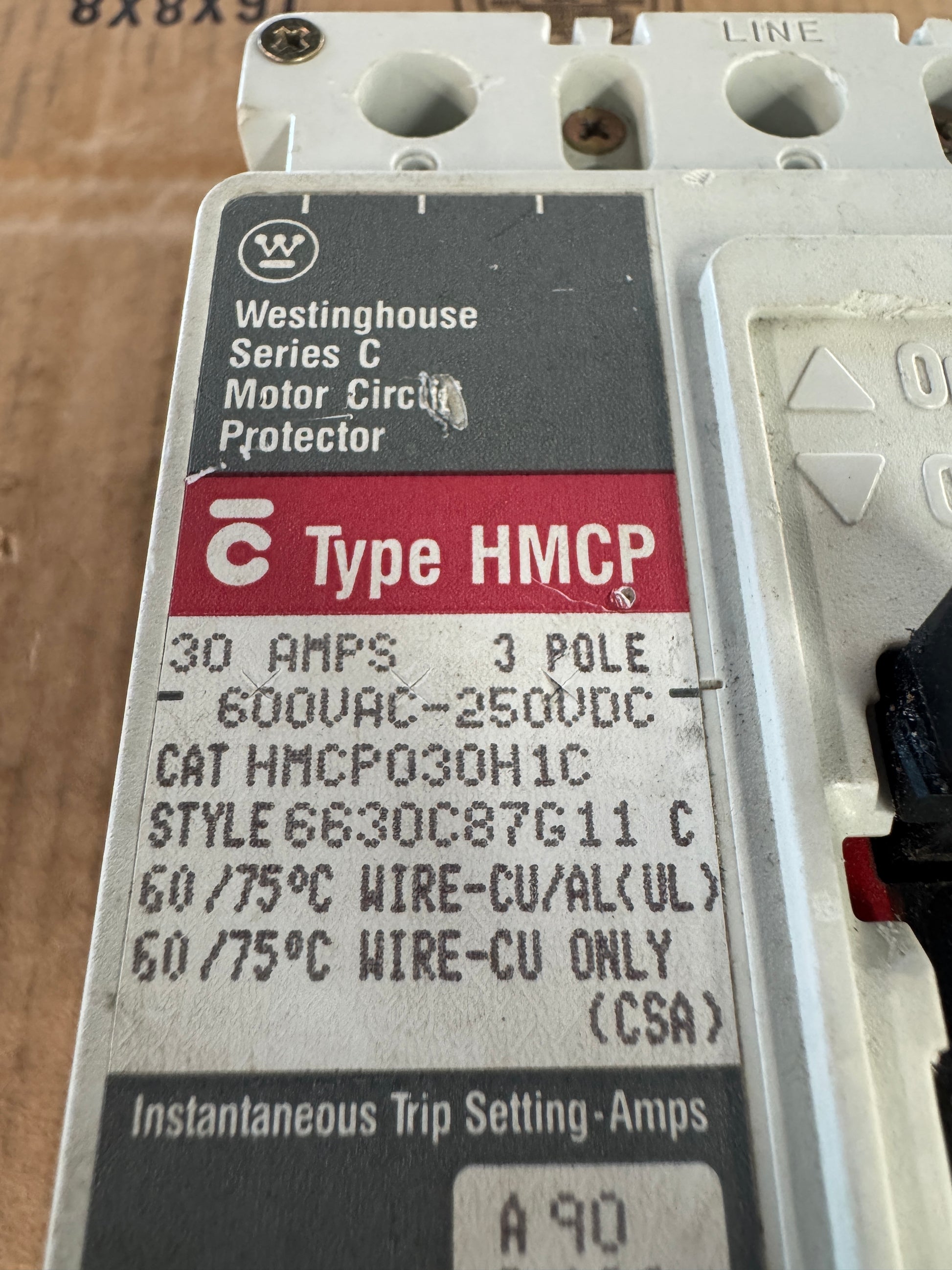

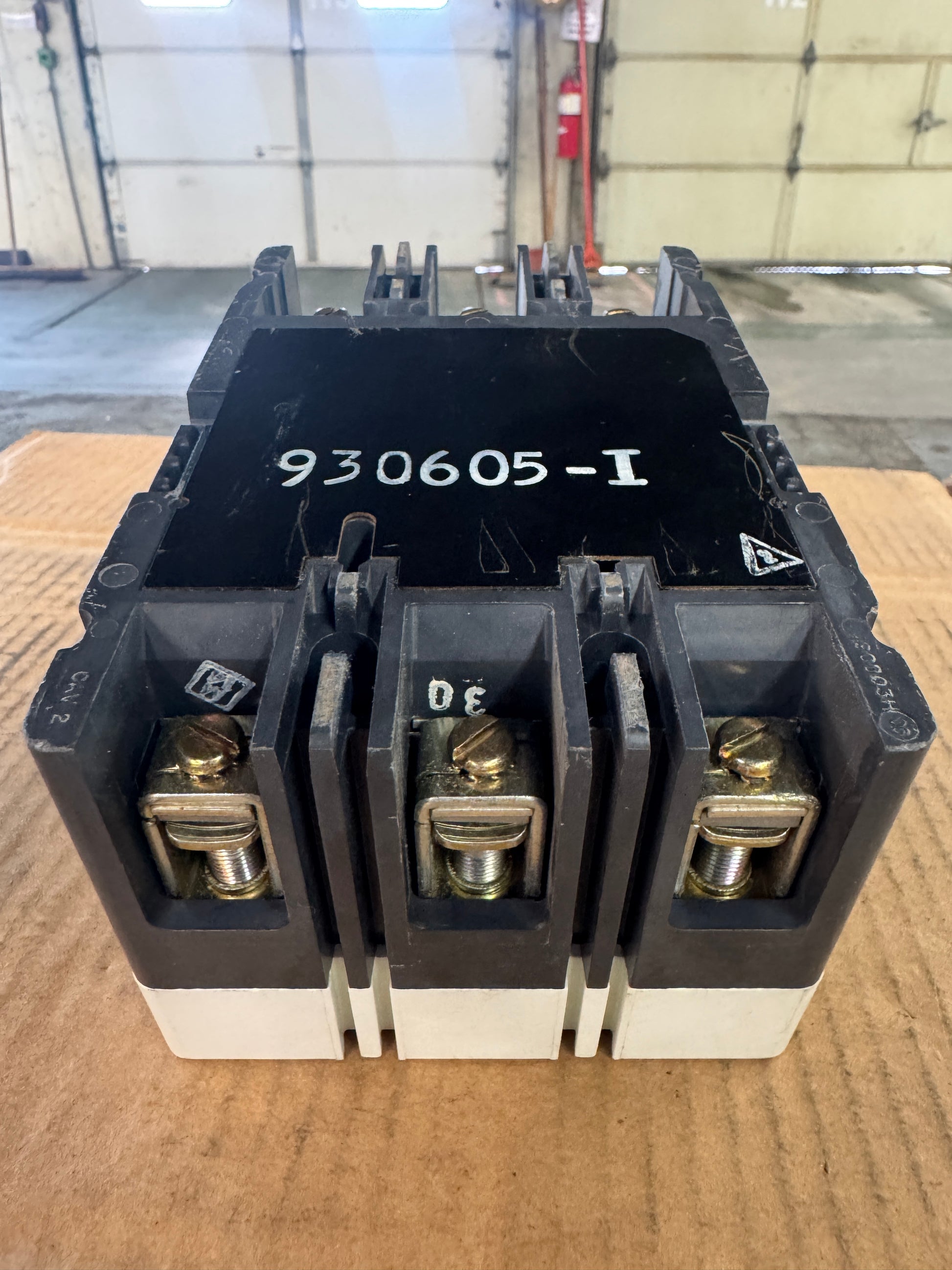

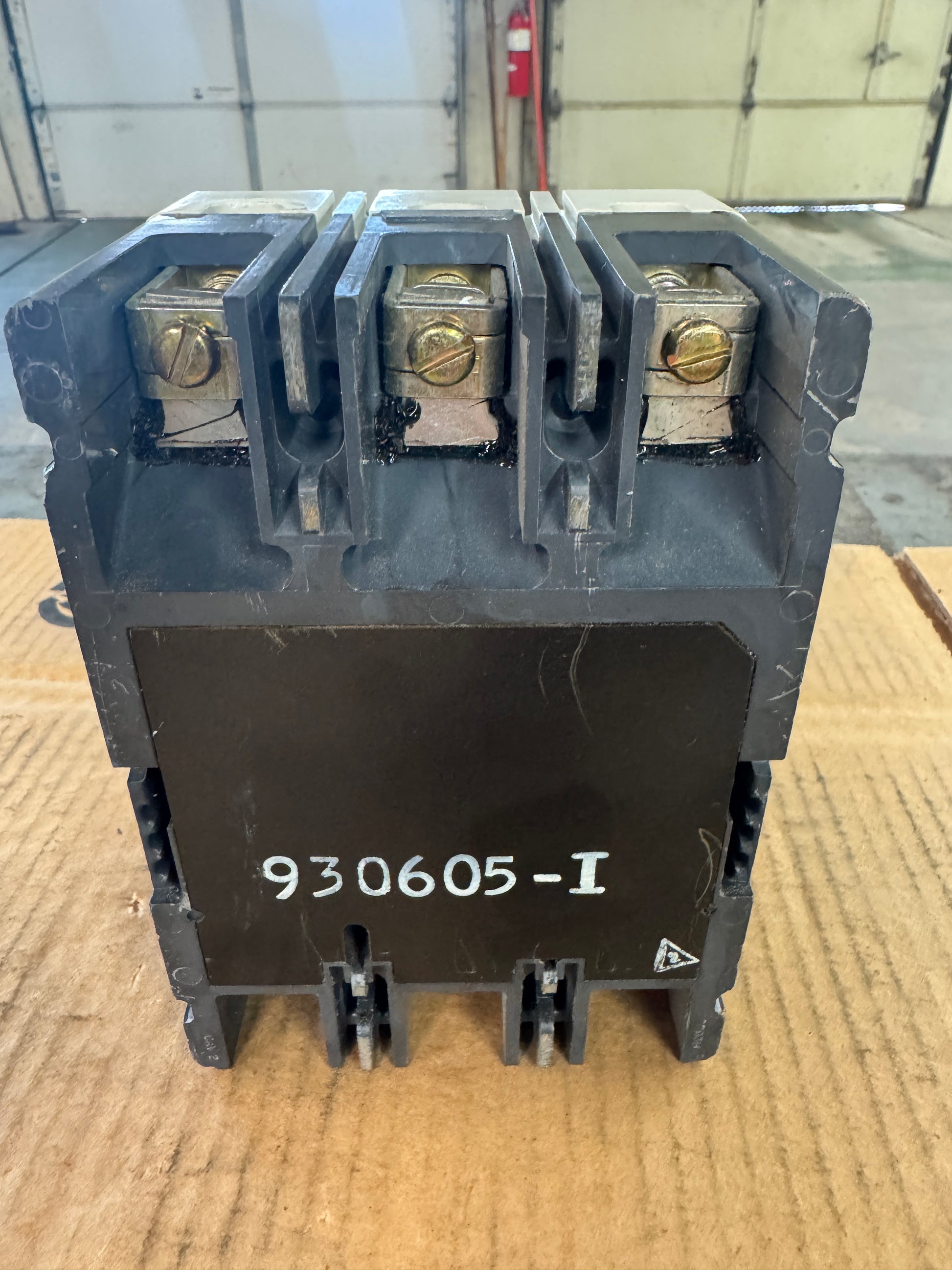

This listing is identified by the exact Westinghouse catalog number HMCP030H1C and is useful for maintenance buyers, MRO purchasing teams, and automation technicians matching an HMCP type motor circuit protector for motor feeder short circuit protection, spare inventory, or replacement sourcing. The unit is offered as used surplus and is not tested. Buyers comparing surplus options should use the exact catalog number and the visible nameplate data, including the 6630C87G11 style and the 90 to 300 amp trip range, to confirm the part matches their existing equipment. The internal reference marking 930605-I is present on the housing.
