Westinghouse Molded Case Circuit Breaker KA3225F 600V AC
Westinghouse Molded Case Circuit Breaker KA3225F 600V AC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

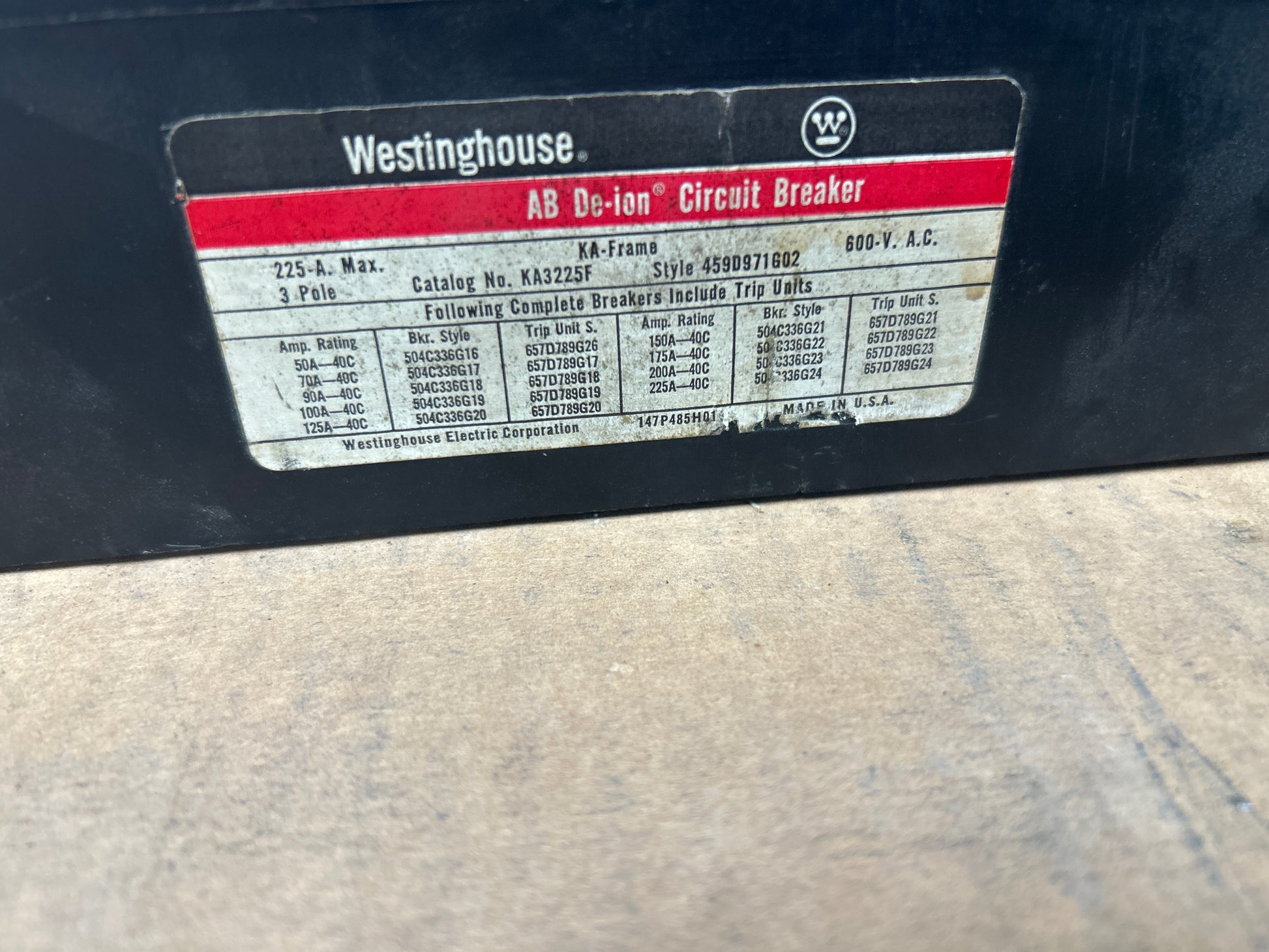

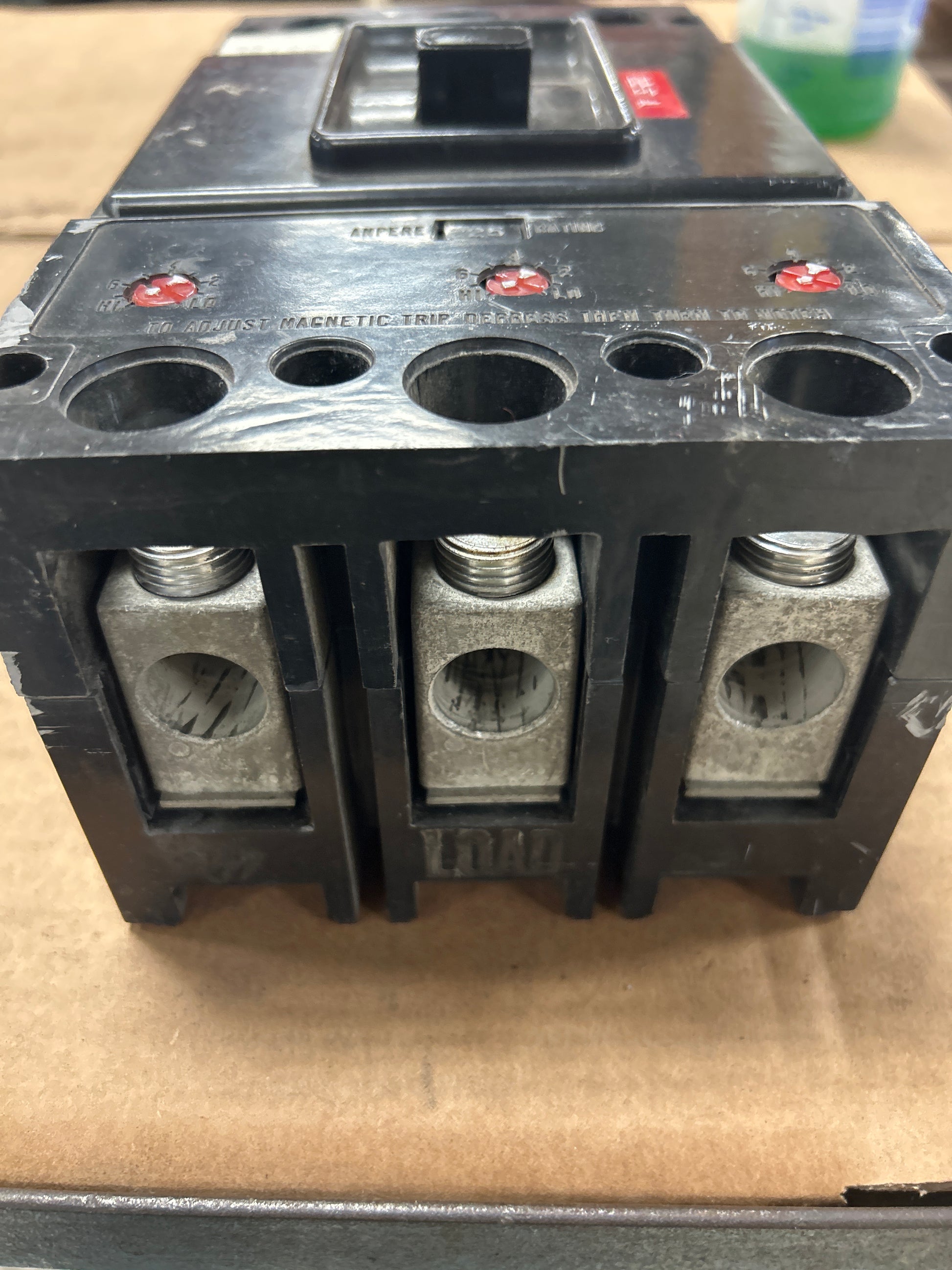

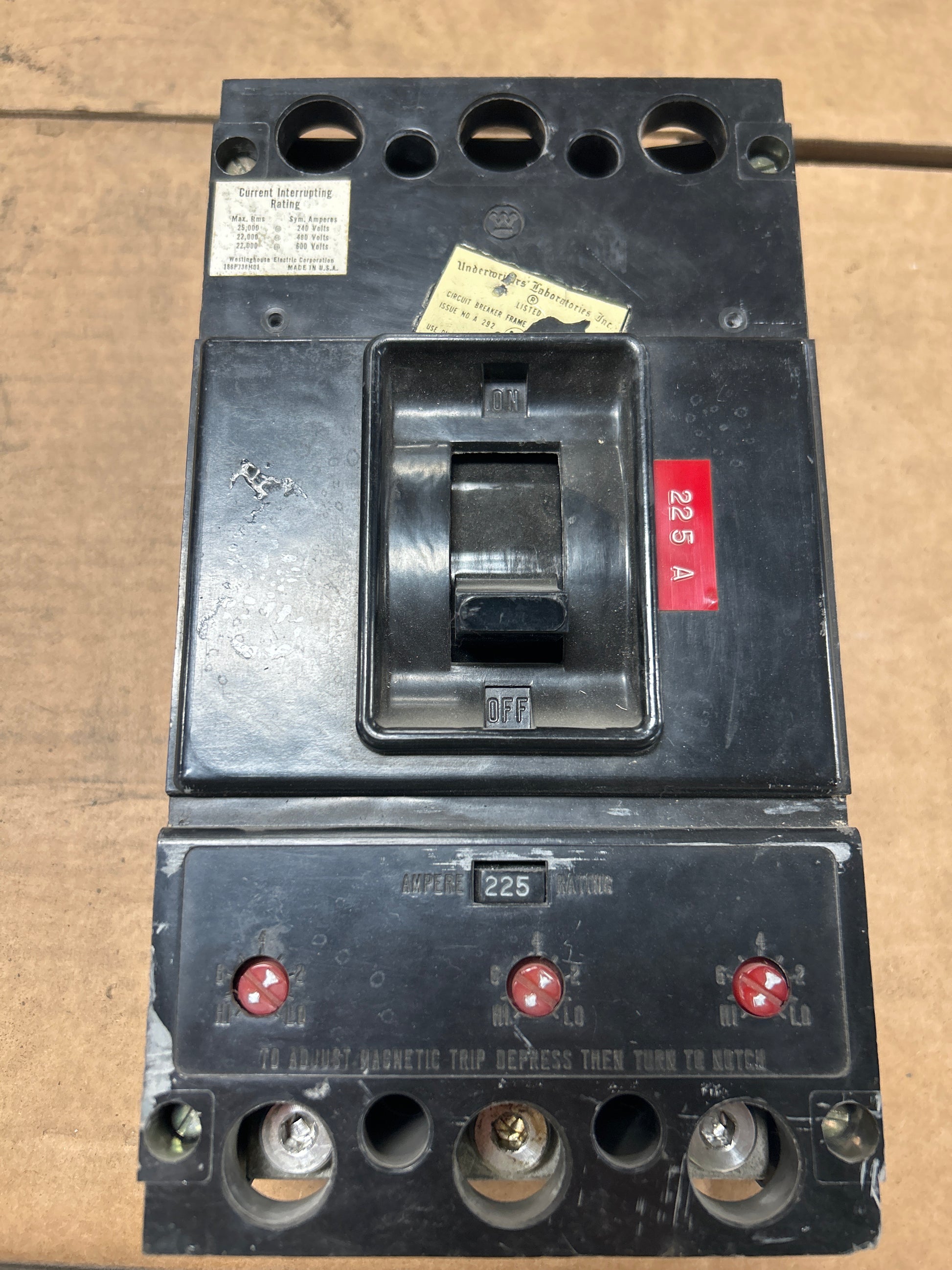

Used in industrial power distribution panels and motor control centers, the Westinghouse KA3225F is a 3-pole, 225-amp molded case circuit breaker rated for 600V AC service. Manufactured by Westinghouse Electric Corporation and made in the USA, this unit carries catalog number KA3225F, KA-Frame designation, and style number 459D971G02. The interrupting rating plate indicates 25,000 symmetrical amperes at 240V, 22,000A at 480V, and 22,000A at 600V. The trip unit is adjustable and the ampere rating window confirms a 225A trip setting. Three individual magnetic trip adjusters are accessible at the bottom of the breaker face, allowing field adjustment per the "Depress Then Turn to Notch" instruction molded into the housing. The bottom load-side terminals are equipped with large-barrel lugs suitable for heavy conductor terminations. The UL Listed label references Circuit Breaker Frame Issue No. A-197. This is an older production Westinghouse unit and is now cataloged under the Eaton/Cutler-Hammer product family as a legacy/obsolete part number. The item shows cosmetic wear consistent with prior panel installation, including surface marks on the housing and aged labels.
Stock # 0526-02459
