Yamazaki Mazak Controller Board IPM 300
Yamazaki Mazak Controller Board IPM 300
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

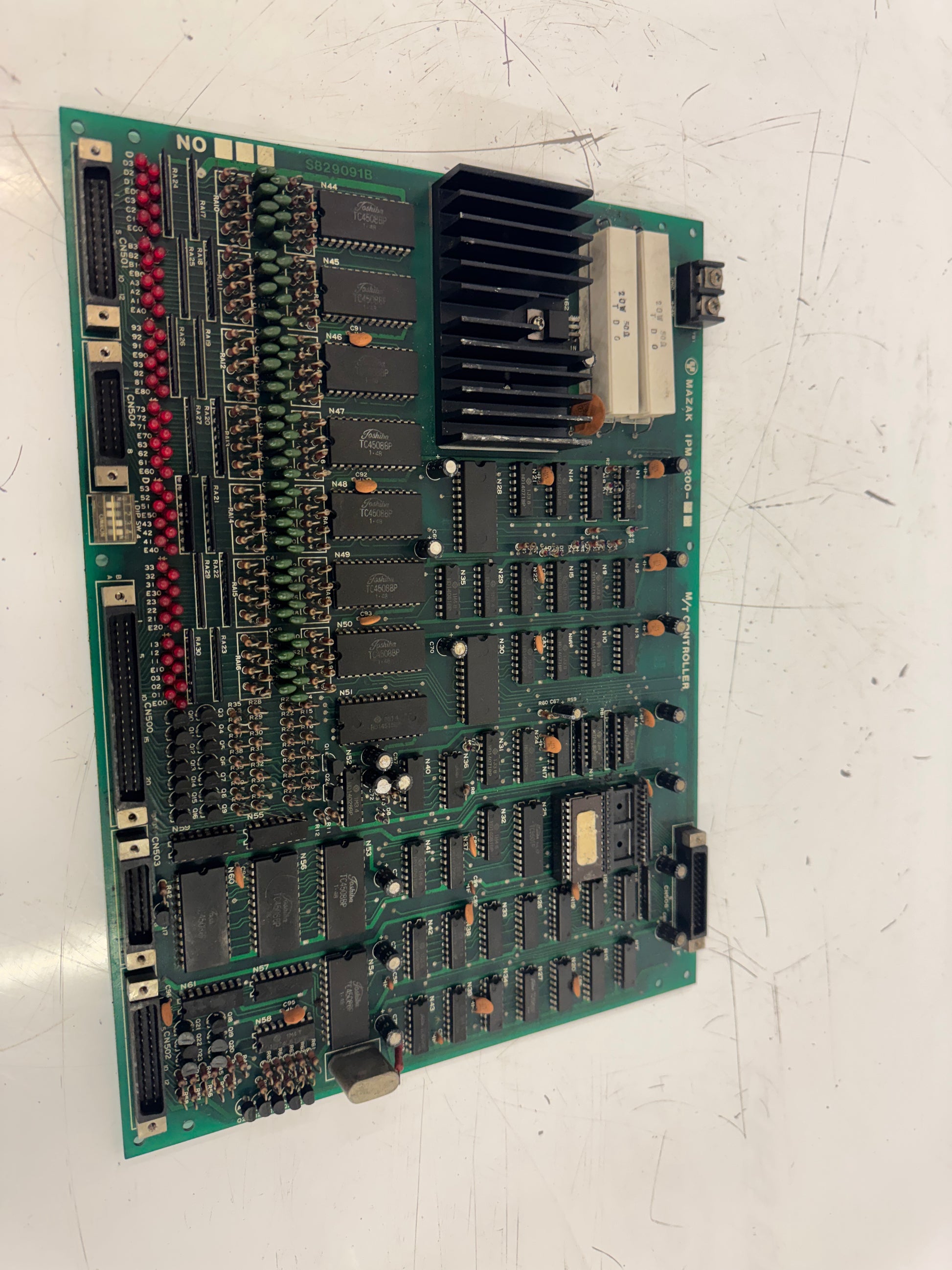

This listing is for a Yamazaki Mazak IPM 300 M/T Controller board, as identified by the Mazak logo and IPM 300 M/T CONTROLLER silkscreen printed along the right edge of the board. Connector designations CN500, CN502, CN503, and CN504 are visible along the left and lower edges of the board.
Populated components include multiple Toshiba TC4508BP dual 4-bit latch ICs at positions N47 through N51 and N56, a large black finned aluminum heat sink in the upper section, an array of green epoxy-coated toroidal inductors, red LED indicators along the upper left edge, and a dense population of logic ICs and passive components throughout. The board architecture is consistent with Mazak CNC machine tool I/O and machine controller board designs of the late 1980s generation.
Yamazaki Mazak is a globally recognized Japanese manufacturer of CNC machine tools and machining centers. This board is suited for use as a replacement or spare in compatible Mazak CNC machine tool control systems utilizing the IPM 300 control platform. Compatibility should be verified against OEM documentation and the specific machine configuration prior to installation. A complete part number should be confirmed via physical inspection of the board before purchase. Unit is offered as removed and has not been tested or recertified.
Stock # 0226-427
