Allen-Bradley AC Rotary Servo Motor MPL-B330P-SJ72AA - 2 kW 6000 RPM
Allen-Bradley AC Rotary Servo Motor MPL-B330P-SJ72AA - 2 kW 6000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: MPL-B330P-SJ72AA
Stock #: 0626-01520
Product Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- MPN / Model: MPL-B330P-SJ72AA
- Product Type: MP-Series Inverter Duty AC Rotary Servo Motor
- Series: MP-Series MPL
- Voltage: 460 V RMS L-L, 3 Phase
- Power: 1.8 kW / 2.4 HP
- Speed: 5000 RPM Max
- Frequency: 0 to 334 Hz
- Continuous Stall Torque: 4.18 Nm / 37 LB.IN.
- Continuous Stall Current: 6.1 Amps
- Ke: 100 V 0-Peak L-L/kRPM
- Resistance: 4.6 Ohms L-L, 25 C
- Insulation Class: 180 (H)
- Ambient Temperature: 40 C
- PWM Source: Voltage
- Enclosure Rating: IP 50 (IP66 with Seal)
- Weight: 4.6 kg / 10.0 lb
- Series / Revision: SER A
- Serial Number: SN 313116775
- Time Rating: Continuous
- OEM Reference: PN-12167
- Date Code: 2023/06/28
- Country of Origin: Mexico
Product Description

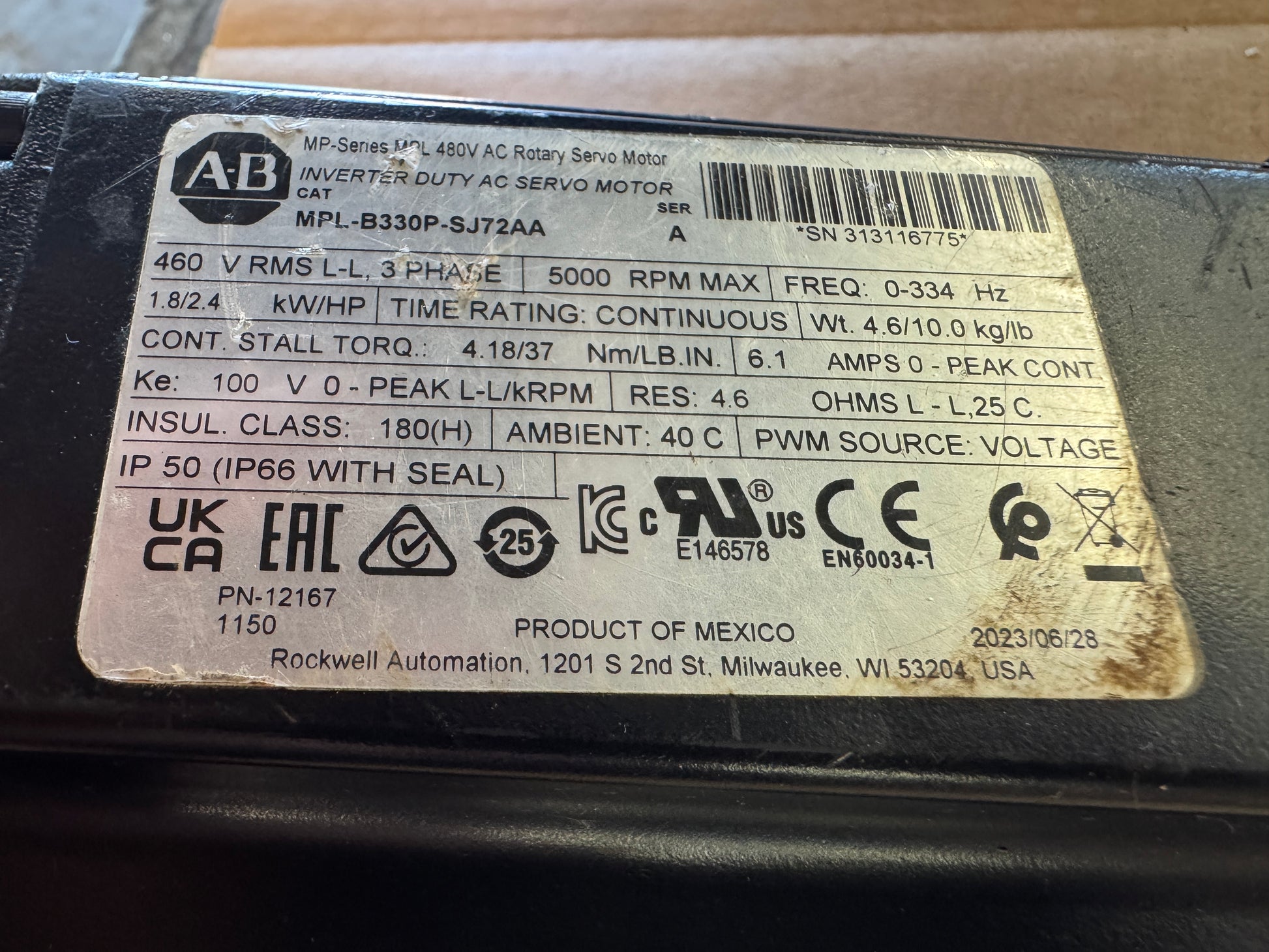

Allen-Bradley MPL-B330P-SJ72AA is an MP-Series Inverter Duty AC Rotary Servo Motor manufactured by Rockwell Automation. The nameplate confirms catalog number MPL-B330P-SJ72AA, Series A, with serial number SN 313116775 and a date code of 2023/06/28, indicating recent manufacture.

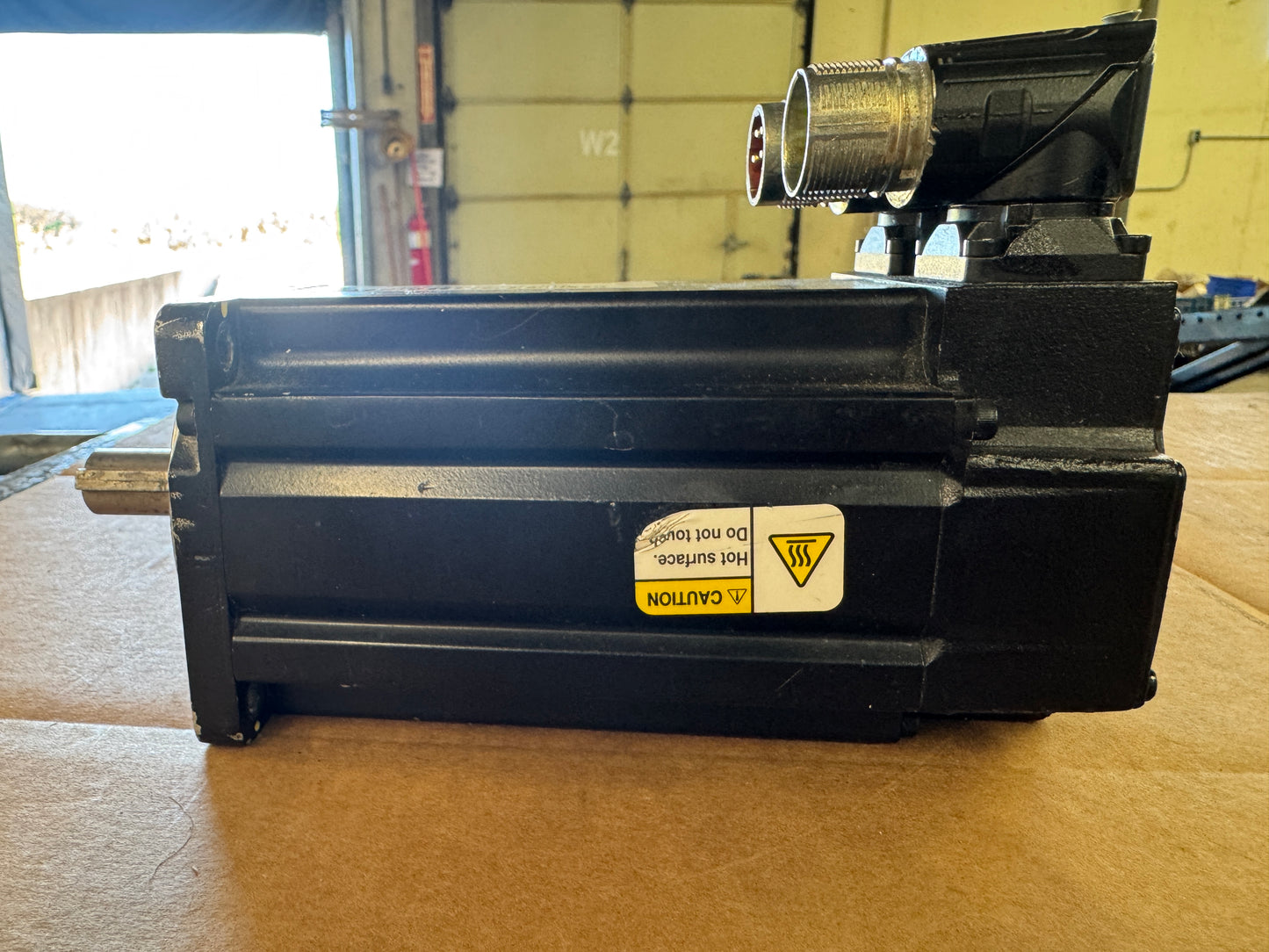

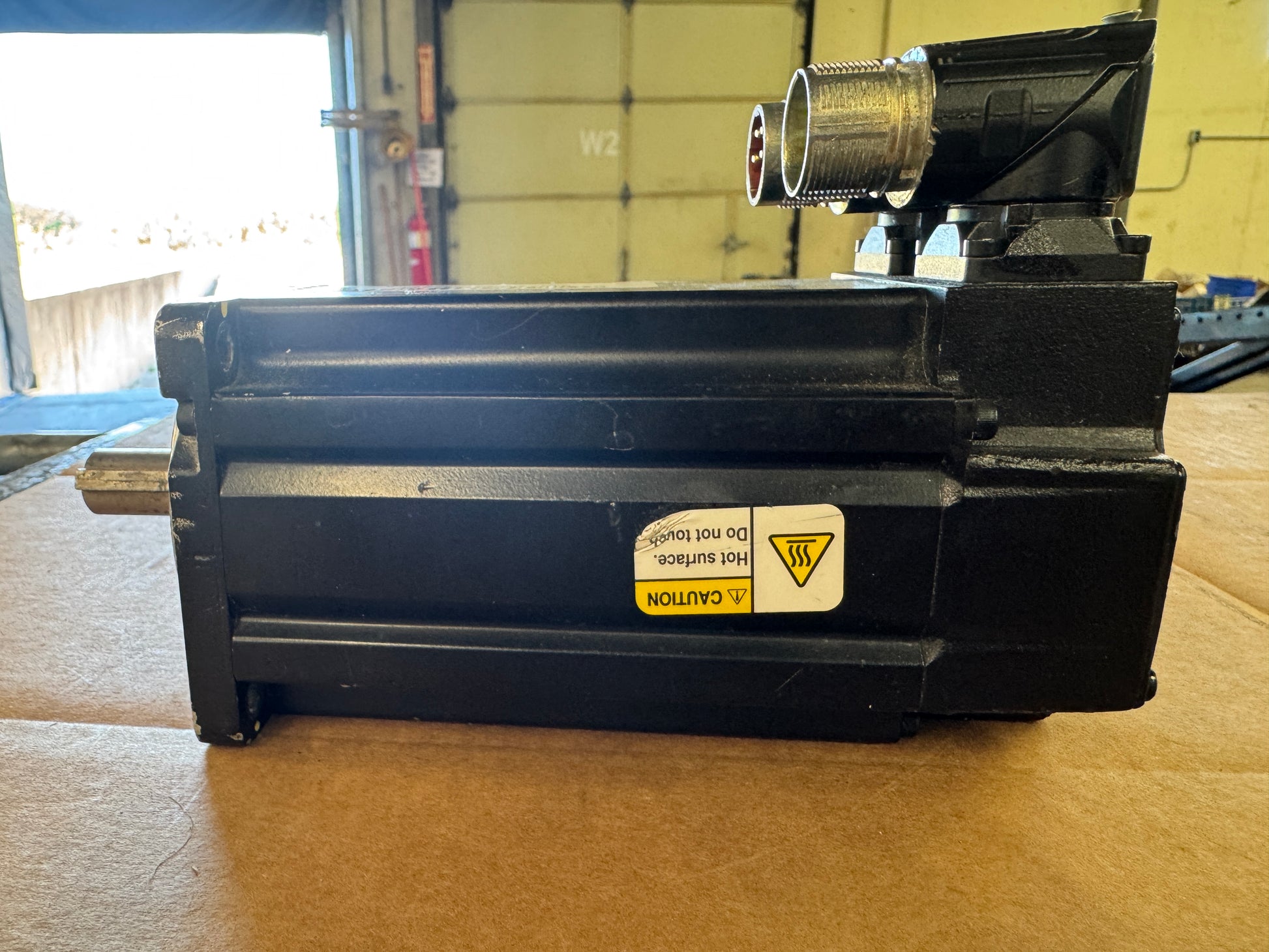

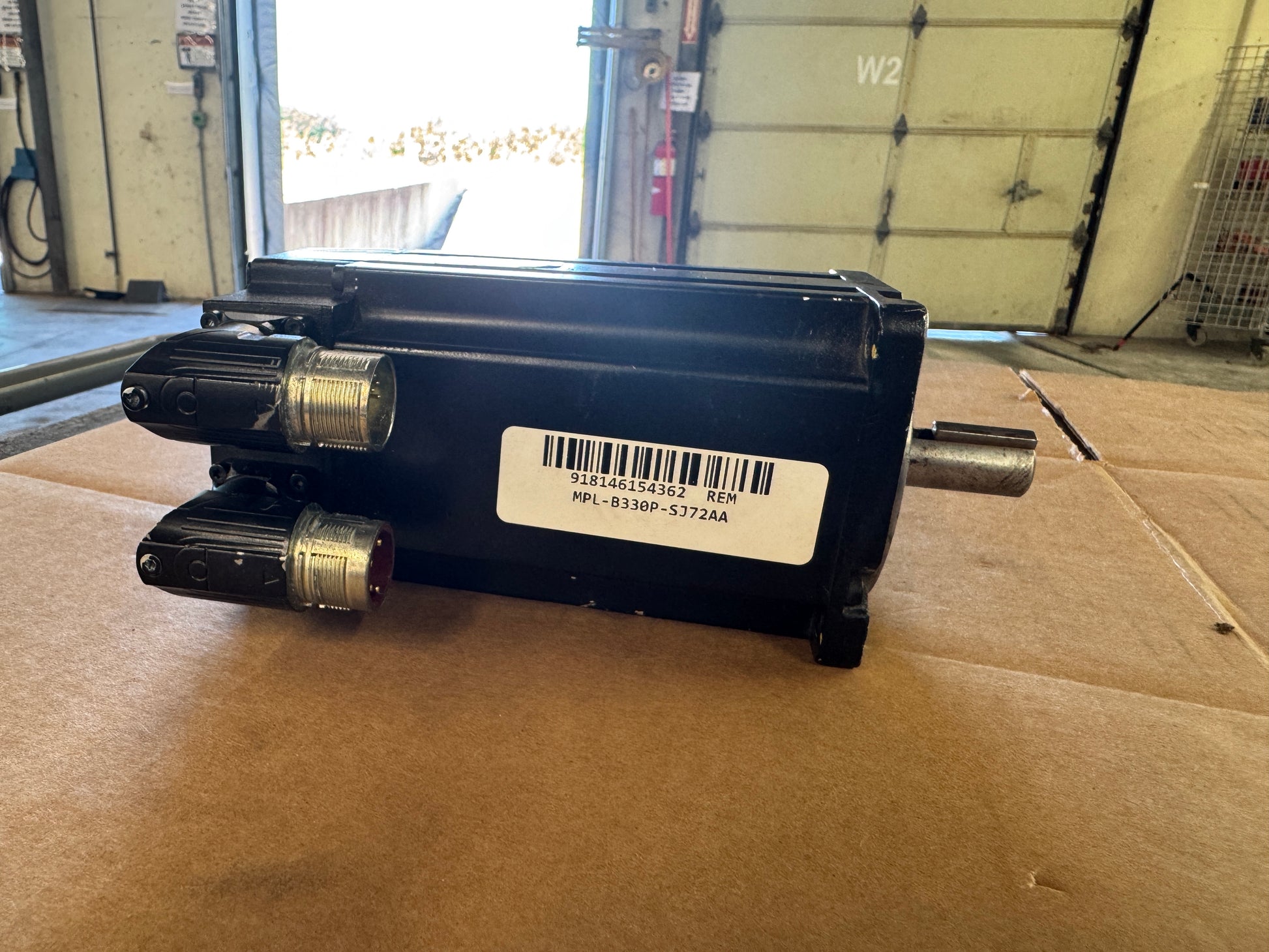

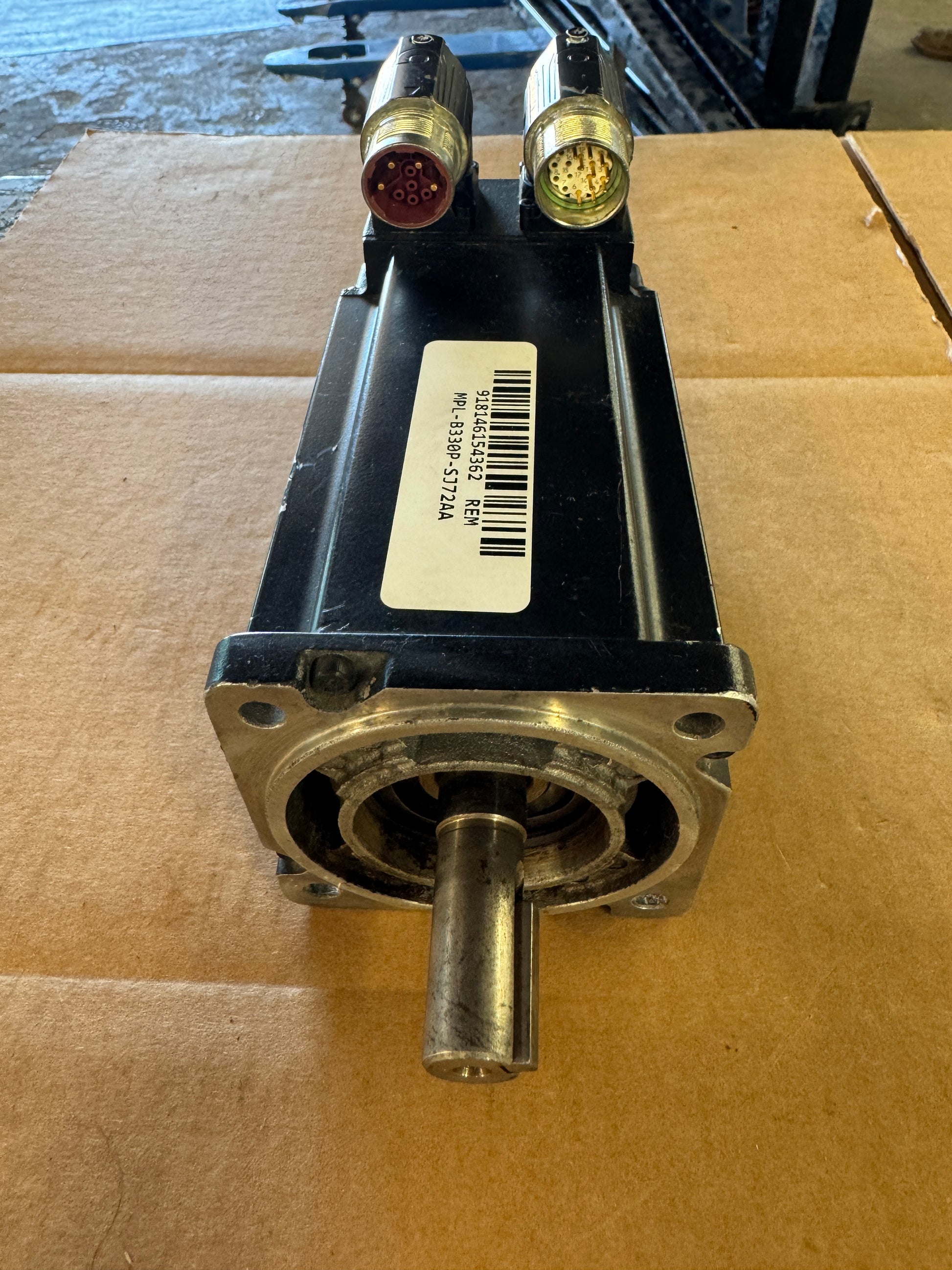

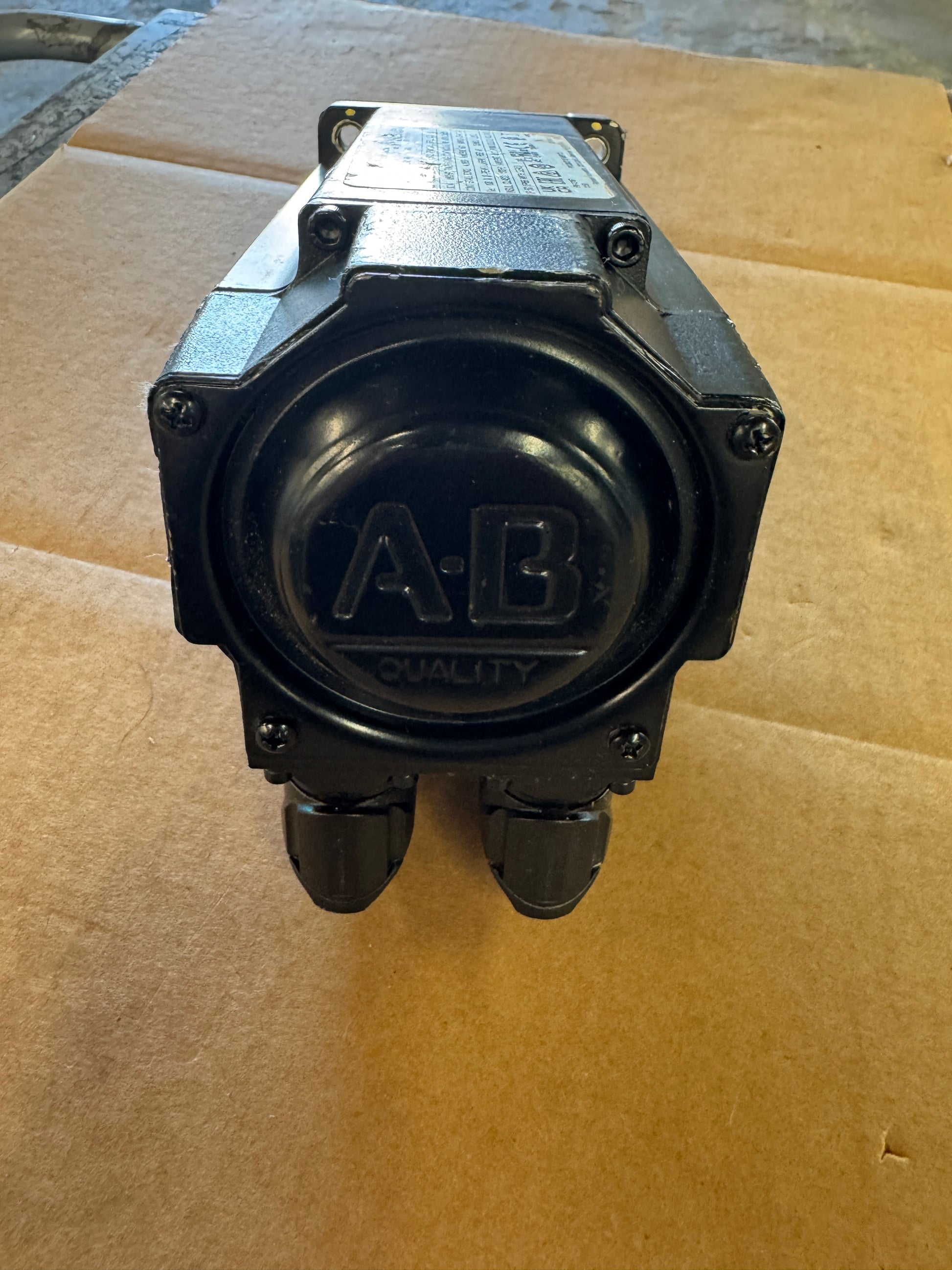

Nameplate ratings include 460 V RMS L-L, 3-phase input, 5000 RPM maximum speed, 1.8 kW / 2.4 HP, continuous time rating, and a continuous stall torque of 4.18 Nm (37 LB.IN.) at 6.1 amps. Insulation is Class H (180) with a 40 C ambient rating. The motor carries an IP 50 enclosure rating, upgradeable to IP66 with seal. Two connectors are present at the rear of the motor. The unit shows surface wear and signs of prior service consistent with removed-from-service surplus.
Buyers matching catalog number MPL-B330P-SJ72AA for Kinetix servo system replacement or spare inventory sourcing should cross-reference the exact MPN, series revision, and connector configuration against their application requirements.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
