AMI Bearings UCP207-22 Pillow Block Bearing, 1-3/8 in Bore (35mm), 22 Series – New m00181
AMI Bearings UCP207-22 Pillow Block Bearing, 1-3/8 in Bore (35mm), 22 Series – New m00181
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: UCP207-22
Stock #: 0226-00181

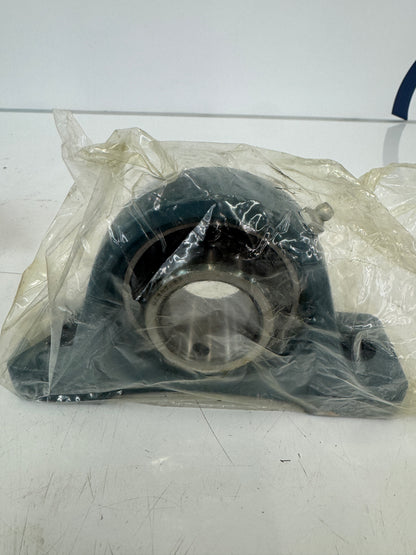

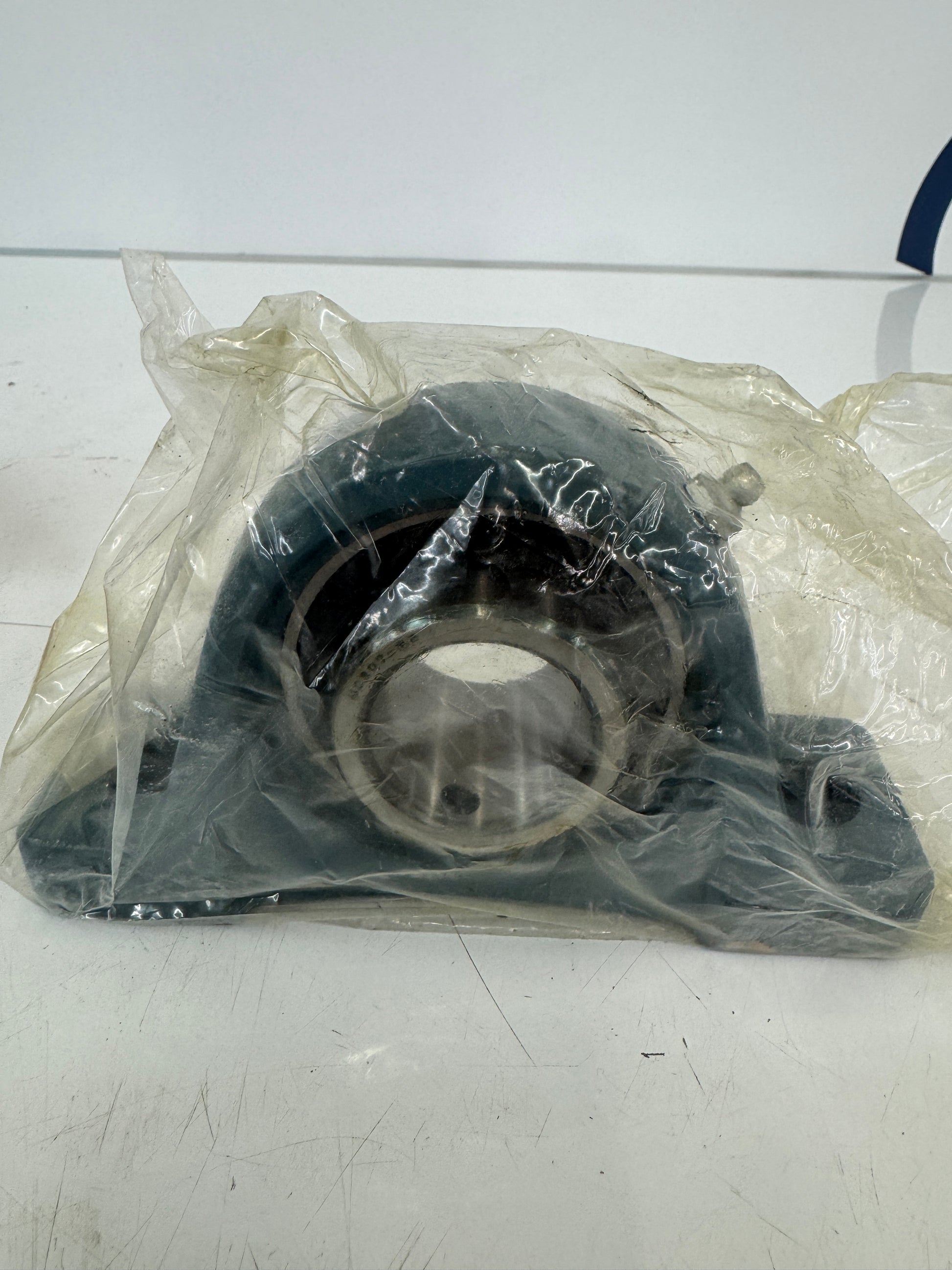

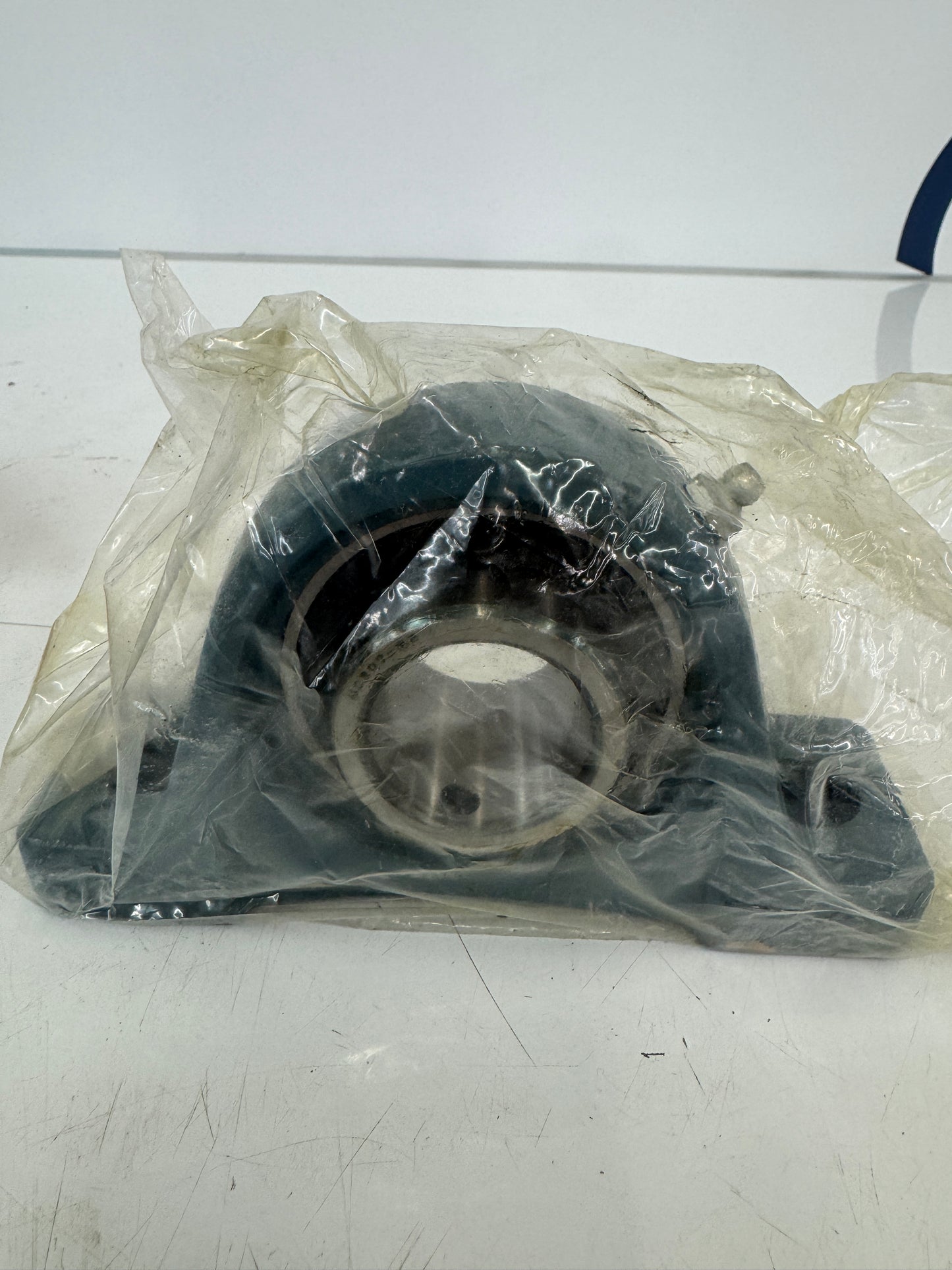

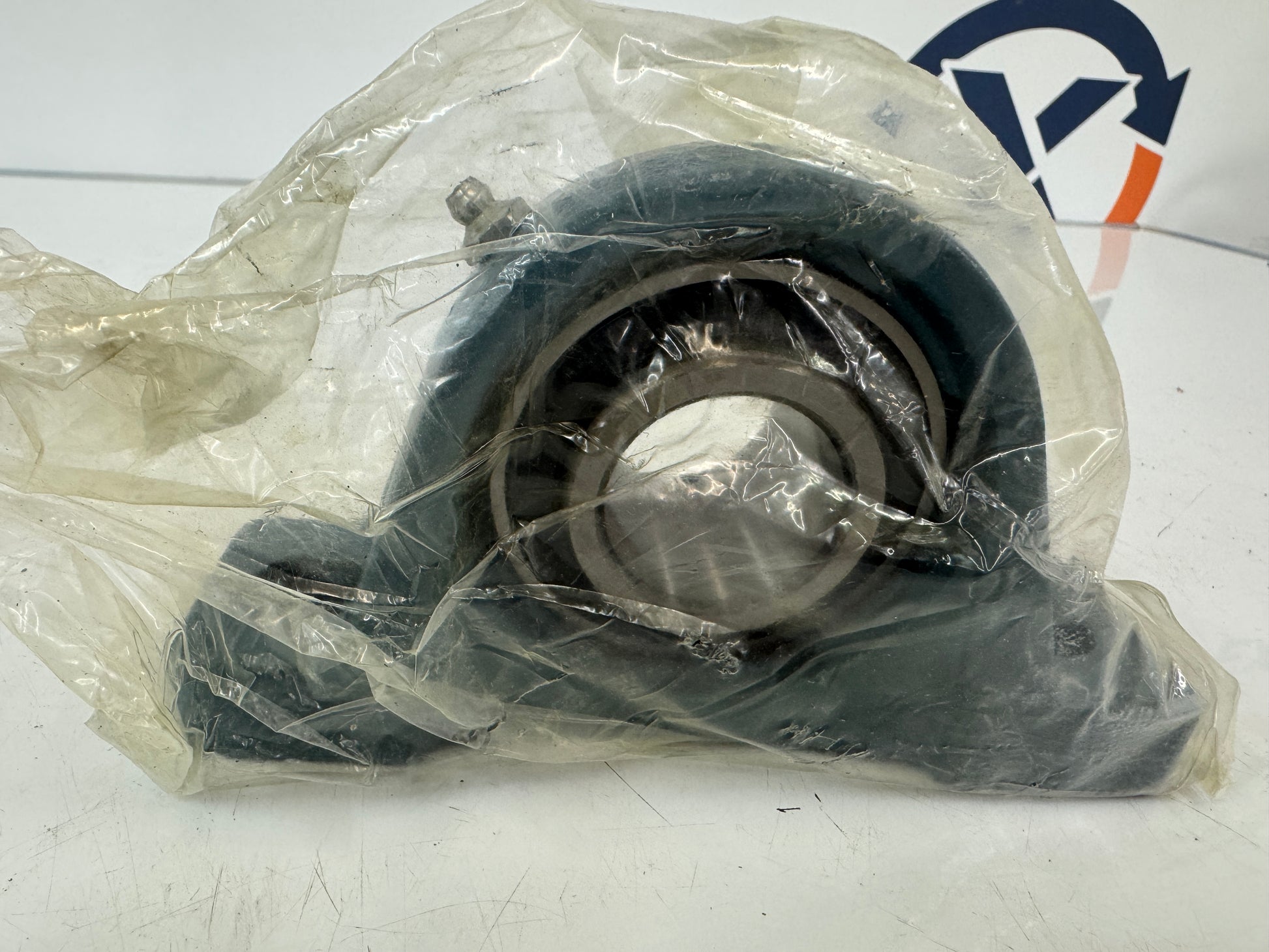

The AMI Bearings UCP207-22 is a set screw locking pillow block bearing unit with a 1-3/8 inch bore, manufactured by AMI Bearings, Inc., an Asahi company. The unit combines a cast iron P207 one piece pillow block housing with a UC207-22 chrome steel insert ball bearing. The wide inner ring is fitted with two set screws positioned at 120 degrees apart, providing locking engagement to a 1-3/8 inch conventional cylindrical shaft. A 45 degree grease fitting on the housing allows for relubrication of the insert bearing during service.
Per AMI published specifications, the UCP207-22 carries a dynamic radial load rating of 25.7 kN and a static radial load rating of 15.4 kN. Bolt size is 1/2 inch, and the unit features a standard base to center shaft height. The housing is rated for normal duty service. Common industry crossovers for this part include Dodge P2B SC 106, Browning VPS 222, Sealmaster NP 22, Link Belt P3 U222N, RHP NP 1 3/8, and NSK USP207-22S.

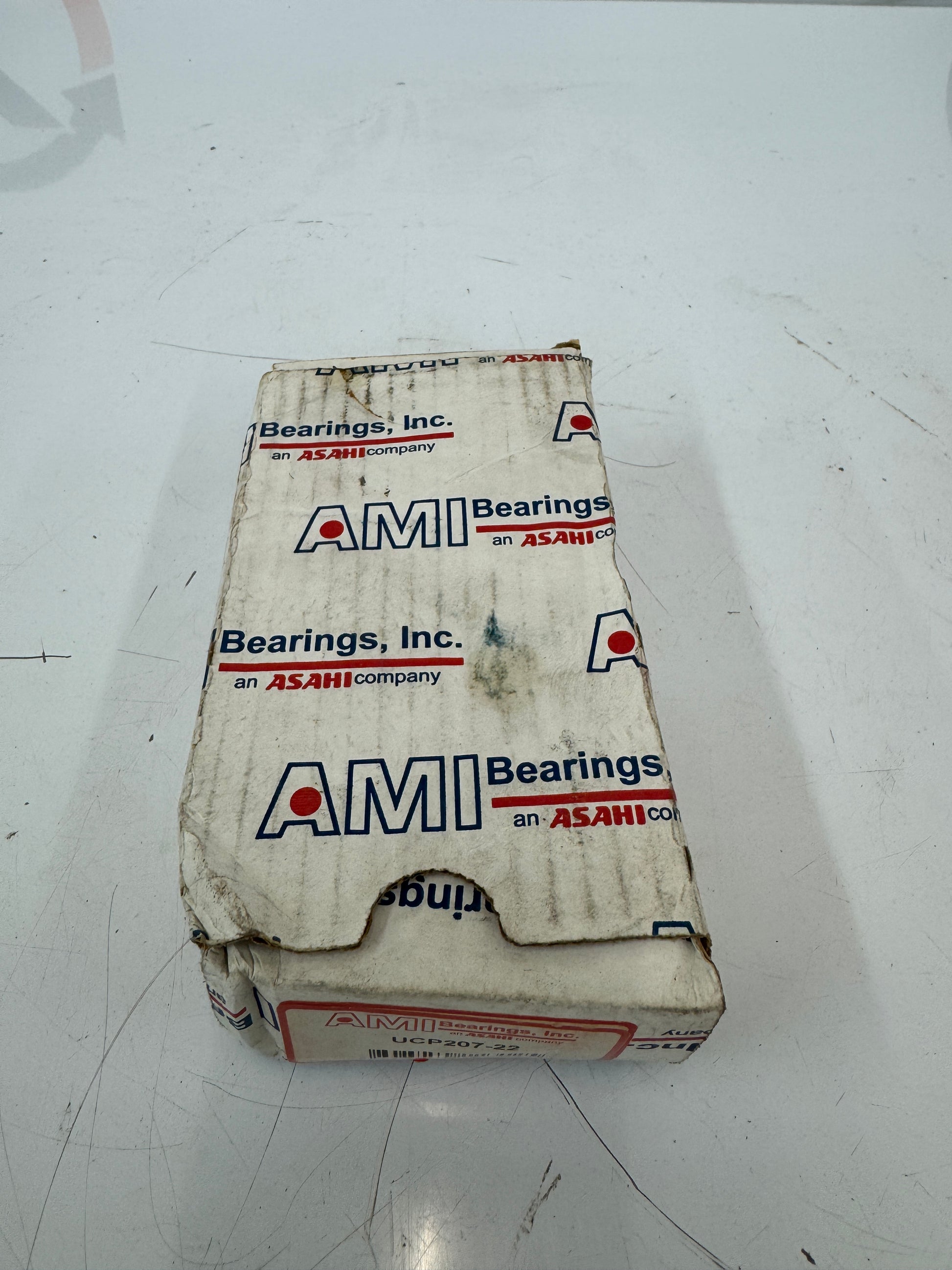

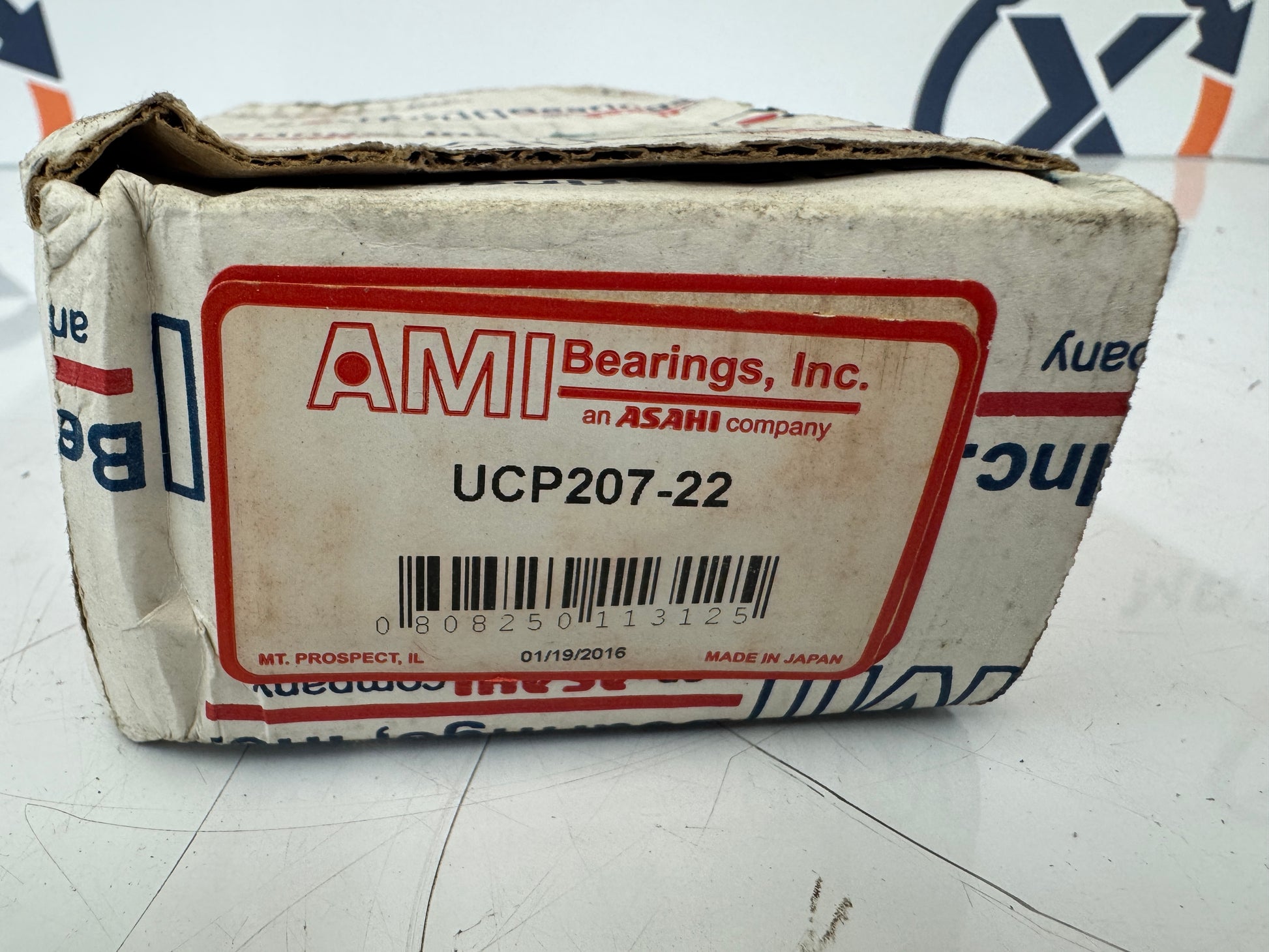

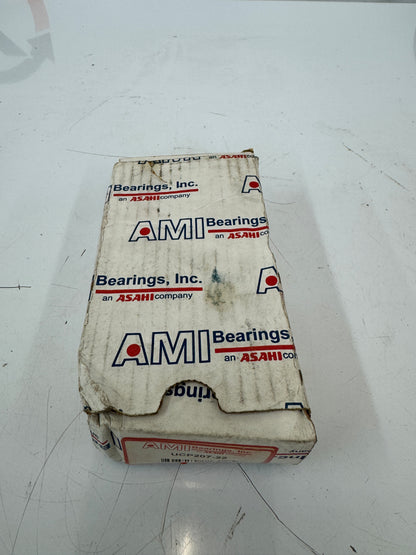

The unit ships in its original AMI red label retail box, marked with the UCP207-22 part number, UPC barcode 0808250113125, the AMI Bearings Mt. Prospect, IL origin marking, and a date code of 01/19/2016. The product is marked Made in Japan.
Typical applications for the UCP207-22 include conveyor systems, fan assemblies, agricultural machinery, HVAC equipment, feed mills, pumps, and general industrial manufacturing equipment using 1-3/8 inch shafting.
Stock # 0226-181
