AMI Bearings UCP207-22 Pillow Block Bearing, 1-3/8 in Bore (35mm), 22 Series – New m00154

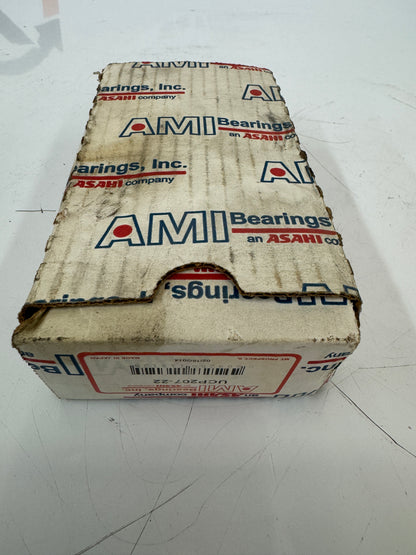

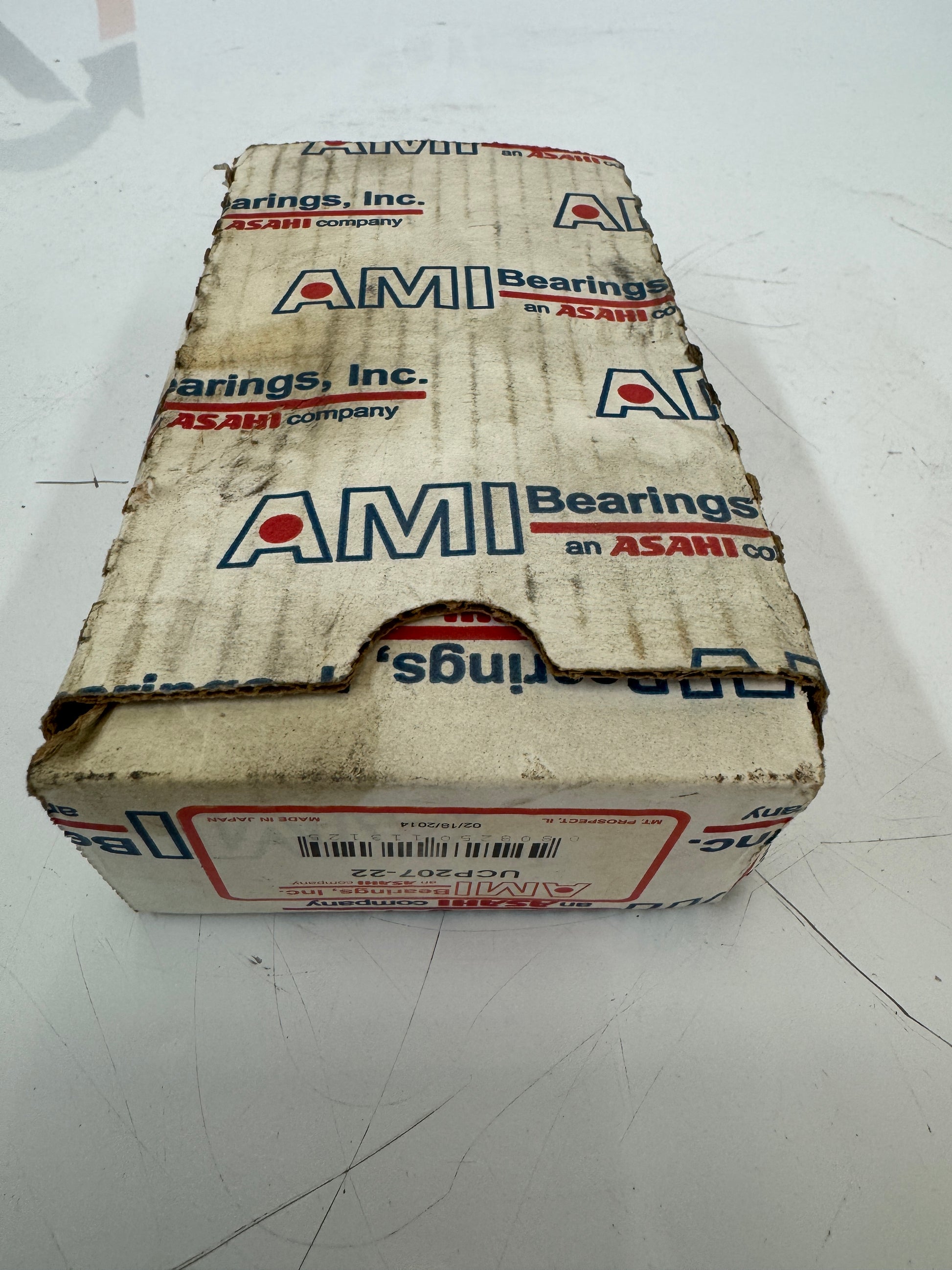

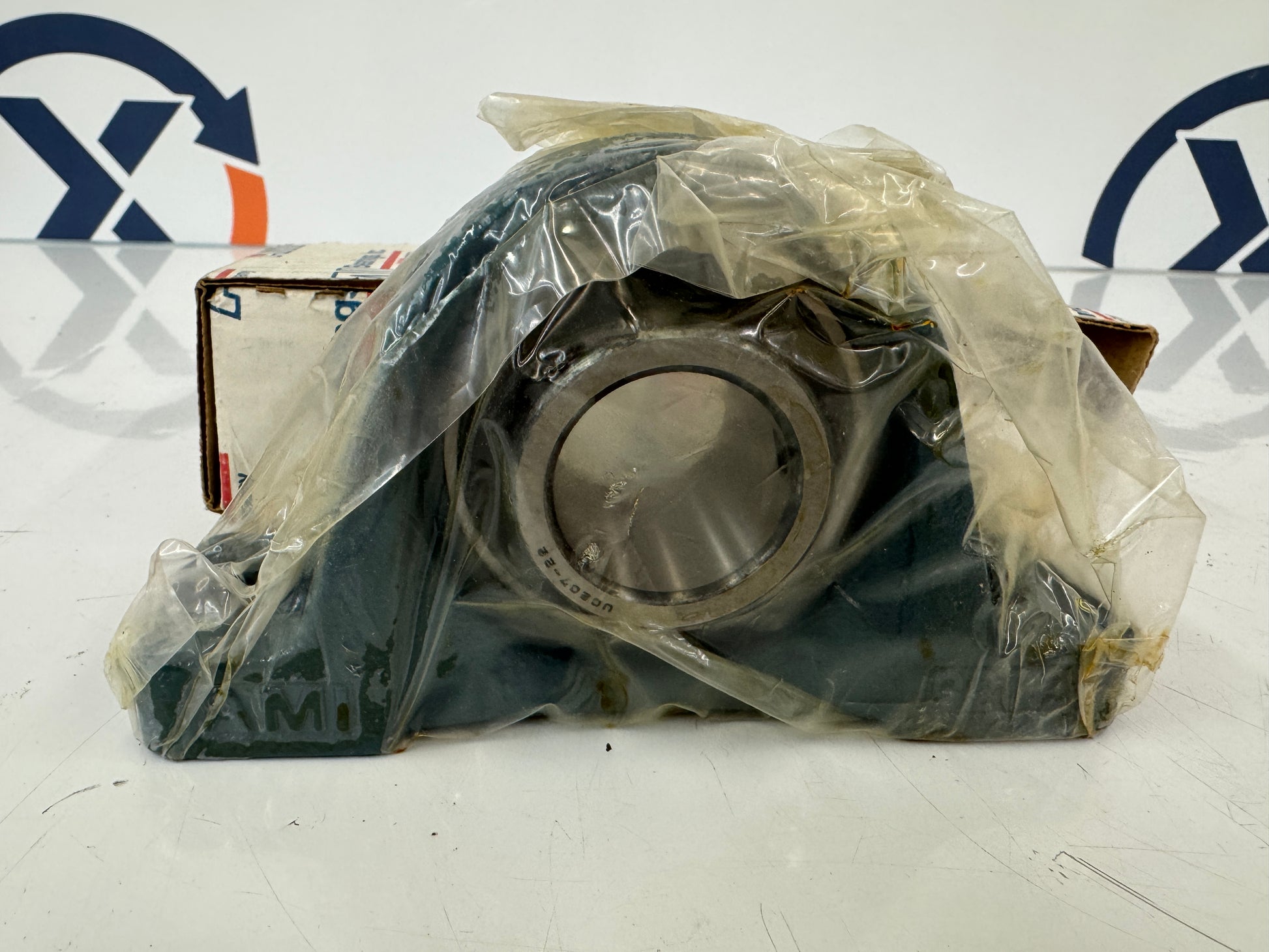

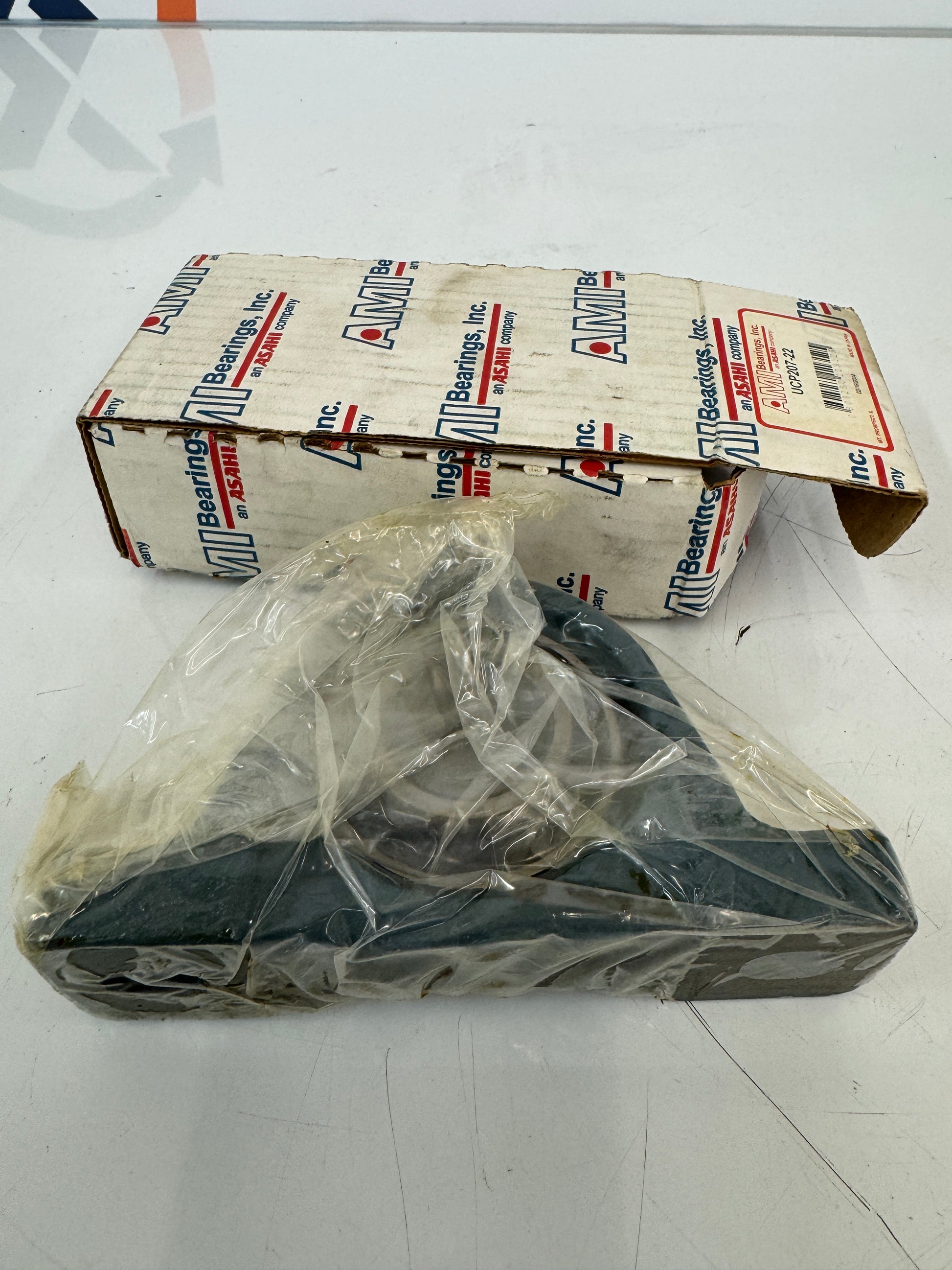

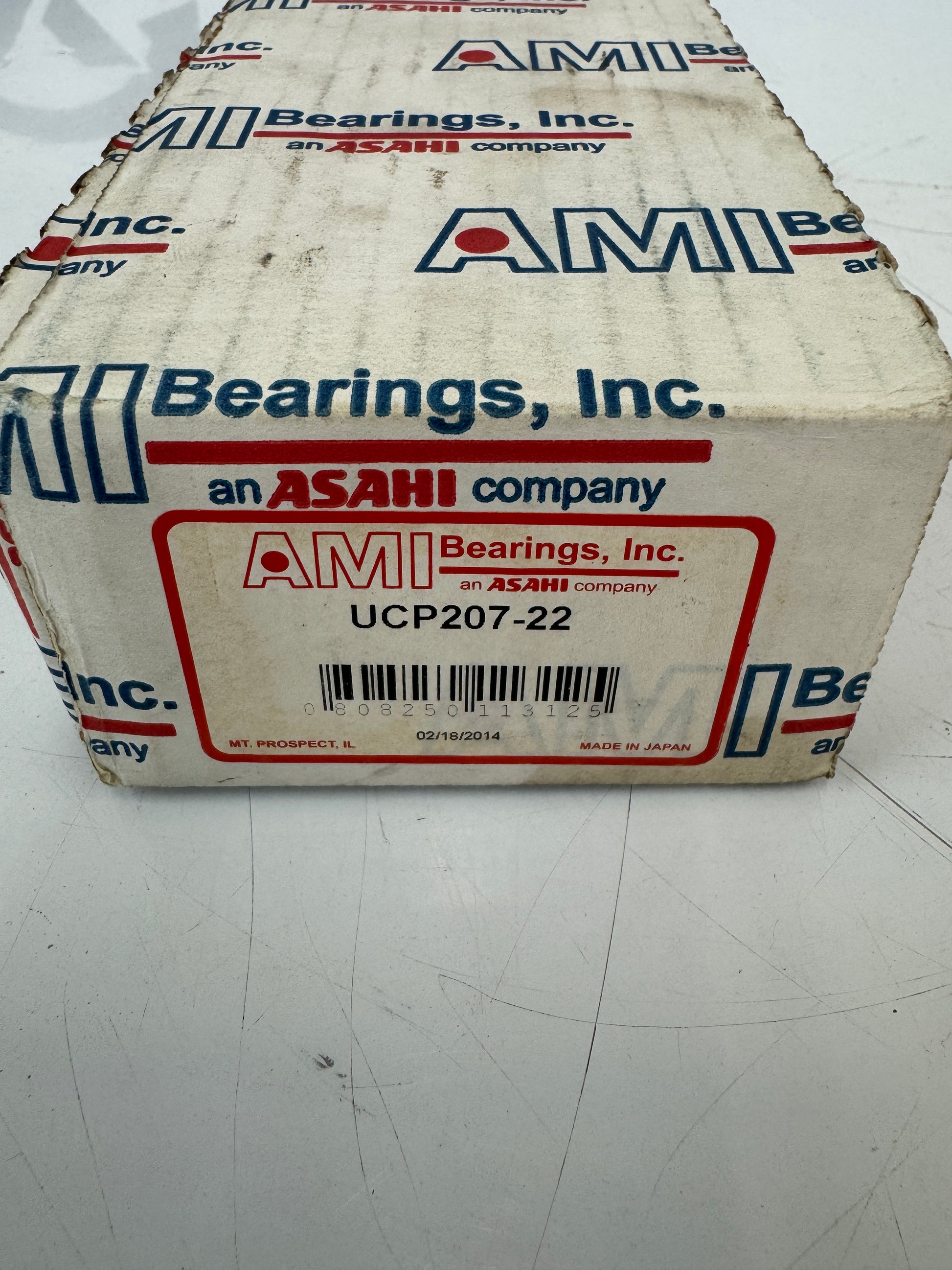

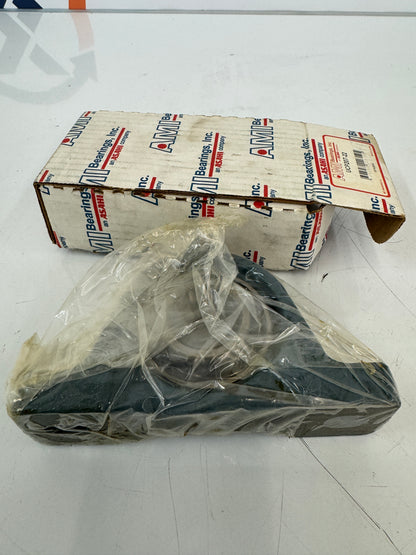

The AMI Bearings UCP207-22 is a set screw locking pillow block bearing unit with a 1-3/8 inch (34.925 mm) bore, supplied new in the original AMI box with a manufacturing date code of 01/19/2016 and made in Japan. AMI Bearings is an Asahi company, and this unit pairs a wide inner ring chrome steel insert ball bearing with a cast iron two bolt pillow block housing. The insert bearing is secured to the shaft by two set screws positioned on the extended inner ring, and the housing includes a 45 degree grease fitting for re-lubrication of the bearing in service. Per AMI published catalog data, the UCP207-22 belongs to the UCP200 series and uses the P207 housing paired with a UC207-22 insert bearing. Common dimensional references for this unit include a height of approximately 3.622 inches (92 mm), a length of approximately 6.575 inches (167 mm), bolt to bolt spacing of approximately 4.961 inches (126 mm), and a 1/2 inch bolt size. The UCP200 series is widely used in conveyor systems, agricultural machinery, material handling equipment, pumps, fan assemblies, HVAC systems, and general industrial machinery where mounted shaft support is required. The package is labeled with barcode 0808250113125 and the AMI Bearings Inc. branding. Specification values referenced above were sourced from AMI Bearings published catalog data for the UCP207 and UCP207-22 part numbers.

Stock # 0226-154
