Angular Clamping Device Heavy-Duty Fabricated Steel Right Angle Plate | 24 1/4”L x 36” W x 39 3/4” H

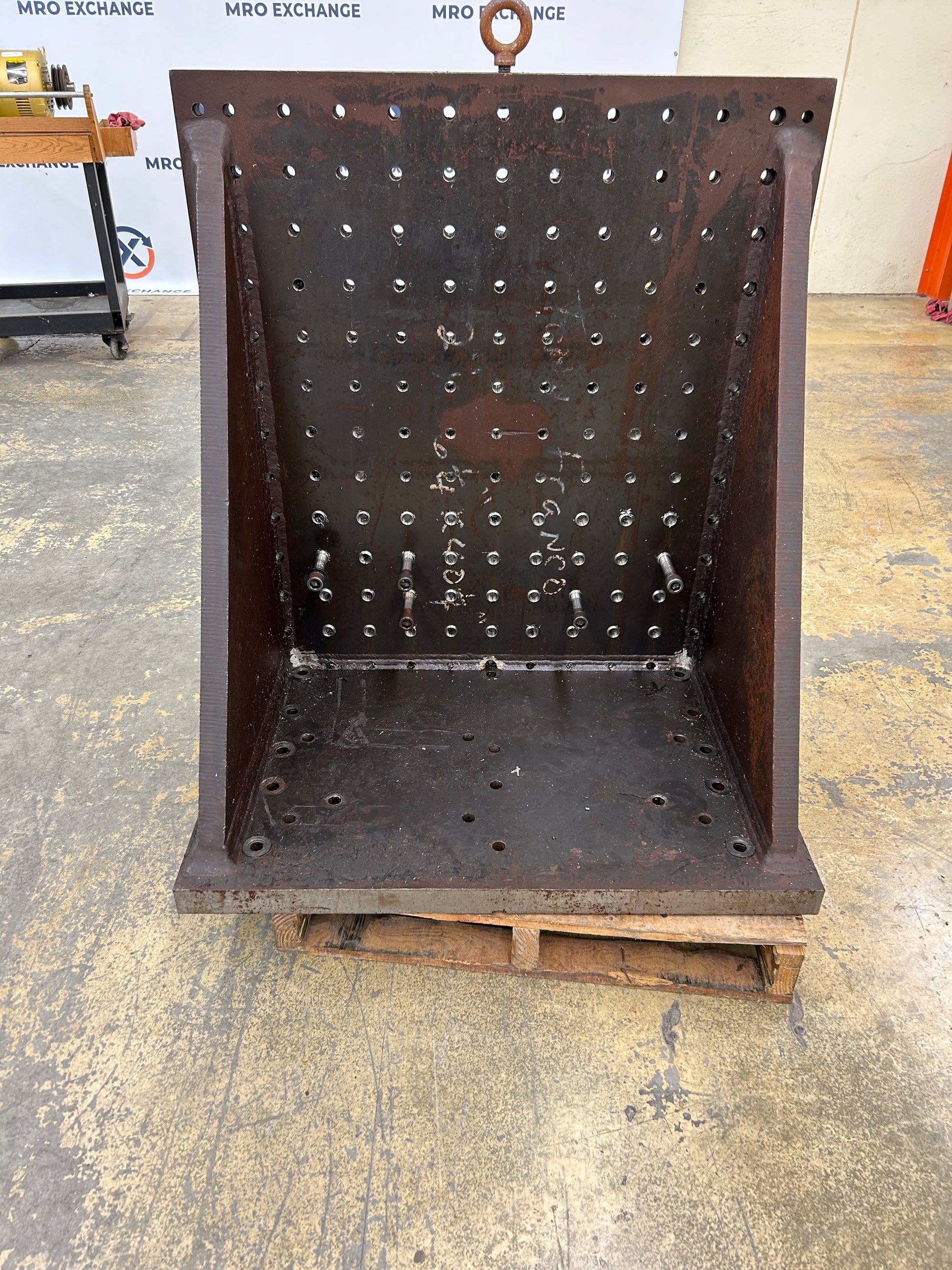

This heavy-duty fabricated steel right angle plate is a large-format workholding fixture designed for use in machining, welding, fabrication, and assembly operations requiring a rigid 90-degree reference surface. The vertical face features a uniform grid pattern of drilled and tapped holes providing multiple clamping and fixturing points across the working surface. The base plate is thick-section steel with additional drilled holes for securing the fixture to a machine table or floor plate. Welded gusset construction provides high rigidity under load. A lift ring is welded to the top center of the unit for overhead crane handling. Two threaded studs are installed on the vertical face. The unit sits on a wooden shipping pallet and shows evidence of shop use including surface oxidation and residual machining fluid. No manufacturer nameplate is present. Approximate dimensions24 1/4”L x 36” W x 39 3/4” H, with an estimated weight in the range of 600 to 900 lbs based on visible construction and material thickness. This type of fixture plate is commonly used as a vertical clamping surface on horizontal boring mills, large machining centers, and transfer line fixtures, and as a setup reference in heavy fabrication environments.

Stock # 0226-299
