ASC Air Supply Compressor Coolant Oil Filter Element KL190-041 4.49 In. OD x 9.13 In. H

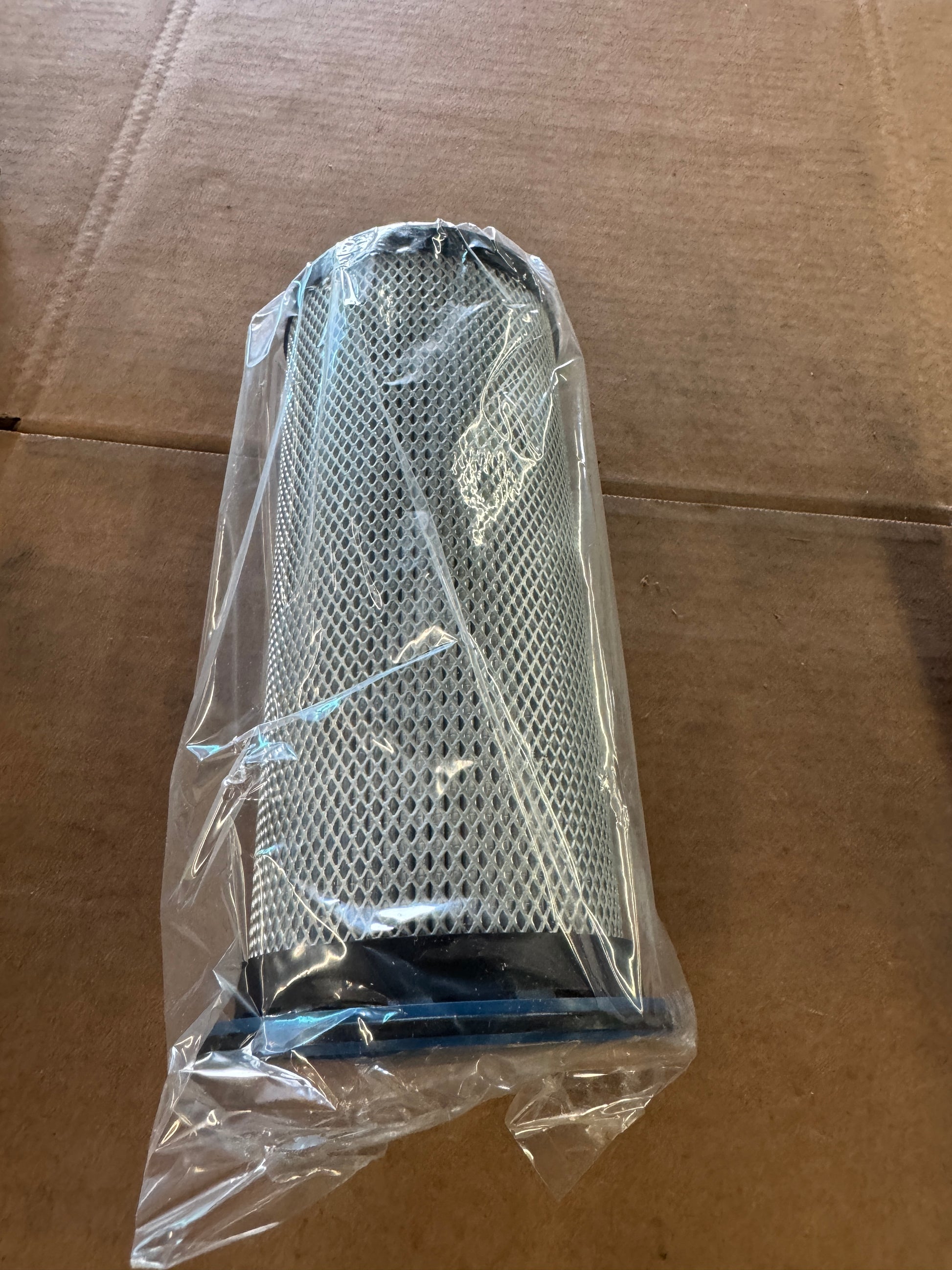

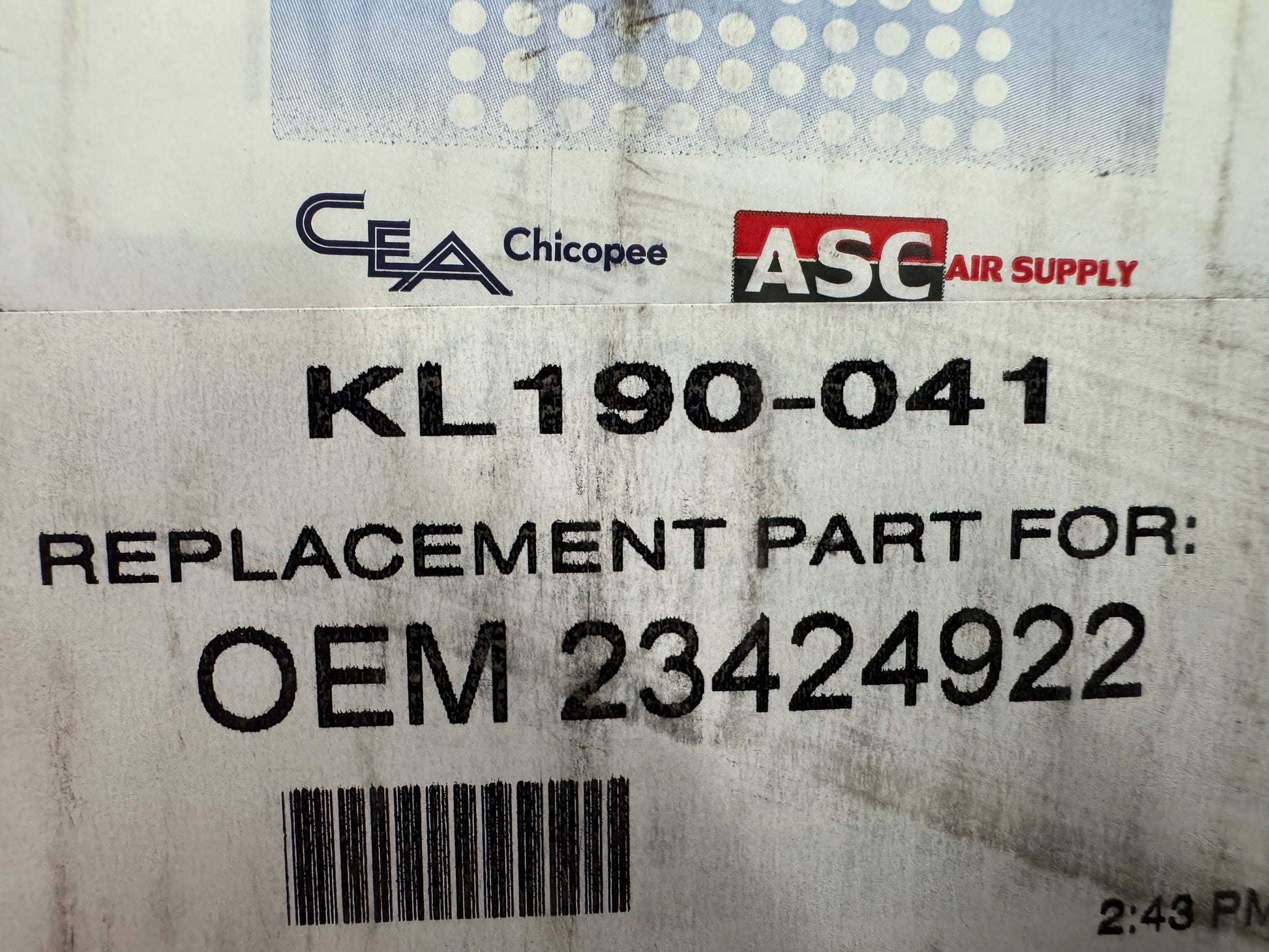

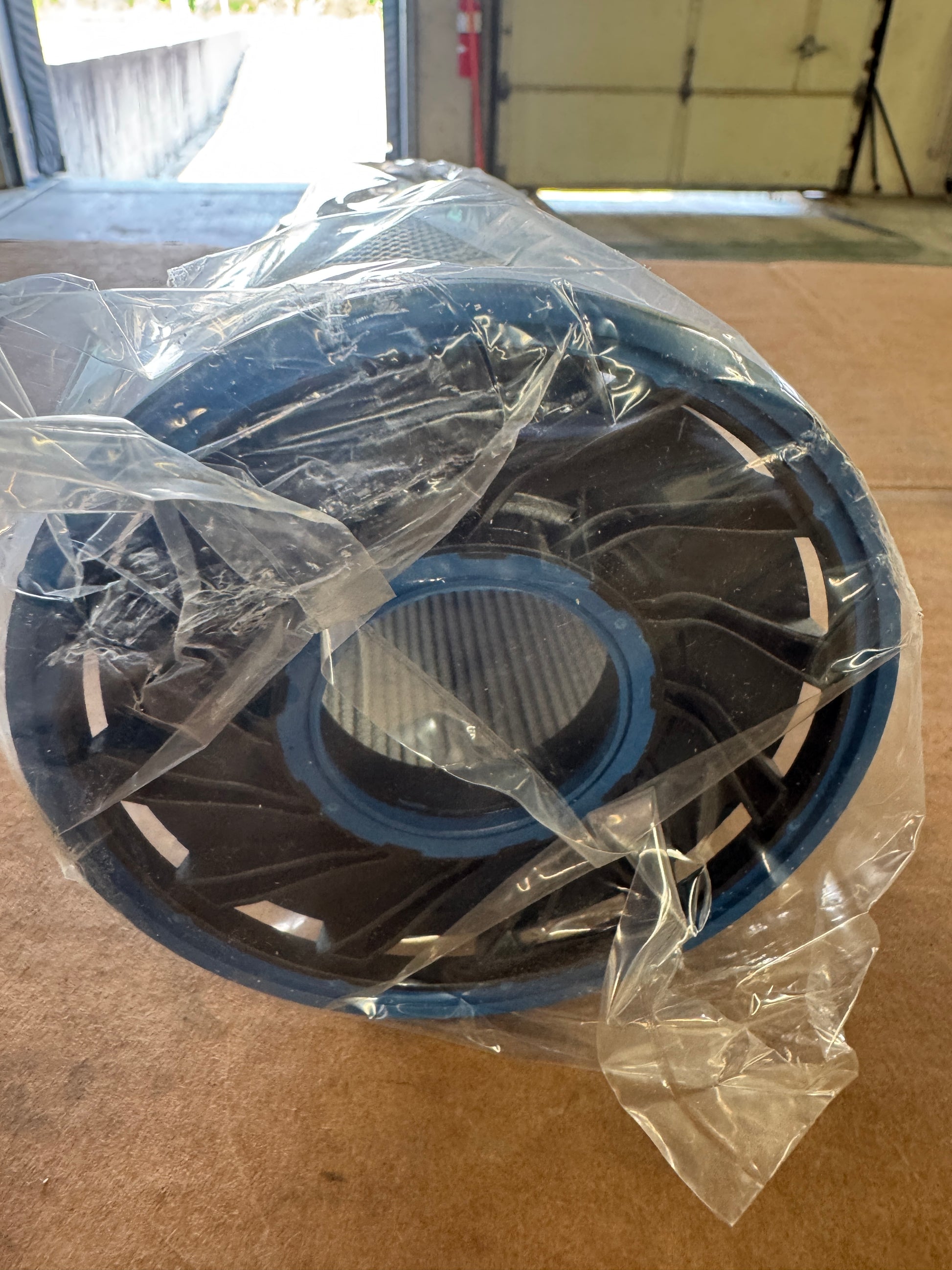

A new, sealed aftermarket compressor coolant oil filter element from Chicopee CEA / ASC Air Supply, part number KL190 041, supplied as a direct replacement for Ingersoll Rand OEM 23424922. The element is a coreless spin on style filter designed for use in Ingersoll Rand R Series rotary screw air compressors, including R45IE, R55I, R75I, R90I, R90NE, R110I, R110N, R110IE, R132I, R132IE, R132N, R150I, R160I, R160N, and R160NE models ranging from 60 HP to 225 HP. The filter element measures approximately 4.49 inches outer diameter, 3.81 inches inner diameter, and 9.13 inches in length, with an integrated end cap and protective expanded metal outer screen. The filter media is engineered to remove particulate contaminants and wear debris from the compressor coolant or oil circulation system, supporting proper bearing and rotor lubrication, controlled operating temperatures, and clean fluid delivery within the compressor lubrication loop. Cross reference part numbers commonly associated with this element include 23424922, 23759871, SH51435, SH 51435, W83B886, HY90898, 23700362, NO109080, and OF9065. The unit shown is new old stock in original sealed factory packaging. Recommended service interval for this style of compressor coolant filter element is typically every 2,000 operating hours under standard duty cycles. Suitable for industrial maintenance and MRO replacement requirements for Ingersoll Rand R Series rotary screw compressors.

Stock # 0526-02342
