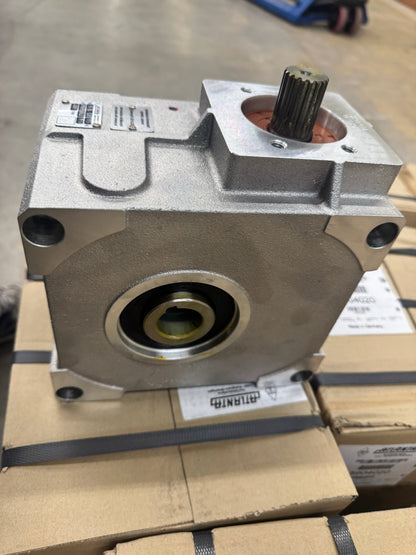

Atlanta Antriebssysteme E-Servo Worm Gear Reducer 59 04 020

$1,299.00 USD

Sale Sold out

ConditionSurplus - Untested MPN59 04 020 Stock #0326-00920

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 35.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

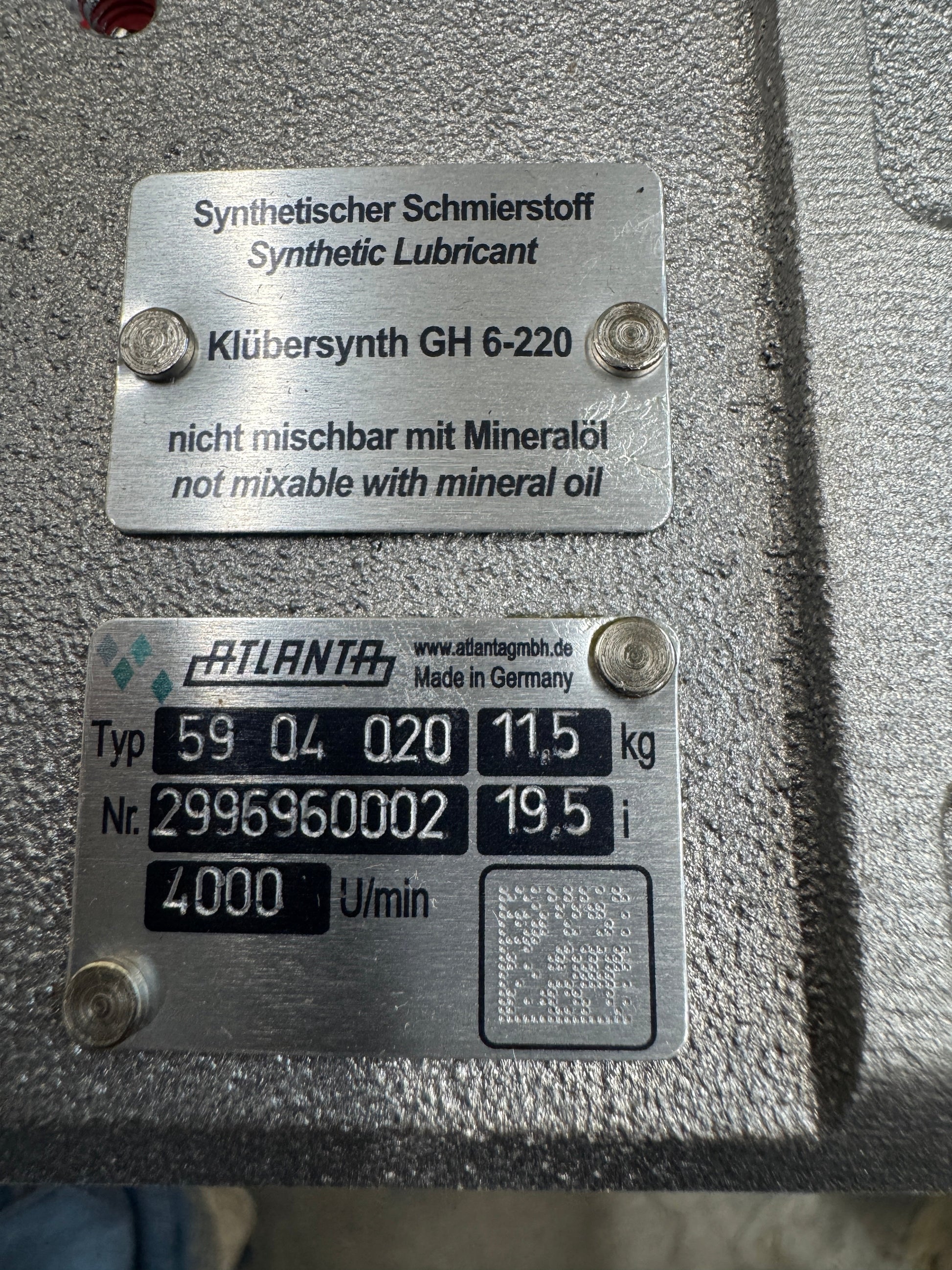

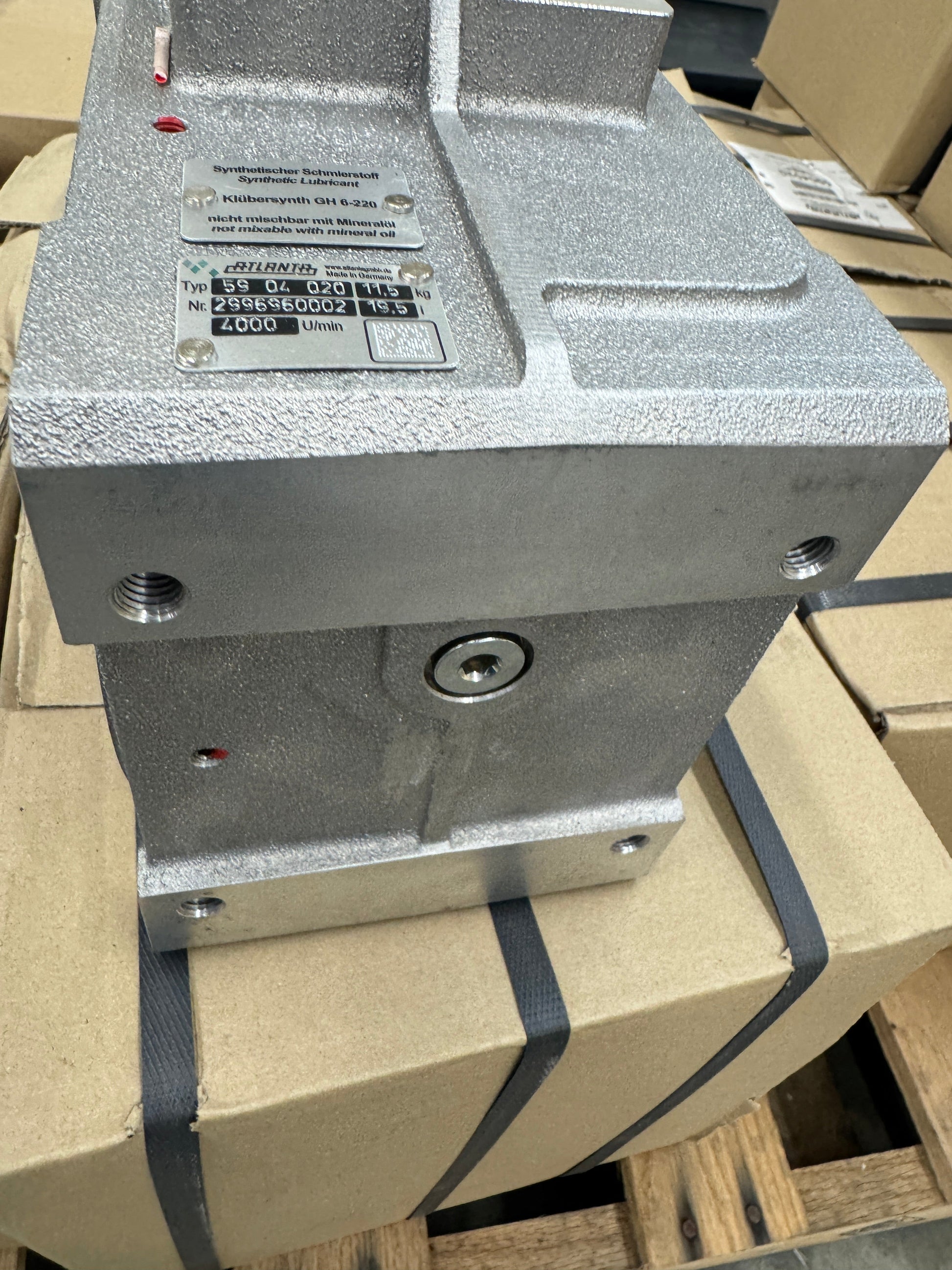

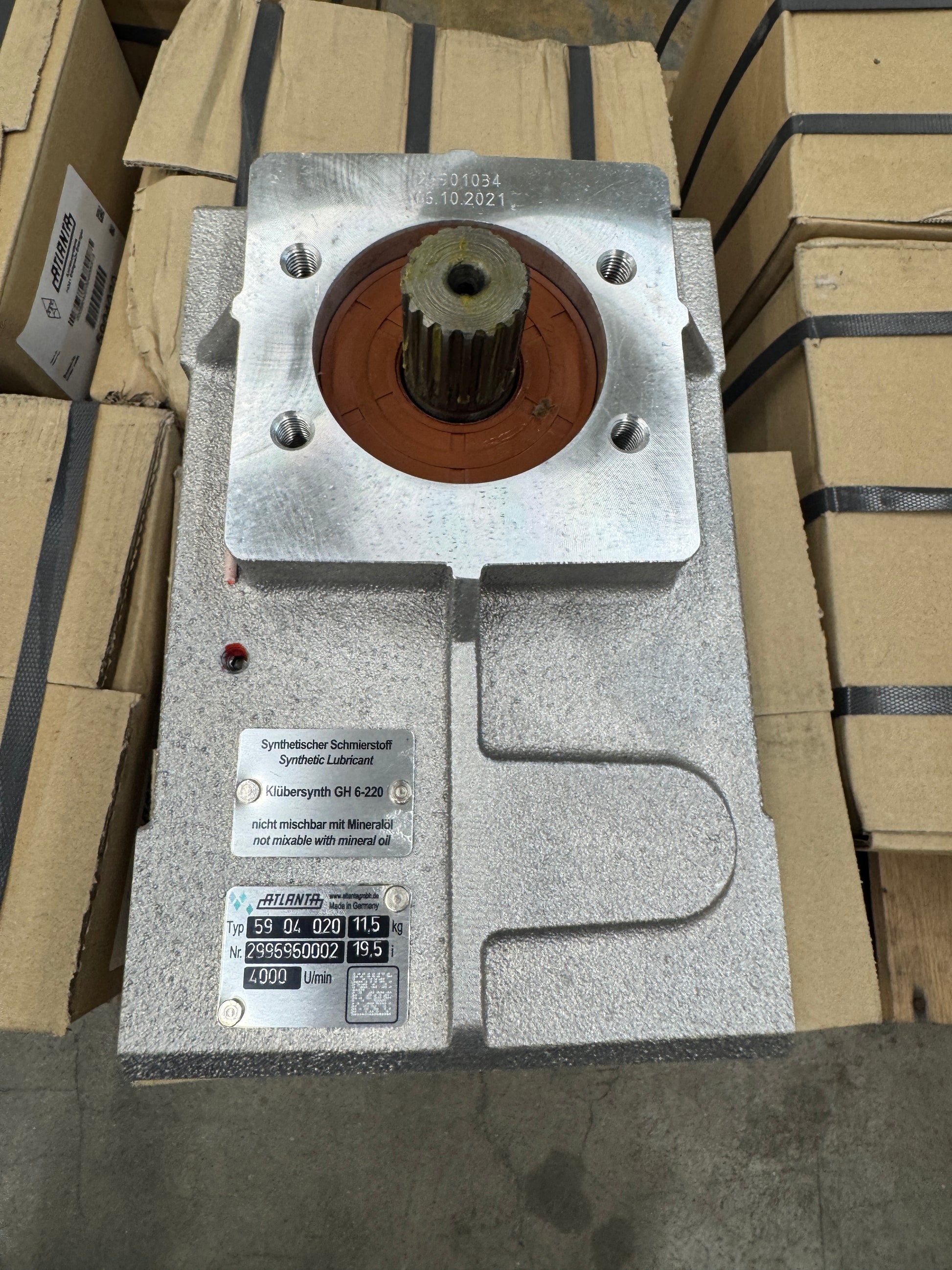

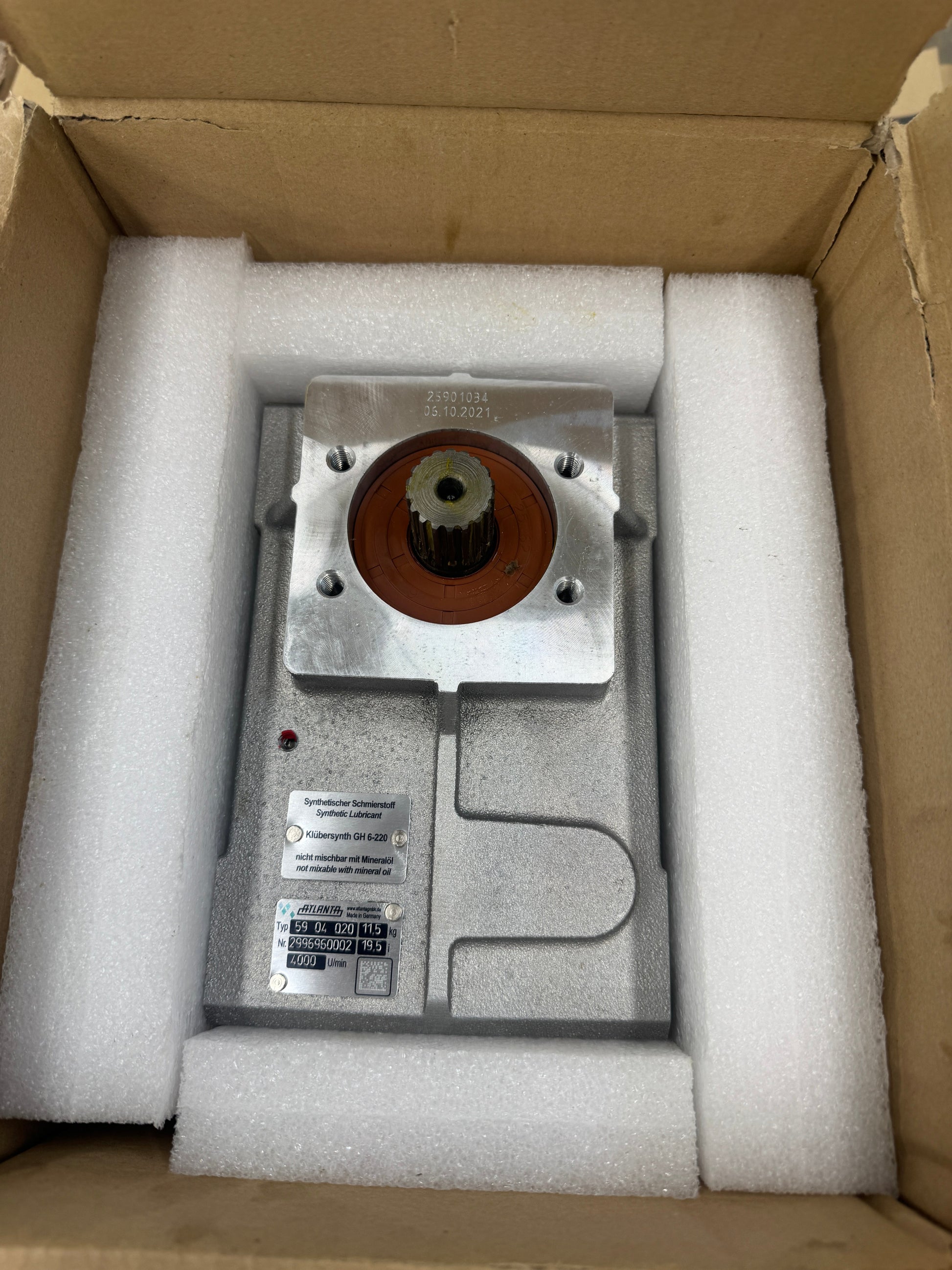

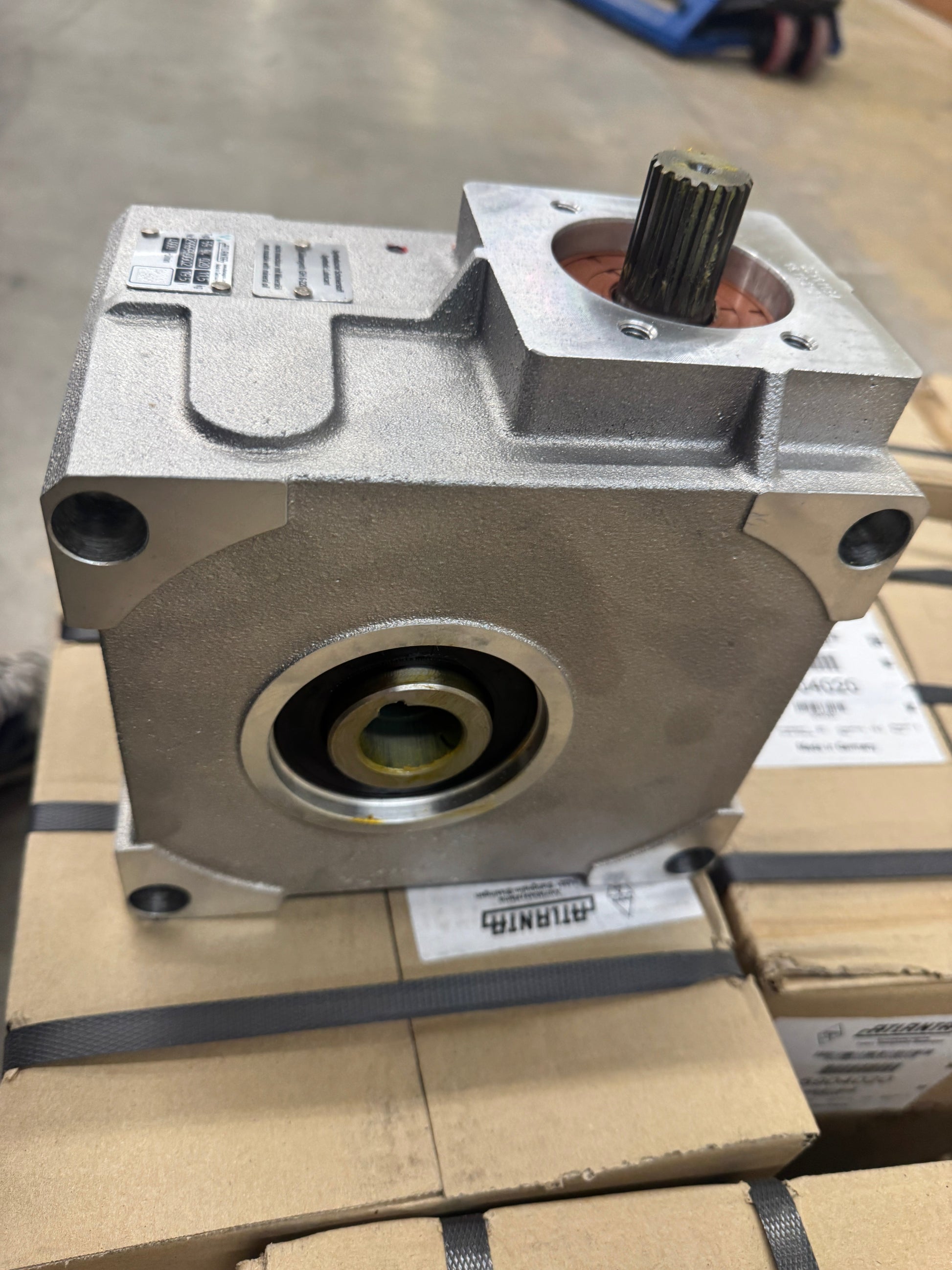

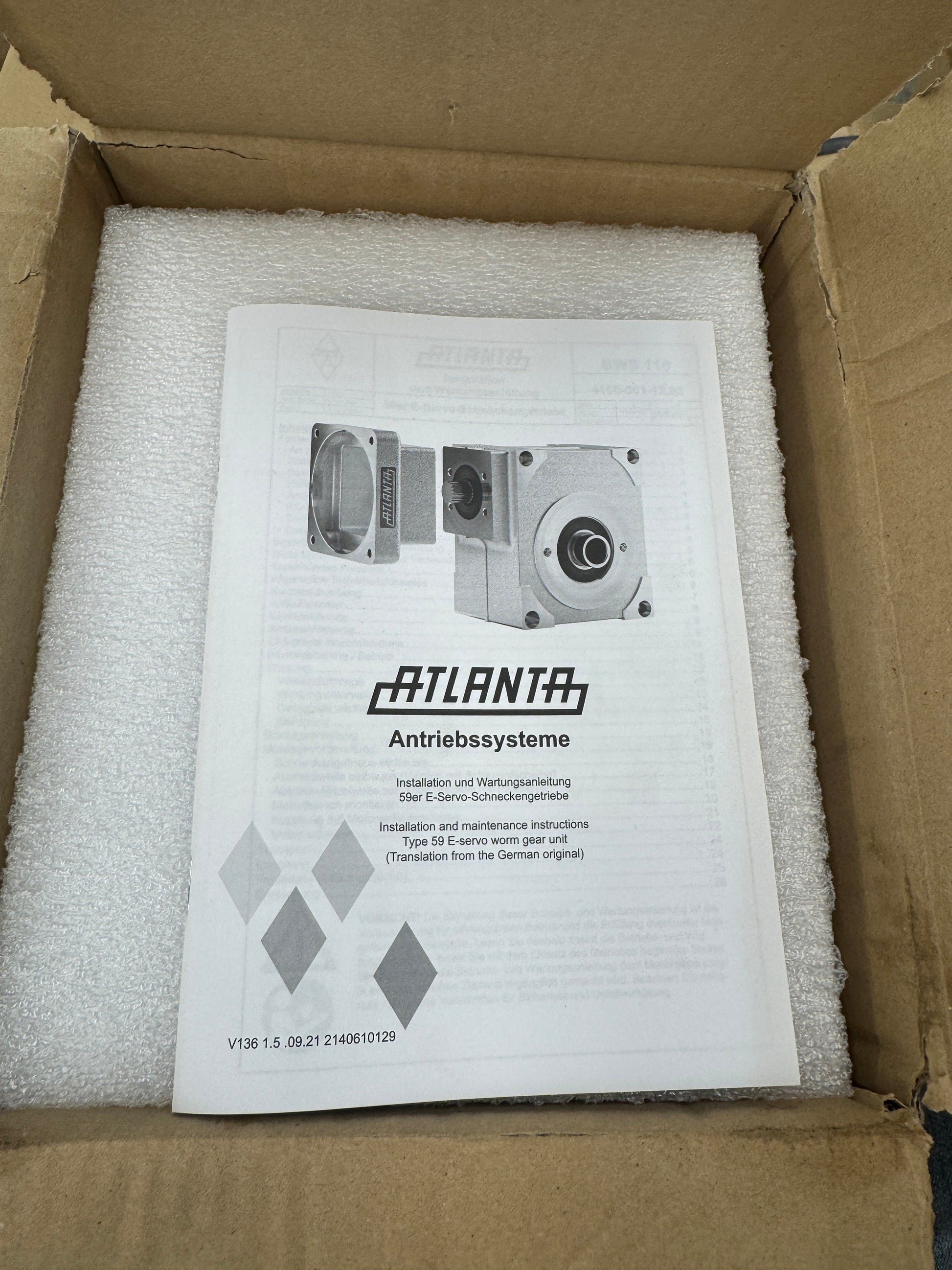

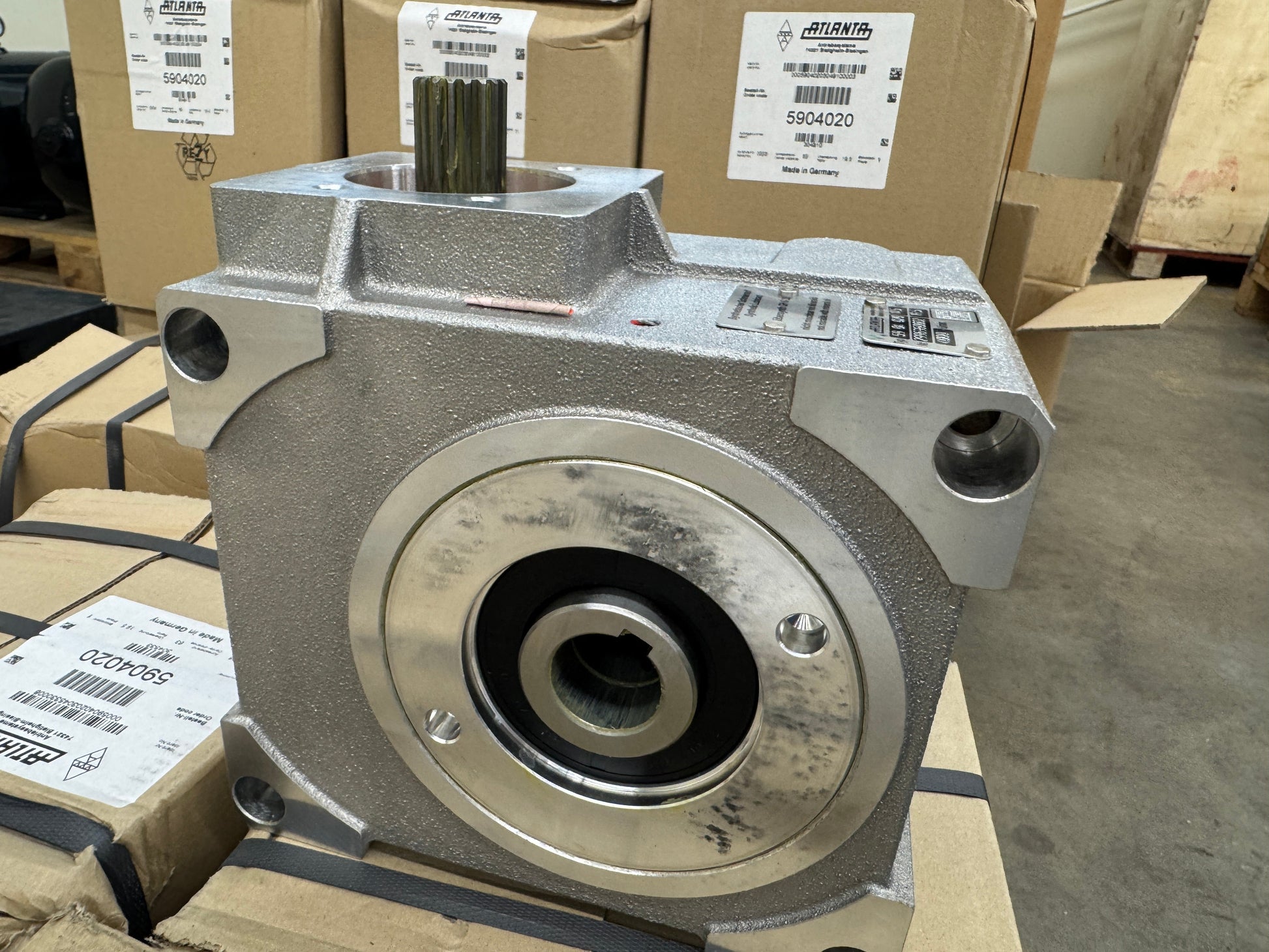

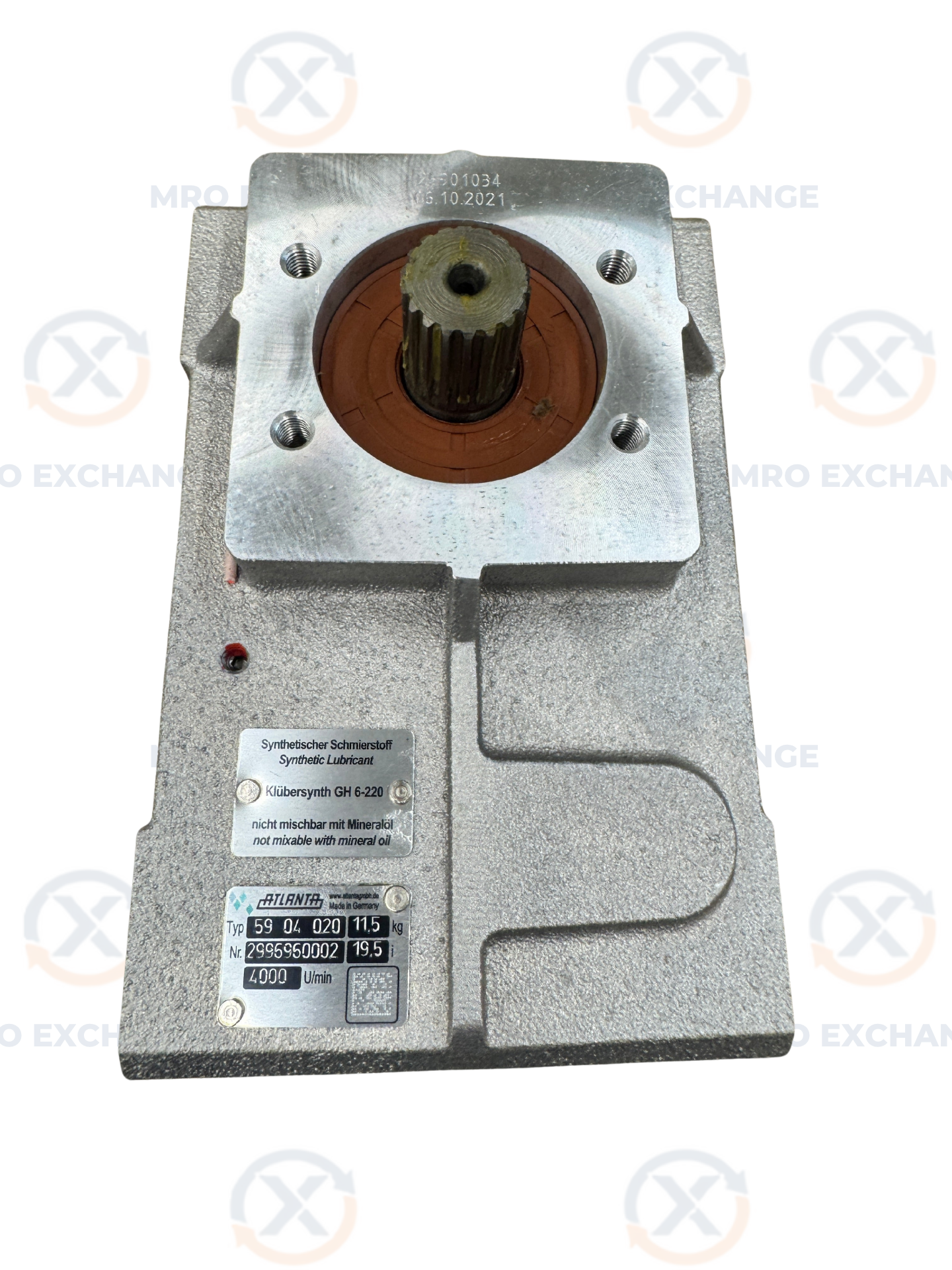

Used in precision automation, CNC axis drives, and servo positioning systems, the Atlanta Antriebssysteme Type 59 04 020 is an E-series servo worm gear reducer manufactured in Germany. The nameplate confirms a gear ratio of 19.5:1, a maximum input speed of 4000 U/min, and a unit weight of 11.5 kg. The serial number is 2996960002. This unit is an Atlanta Economy (E) series reducer, featuring a right-angle worm gear configuration with a hollow-bore output suitable for mounting pinion shafts, output shafts, or other drive elements. The E-series design incorporates input-side angular contact bearings for high-speed operation and output-side tapered roller bearings for high radial and axial load capacity. Angular backlash is rated at less than 5 arc-minutes. The housing is manufactured from aluminum alloy for efficient thermal dissipation and universal multi-face mounting. The nameplate also specifies Klubersynth GH 6-220 synthetic lubricant fill, which is not mixable with mineral oil. The unit is shown with its original packaging foam and includes the Atlanta installation and maintenance instruction booklet for the Type 59 E-servo worm gear unit. This size 59 frame represents the largest standard offering in the Atlanta E-series lineup, with a center distance of 100 mm, providing the highest torque capacity available in this series.

Stock # 0326-920
