Baldor AC Motor 09F548Z996G1 - 15 HP 1800 RPM
Baldor AC Motor 09F548Z996G1 - 15 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 09F548Z996G1
Stock #: 0526-01413
Product Specifications
- Manufacturer: Baldor Electric Co.
- Spec Number: 09F548Z996G1
- Product Type: Three-Phase AC Motor
- Horsepower: 15 HP / 11 kW
- Voltage: 230/460V (60 Hz), 190/380V (50 Hz)
- Full Load Amps: 35.2/17.6A (60 Hz), 42/21A (50 Hz)
- Speed: 1,765 RPM at 60 Hz, 1,460 RPM at 50 Hz
- Frame: 254TYZ
- Enclosure: TEFC, IP54
- Insulation Class: F
- Service Factor: 1.15
- Nominal Efficiency: 92.4%
- Efficiency Standard: IE3 Premium
- Power Factor: 84%
- Drive-End Bearing: 6309
- Opposite Drive-End Bearing: 6208
- Weight: 132 kg
- Serial Number: Z2001280532
- Phase: 3
- Design Code: A, Code H
- Ambient Rating: 40 degrees C Continuous
- Country of Origin: United States
- Stock Number: 0526-01413
Product Description

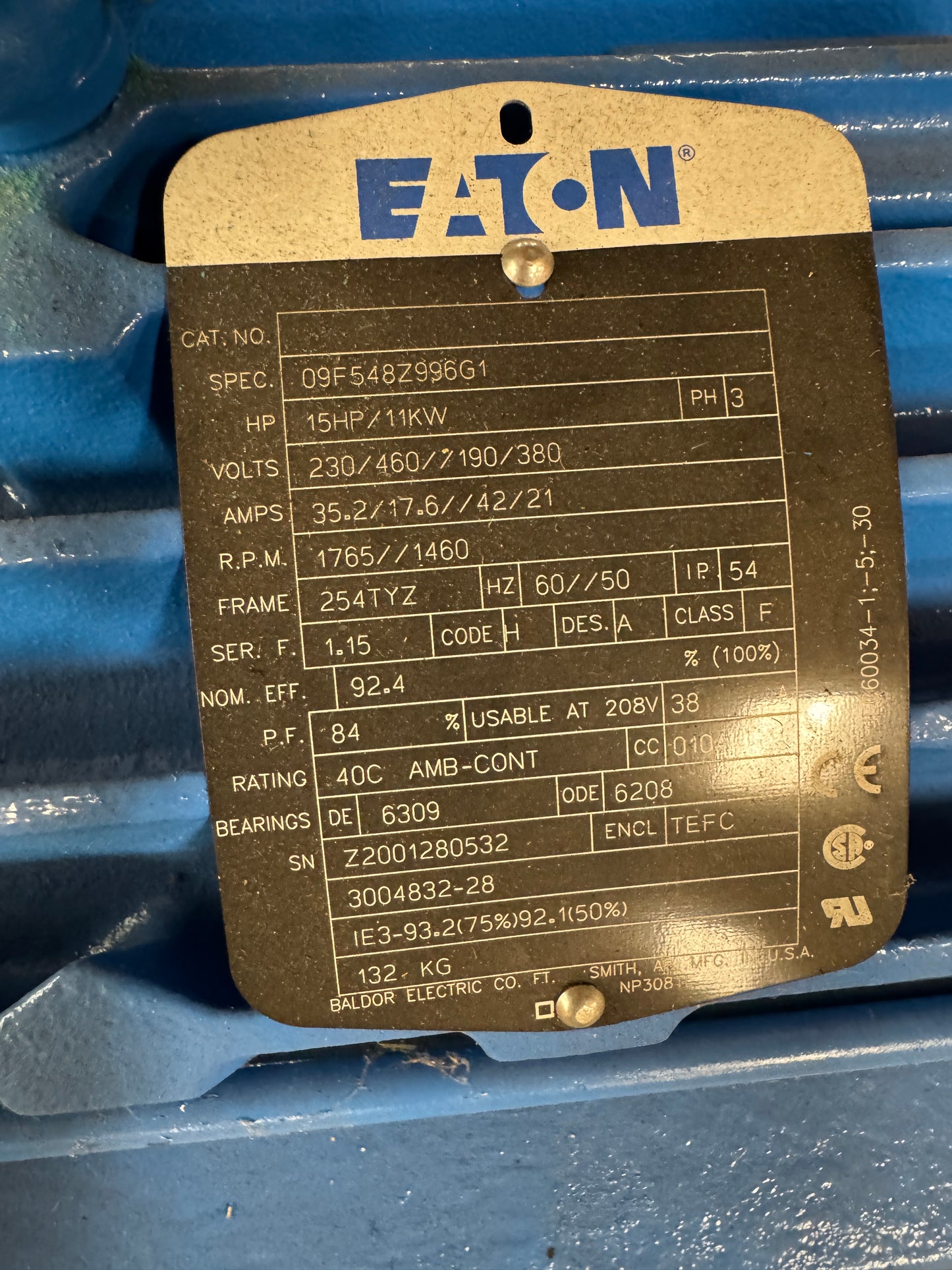

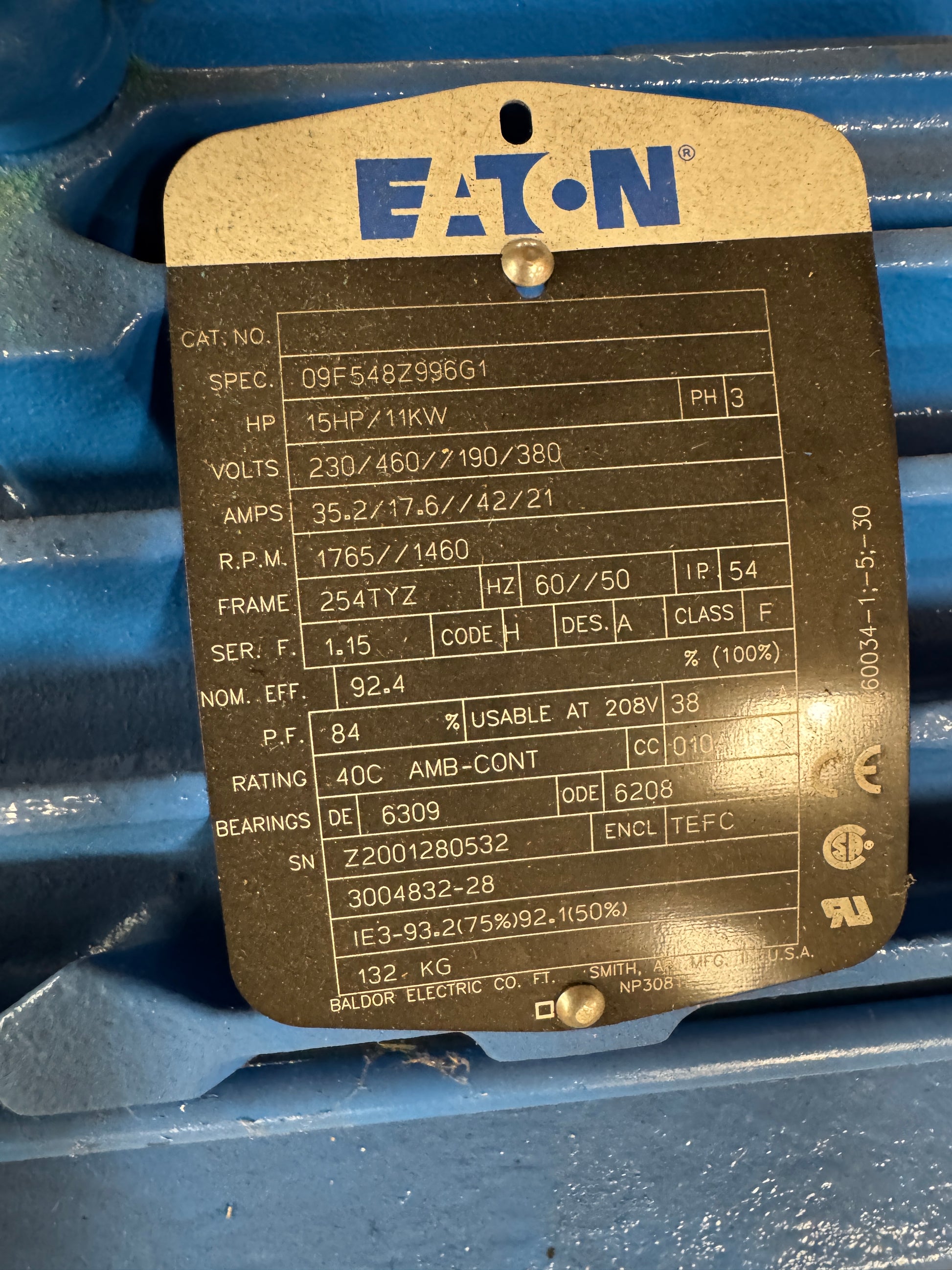

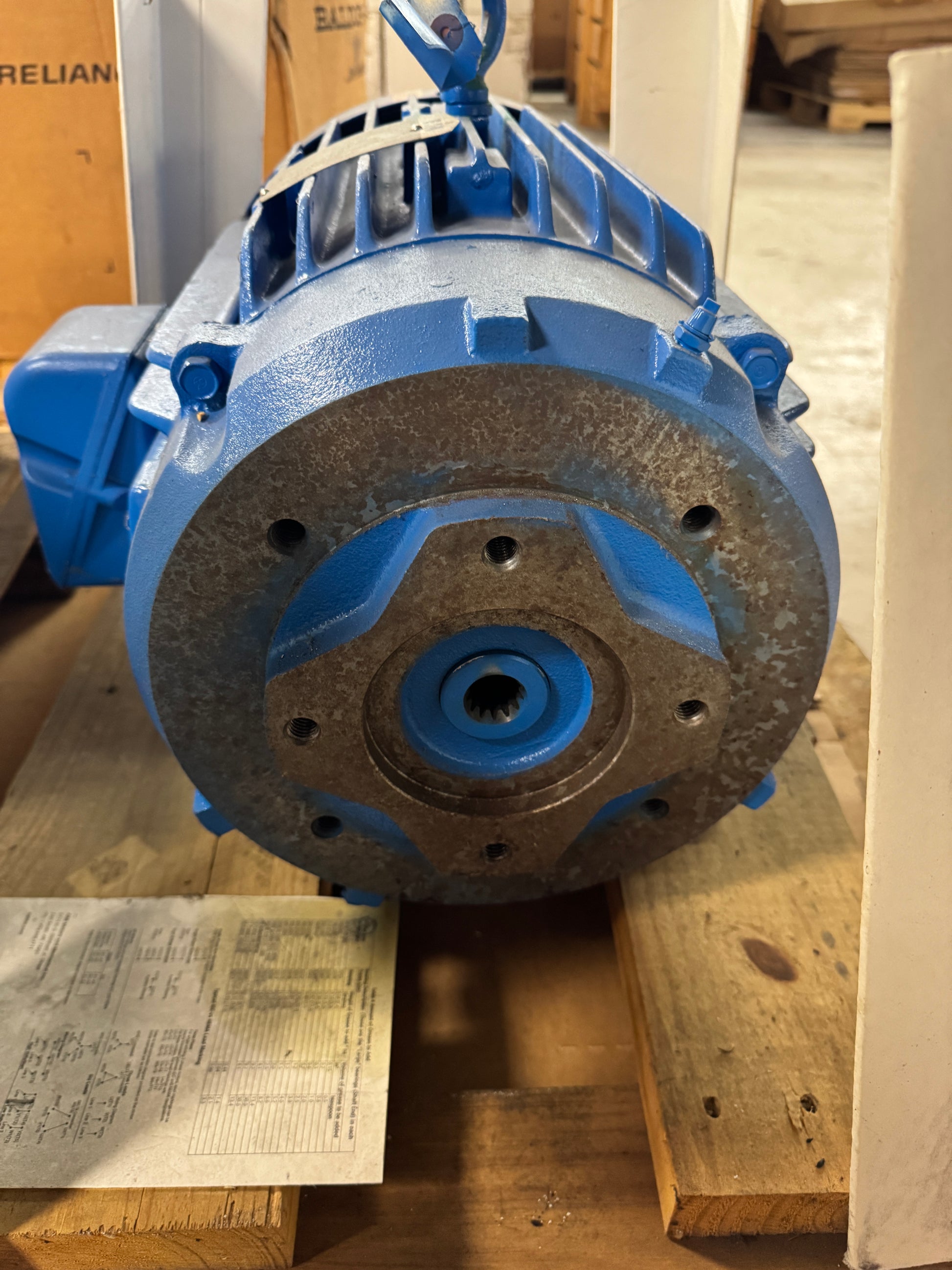

This Baldor Electric 15 HP (11 kW) three-phase AC motor carries Eaton branding and spec number 09F548Z996G1. It operates on dual voltage at 230/460V (60 Hz) or 190/380V (50 Hz), with corresponding amp draws of 35.2/17.6A and 42/21A, making it suitable for both North American and international power systems. Synchronous speeds are 1,765 RPM at 60 Hz and 1,460 RPM at 50 Hz. The NEMA frame designation is 254TYZ, which includes a C-face flange mount in addition to the standard footed base as indicated by the TYZ suffix. Enclosure type is TEFC with an IP54 rating. Insulation class is F, service factor is 1.15, and nominal efficiency is rated at 92.4%. The motor meets IE3 premium efficiency standards with values of 93.2% at 75% load and 92.1% at 50% load. Power factor is listed at 84%. Drive-end bearing is a 6309 and opposite drive-end bearing is a 6208. Serial number Z2001280532, frame weight 132 kg. Ambient rating is 40 degrees C continuous. The motor is listed without original packaging.
