Baldor Reliance CM3710T AC Motor 7 HP 1800 RPM
Baldor Reliance CM3710T AC Motor 7 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

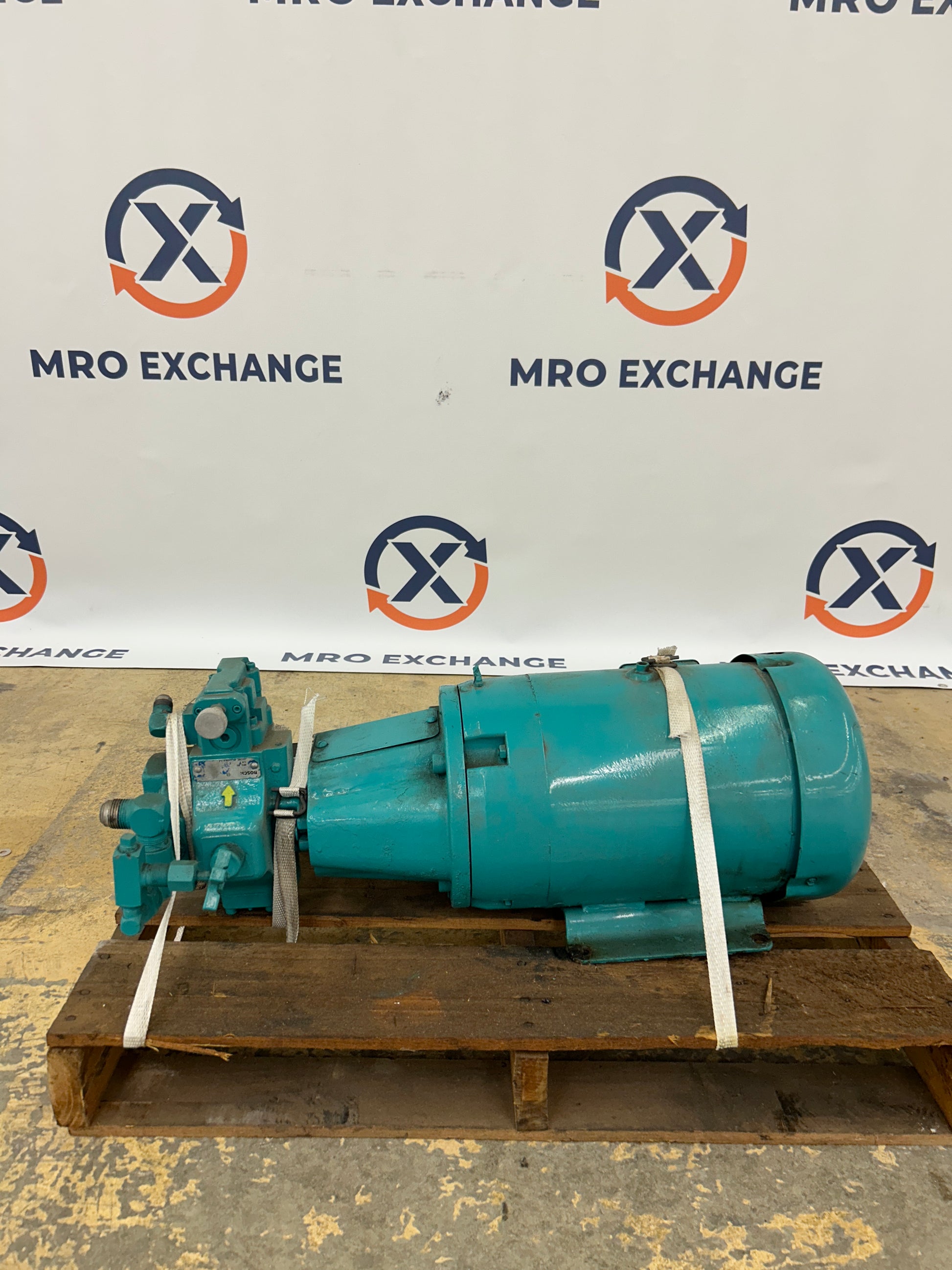

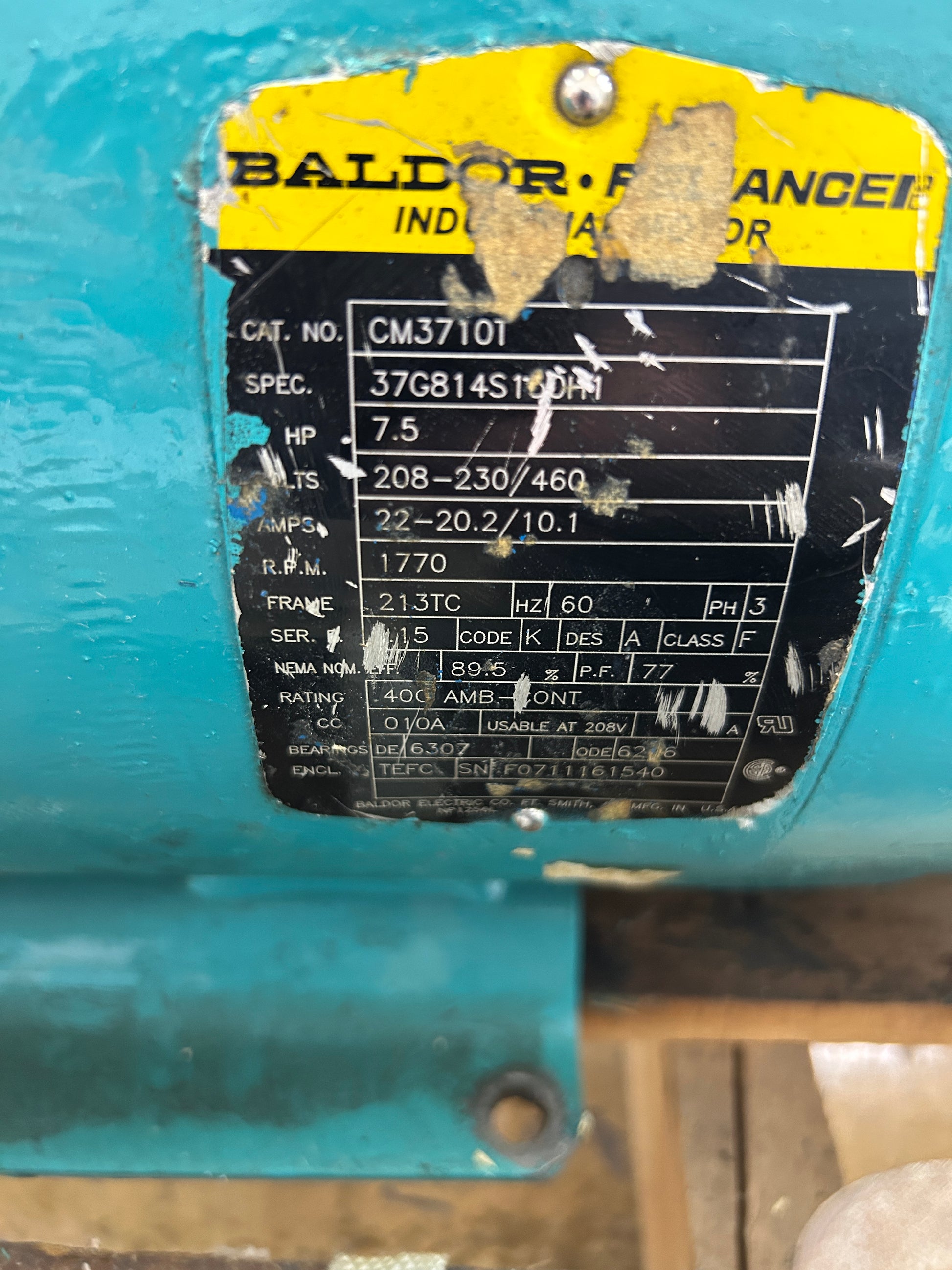

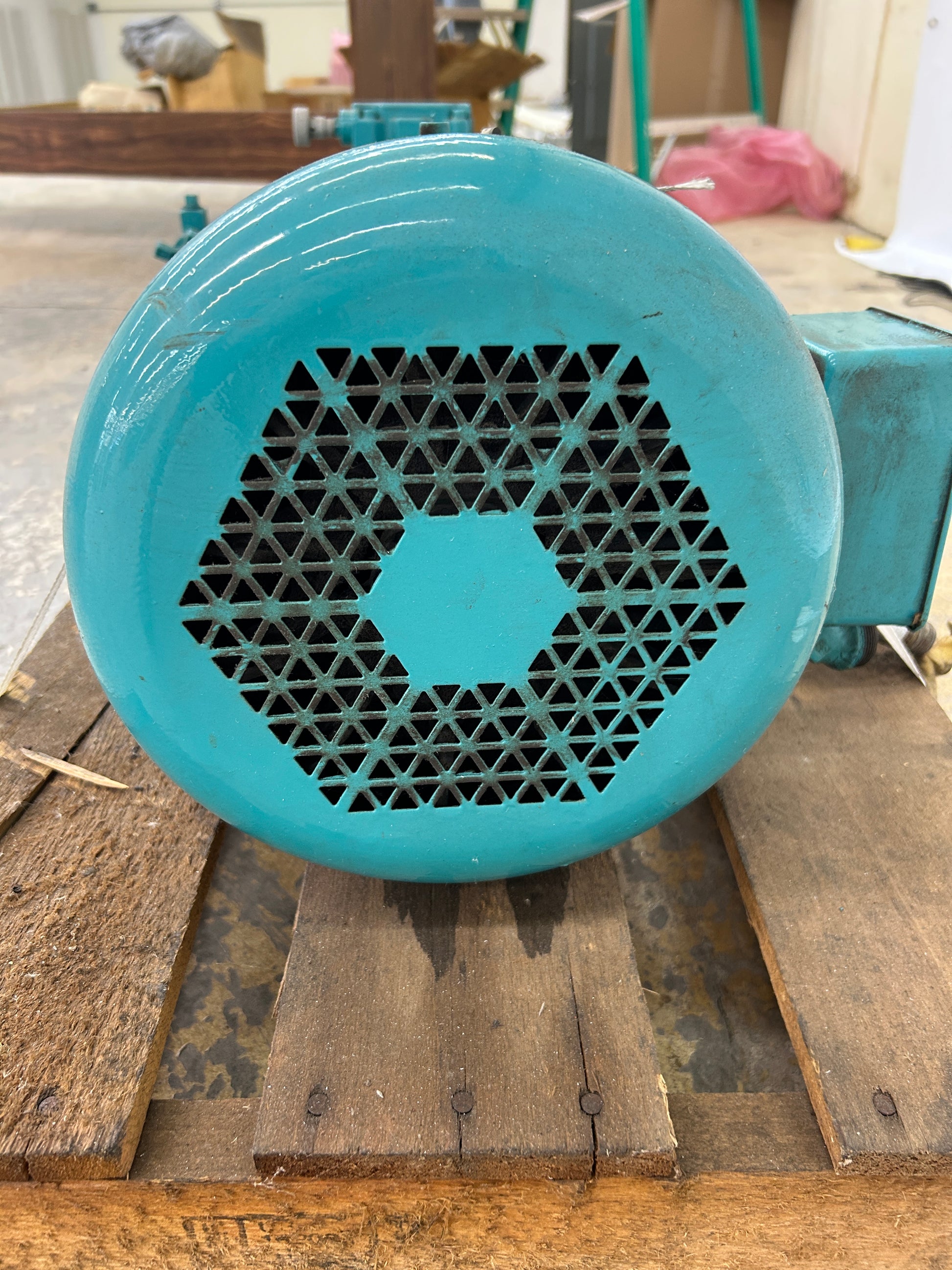

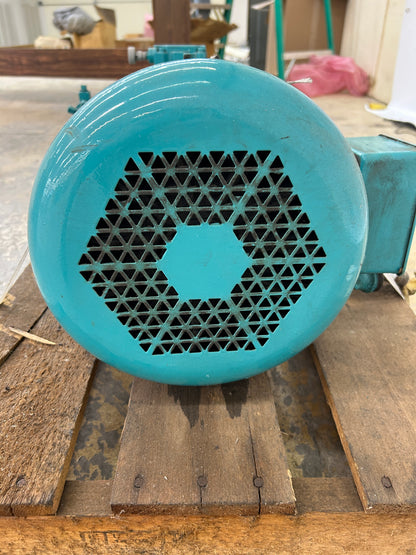

The Baldor Reliance CM3710T is a 7.5 HP three phase industrial AC motor built on a 213TC frame with a C face mounting flange and rigid foot base. It is rated for 208 to 230 / 460 volts at 60 Hz, drawing 22 / 20.2 / 10.1 amps across the three voltage taps, and operates at a nameplate speed of 1770 RPM. Construction is TEFC (Totally Enclosed Fan Cooled), making it suitable for industrial environments where airborne contaminants, moisture, or debris may be present. The motor uses a 6307 drive end bearing and 6206 opposite drive end bearing, with Class F insulation and a NEMA Code K starting characteristic. Service factor and design designations are visible on the nameplate as DES A and CLASS F. The motor carries a nominal efficiency of 89.5 percent and a power factor of 77 percent at rated load, with a 40 C ambient continuous duty rating. The unit is usable at 208 V per the nameplate. Catalog number CM3710T corresponds to Baldor's C face, foot mounted general purpose three phase motor line, commonly applied to pumps, fans, conveyors, gear reducers, machine tools, and material handling drives where three phase power is available. Spec number 37G814S150H1 and serial number F0711161540 are recorded from the nameplate. Country of manufacture is the United States per Baldor Electric Co., Fort Smith. The motor is shown in the photos mounted to a hydraulic pump assembly but is being listed as a standalone motor based on the nameplate identifiers.
Stock # 0226-083
