Condition: Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

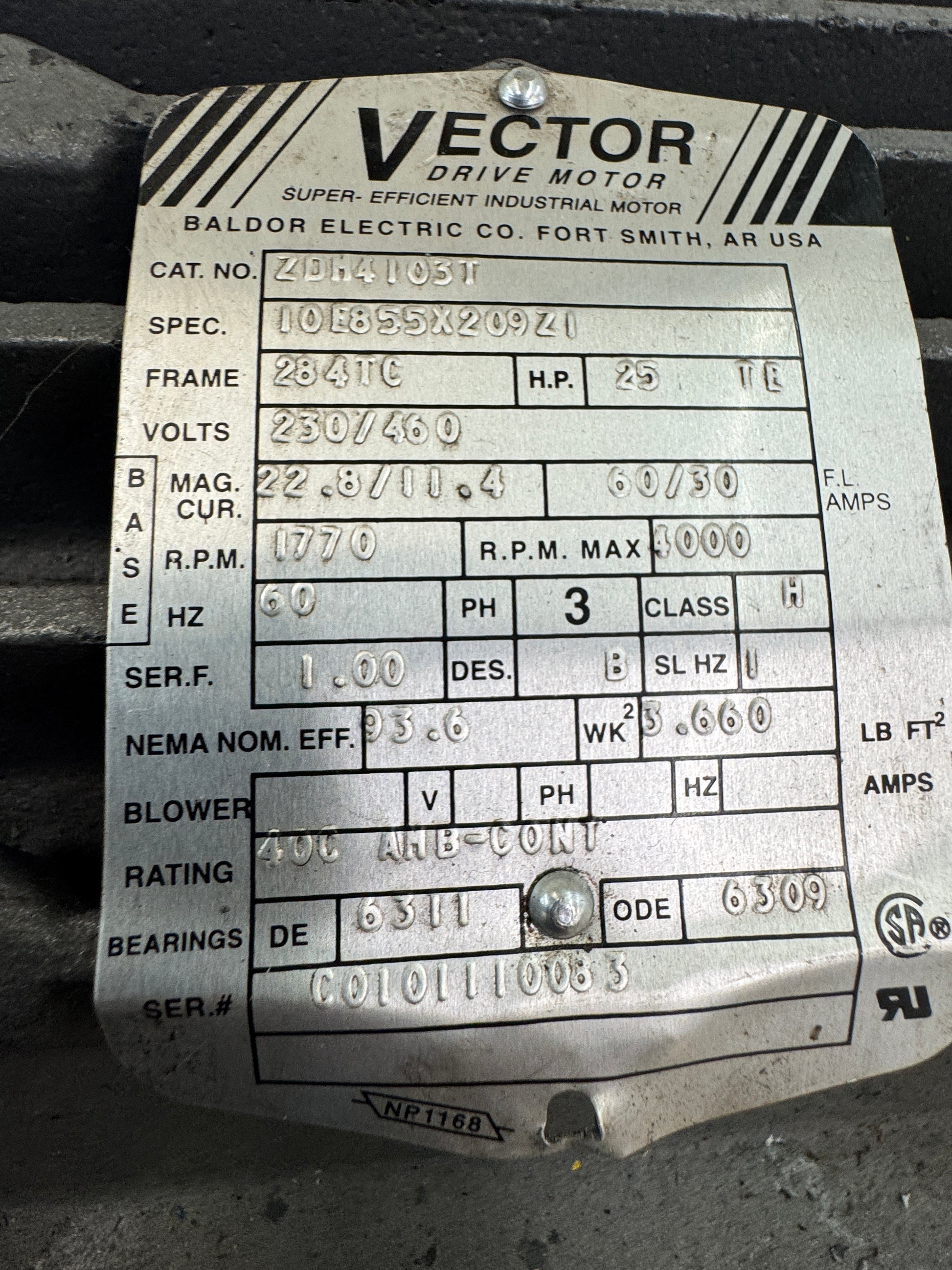

Baldor Vector Drive Motor, catalog number ZDJ4103T, manufactured by Baldor Electric Co., Fort Smith, AR, USA. Nameplate data indicates 25 HP, 230/460 volts, 60 Hz, three phase, 1770 RPM base speed with maximum RPM 4000. Frame size 284TC. Full load amps listed as 60/30. Design B, insulation class H, service factor 1.00. NEMA nominal efficiency 95.6%. Rated 40°C ambient continuous duty. Bearings specified as DE 6311 and ODE 6309. Serial number C0101110035. Additional nameplate shows Baldor industrial motor designation and NP1223/NP1168 plate references.

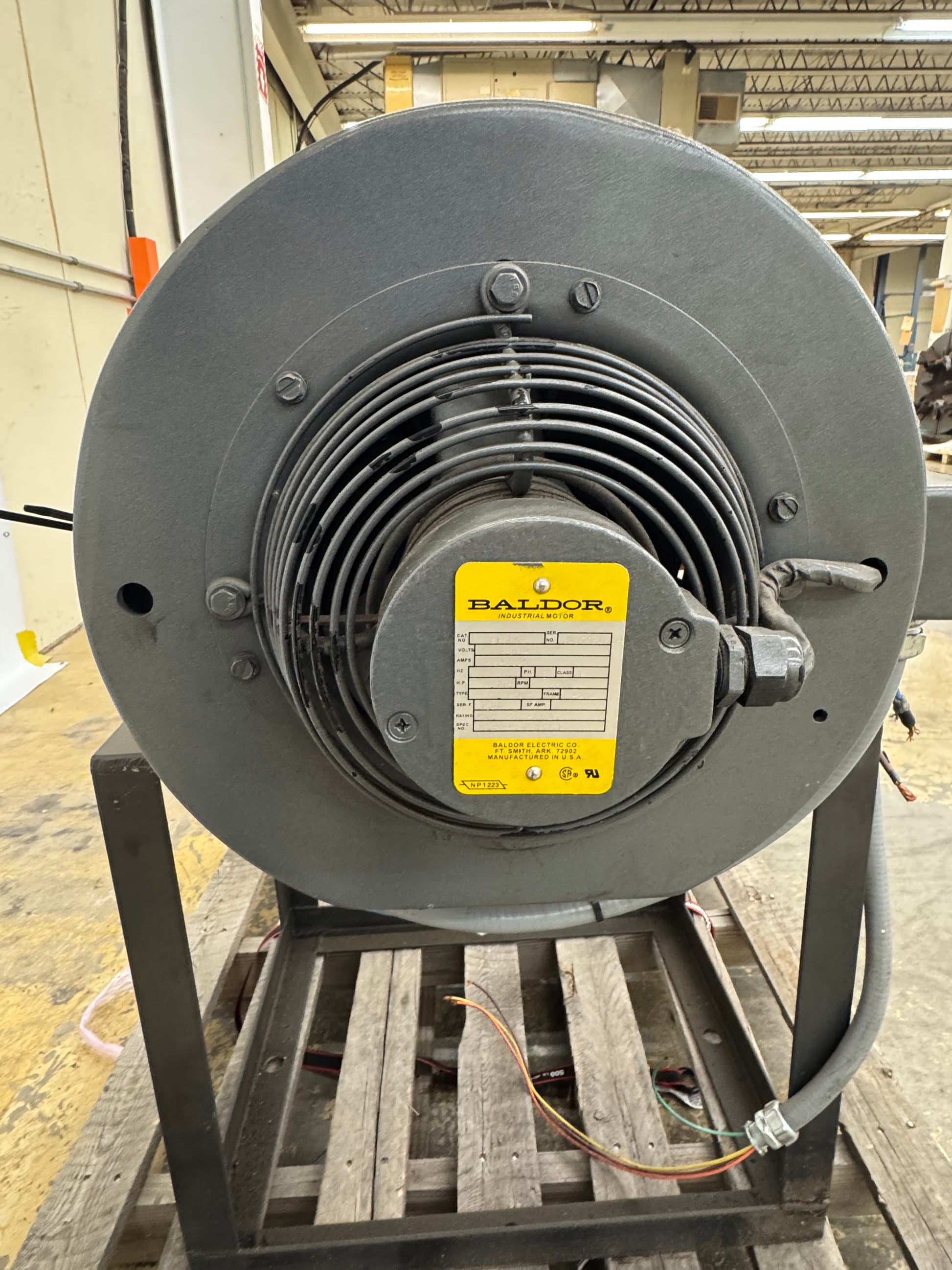

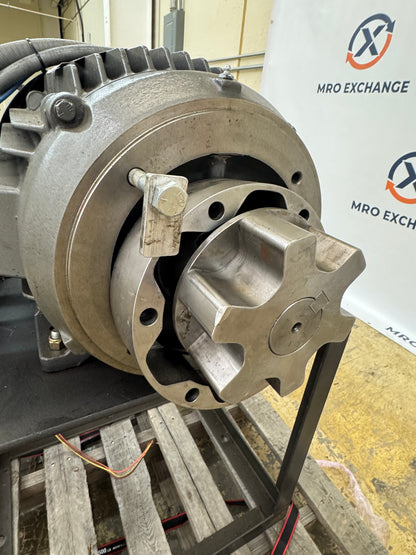

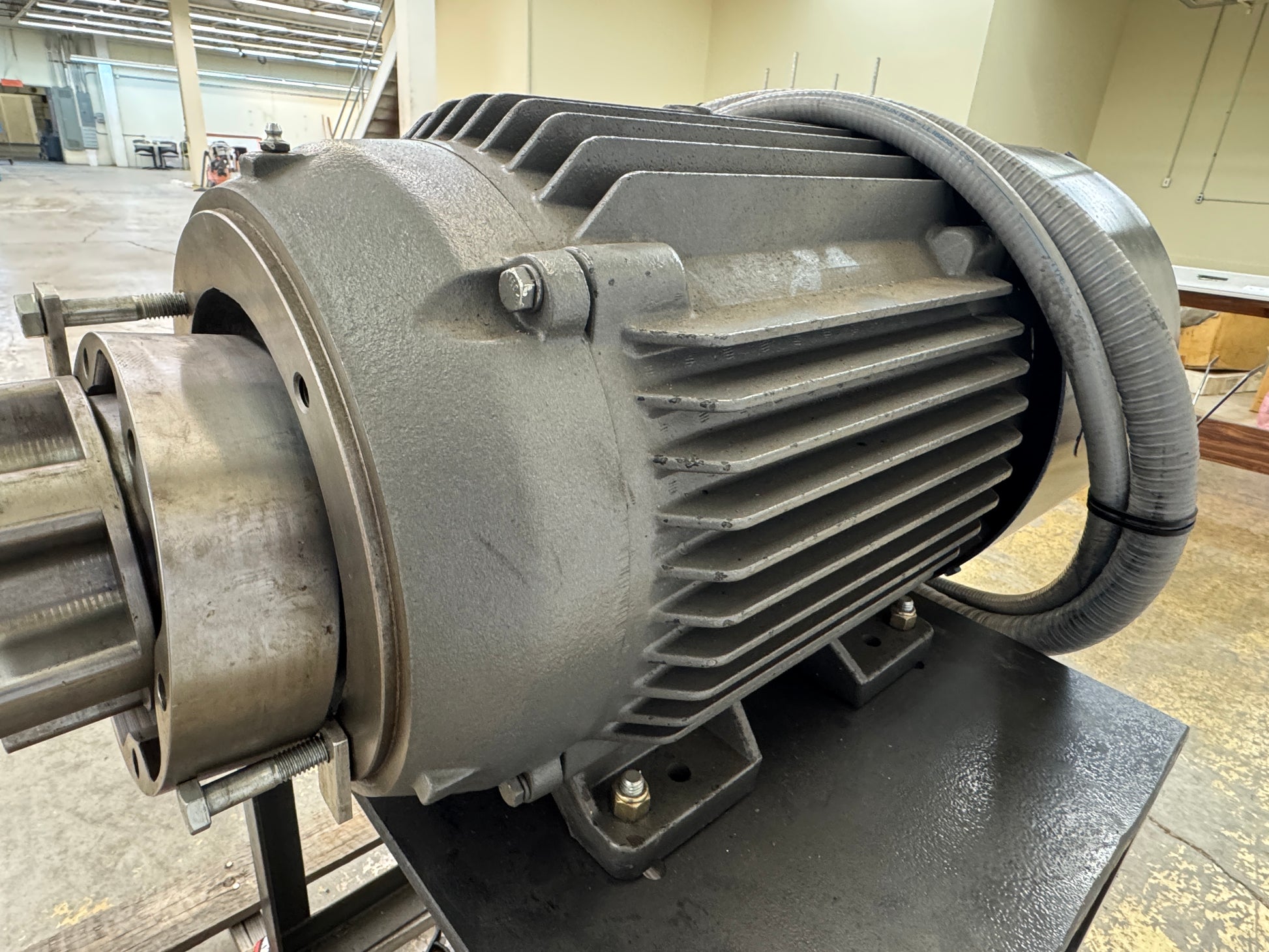

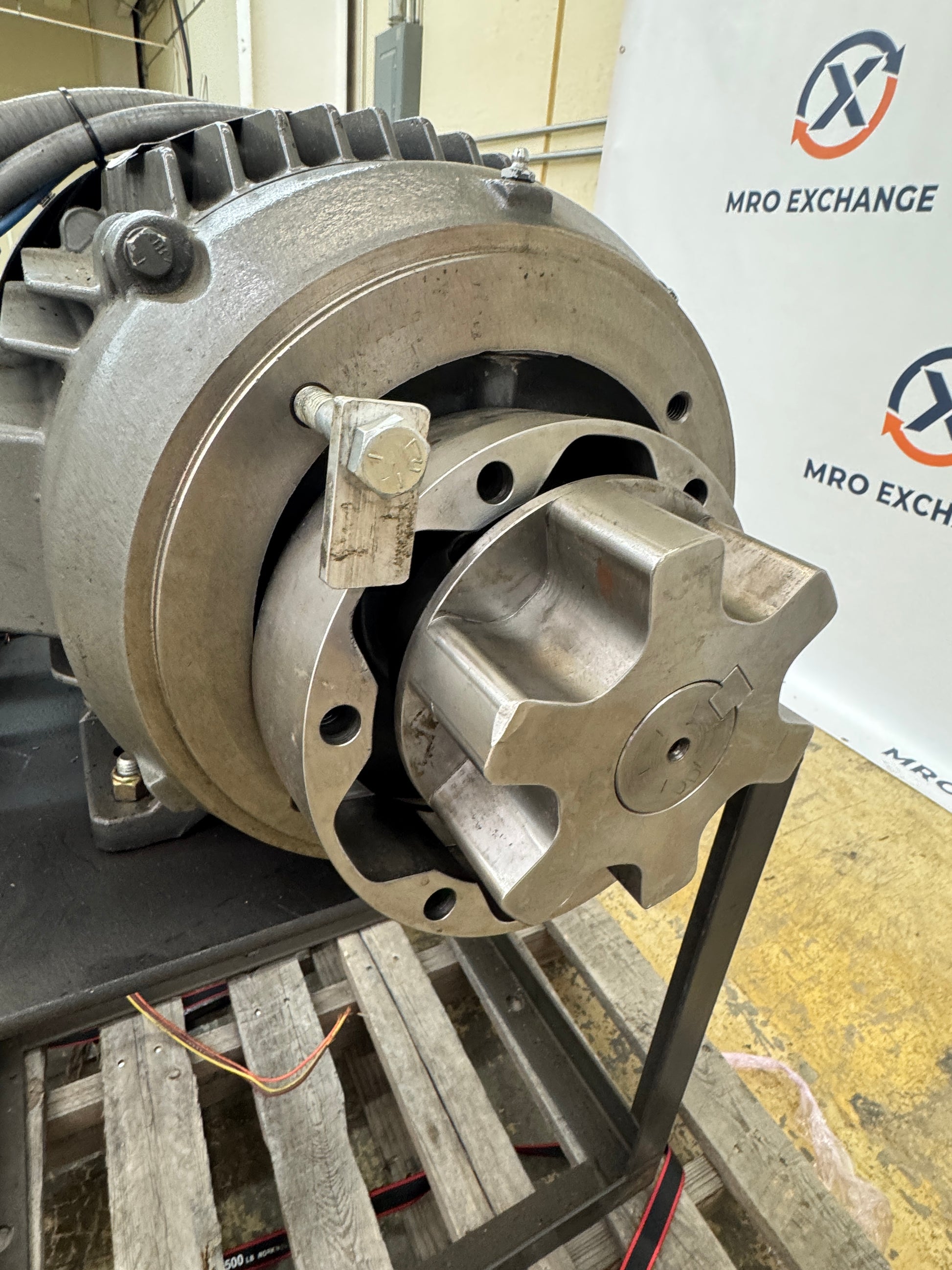

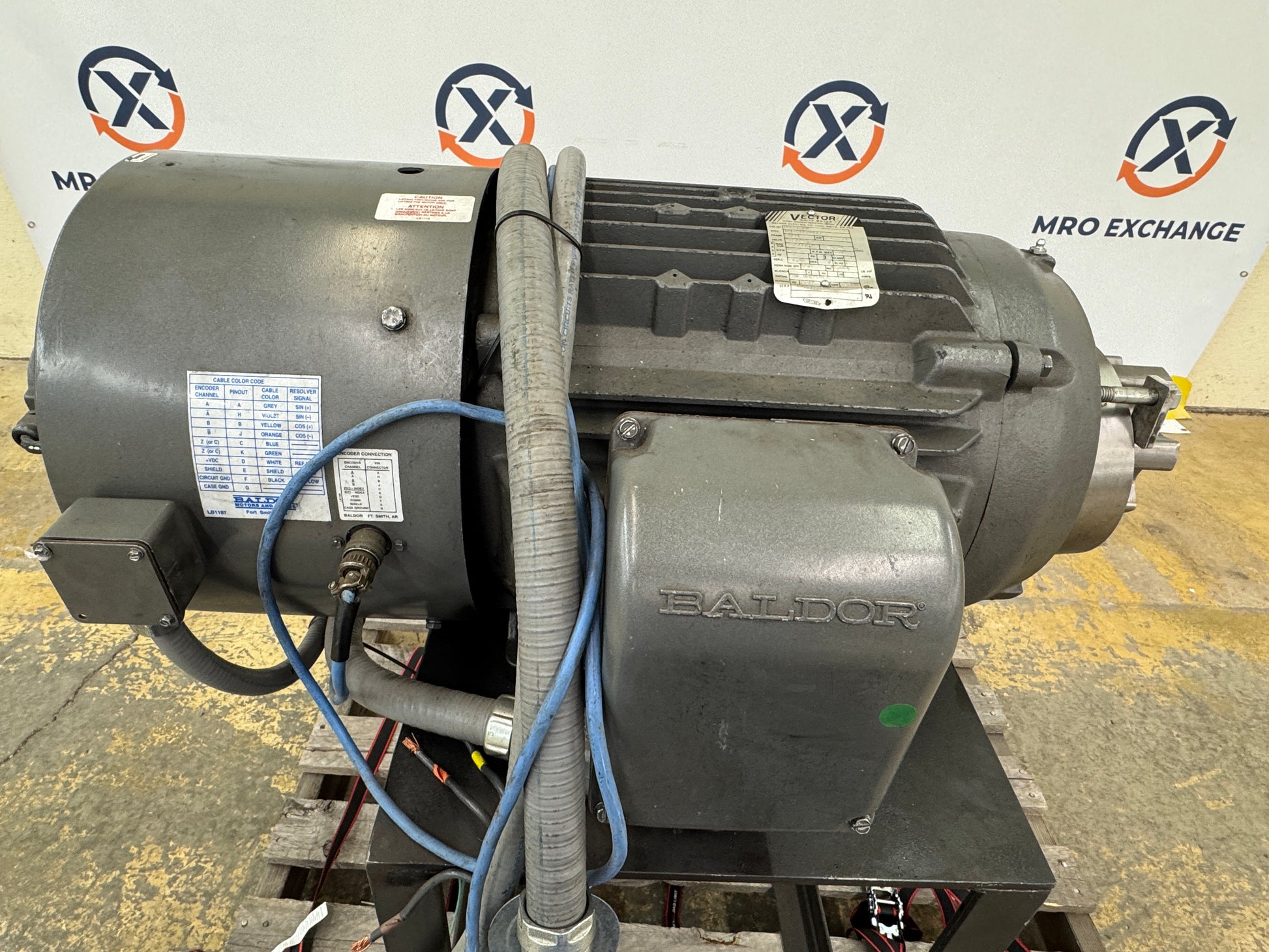

Motor is configured as a vector duty AC drive motor suitable for inverter operation. Housing features cast iron construction with cooling fins and rear fan shroud. Shaft is keyed and configured for flange mounting consistent with 284TC frame specification. All specifications and identification details are taken directly from visible manufacturer nameplates. Suitable for applications requiring a 25 HP, 230/460V, 3-phase Baldor vector duty motor, frame 284TC, rated 1770 RPM base speed.
