Baldor Reliance AC Motor EM3311T - 8 kW 1770

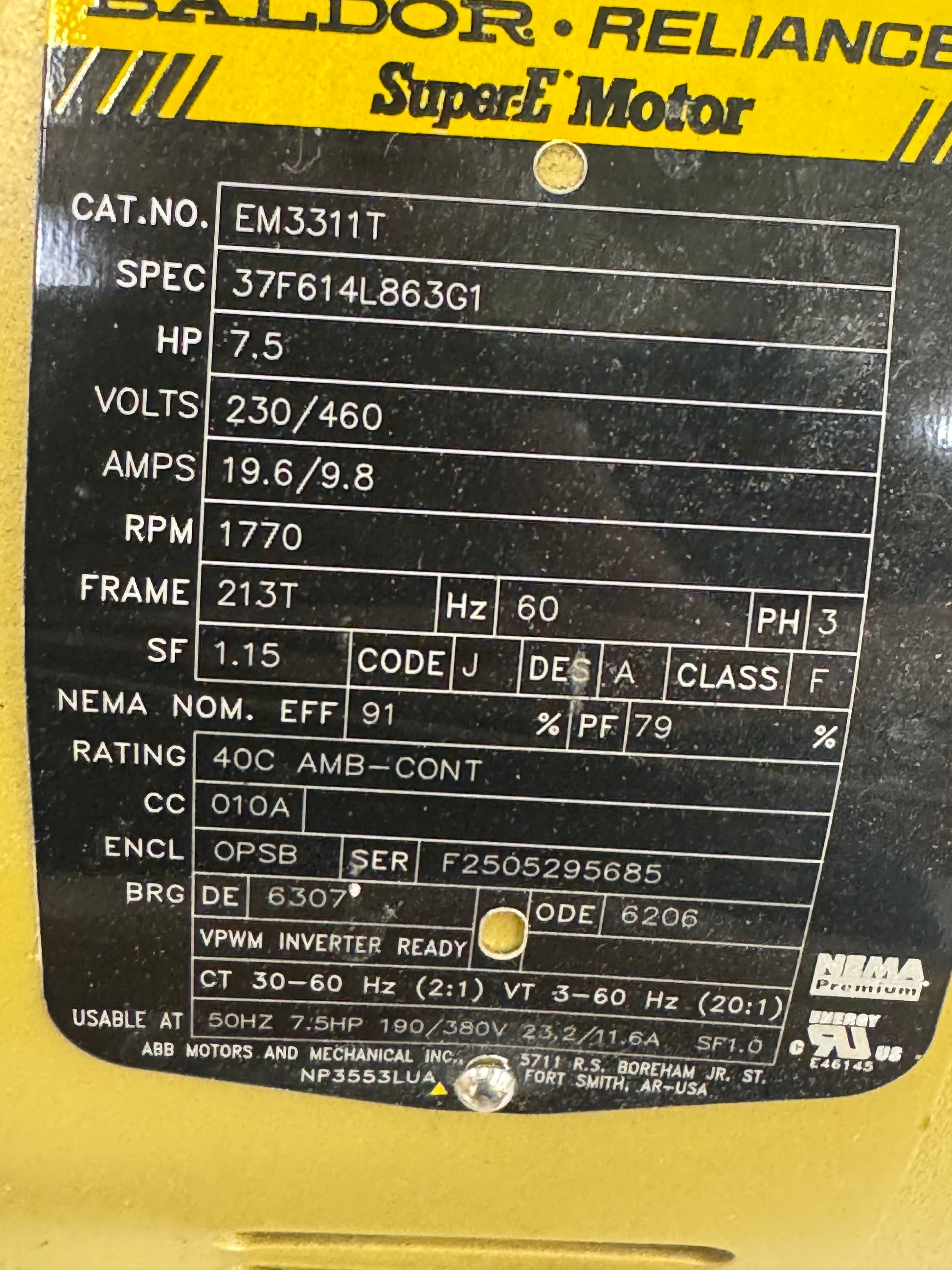

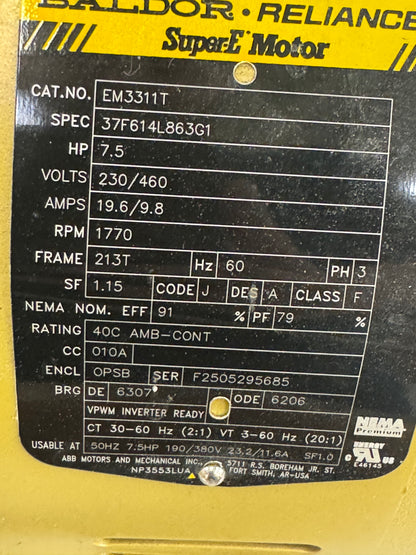

The Baldor Reliance Super-E Motor model EM3311T is a three-phase AC induction motor designed for industrial duty applications. The nameplate identifies a 7.5 horsepower rating with dual voltage capability of 230/460 volts and full load amperage of 19.6/9.8 amps. Rated speed is 1770 RPM at 60 Hz, with a NEMA 213T frame size. Service factor is 1.15 with Design A characteristics and Class F insulation. The motor carries a NEMA nominal efficiency of 91% and a power factor of 79%.

This unit is labeled inverter ready and supports variable torque operation from 3–60 Hz (20:1) and constant torque operation from 30–60 Hz (2:1). Bearings are specified as 6307 (drive end) and 6206 (opposite drive end). Enclosure type is OPSB and ambient rating is 40°C continuous duty. Nameplate also indicates usability at 50 Hz with corresponding voltage and current ratings.

Manufactured by ABB Motors and Mechanical Inc., Fort Smith, Arkansas, USA, this motor is suitable for a range of industrial machinery requiring a 213T frame, 7.5 HP, 1770 RPM three-phase AC motor configuration.

Stock # 0226-296
