Baldor-Reliance IDWNM22937T Inverter Duty Motor 7 HP 1800 RPM
Baldor-Reliance IDWNM22937T Inverter Duty Motor 7 HP 1800 RPM
Share
Couldn't load pickup availability
✓ 30-day returns on every item — return policy
30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.
Shipping Estimate
⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)
✓ Free domestic freight — applied automatically at checkout.
- Same-Day Available
- Real support team
- Secure checkout

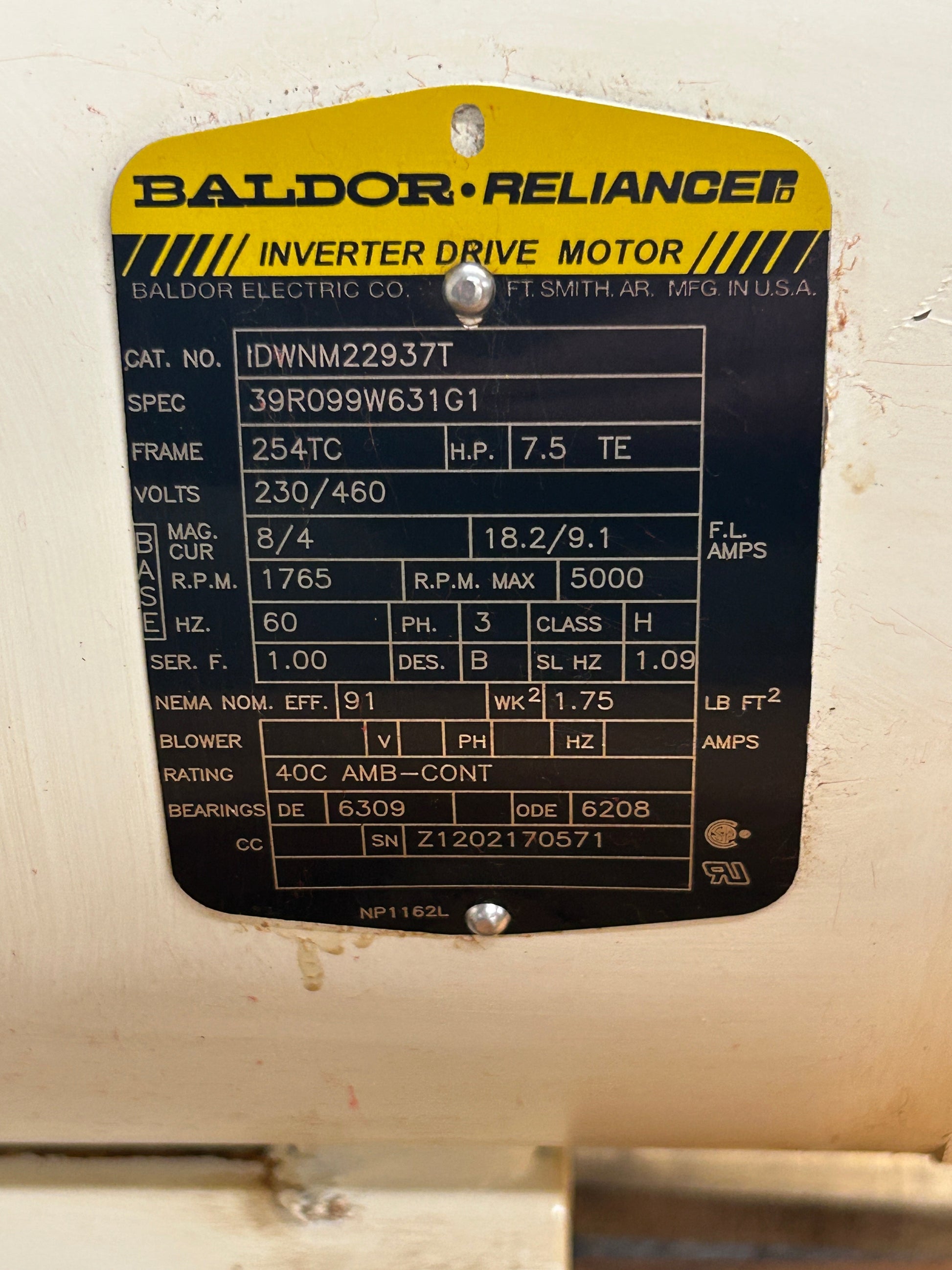

Rated at 7.5 HP and 1765 RPM at base speed, the Baldor-Reliance IDWNM22937T is a three-phase inverter duty washdown motor built in the 254TC frame. Manufactured by Baldor Electric Co. in Fort Smith, Arkansas, it carries the designation "Inverter Drive Motor" on its nameplate and is designed for variable speed operation on adjustable frequency drives. Voltage is rated at 230/460V, three phase, 60 Hz, with full load amps of 18.2/9.1. The motor is rated Class H insulation with NEMA Nominal Efficiency of 91 and a 1.0 service factor. Design B, with a slip Hz of 1.09 and maximum RPM of 5000. Enclosure type is TENV, making it suitable for washdown environments. The rating is 40C ambient, continuous duty. Drive end bearing is 6309 and opposite drive end bearing is 6208. Spec number is 39R099W631G1, serial number Z1202170571. The motor carries UL and cUL markings visible on the nameplate. Applications for this motor type include conveyors, pumps, fans, compressors, metal processing, and other equipment requiring wide-range speed control via VFD.
Stock # 0326-890
