Balluff Mechanical Multiple Position Limit Switch BNS 819-D02-R12-100-10 (BNS00C9) 250 VAC m00739
Balluff Mechanical Multiple Position Limit Switch BNS 819-D02-R12-100-10 (BNS00C9) 250 VAC m00739
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

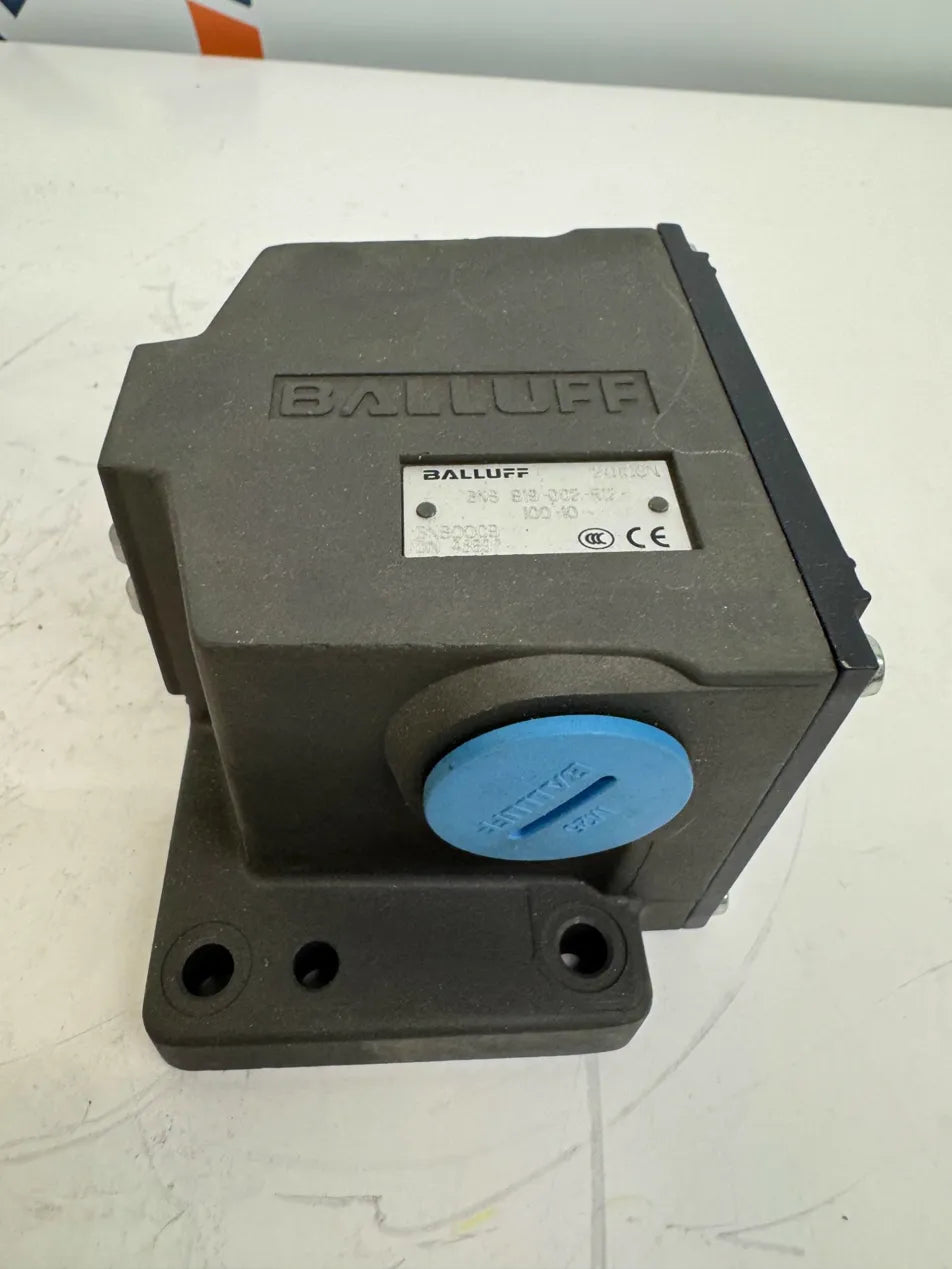

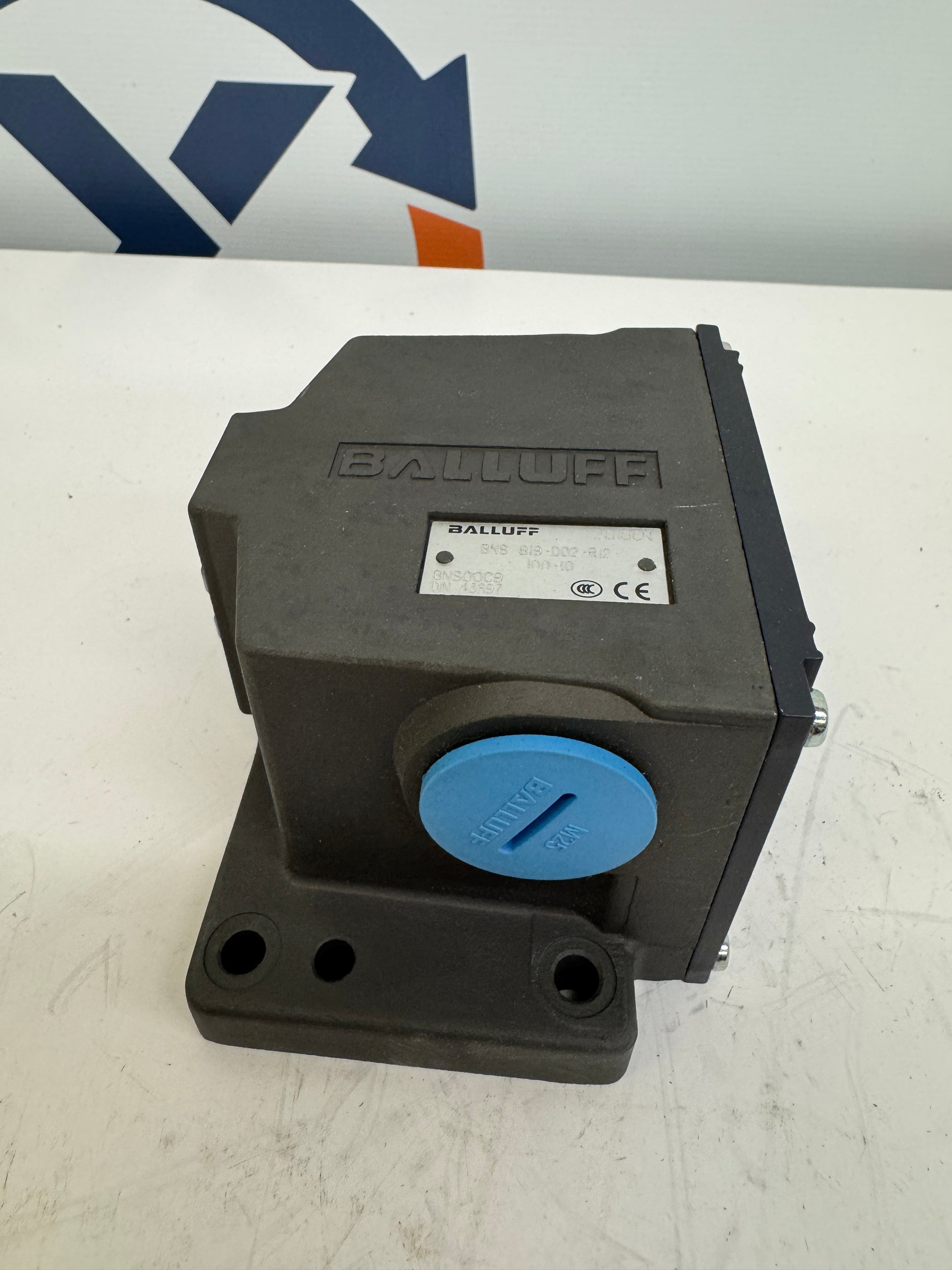

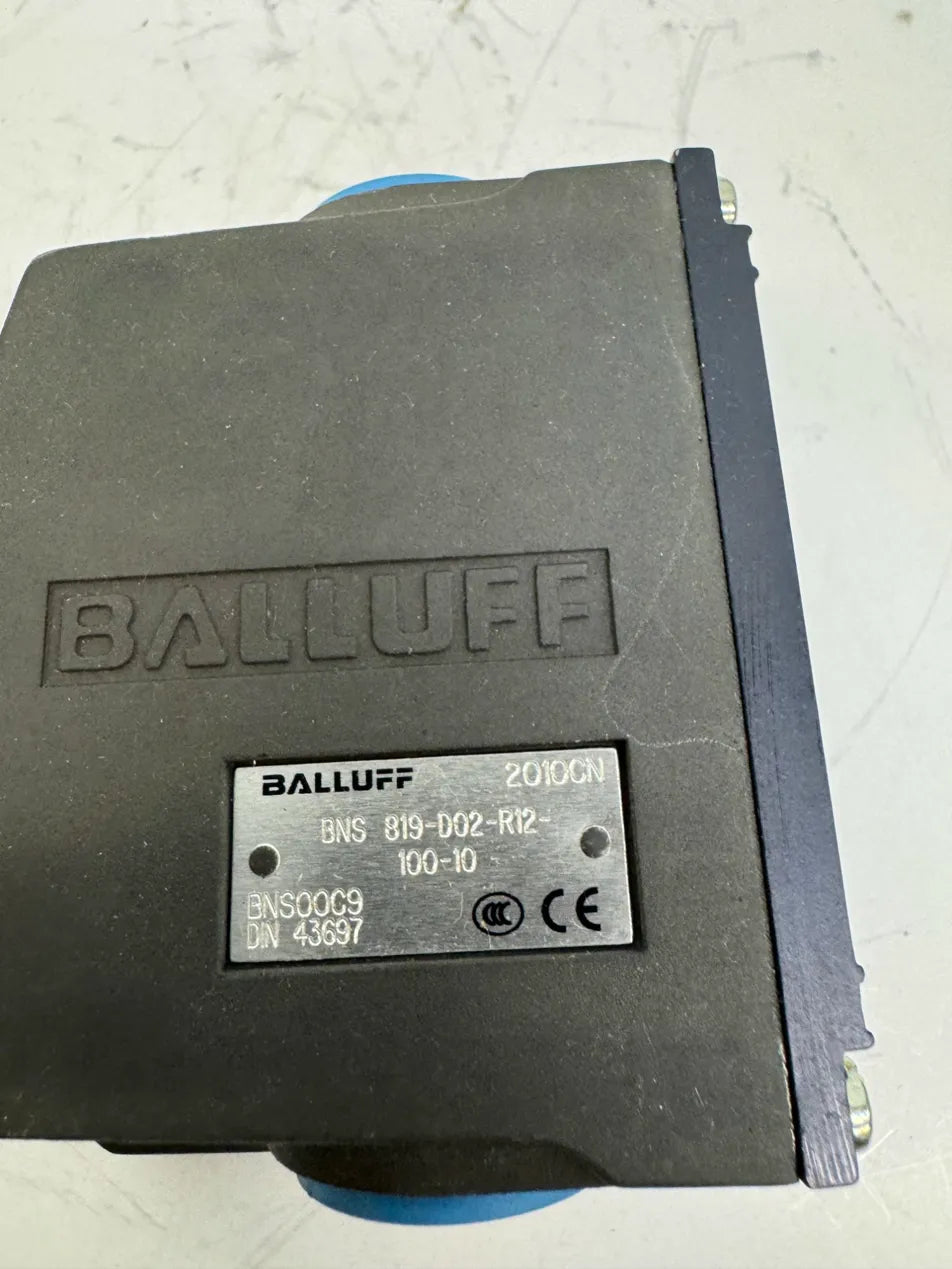

Used in machine tools, automation systems, transfer lines, and conveying equipment, the Balluff BNS 819-D02-R12-100-10 is a mechanical multiple position limit switch designed for precise position detection in demanding industrial environments. It carries order code BNS00C9 and conforms to DIN 43697 standards as shown on the nameplate.
The unit features two roller plunger switching positions with snap contact elements, a rated operating voltage of 250 VAC, and a continuous current rating of 6 A per published Balluff specifications. The aluminum anodized housing measures 120 x 70 x 83 mm and incorporates Balluff's dual-chamber design with an IP67 protection rating, providing hermetic separation between the plunger mechanism and the internal switch contacts. The Viton membrane seals the switching chamber against coolants, chips, and other industrial contaminants.

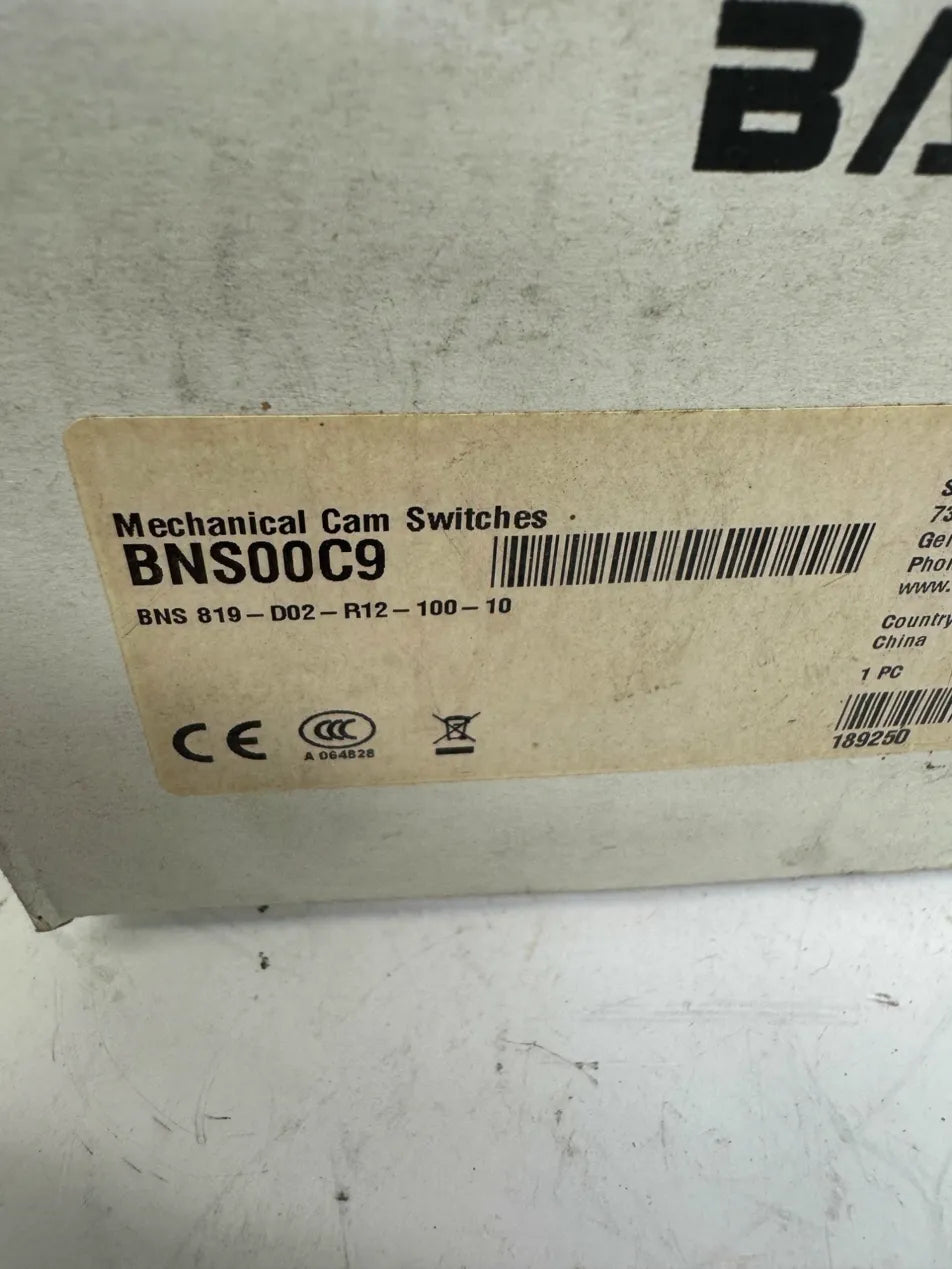

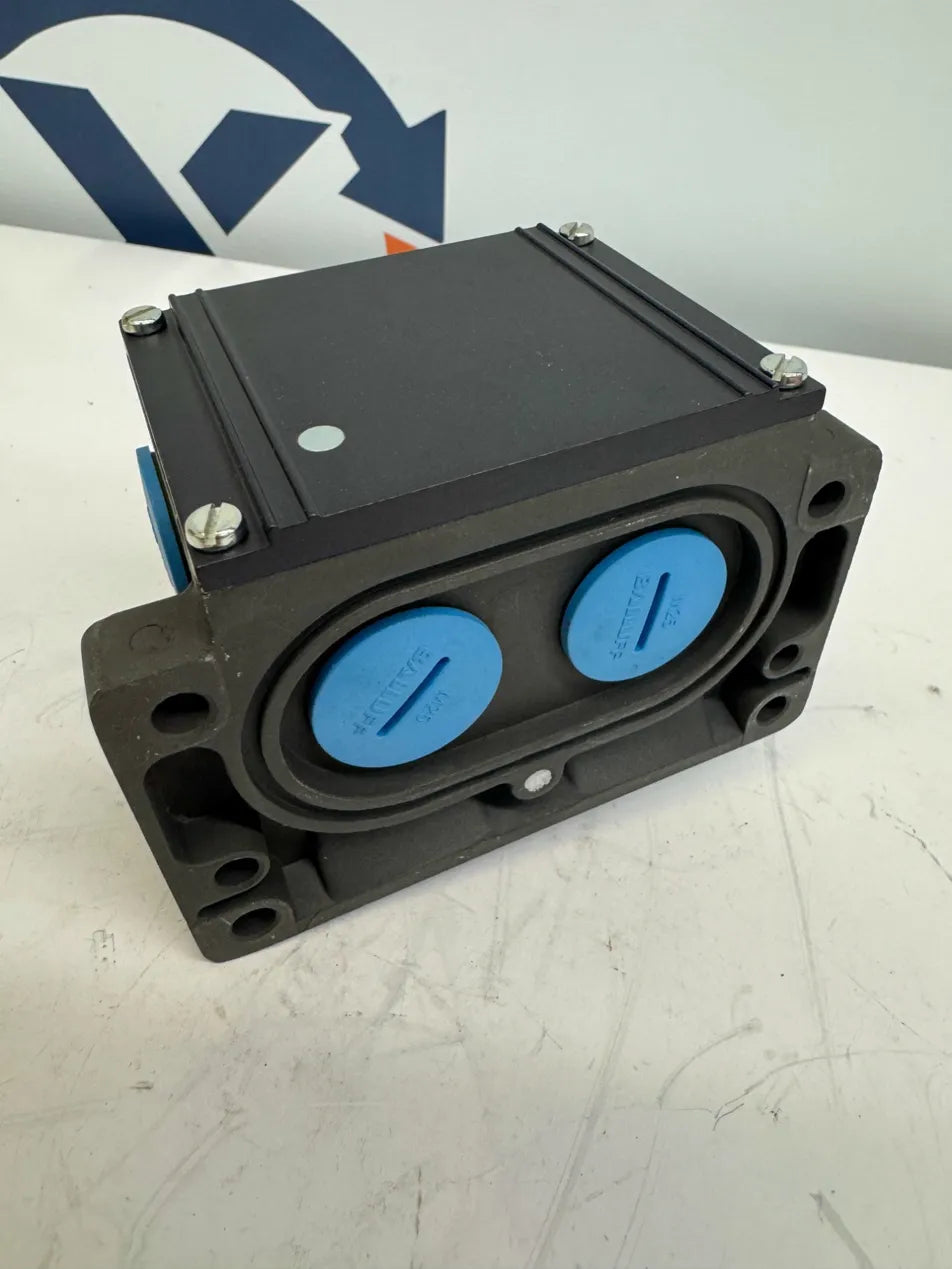

Cam approach direction is parallel and longitudinal to the mounting surface, consistent with the 100-series housing configuration. The maintenance-free self-lubricating ram guide is a standard feature of this product line. The unit includes two M25 cable entry points for field wiring. Manufactured in China as indicated on the product box label. CE and CCC certified per markings on both the box and nameplate.
Stock # 0226-739
