Balluff BNS 819-D03-R12-62-10 / BNS01JF Mechanical Multiple Position Limit Switch 250V AC
Balluff BNS 819-D03-R12-62-10 / BNS01JF Mechanical Multiple Position Limit Switch 250V AC
Share
Couldn't load pickup availability
✓ 30-day returns on every item — return policy
30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.
Shipping Estimate
⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)
✓ Free domestic UPS Ground shipping — applied automatically at checkout.
- Same-Day Available
- Real support team
- Secure checkout

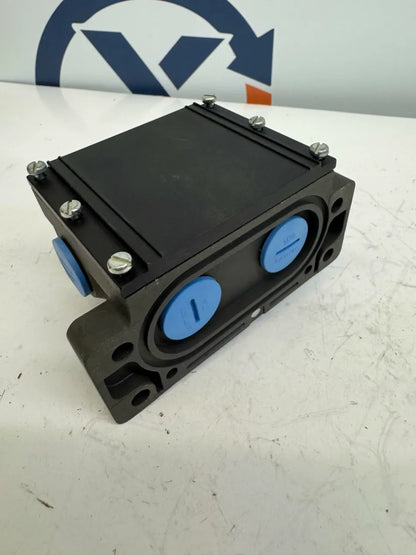

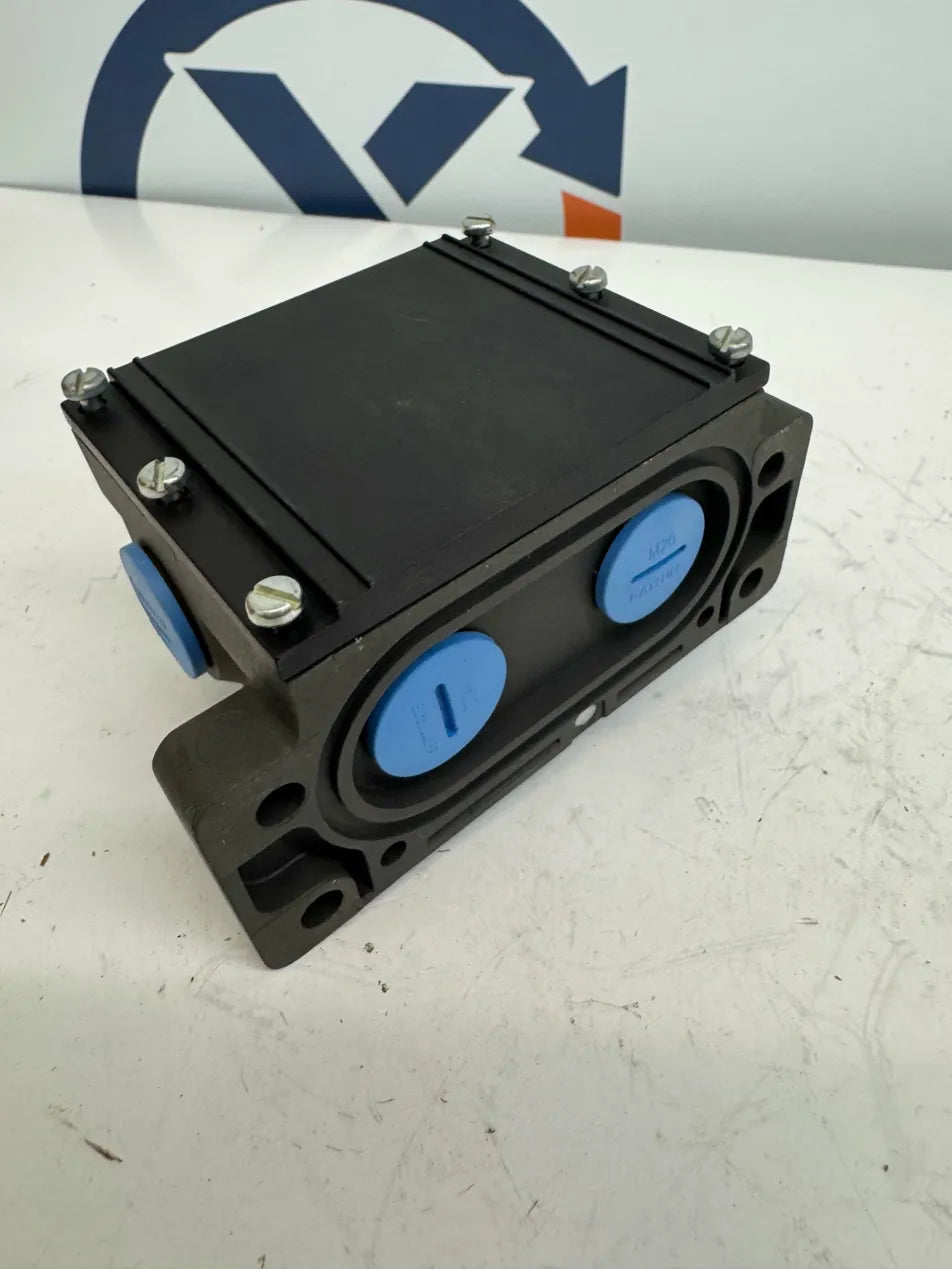

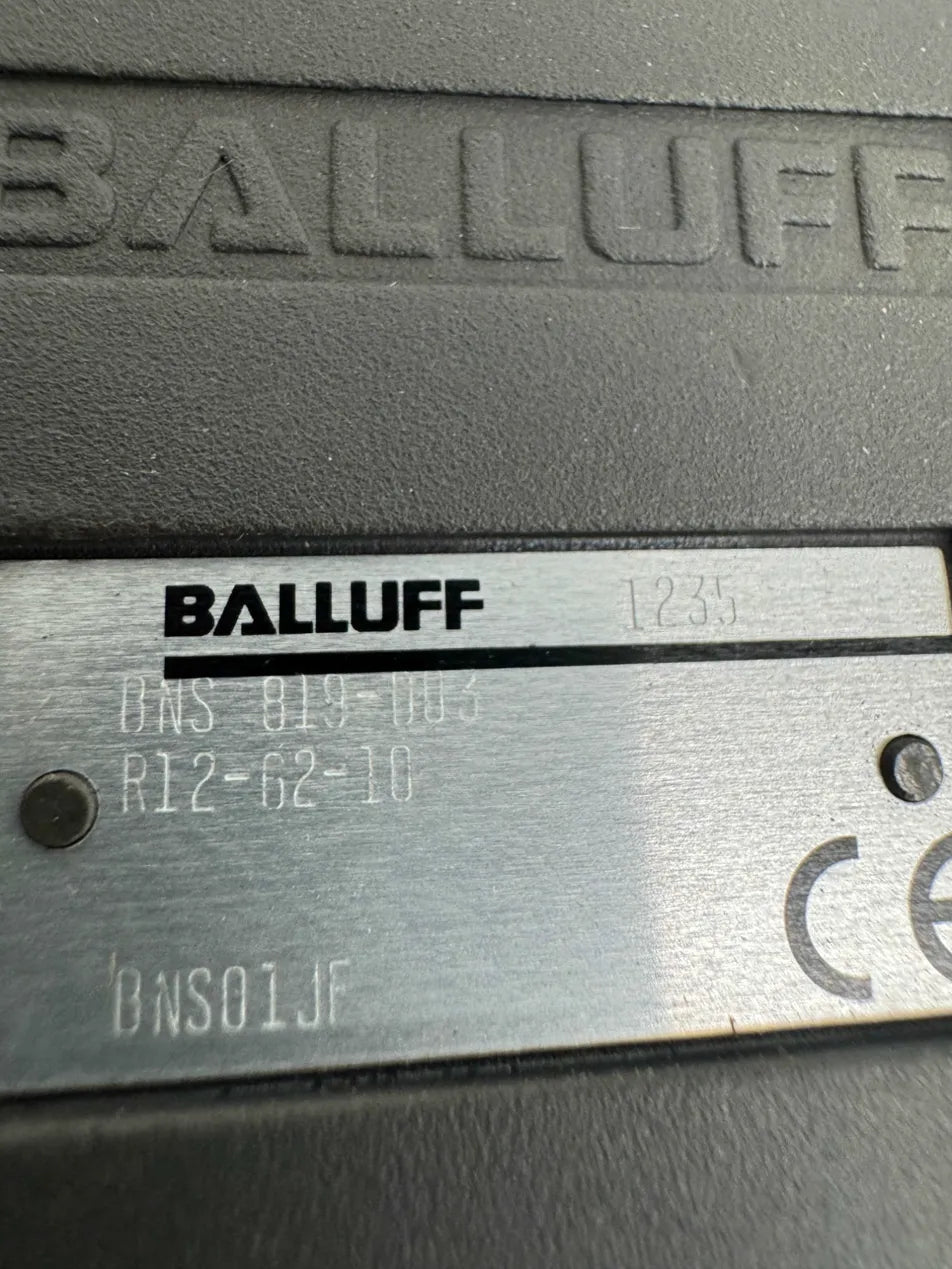

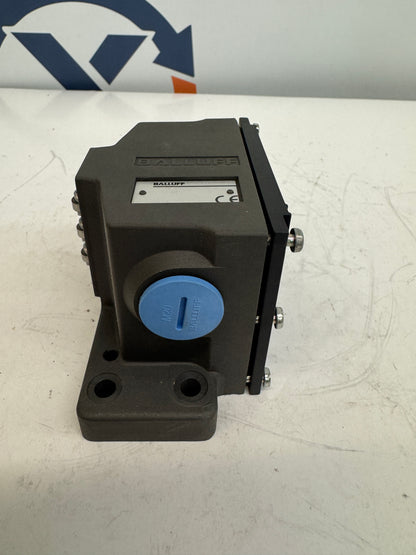

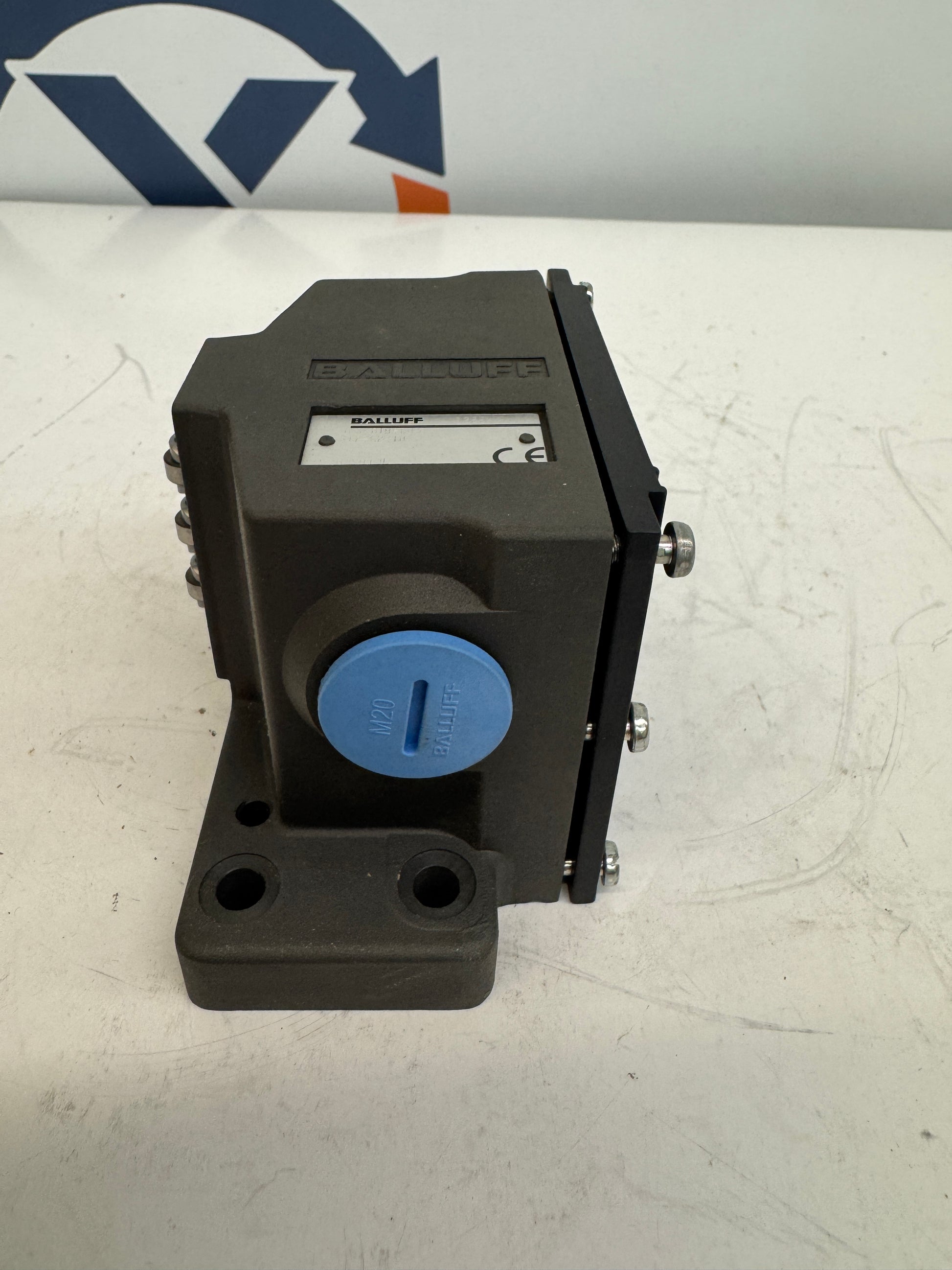

Used in CNC machine tools, machining centers, and industrial automation systems, the Balluff BNS 819-D03-R12-62-10 is a mechanical multiple position limit switch with three roller-actuated switching positions. The order code BNS01JF is stamped on the nameplate alongside the CE mark and a date code of 1235, indicating manufacture in the 35th week of 2012. Published Balluff specifications confirm a rated operating voltage of 250 VAC, a continuous current rating of 6A per switching position, and a switch position spacing of 12 mm. The anodized aluminum housing measures 120 x 72 x 62 mm and features a vertical installation orientation with longitudinal approach direction parallel to the attachment surface. The unit uses snap contact switching with a mechanical operating principle across all three positions. Port openings on the housing face are fitted with blue M20 Balluff-branded plugs. The mounting base includes four bolt holes for panel or bracket attachment. Connection is via screw terminals. The BNS 819 series is a widely specified component in tool change, axis position detection, and safety interlock circuits on automated manufacturing equipment.
Stock # 0226-743
