Banner Engineering SLLCE23-350-S Safety Light Curtain Emitter 24V DC Untested Surplus
Banner Engineering SLLCE23-350-S Safety Light Curtain Emitter 24V DC Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: SLLCE23-350-S
Stock #: Stock # 0626-01607
Product Specifications
- Manufacturer: Banner Engineering
- MPN / Model: SLLCE23-350-S
- Banner Part Number: 808923
- Product Type: EZ-SCREEN LS Cascade Safety Light Curtain Emitter
- Component: Emitter only
- Resolution: 23 mm
- Defined Area: 350 mm (13.8 in)
- Range: 0.1 to 12 m
- Supply Voltage: 24V DC +/- 15%
- Serial Number: M34546148089232120
- Enclosure Rating: IP65 / IP67
- Temperature Rating: -20 to 55 degrees C
- Safety Rating: Type 4 per IEC 61496, EN ISO 13849-1, Cat. 4 PL e, SIL 3 per IEC 61508
- Connection: Removable Disconnect (RD)
- Effective Aperture Angle: 2.5 degrees or less at 3 m
- Housing: Yellow aluminum
Product Description

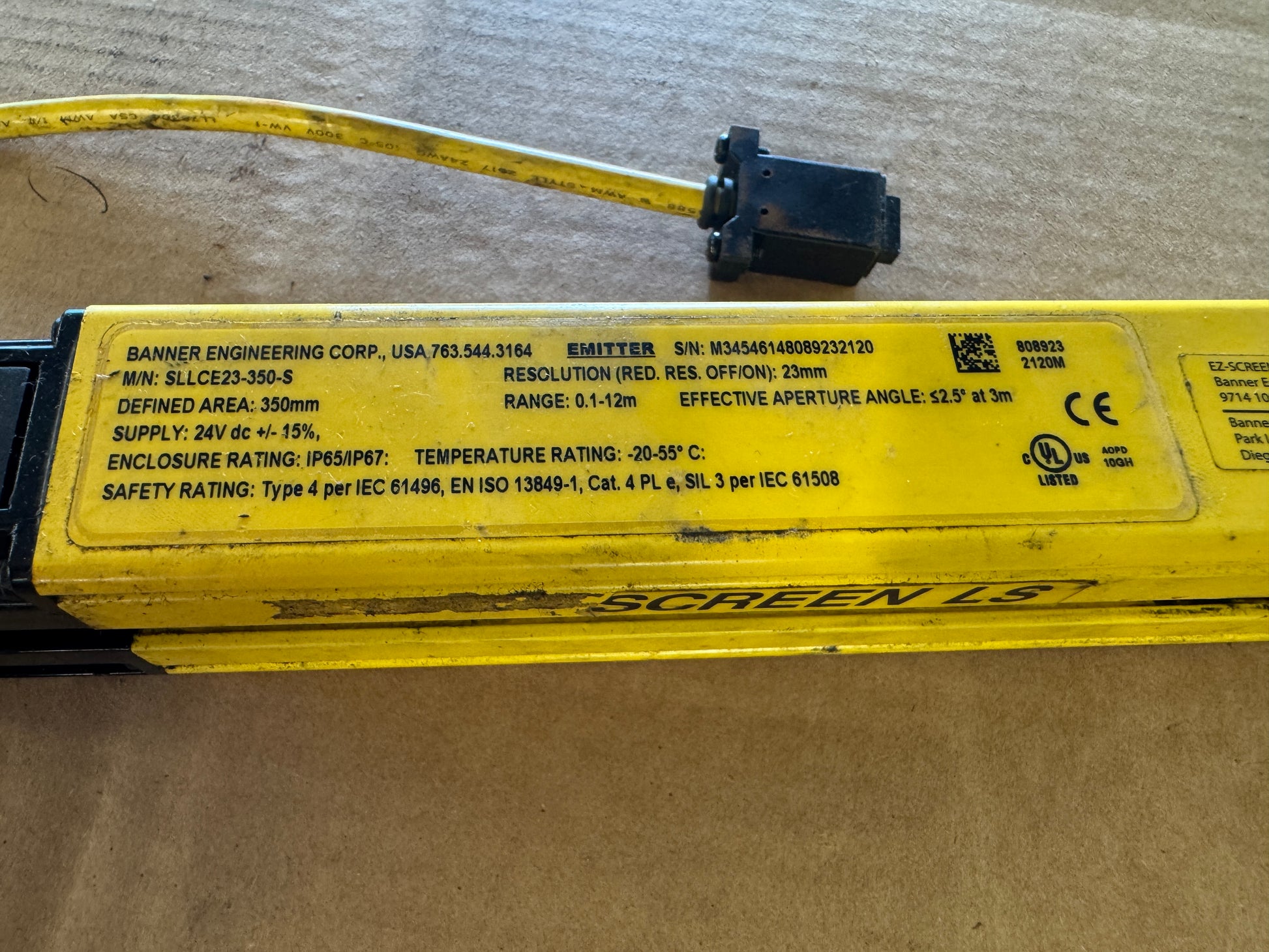

The Banner Engineering SLLCE23-350-S is an EZ-SCREEN LS Cascade safety light curtain emitter with a 350 mm defined area and 23 mm resolution, identified by MPN SLLCE23-350-S and Banner catalog number 808923. The nameplate confirms supply voltage of 24V DC +/- 15%, a sensing range of 0.1 to 12 m, and IP65/IP67 enclosure protection rated for ambient temperatures from -20 to 55 degrees C. Safety certification is Type 4 per IEC 61496, Category 4 PL e per EN ISO 13849-1, and SIL 3 per IEC 61508. The Removable Disconnect (RD) connection type is integral to the unit; mounting hardware and M12 pigtail cable are ordered separately. Serial number M34546148089232120 is visible on the nameplate. The housing shows cosmetic surface wear consistent with prior installation. This listing is for the emitter component only; a matching cascade receiver is required for a complete system.
