Boring Bar Holder | CAT50 | Orientation: Axial
Boring Bar Holder | CAT50 | Orientation: Axial
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN:
Stock #: 0426-01354

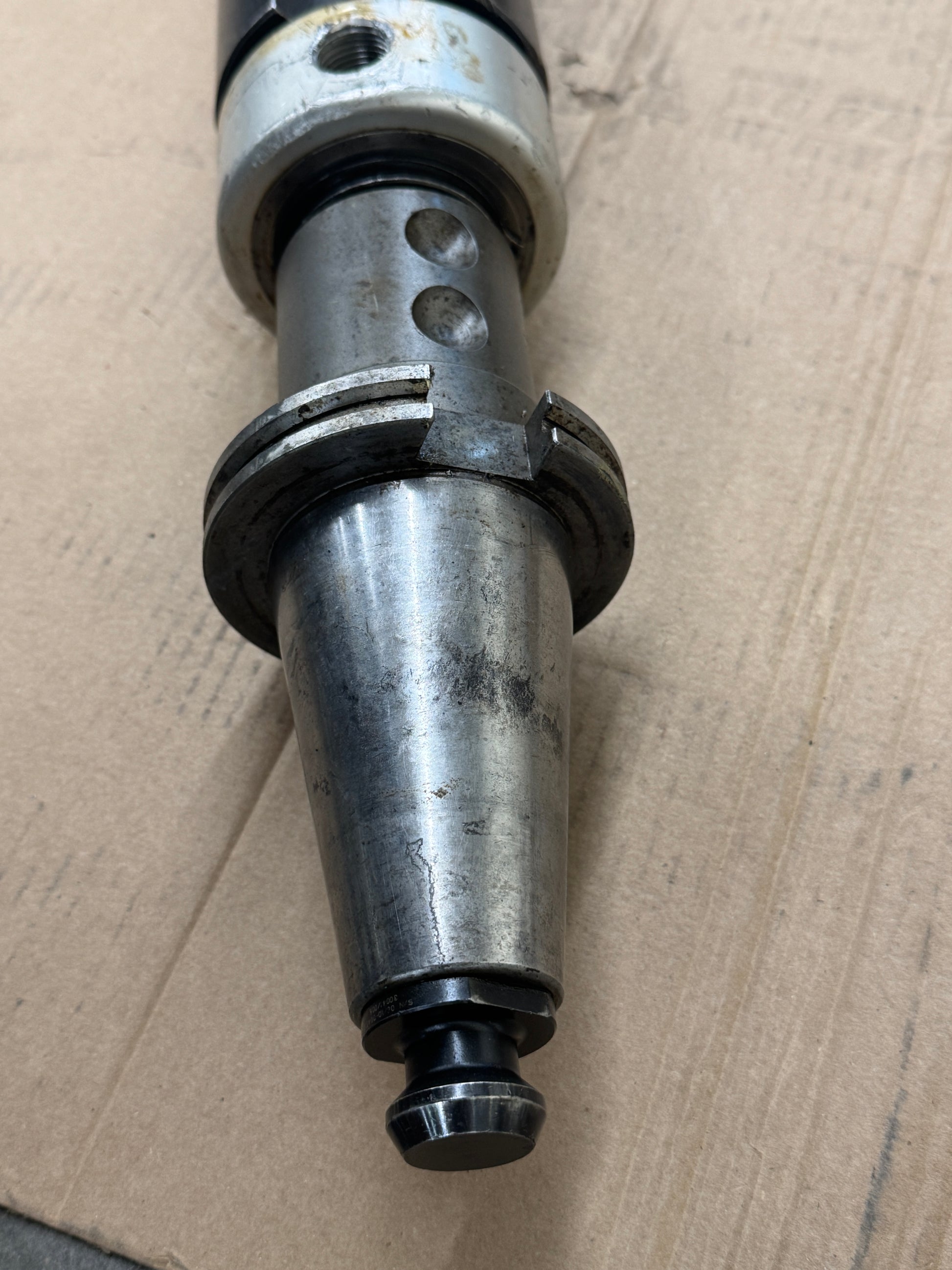

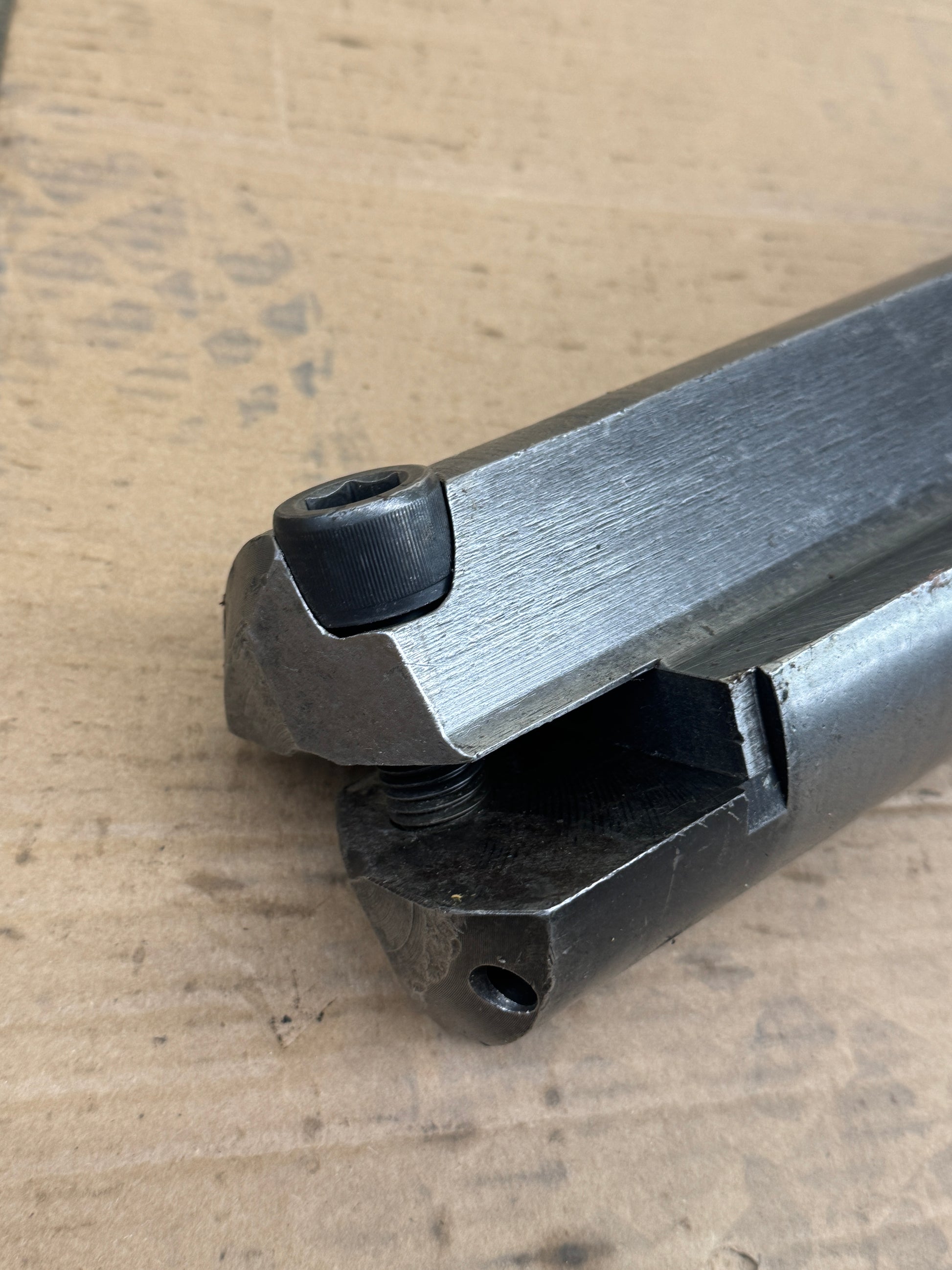

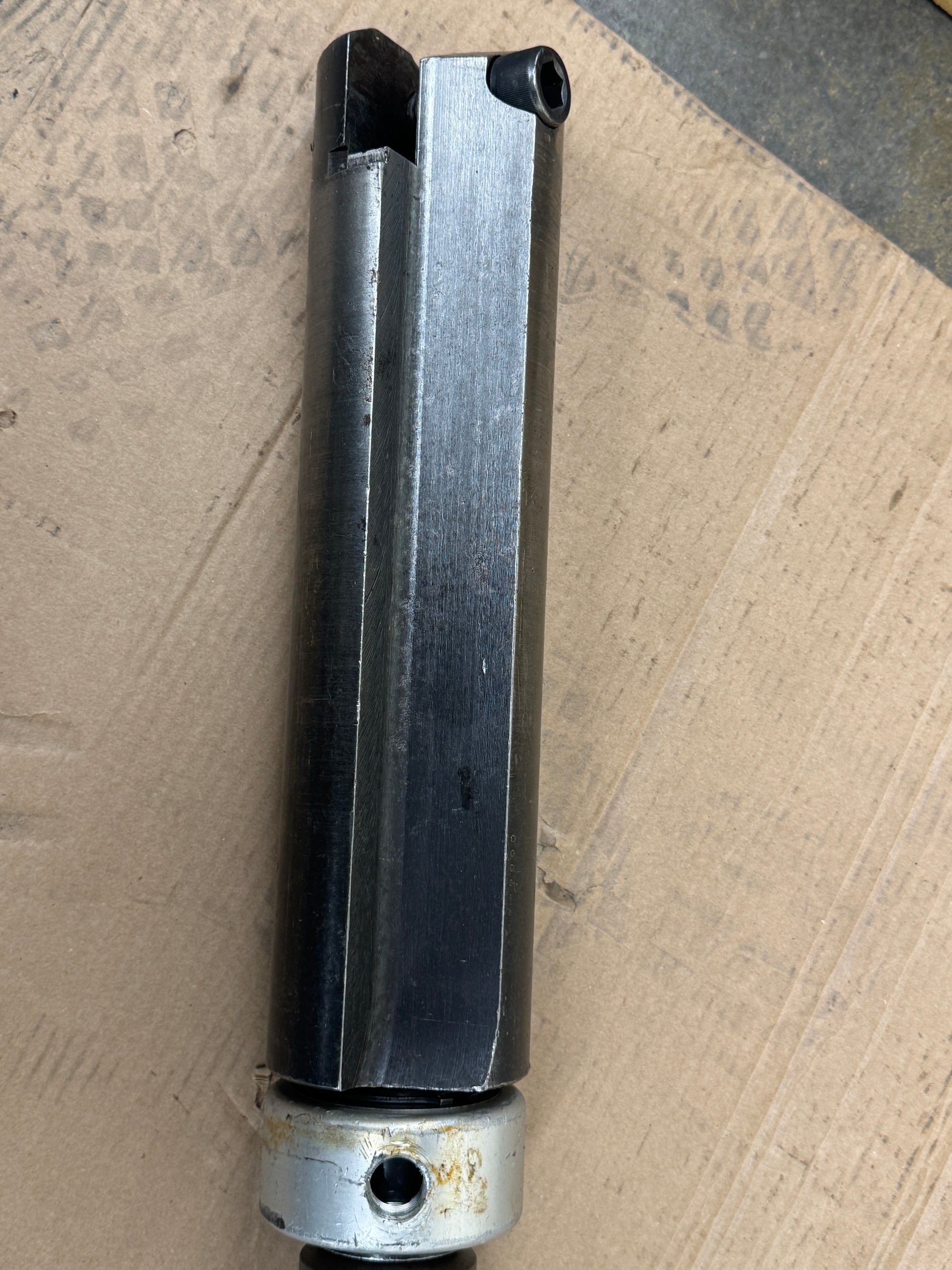

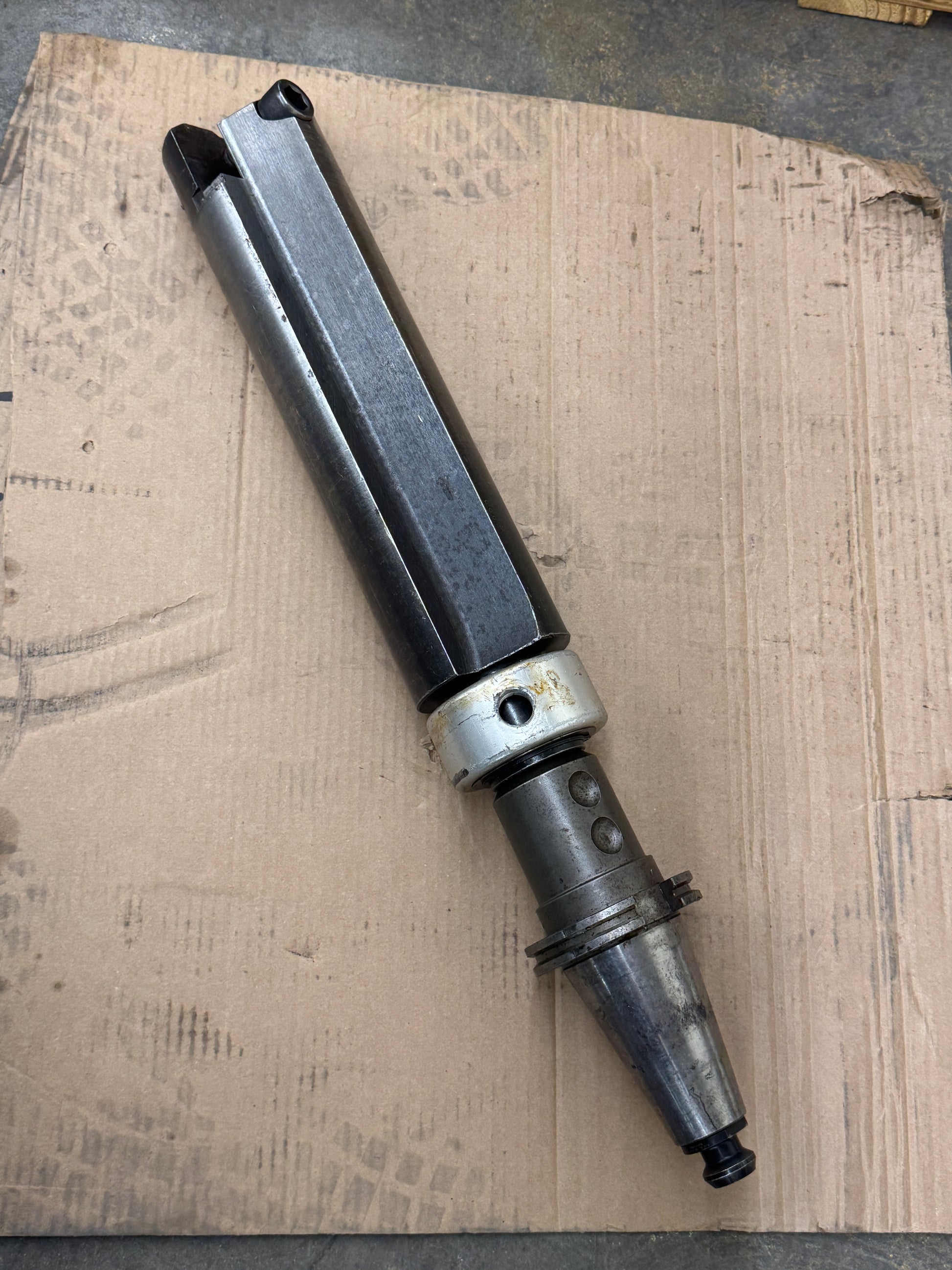

A CAT50 integral boring bar holder with a large-format square-cross-section steel bar body and a single indexable insert seat at the cutting end. The assembly mounts via a standard CAT50 V-flange taper with pull stud retention. The square bar body provides substantial rigidity and dampening characteristics suited for deep boring operations in CNC vertical and horizontal machining centers equipped with CAT50 spindles. The insert is secured by a hex-socket set screw visible at the tip. The holder collar incorporates a standard V-groove retention ring for ATC compatibility. No brand name, model number, or part number markings are legible from the available photos; manufacturer and MPN are unconfirmed and flagged for manual review. The overall assembly is a single-edge design, with the boring bar body emerging from the holder body as one integral unit. CAT50 integral boring bar holders of this configuration are commonly used in production boring applications where extended reach and a rigid square shank are required. Compatible insert geometry and size cannot be confirmed from photos alone.
Stock # 0426-01354
