B&R Automation ACOPOS Multi Motor Cable 8BCM0007.1111A-0 7 m, 4x 1.5 mm2, 8-Pin SpeedTec

$429.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 8BCM0007.1111A-0
Stock #: 0326-01057

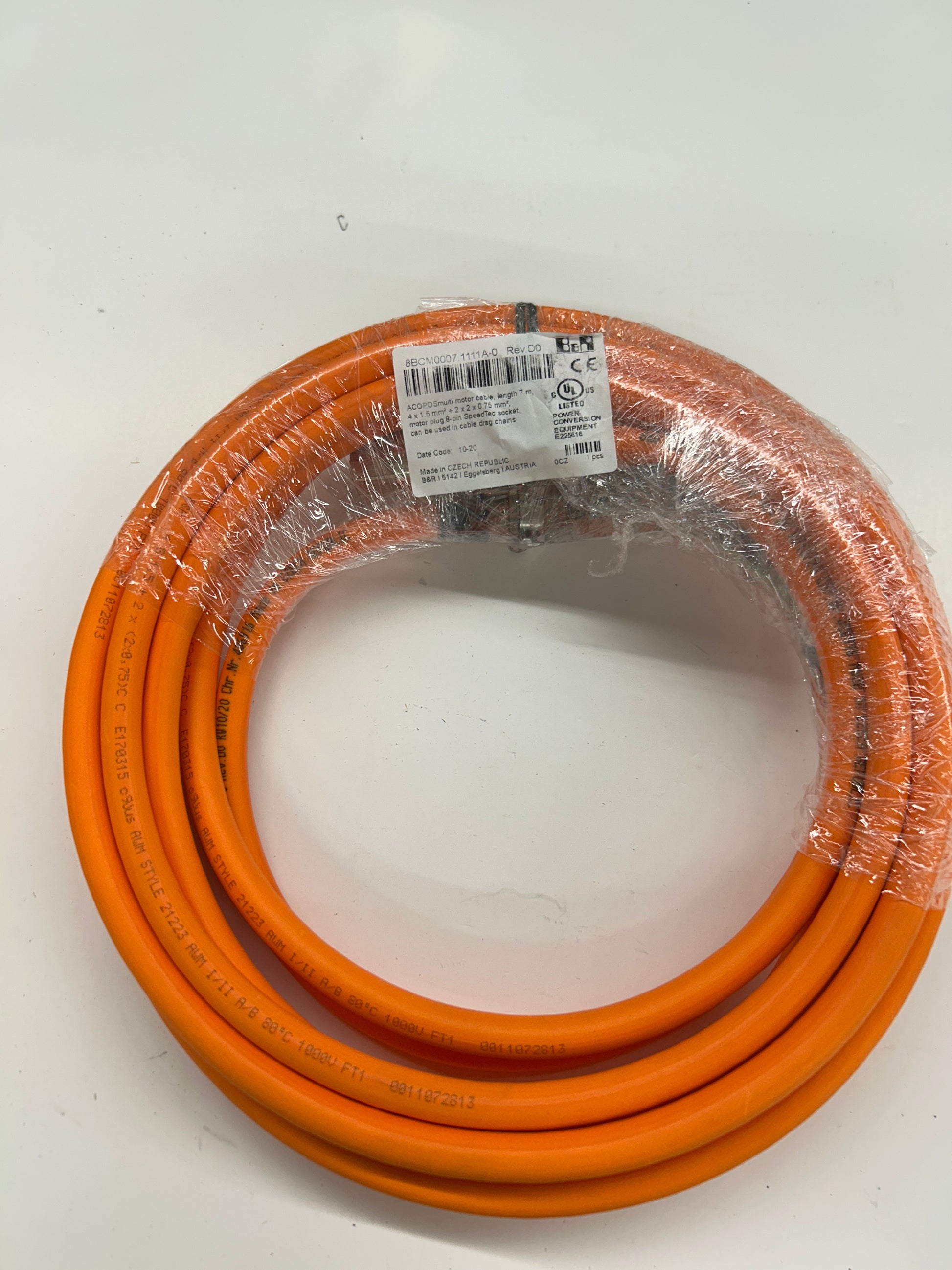

The B&R 8BCM0007.1111A-0 is a factory-new, sealed ACOPOSmulti motor cable measuring 7 meters in length, part of B&R Industrial Automation's CM16 motor cable series. The cable features a conductor configuration of 4x 1.5 mm2 power conductors plus 2x 2x 0.75 mm2 signal conductors, terminated with an 8-pin female SpeedTec motor connector in size 1. It carries an integrated shield plate and is rated for use in cable drag chains, making it suitable for dynamic motion applications where repeated flexing is required.

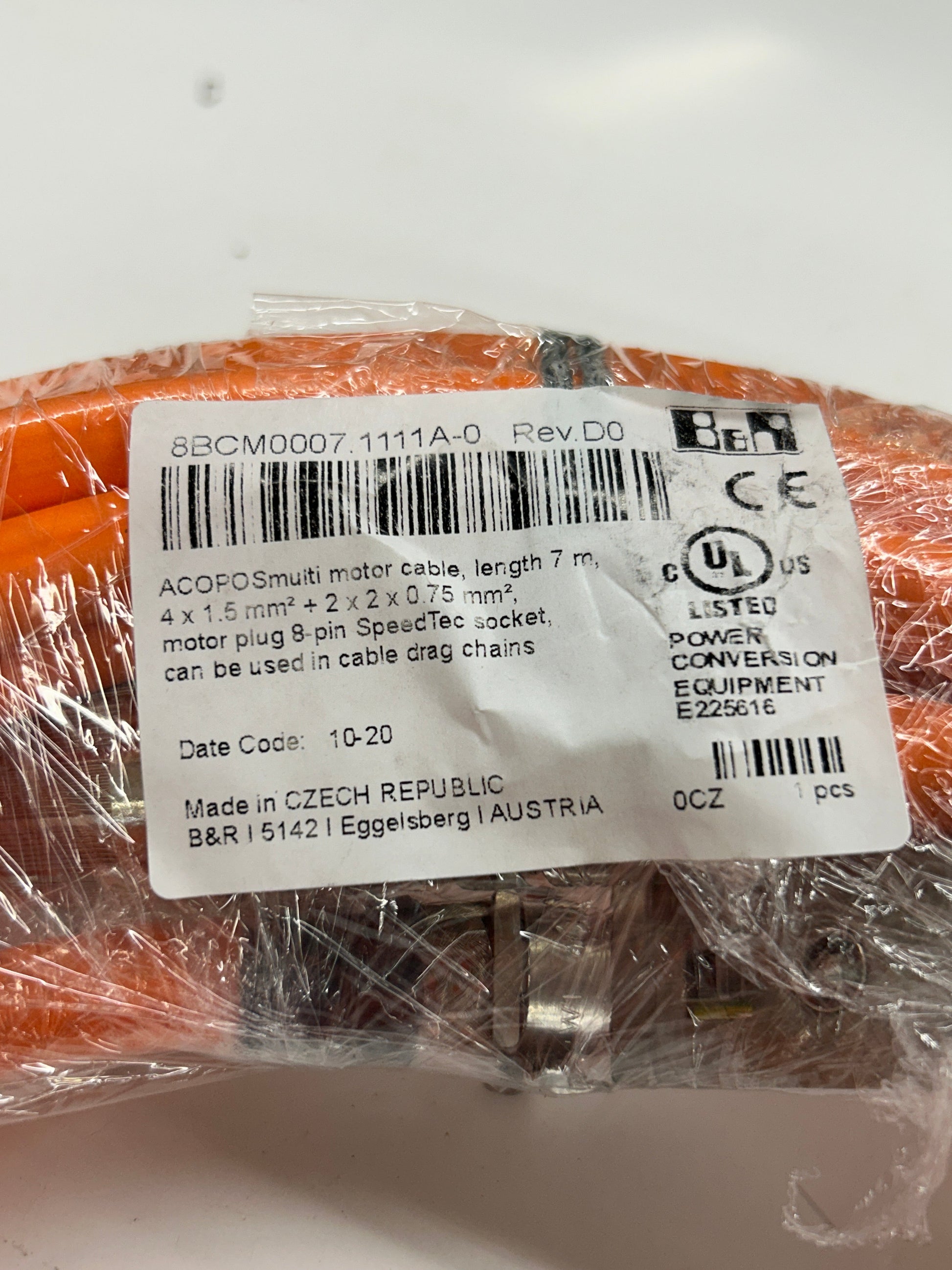

Manufactured in the Czech Republic with a date code of 10-20, this unit is UL/CSA listed under E225616 as Power Conversion Equipment and carries CE marking. The Rev. D0 designation is confirmed on the label. The SpeedTec connector system is designed for secure, tool-free engagement and provides IP66/67 protection when mated.

This cable is assembled specifically for ACOPOSmulti drive systems and compatible B&R servo motors with motor connector size 1. It supports power and signal transmission in a single pre-assembled run, eliminating the need for additional connectors or intermediate splicing. Part number 8BCM0007.1111A-0 is the OEM designation used in active B&R automation markets. Revision D0 is confirmed from the label. The unit is in original factory packaging as received.

Stock # 0326-1057
