B&R Automation Planetary Gearbox 8GP40-080-005S1J3
B&R Automation Planetary Gearbox 8GP40-080-005S1J3
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

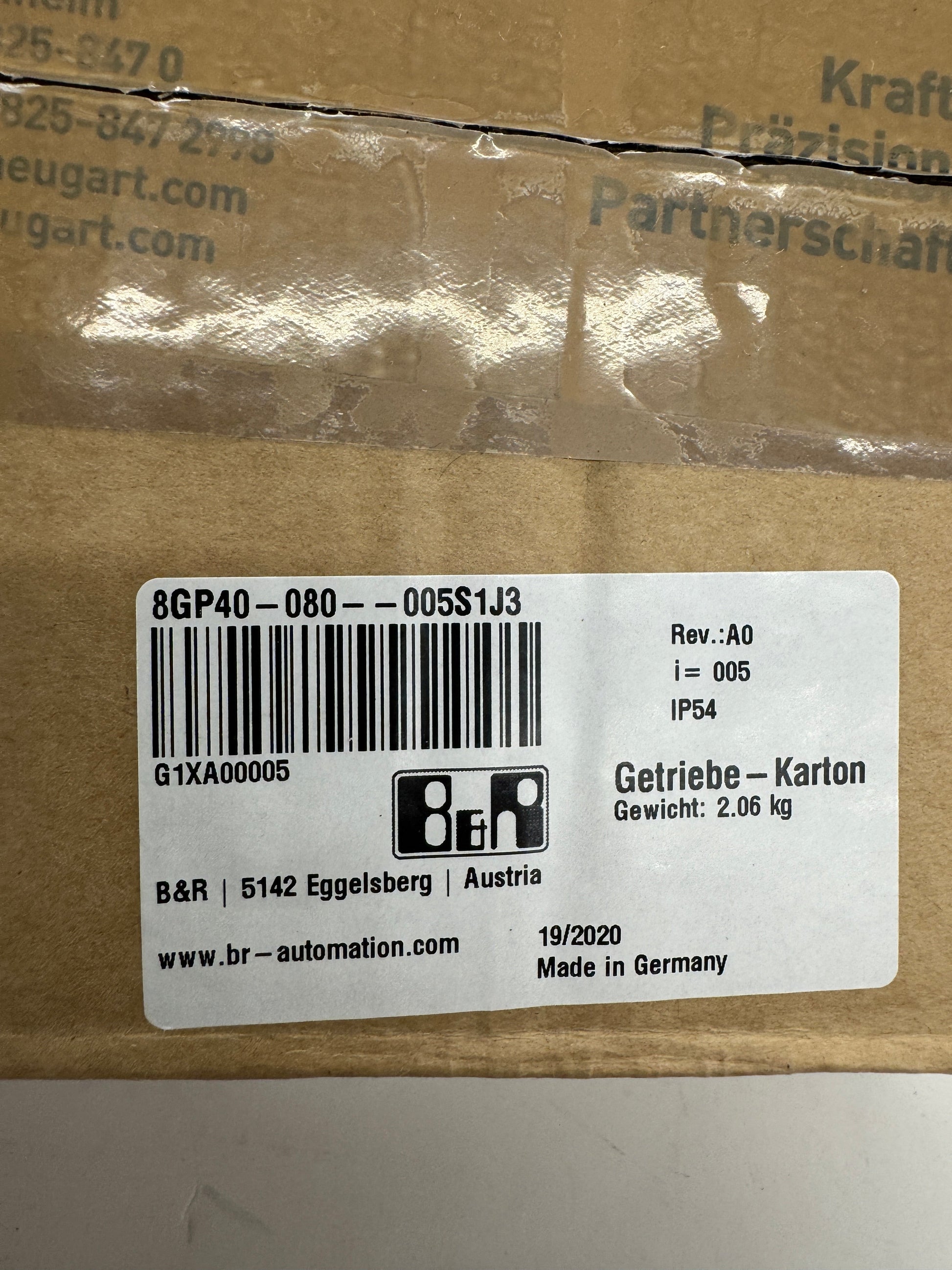

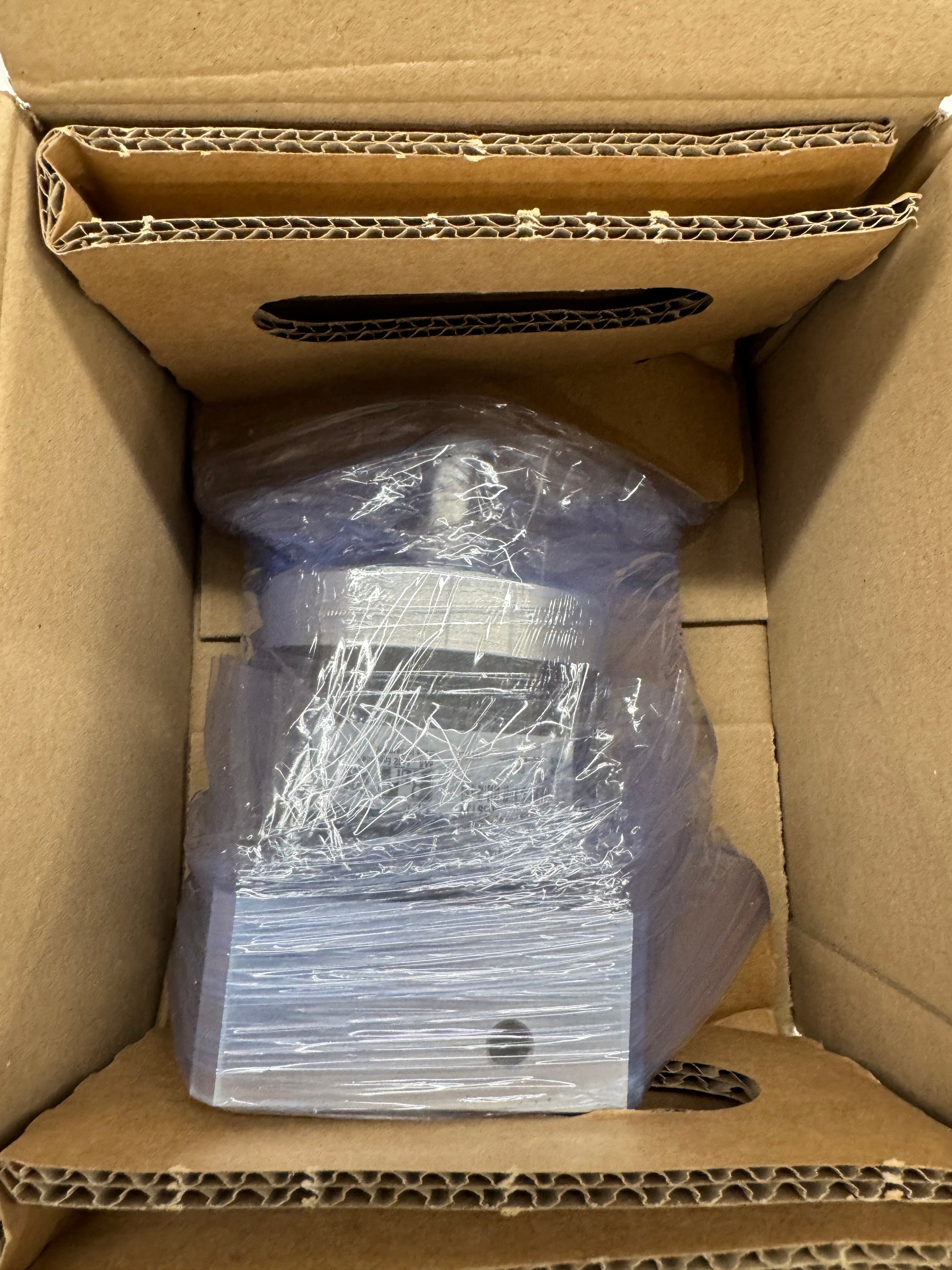

A coaxial planetary gearbox from B&R Automation, part number 8GP40-080--005S1J3, size 080, gear ratio i = 5, single stage, IP54 protection rating. Manufactured in Germany, date code 19/2020, revision A0. Serial number G1XA00005 as shown on the factory label. Configured for size 3 8LSA series servo motor interface per the J3 suffix designation. Based on published B&R 8GP40-080 single-stage specifications for this frame size, the output shaft is 20.0 mm diameter with a keyed DIN 6885 configuration. The 8GP40 series uses straight-toothed, fully hardened planetary gearing with honed sun and planet gears for high output torque and positioning precision. IP54 ingress protection provides resistance to dust and water splash. Item is new and in original B&R factory carton packaging. Carton label reads "Getriebe Karton" (gearbox carton) with a stated gross weight of 2.06 kg. The 8GP40 platform supports a building-block approach compatible with multiple output geometries. Country of manufacture: Germany. Compatible mating motor family: B&R 8LSA size 3 servo motors. No electrical components are included.
Stock # 0326-1077
