B&R Automation Servo Gearmotor 8JSA64.EB030D200-0 - 3 kW 3000 RPM

$3,199.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

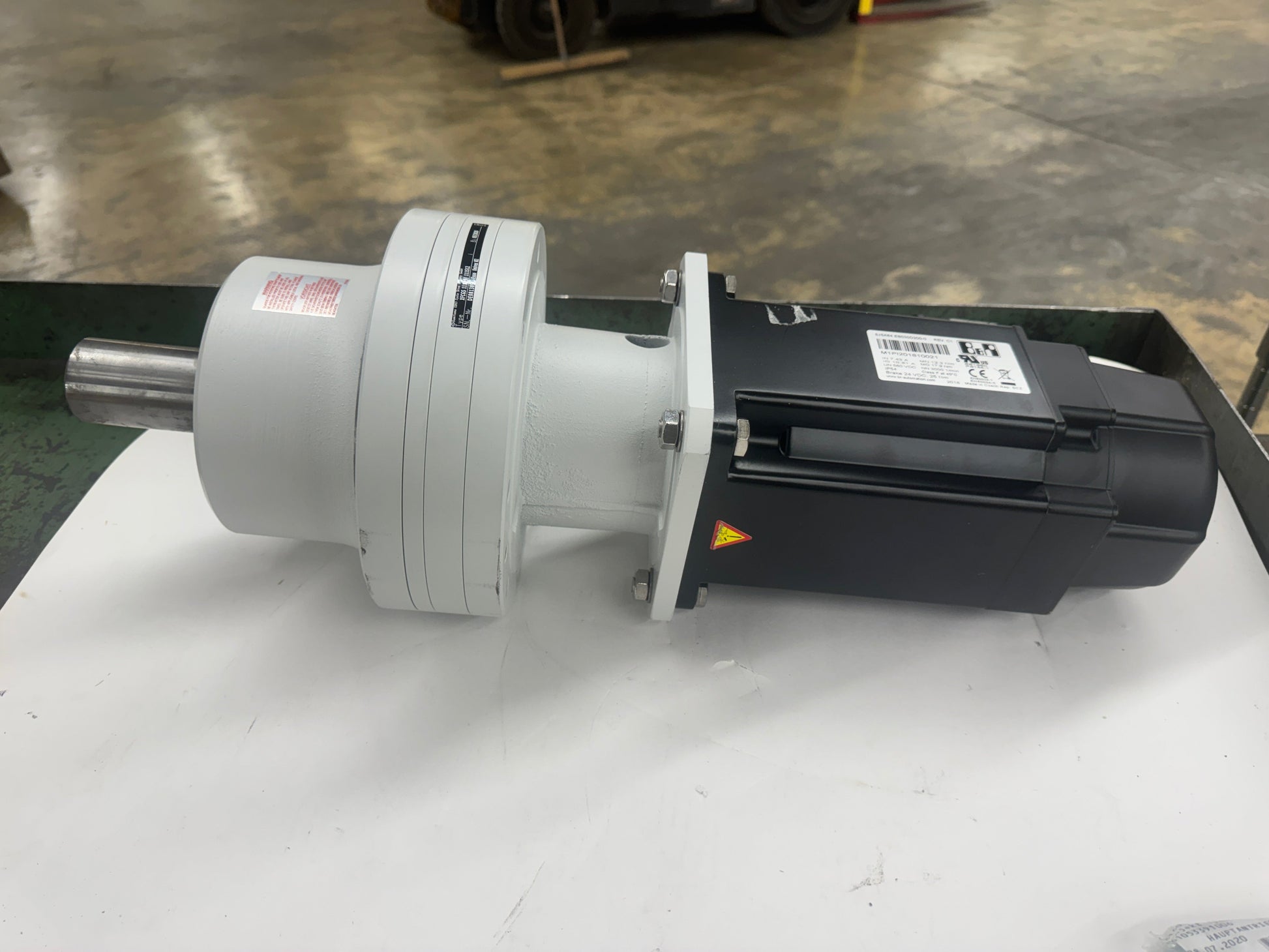

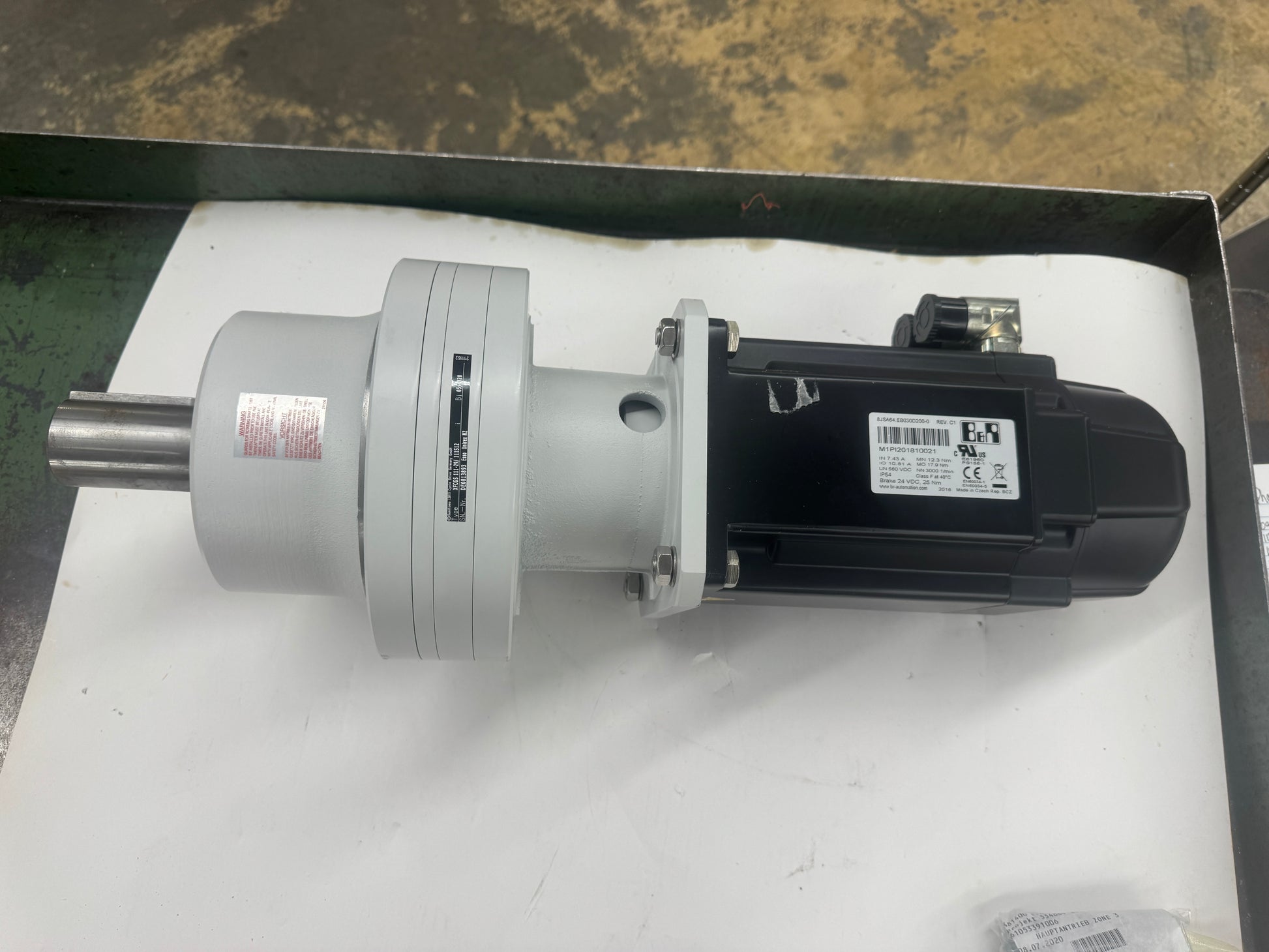

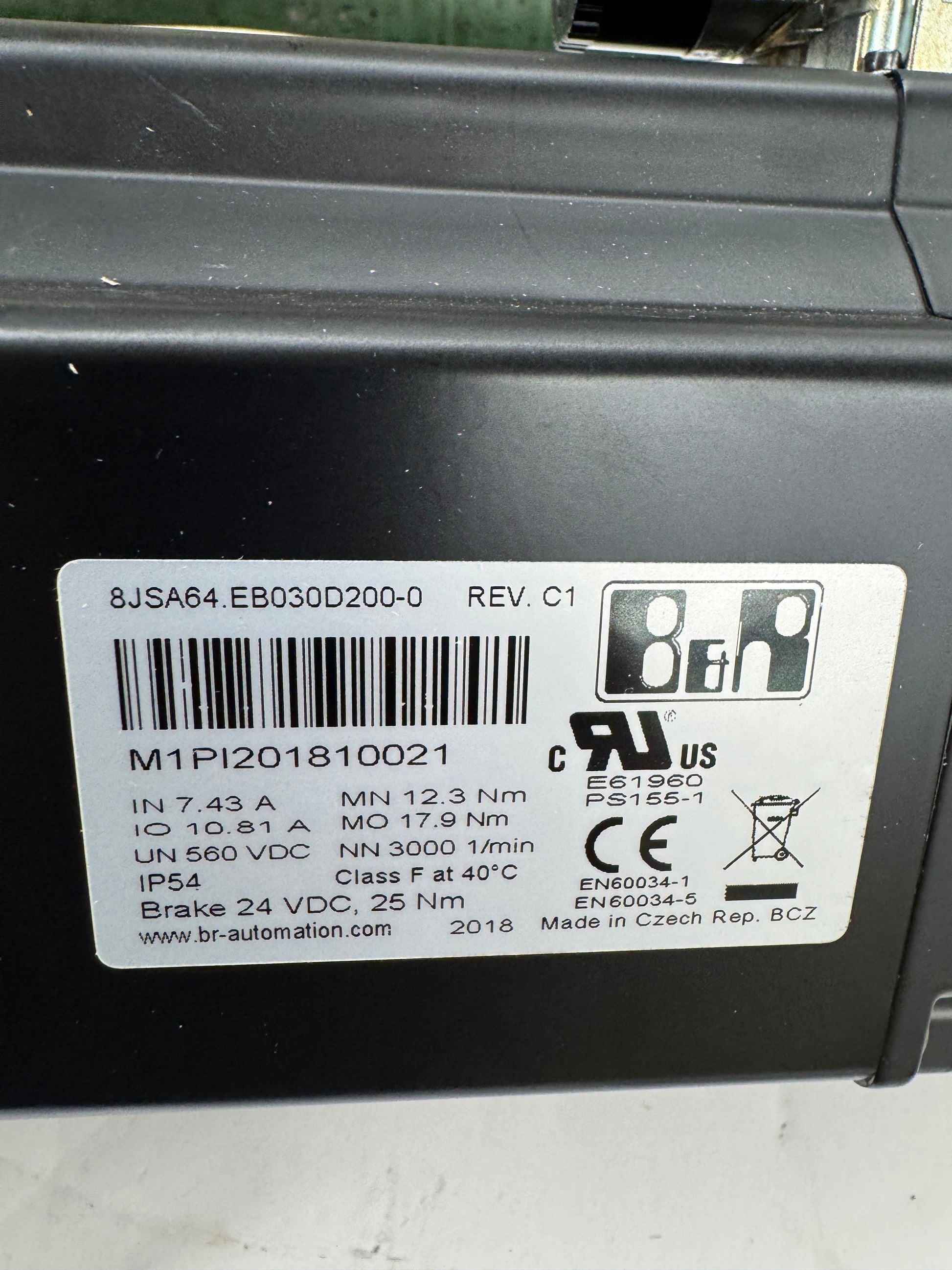

A servo gearmotor assembly combining a B&R 8JSA64.EB030D200-0 synchronous servo motor with a Sumitomo (SHI) Cyclo Drive XFCGS 111-29/111S12 planetary cycloidal gearbox. The B&R motor nameplate shows part number 8JSA64.EB030D200-0, revision C1, serial number M1PI201810021, manufactured in 2018 in the Czech Republic. Rated input current is 7.43 A (nominal) and 10.81 A (peak). Bus voltage is 560 VDC. Nominal torque is 12.3 Nm and peak torque is 17.9 Nm at rated speed of 3000 RPM. The motor includes an integrated 24 VDC holding brake rated at 25 Nm. Insulation class is F at 40 degrees C. Protection rating is IP54. Certifications include UL (cULus, E61960, PS155-1), CE (EN60034-1, EN60034-5).

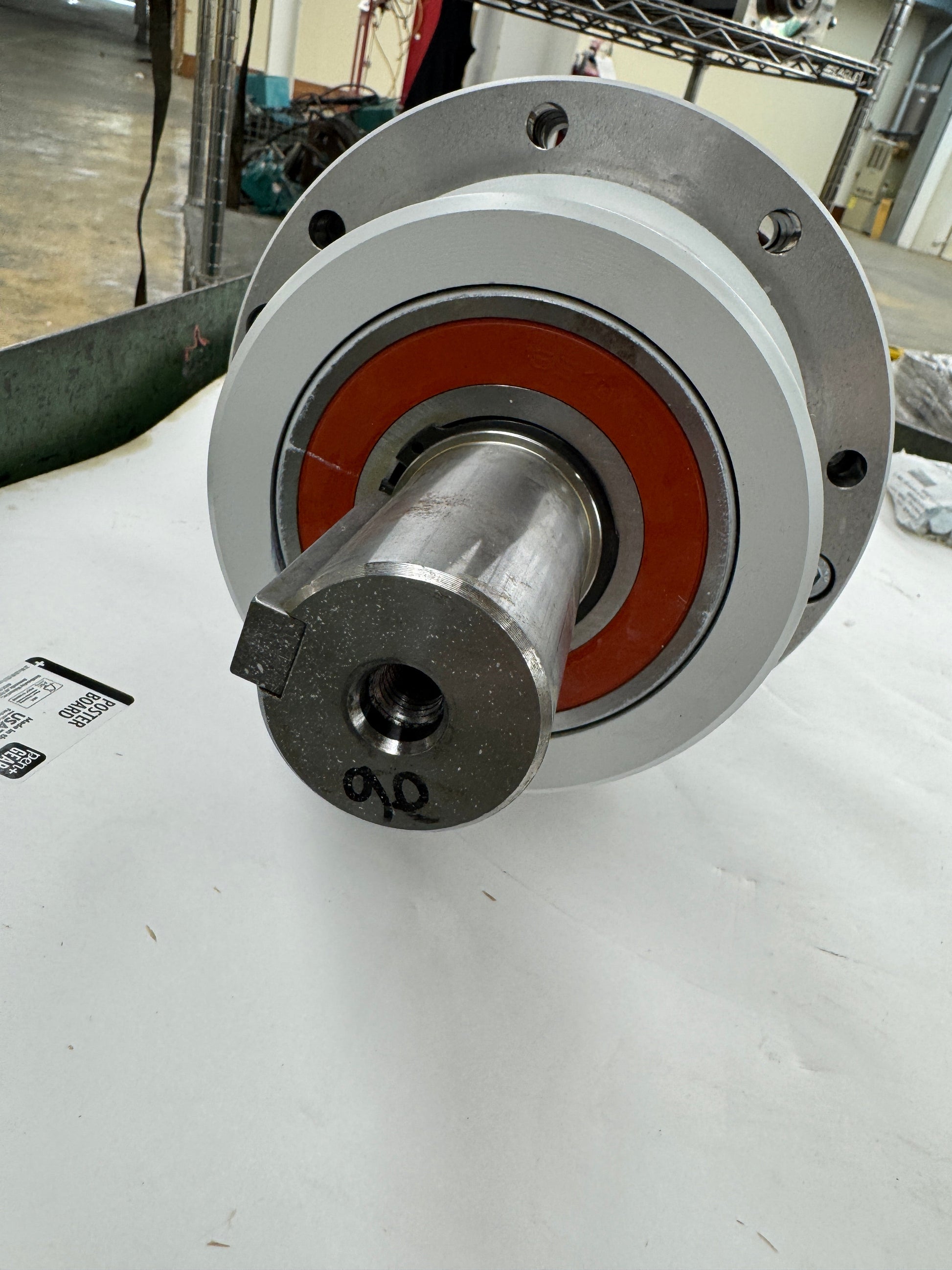

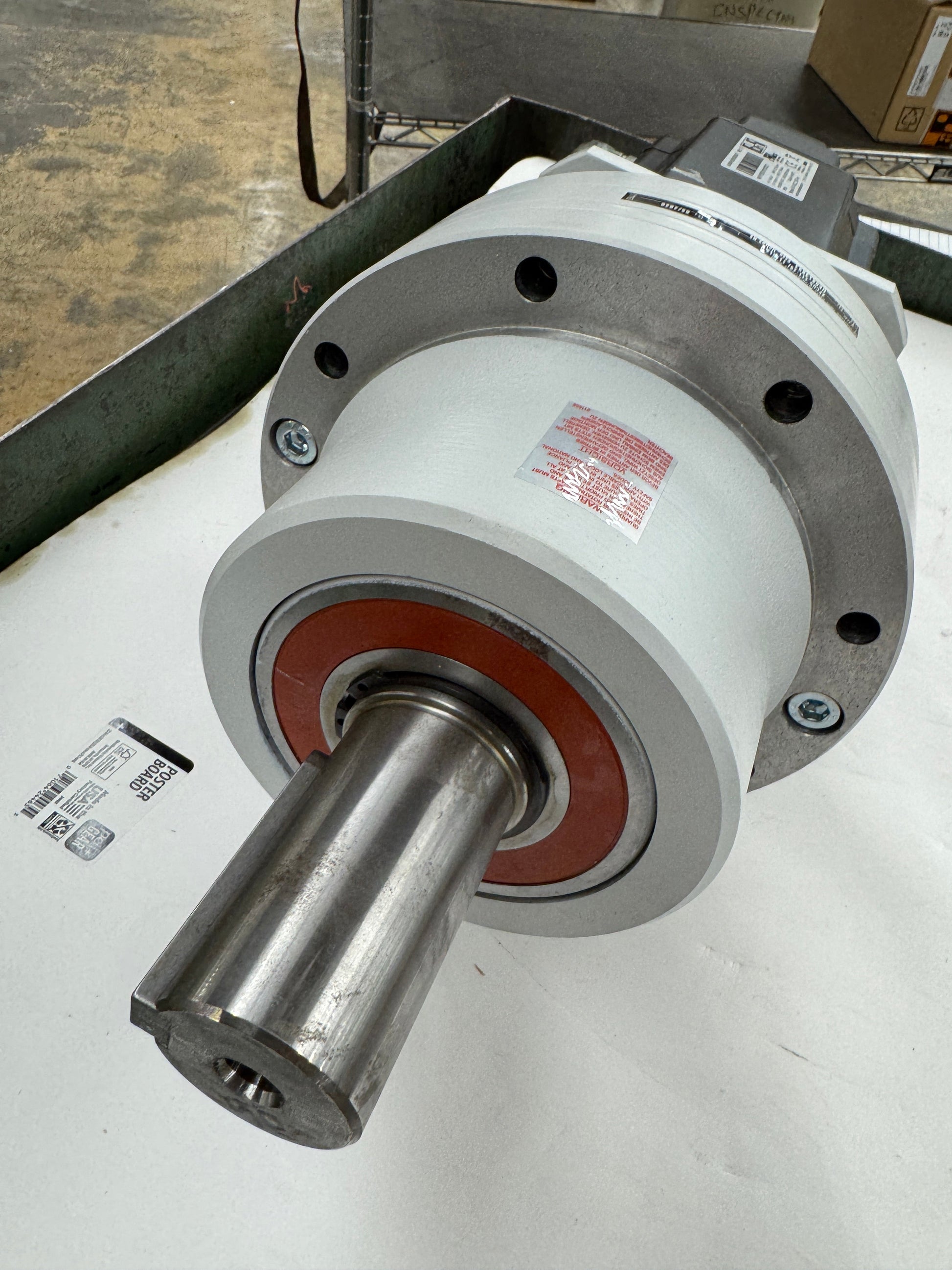

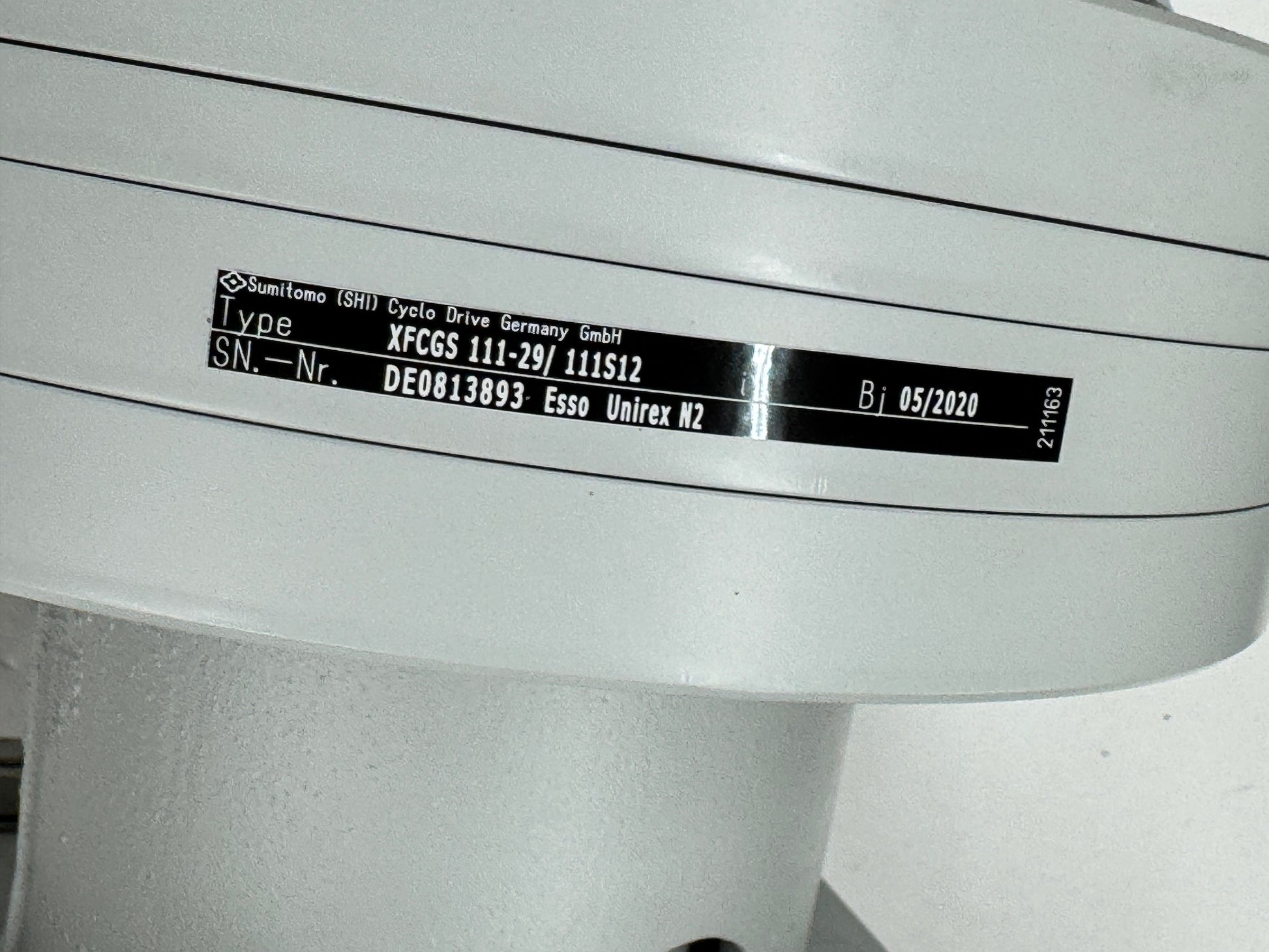

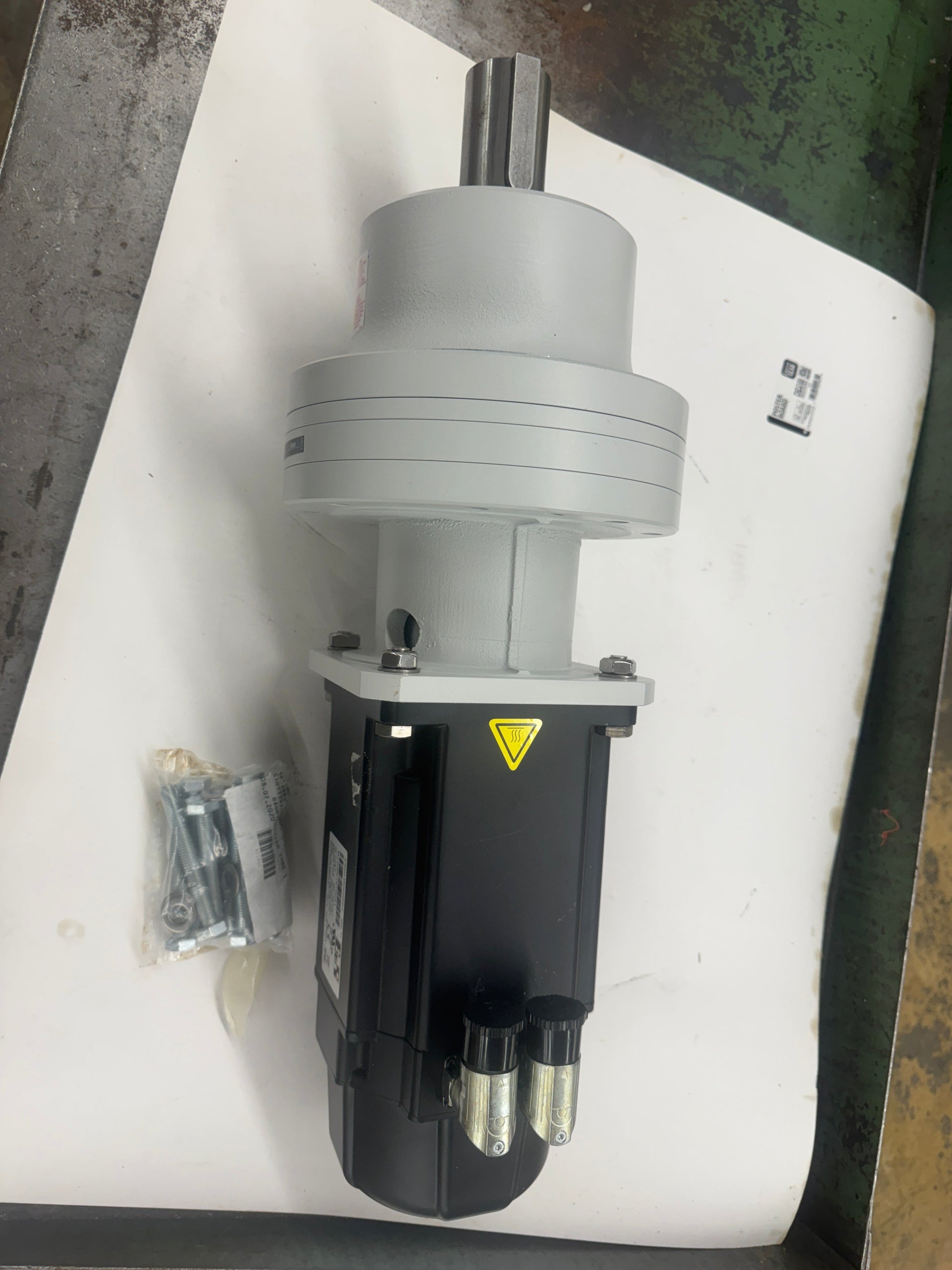

The Sumitomo Cyclo Drive gearbox is identified as type XFCGS 111-29/111S12, serial number DE0813893, manufactured in May 2020 by Sumitomo (SHI) Cyclo Drive Germany GmbH. The gearbox provides a 29:1 reduction ratio and uses Esso Unirex N2 grease lubrication. The output shaft is a solid keyed stub shaft with a large-diameter flanged housing and a red-sealed cycloidal output bearing. A hardware bag with mounting fasteners is included as shown in photos.

The B&R 8JSA series is designed for high power density with stator encapsulation for robust industrial use. This assembly is suited for motion control applications requiring high torque at reduced output speed with precise positioning feedback. Mounting hardware is included. All specifications sourced from visible nameplate data.

Stock # 0326-1101
