B&R Automation Servo Gearmotor 8JSA64.EB030D200-0 - Variable 1000 RPM

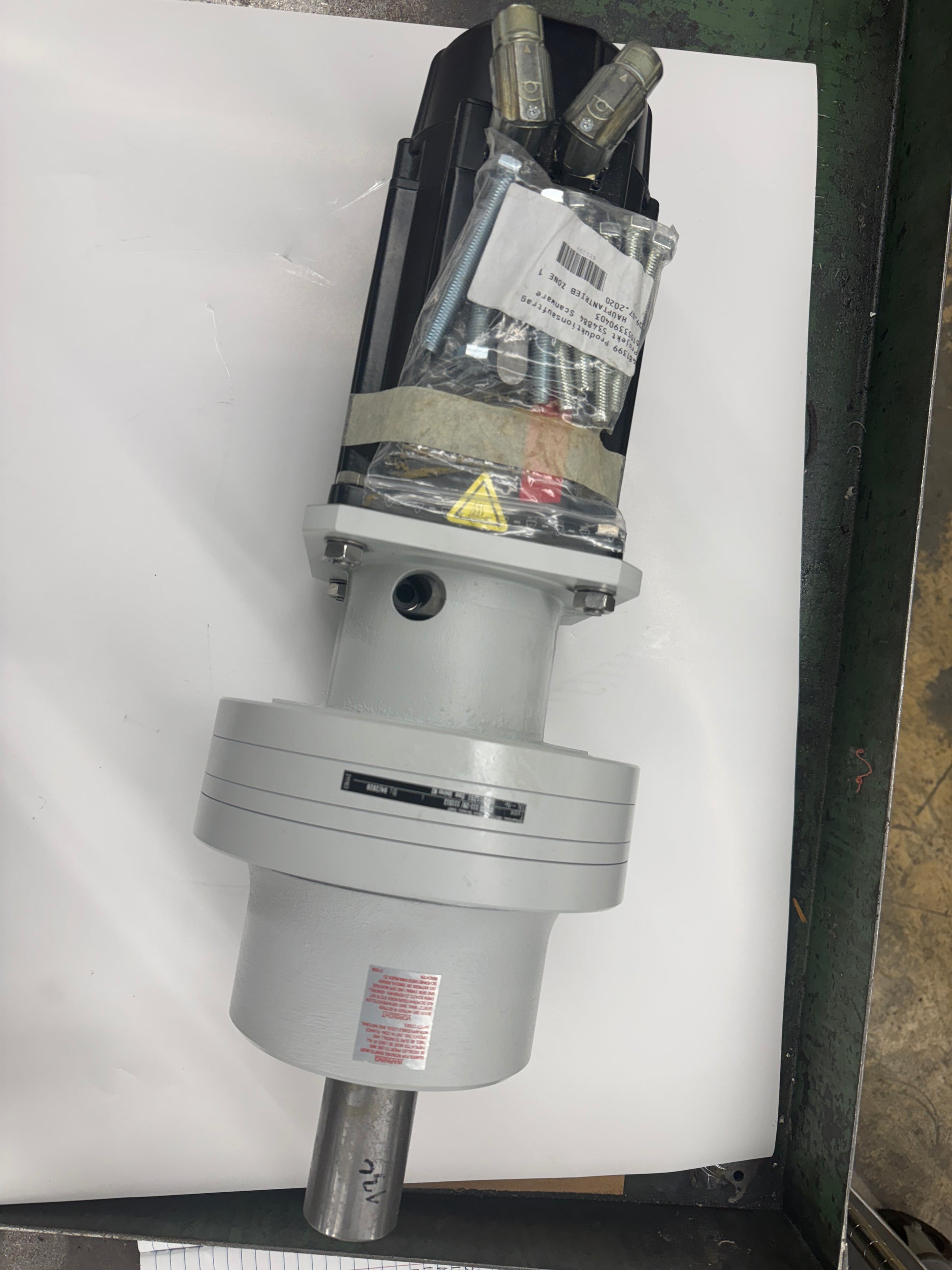

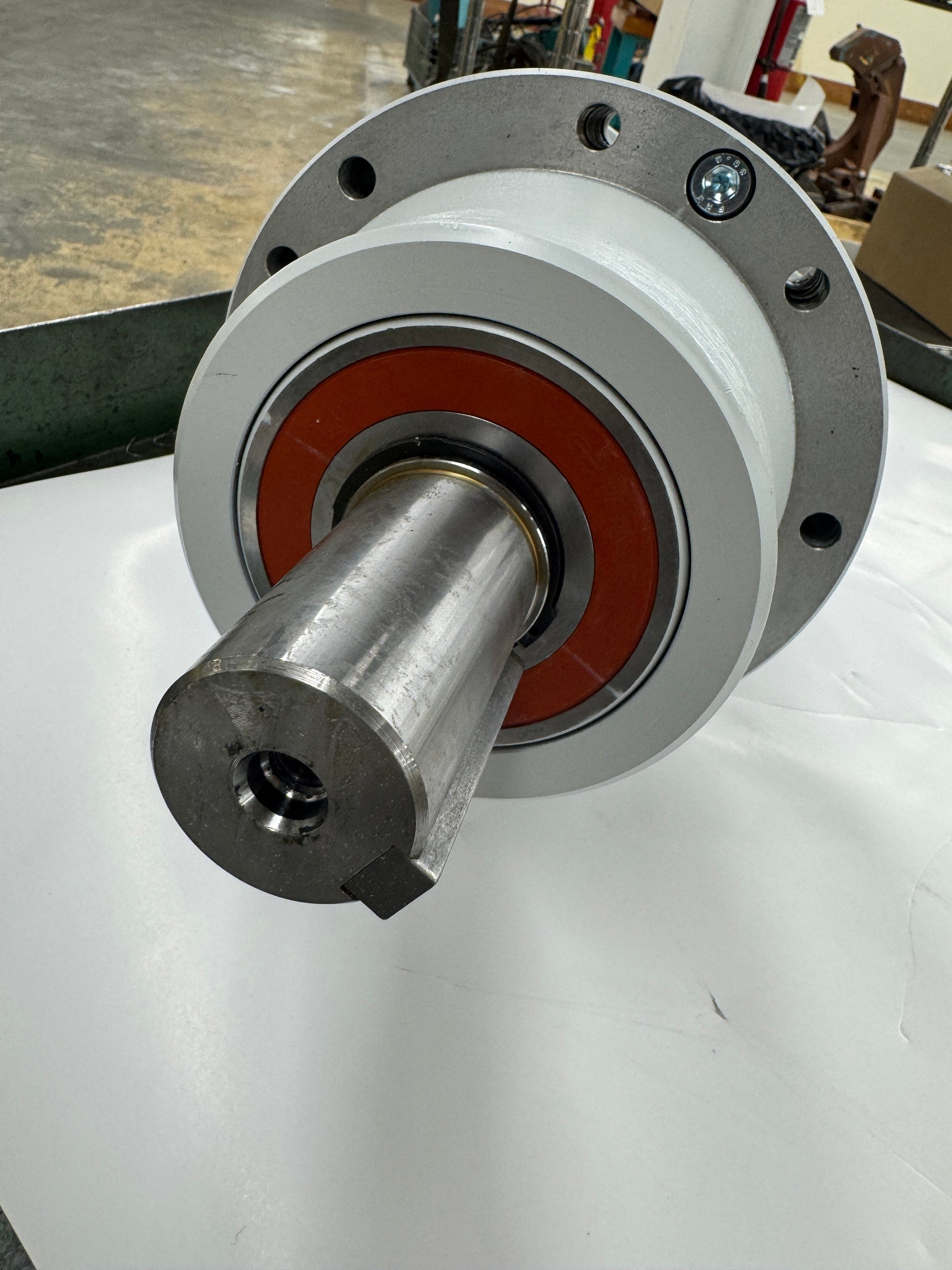

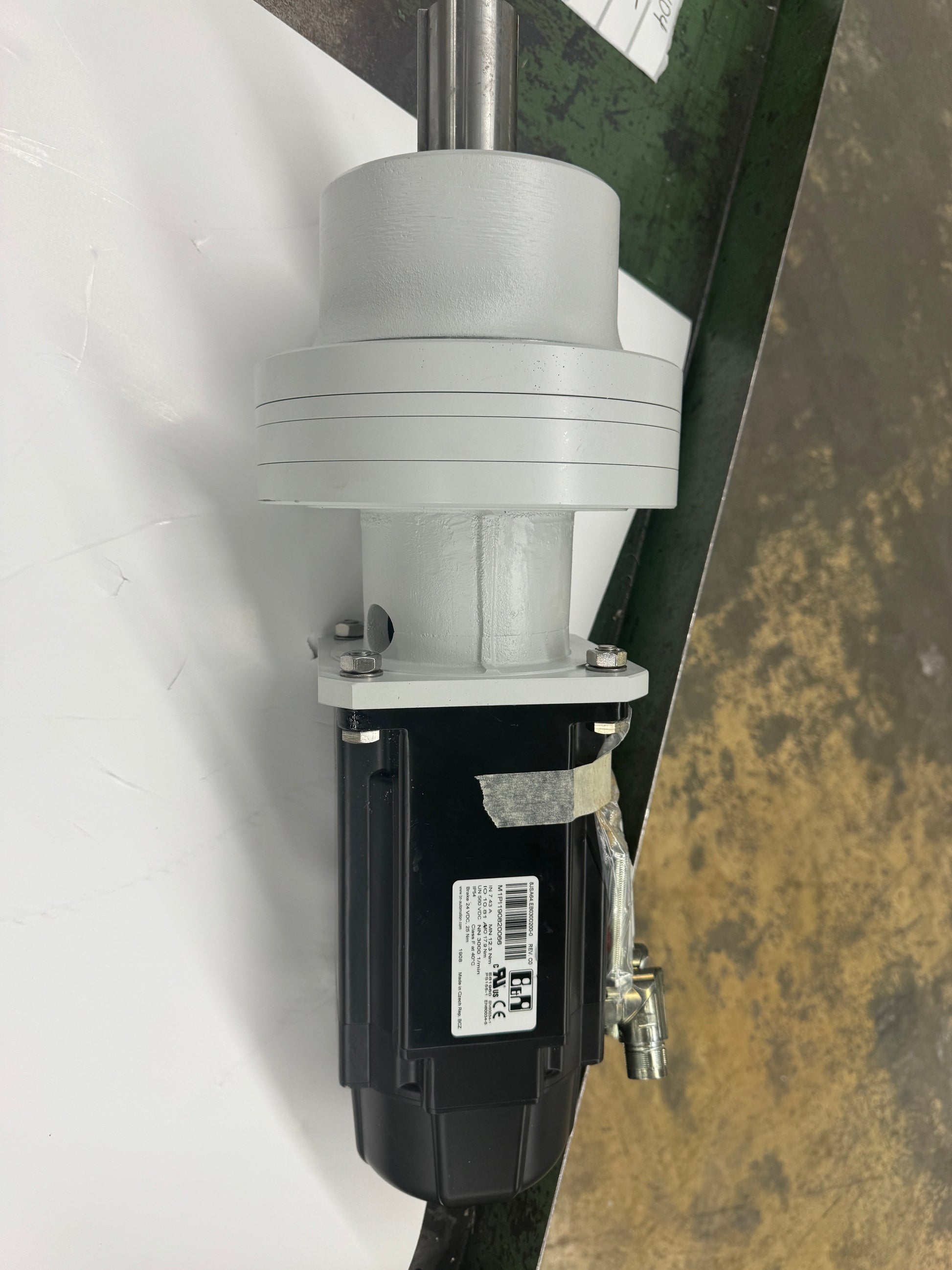

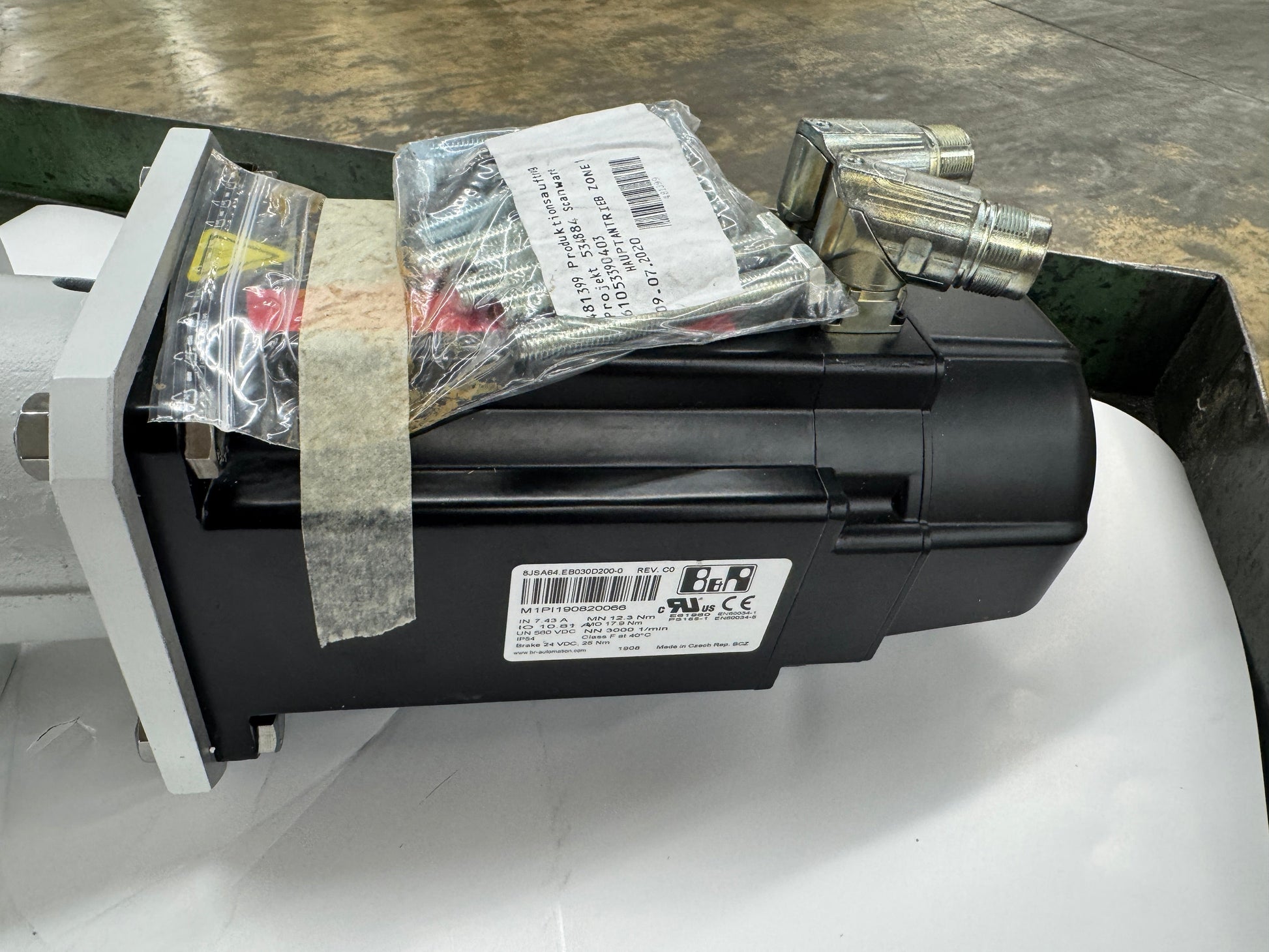

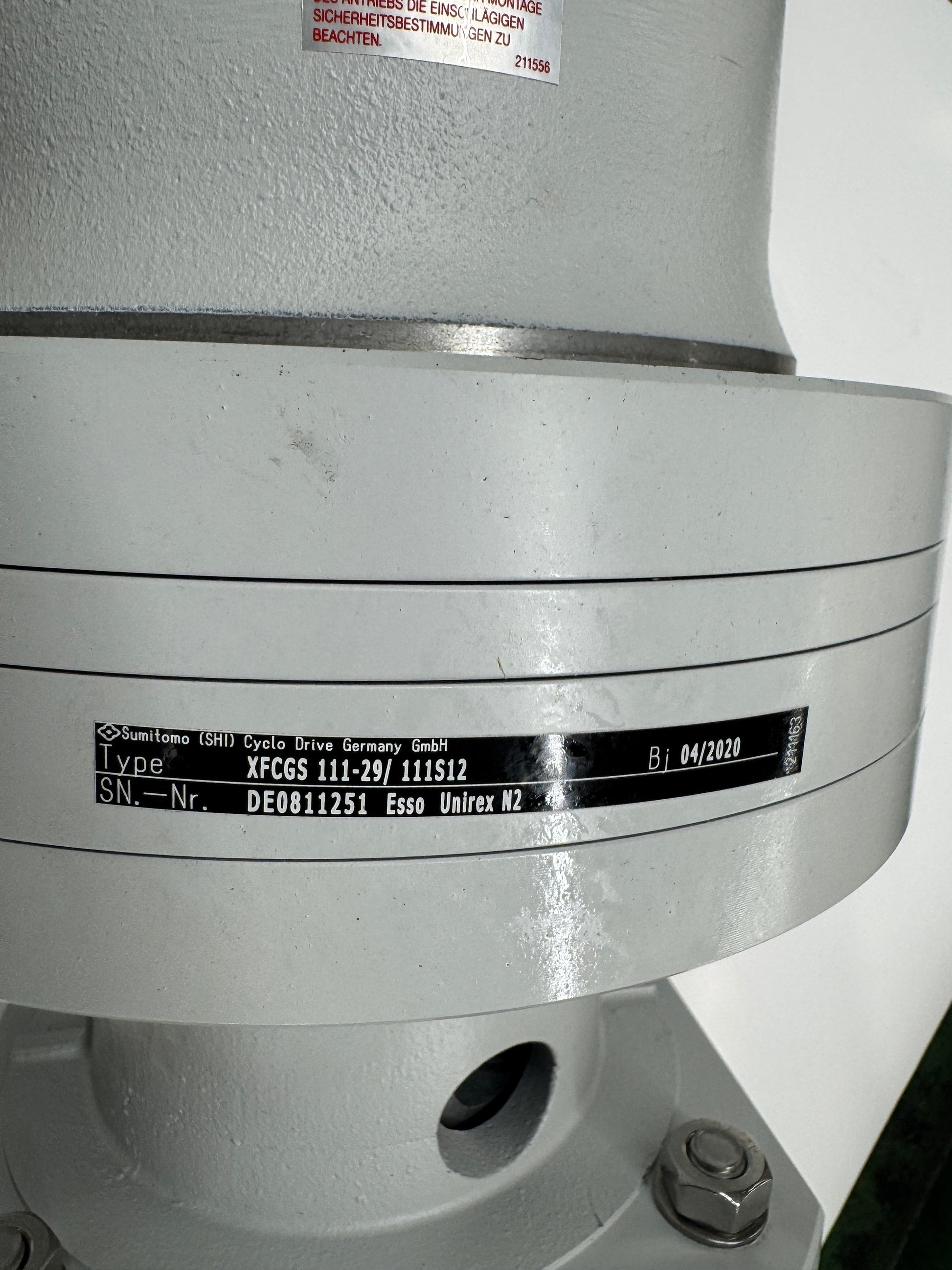

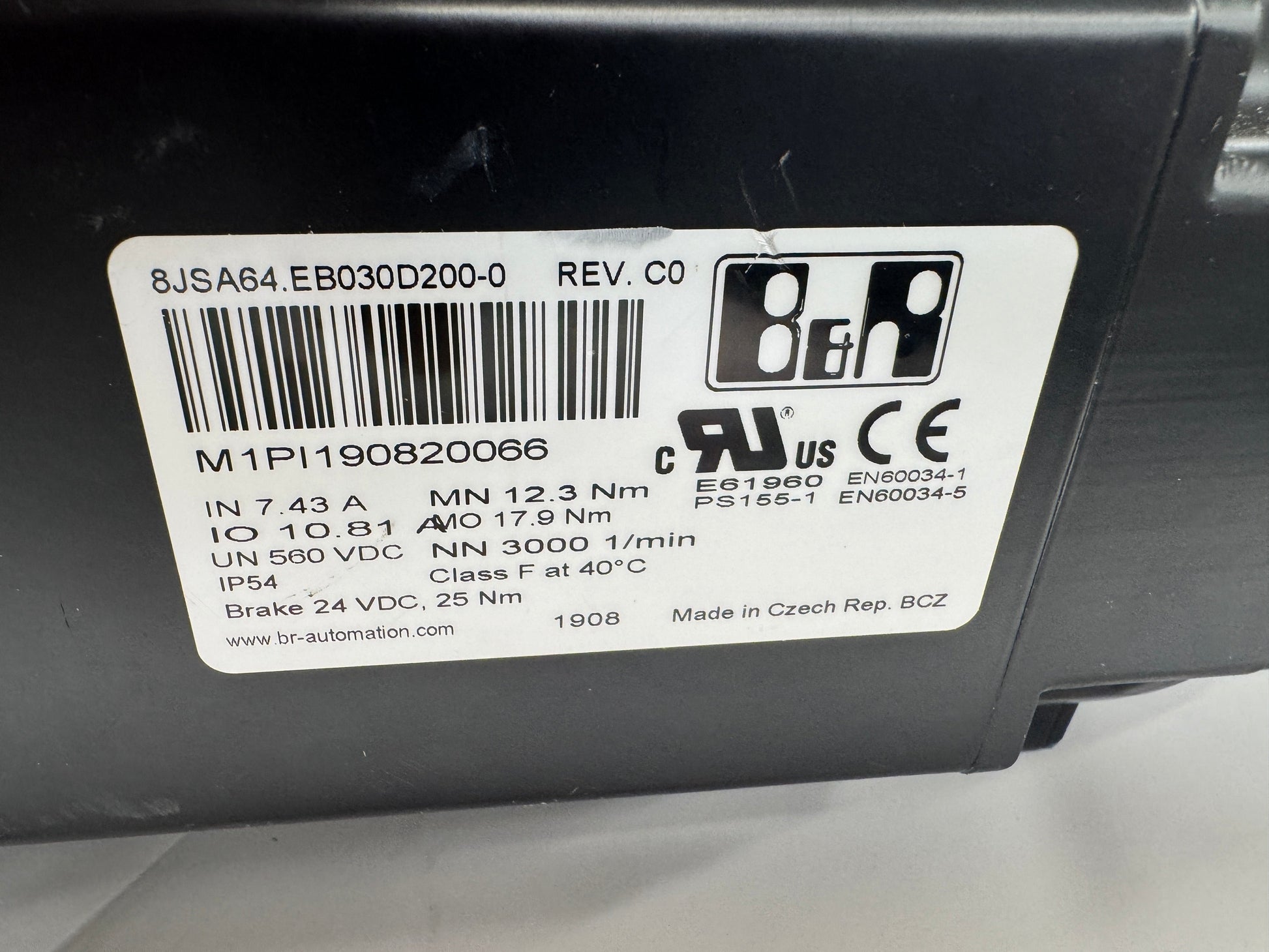

The B&R 8JSA64.EB030D200-0 is a three-phase synchronous servo motor from B&R Automation, assembled with a Sumitomo (SHI) Cyclo Drive Germany GmbH XFCGS 111-29/111S12 inline Cyclo servo gearhead forming a complete servo gearmotor unit. The motor nameplate shows a rated current of 7.43 A, peak current of 10.81 A, rated DC link voltage of 560 VDC, nominal torque of 12.3 Nm, peak torque of 17.9 Nm, rated speed of 3000 RPM, IP54 protection class, Class F insulation at 40 degrees C, and a 24 VDC holding brake rated at 25 Nm. Serial number M1PI190820066, revision C0, manufactured August 2019 in Czech Republic. Certifications include UL, CE, EN60034-1, and EN60034-5. The Sumitomo XFCGS 111-29/111S12 gearhead is a size 111 inline Cyclo Servo 100 series reducer with a 29:1 gear ratio, serial number DE0811251, manufactured April 2020. This is the largest size in the XFCGS Servo 100 series, rated for output torques up to 500 Nm, with lifetime grease lubrication and mechanical backlash under 3 arcmin. Lubricated with Esso Unirex N2. The output shaft is a solid keyed shaft. Hardware bag with mounting fasteners is included. Motor connector inserts and output shaft key drive components are visible. Compatible with B&R ACOPOS servo drive systems. Suitable for motion control, automation, and machine building applications requiring high torque at reduced output speed.

Stock # 0326-1104
