B&R Automation Servo Gearmotor Assembly M02P182290241 - Variable Variable RPM

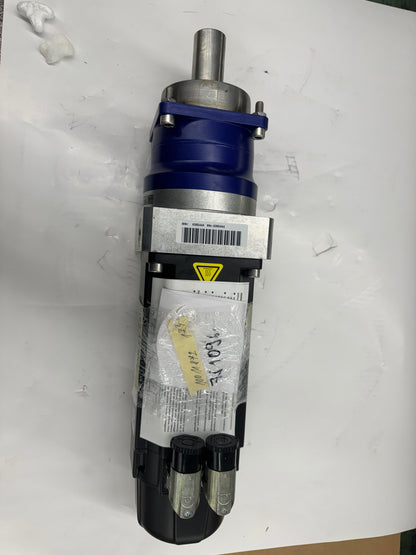

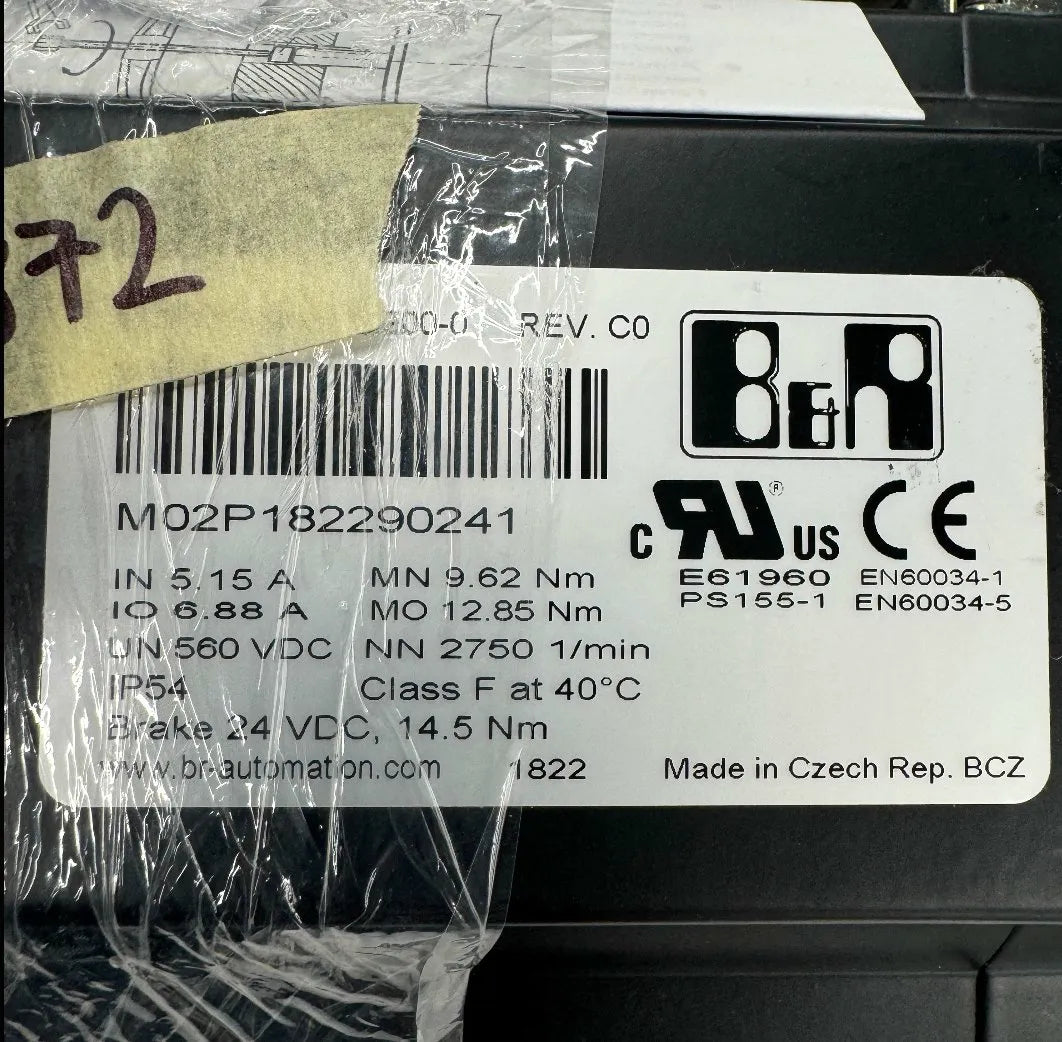

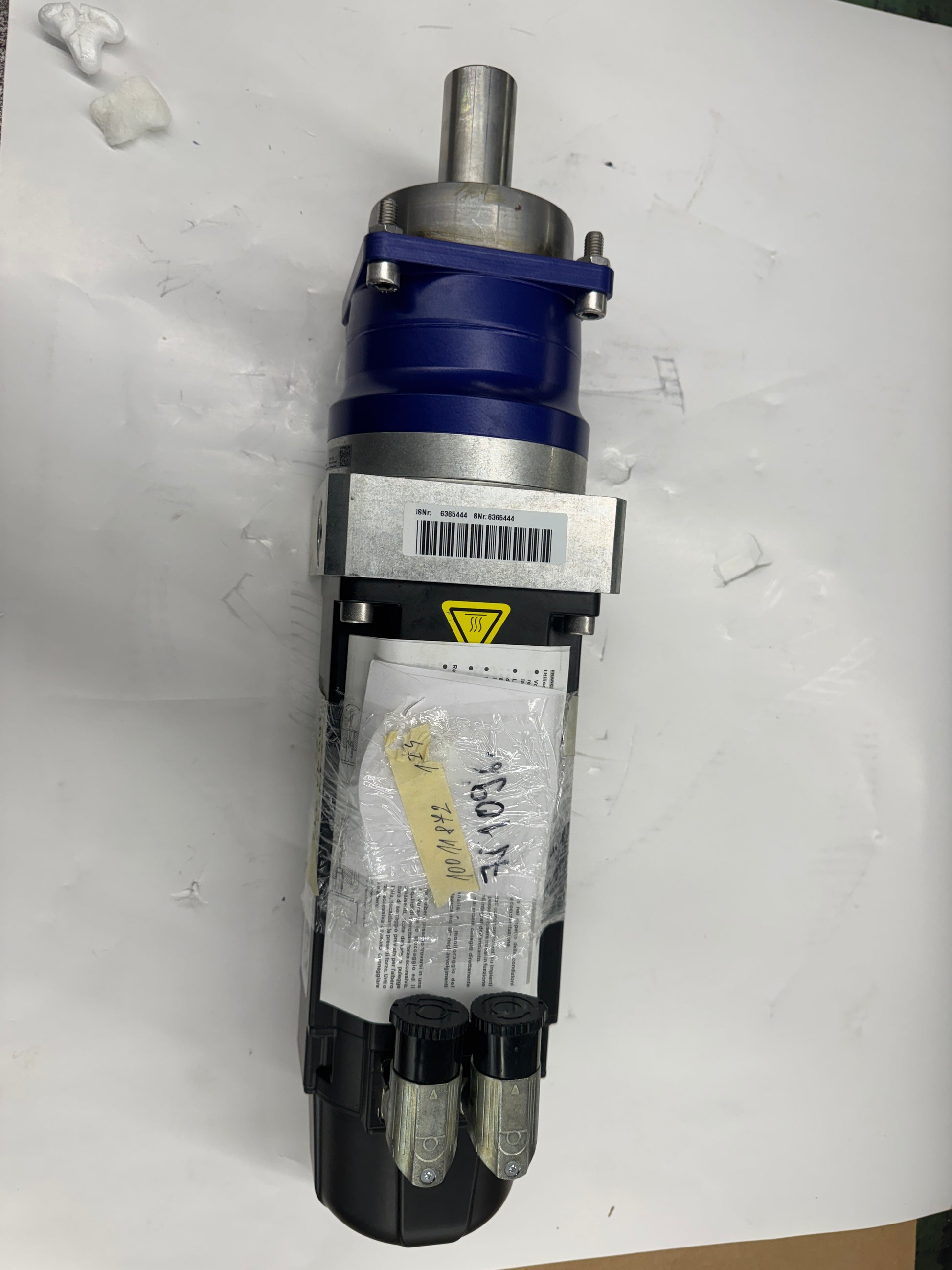

Used in servo-driven automation and motion control applications, this assembly pairs a B&R permanent-magnet servo motor (part number M02P182290241, REV. C0) with a WITTENSTEIN alpha SP 100S-MF1-4-0G1-2S inline planetary gearbox mounted directly to its input flange. The B&R motor nameplate confirms a rated current of 5.15 A, peak current of 6.88 A, bus voltage of 560 VDC, rated torque of 9.62 Nm, and peak torque of 12.85 Nm. Nominal speed is 2750 RPM. An integral electromagnetic brake is present, rated 24 VDC at 14.5 Nm holding torque. Insulation class is F at 40°C ambient. IP rating is IP54. Certifications include UL/cUL (E61960, PS155-1) and CE, with compliance to EN60034-1 and EN60034-5. Country of manufacture is Czech Republic.

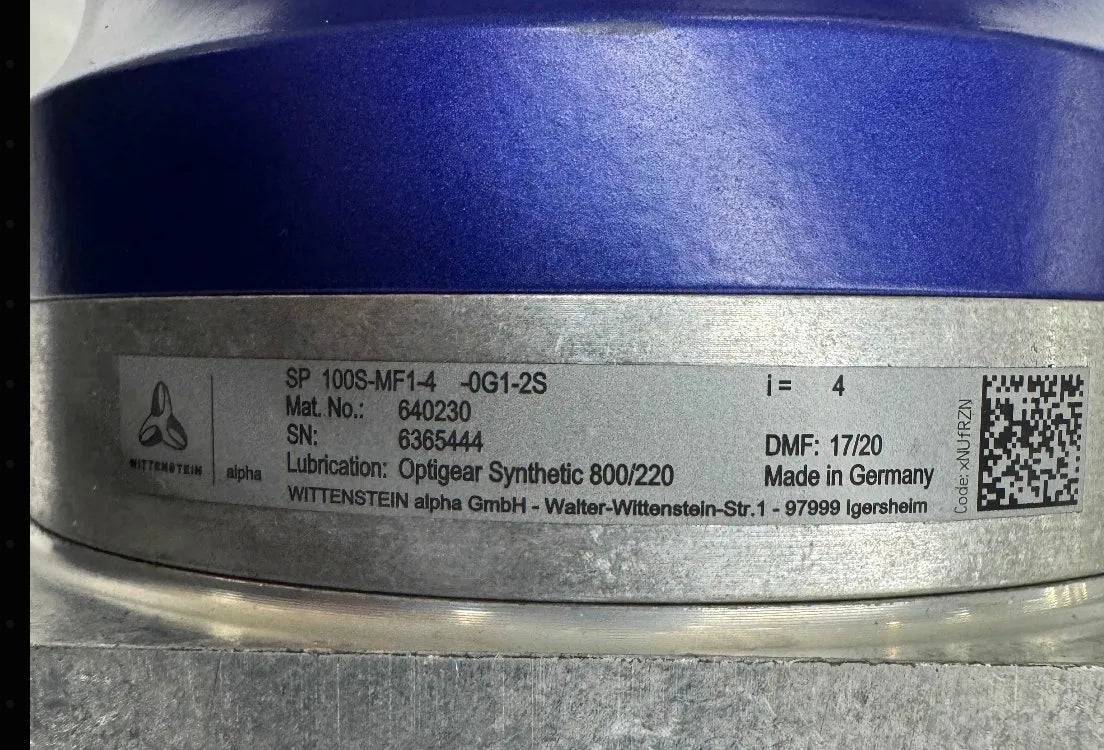

The WITTENSTEIN alpha SP 100S-MF1-4-0G1-2S gearbox provides a 4:1 single-stage inline reduction. Material number 640230, serial number 6365444. Date of manufacture is 17/20 (week 17, year 2020). Specified lubrication is Optigear Synthetic 800/220. The gearbox is manufactured by WITTENSTEIN alpha GmbH, Igersheim, Germany. WITTENSTEIN alpha is a premium-tier German manufacturer of precision planetary gearboxes widely specified in servo and robotics applications.

The assembly is presented as removed from service. No testing claims are made. Brake connector and encoder interface are present per nameplate confirmation.

Stock # 0326-1124
