B&R Automation Servo Motor 8JSA24.E9080D200-0 - 1 kW 8000 RPM

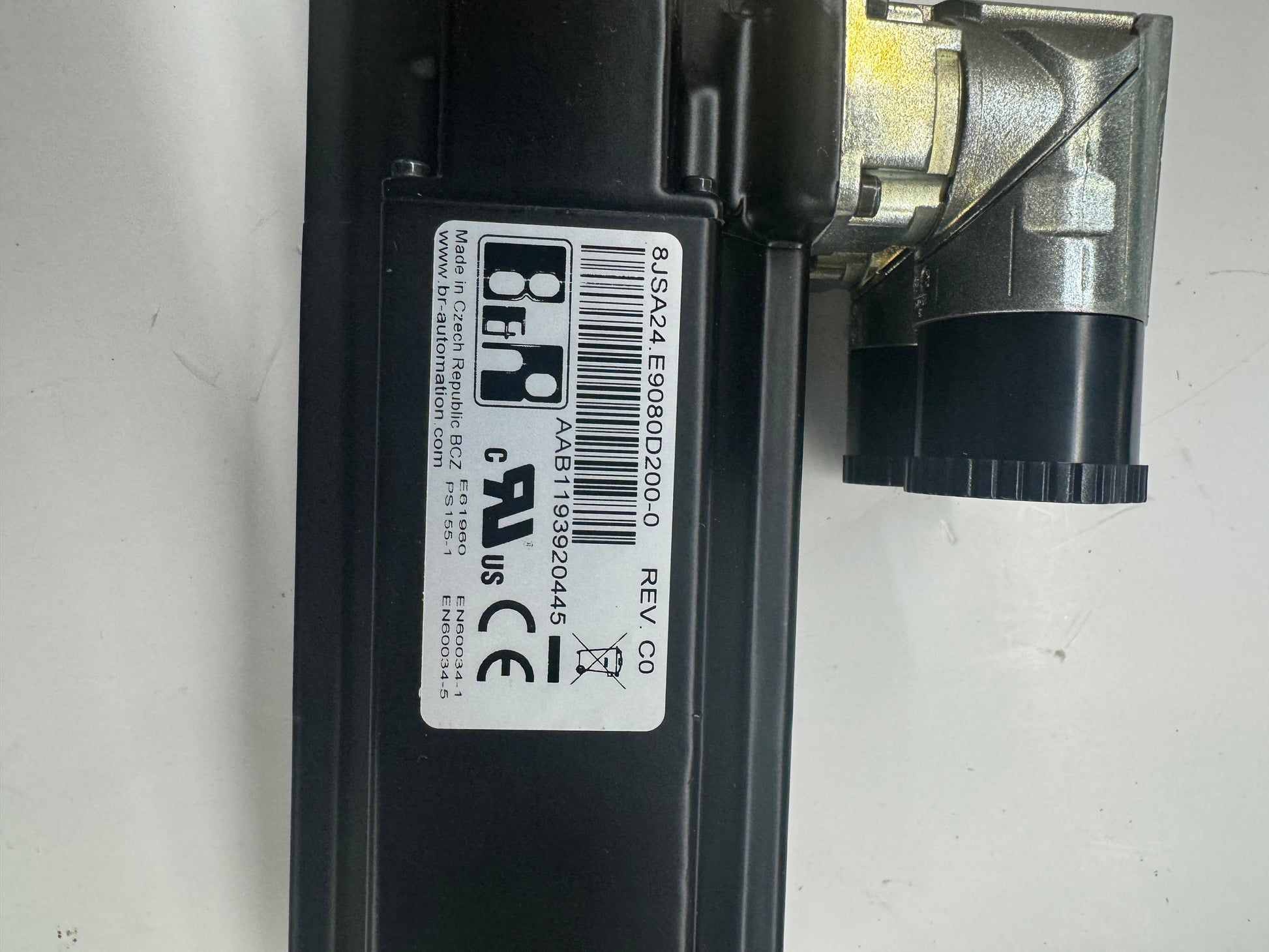

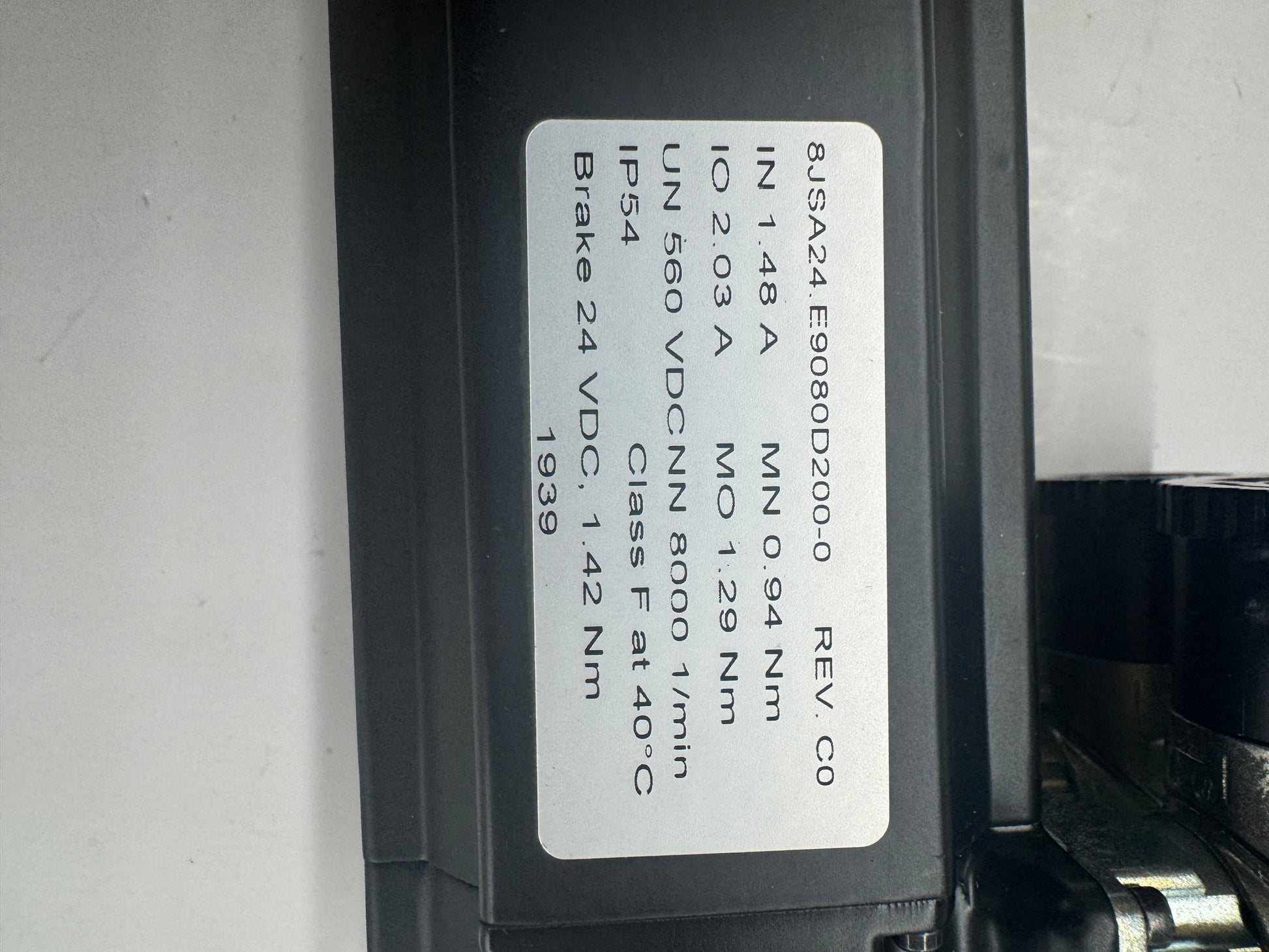

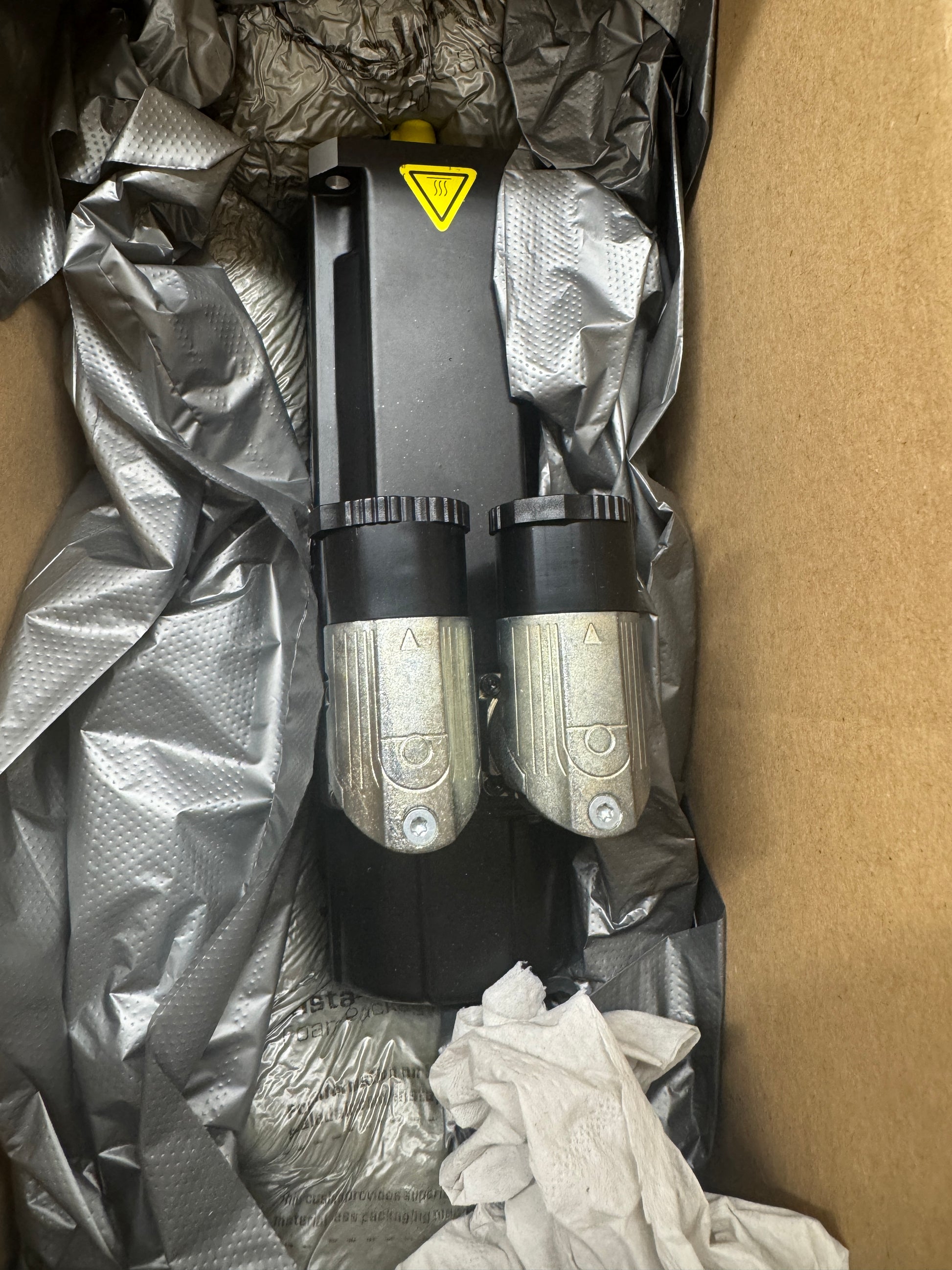

Used in packaging, pharmaceutical, and automation machinery, the B&R Automation 8JSA24.E9080D200-0 is a compact three-phase synchronous servo motor from the 8JSA series. Part number 8JSA24.E9080D200-0, Revision C0, serial number AAB11193920445, manufactured in the Czech Republic. The nominal bus voltage is 560 VDC with a nominal speed of 8000 RPM. Nominal current is 1.48 A and quadrature current is 2.03 A. Nominal torque is 0.94 Nm and peak torque is 1.29 Nm. The motor is equipped with an EnDat multi-turn absolute encoder and an integral 24 VDC holding brake rated at 1.42 Nm, indicated by the D200 suffix in the MPN. Insulation class is F, rated at 40 degrees C ambient. Protection rating is IP54. Certifications visible on nameplate include cULus, CE, EN60034-1, and EN60034-5. The motor uses B&R's embedded parameter chip technology, enabling automatic identification by compatible B&R ACOPOSmulti and ACOPOS servo drive systems without manual parameter entry. Connector is an angled swivel type as visible in photos. Condition is used surplus; no testing or operational verification has been performed by the seller.

Stock # 0426-01088
