B&R Automation Servo Motor 8JSA24.E9080D200-0 - Variable 8000 RPM

$999.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

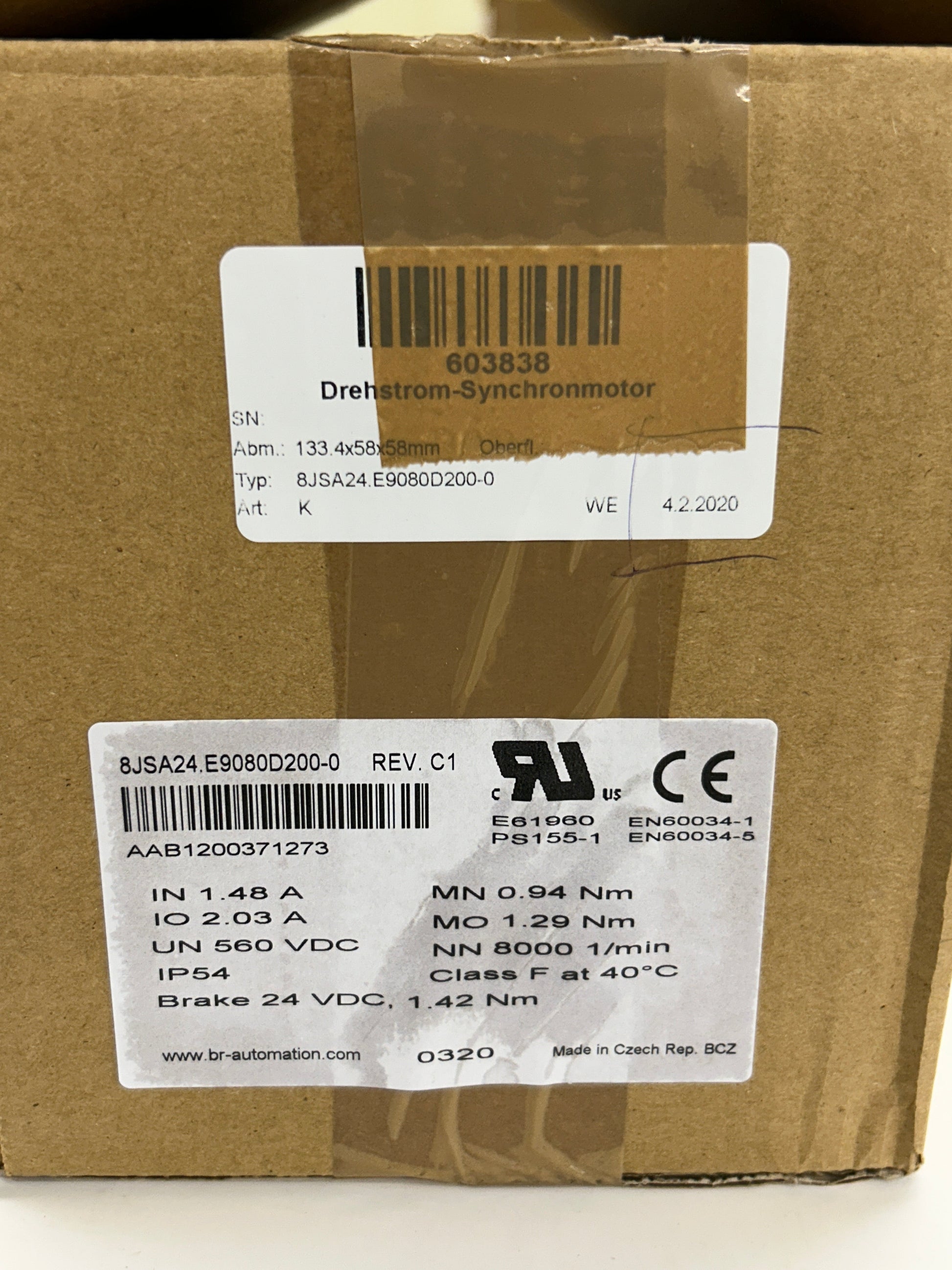

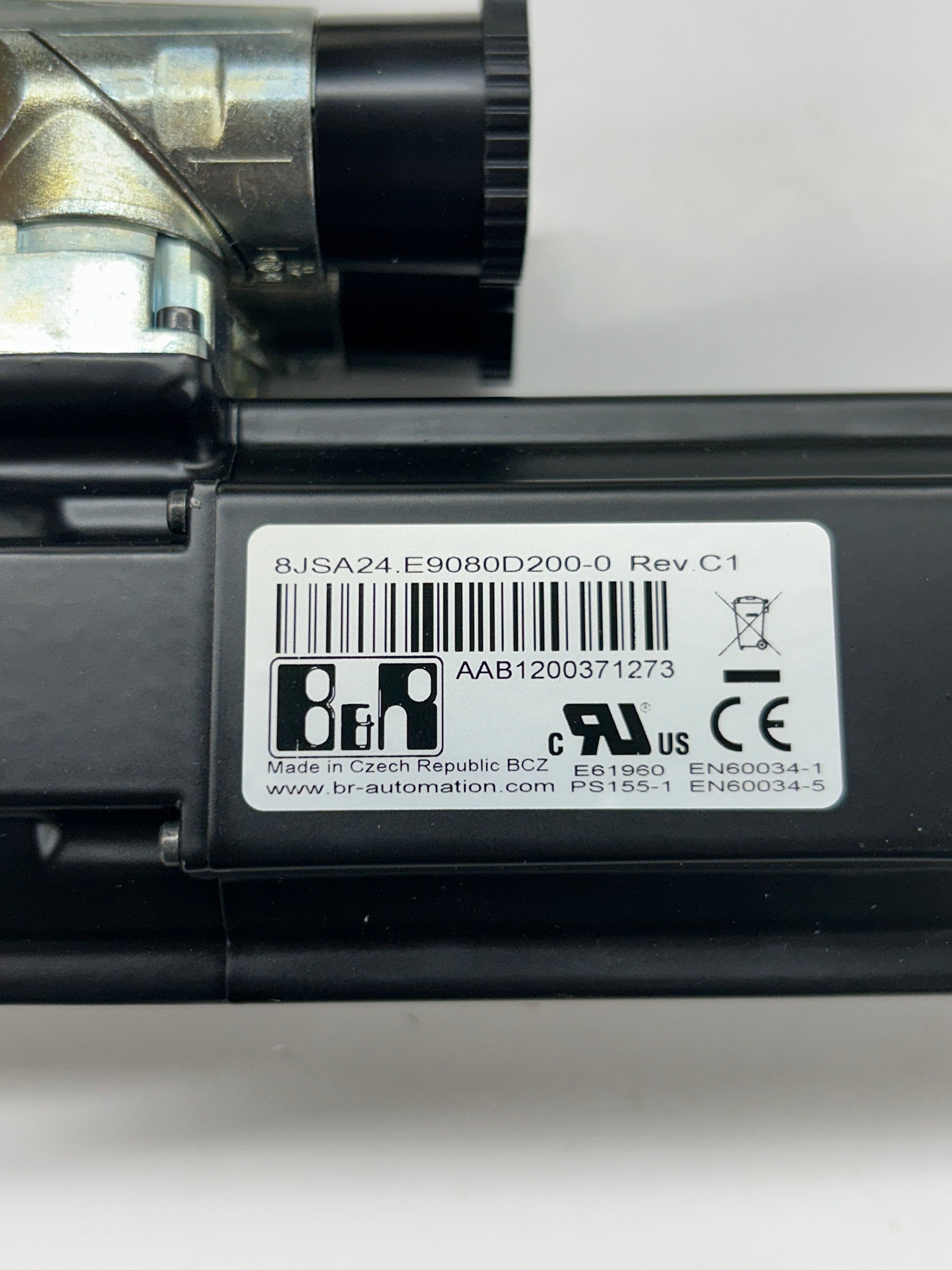

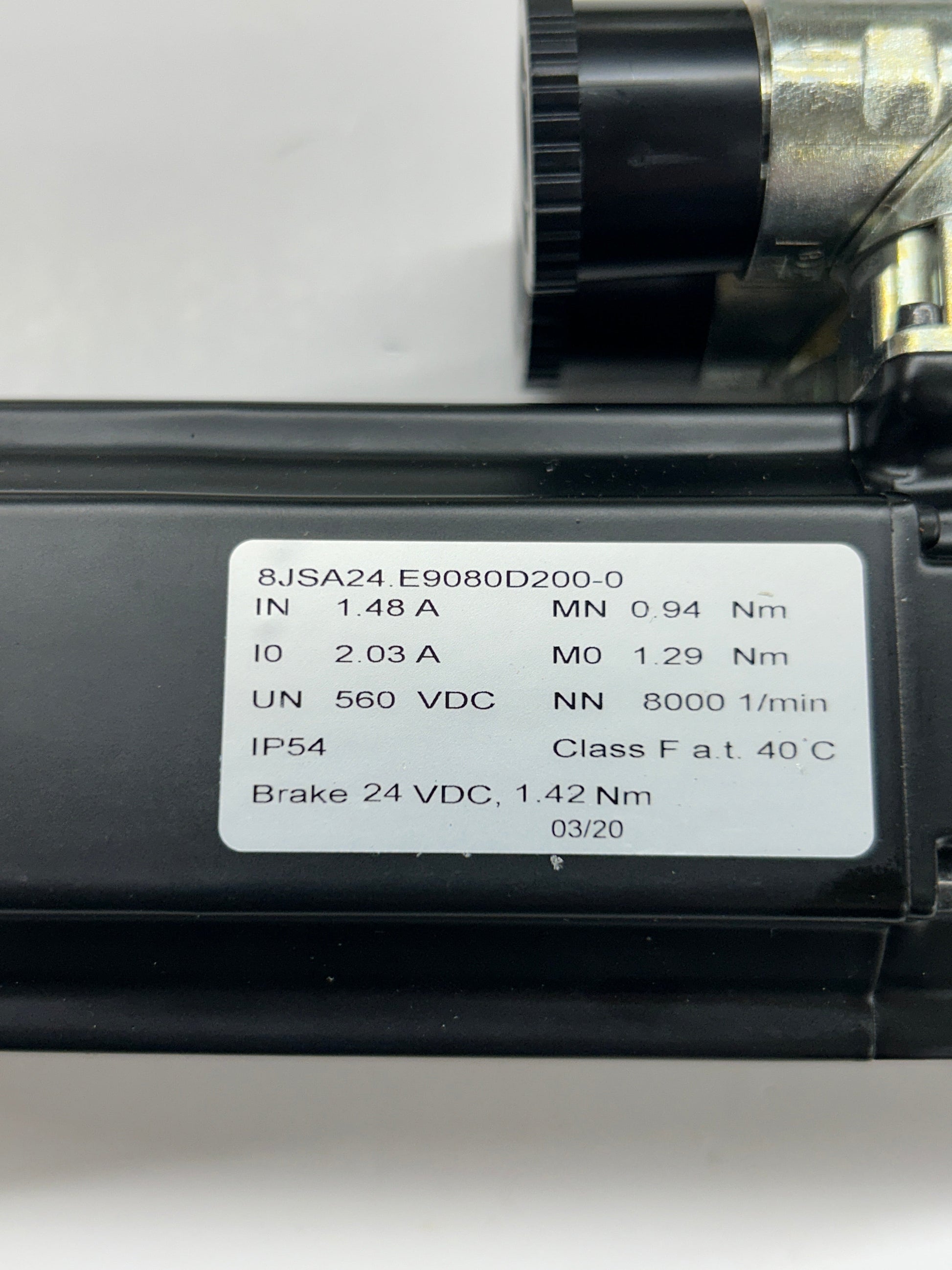

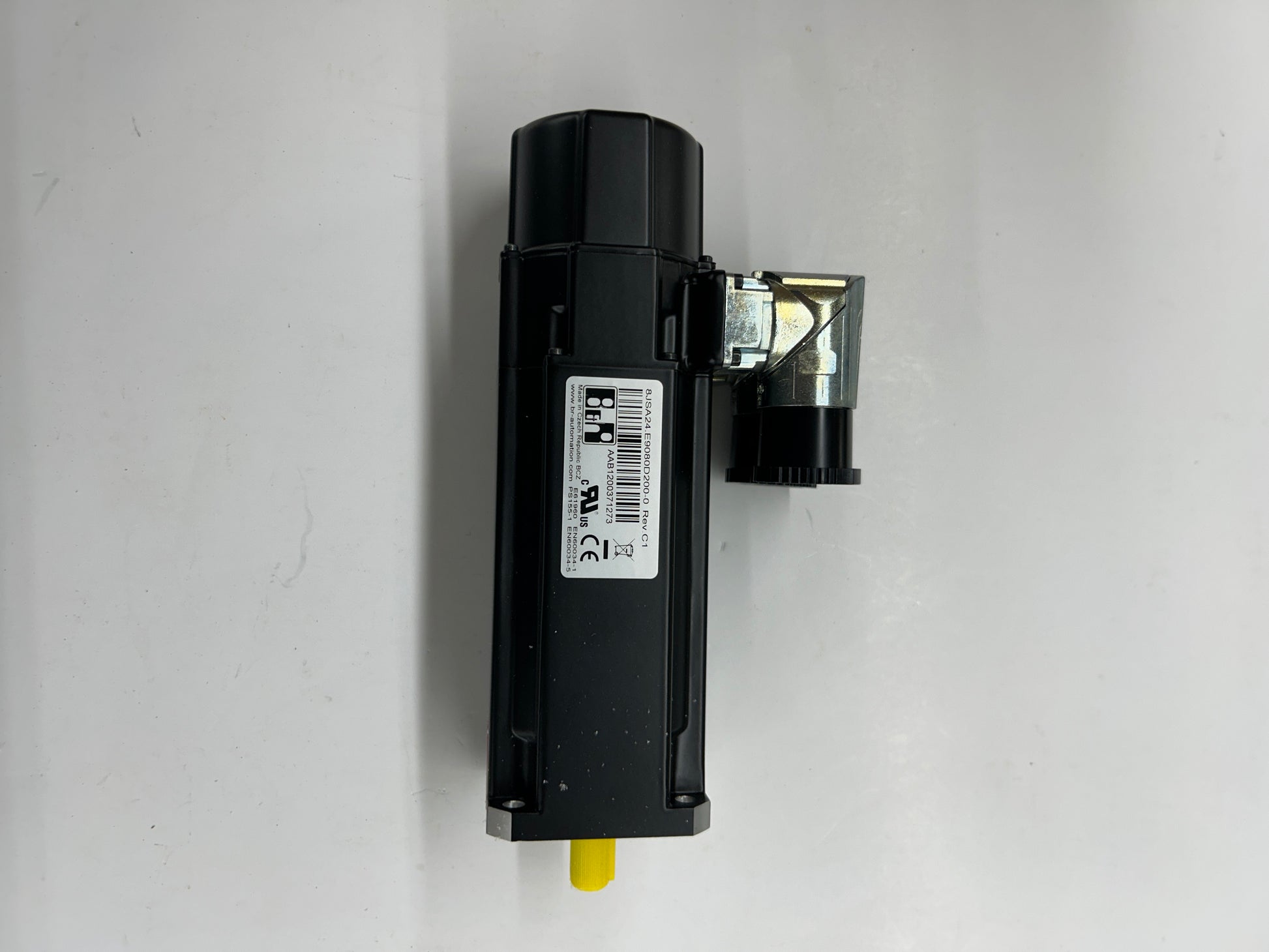

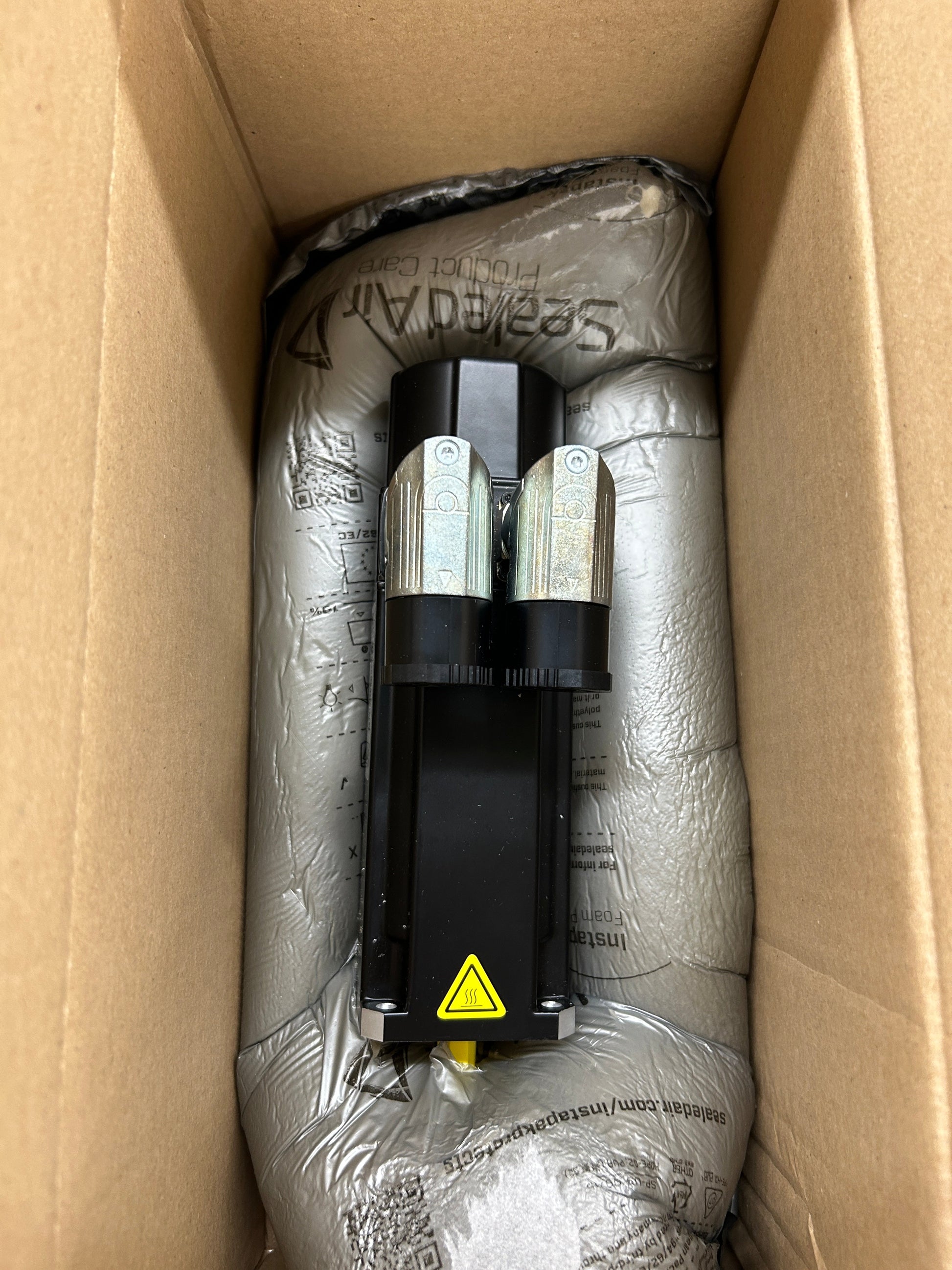

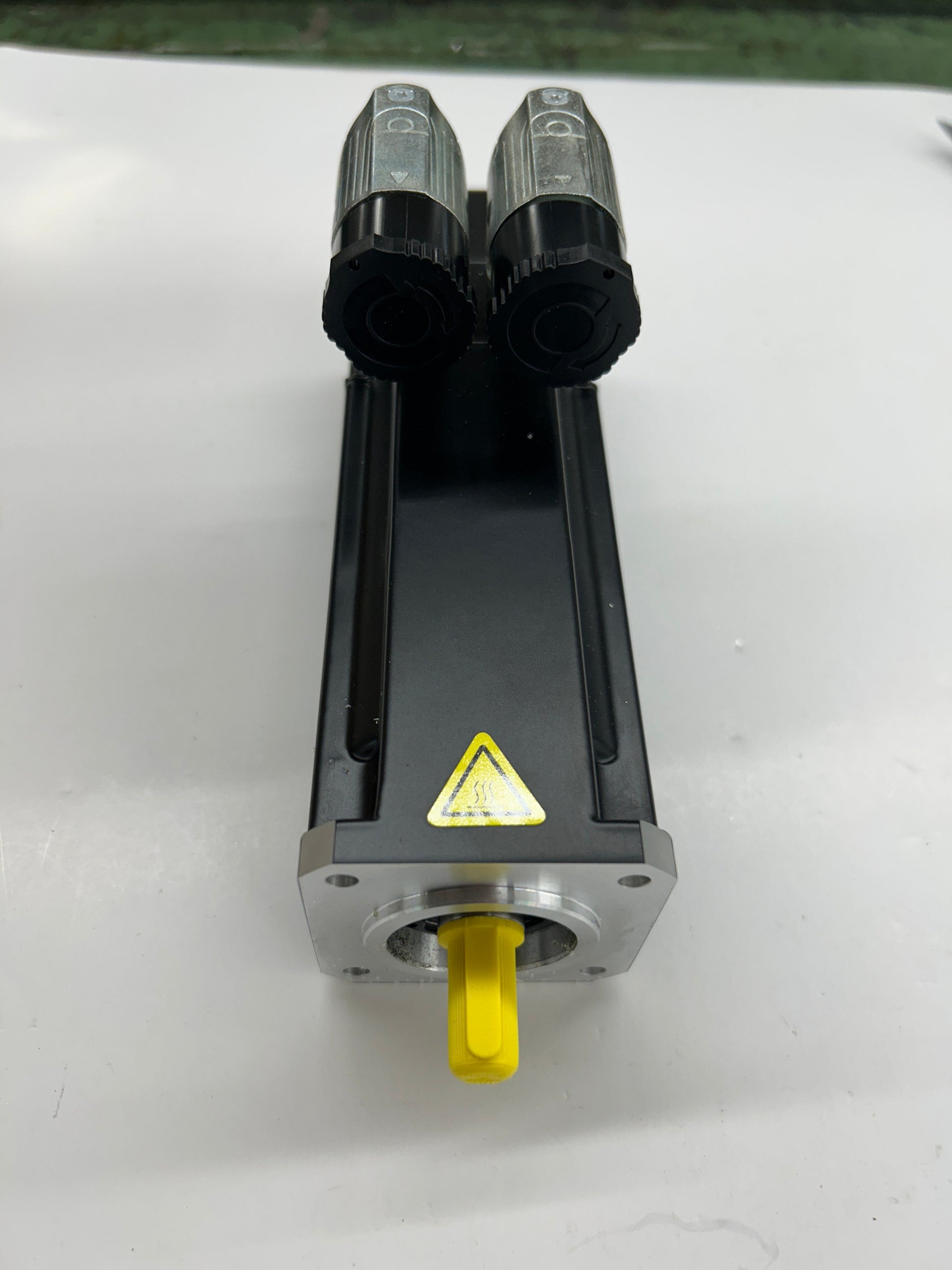

Used in high-performance automation, packaging, and CNC machine tool applications, the B&R Automation 8JSA24.E9080D200-0 is a three-phase permanent magnet synchronous servo motor from the 8JSA series. Manufactured in the Czech Republic and carrying UL, CE, EN60034-1, and EN60034-5 certifications, this motor is rated at 560 VDC nominal bus voltage with a nominal current of 1.48 A and peak current of 2.03 A. Nominal torque is 0.94 Nm and peak stall torque is 1.29 Nm at rated 8000 RPM nominal speed. The motor features an integrated 24 VDC holding brake rated at 1.42 Nm and an EnDat 2.2 multi-turn encoder for closed-loop position and speed feedback. Thermal class is F at 40 degrees C ambient, and the unit carries an IP54 ingress protection rating. The part number suffix E9080D200-0 indicates the EnDat 9-bit multi-turn encoder, 8000 RPM speed designation, dual-cable connector with integrated brake, and single-end output configuration. Serial number AAB1200371273, revision C1. Physical dimensions are confirmed from shipping carton as 133.4 x 58 x 58 mm. Manufacture date 03/2020. Item was received in original cardboard shipping carton with Sealed Air inflatable packaging intact.

Stock # 0326-1067
