B&R Automation Servo Motor 8JSA54.EB028D200-0 - Variable 3000 RPM

$1,299.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

The B&R Automation 8JSA54.EB028D200-0 is a three-phase permanent magnet synchronous servo motor from the 8JSA series, designed for precision motion control in industrial automation applications. Part number 8JSA54.EB028D200-0, Revision C1, serial number M02P201120309, manufactured in 2011 in the Czech Republic.

Nameplate specifications include a nominal current (IN) of 5.15 A, peak current (IO) of 6.88 A, supply voltage (UN) of 560 VDC, rated torque (MN) of 9.62 Nm, peak torque (MO) of 12.85 Nm, and nominal speed (NN) of 2750 rpm. The motor incorporates an integrated holding brake rated at 24 VDC with a brake torque of 14.5 Nm. Thermal insulation is Class F, rated at 40°C ambient. Protection class is IP54. UL recognized (E61960, PS155-1), CE marked, and compliant with EN60034-1 and EN60034-5.

The EB028 suffix indicates an EnDat 2.2 encoder with a specific connector configuration, providing high-resolution absolute position feedback compatible with B&R ACOPOS servo drive systems. The D200 encoder variant supports the EnDat 2.2 digital interface protocol. Stator encapsulation and compact 8JSA form factor provide high power density with robust construction suitable for demanding environments.

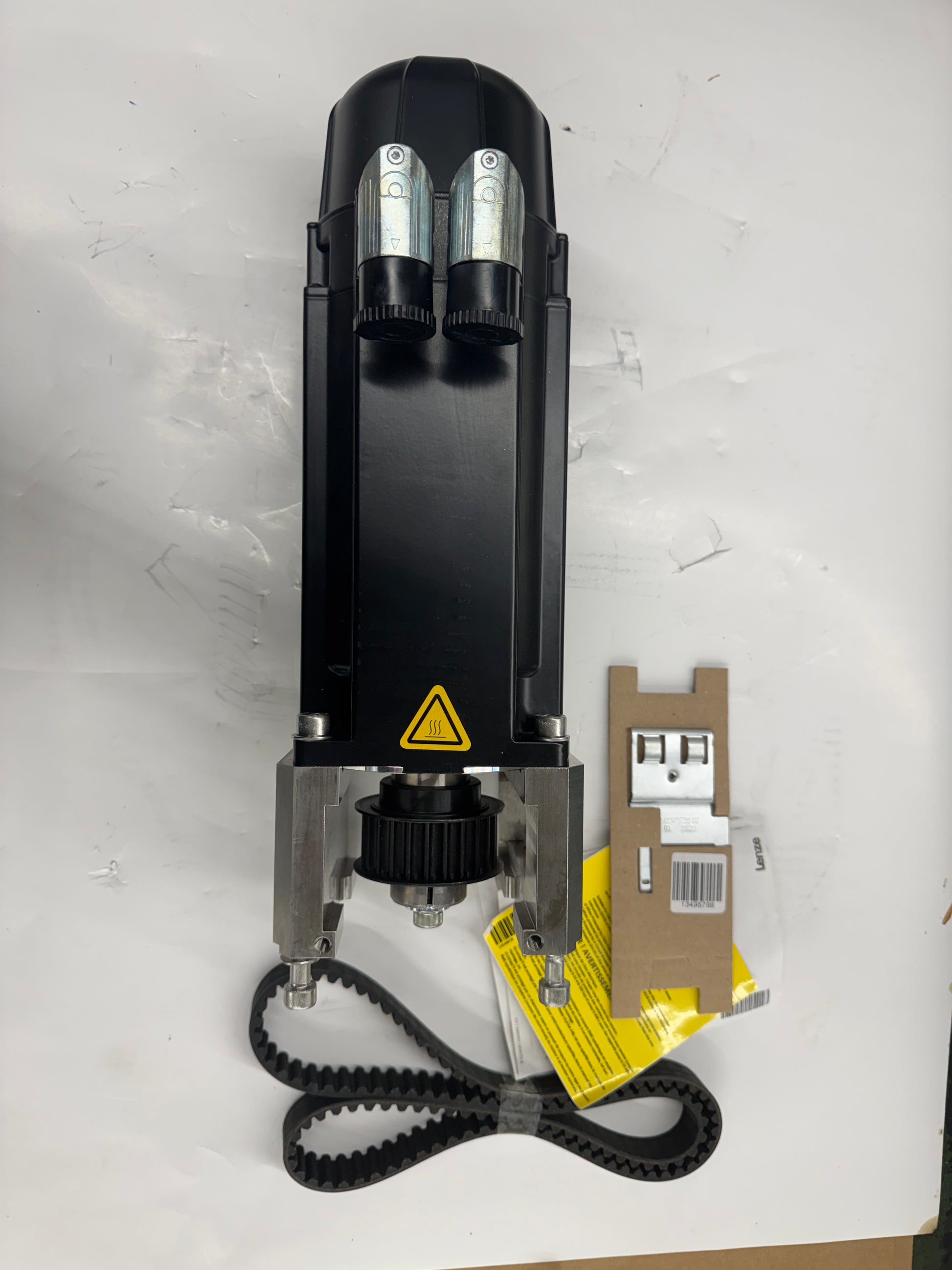

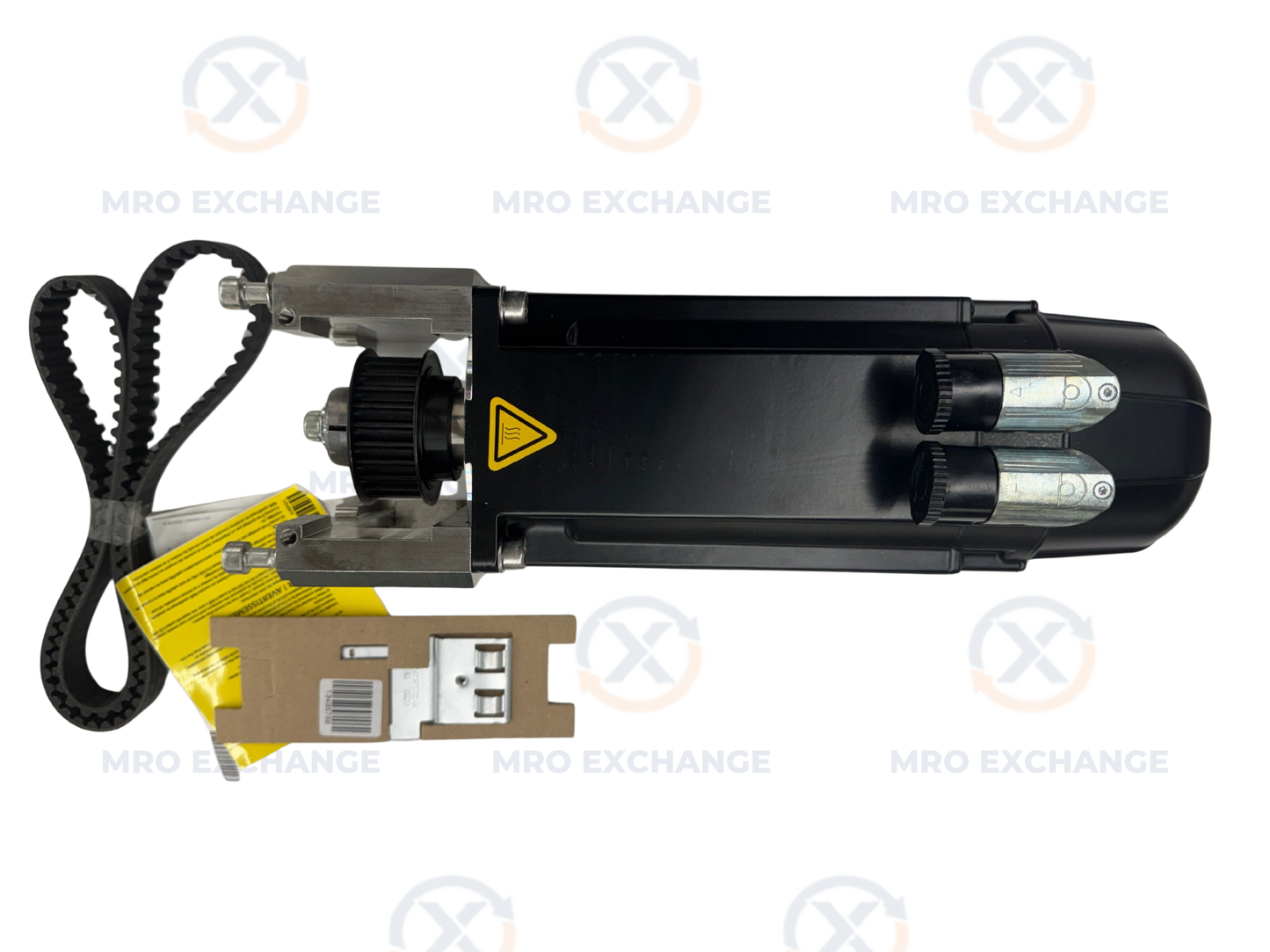

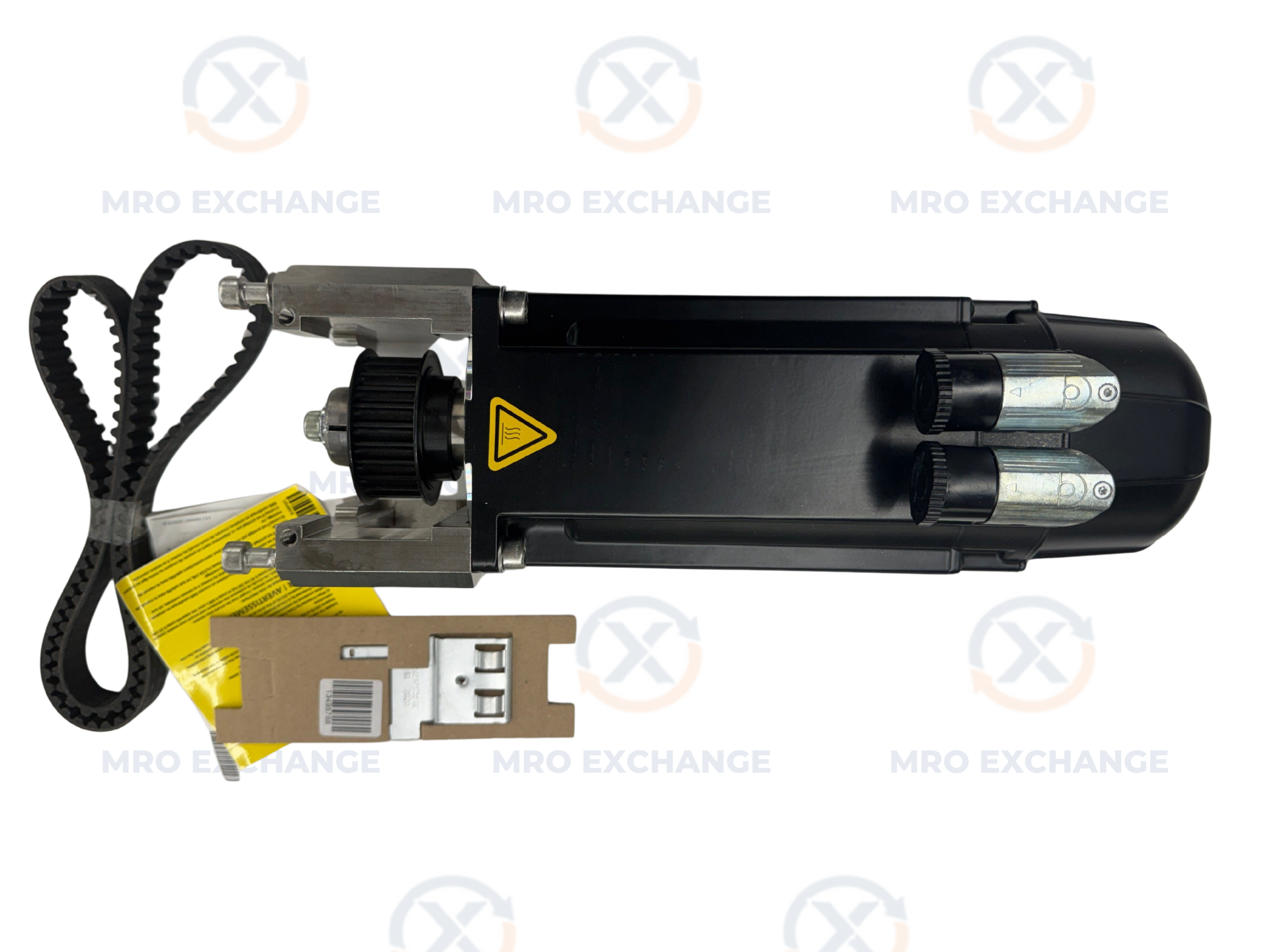

The unit is shown with an attached machined aluminum mounting bracket and a timing belt drive pulley assembly visible in the photos; these accessories appear to be a machine-specific installation subassembly. Certificate codes E61960 and PS155-1 are confirmed on nameplate.

Stock # 0326-1125
