B&R Automation Servo Motor 8LSA44.DB030S200-3 - 3 kW 3000 RPM
B&R Automation Servo Motor 8LSA44.DB030S200-3 - 3 kW 3000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 8LSA44.DB030S200-3
Stock #: Stock # 0626-01730
Product Specifications
- Manufacturer: B&R
- MPN / Model: 8LSA44.DB030S200-3
- Type: 8LSA44.ee030ffgg-3
- Product Type: Synchronous Servo Motor
- Revision: Rev. C9
- Serial Number: M34G1552255
- Rated Current (IN): 2.80 A
- Standstill Current (I0): 3.70 A
- Rated Torque (MN): 4.62 Nm
- Standstill Torque (M0): 6.00 Nm
- Rated Power (Pn): 1451 W
- Rated Speed (NN): 3000 min-1
- Rated Voltage (UN): 400 V
- Rated Frequency (Fn): 250 Hz
- Holding Brake: 8.00 Nm
- Insulation Class: Class F at 40 C
- Enclosure Rating: IP64
- Mass: 5.86 kg
- Date Code: 23/2022
Product Description

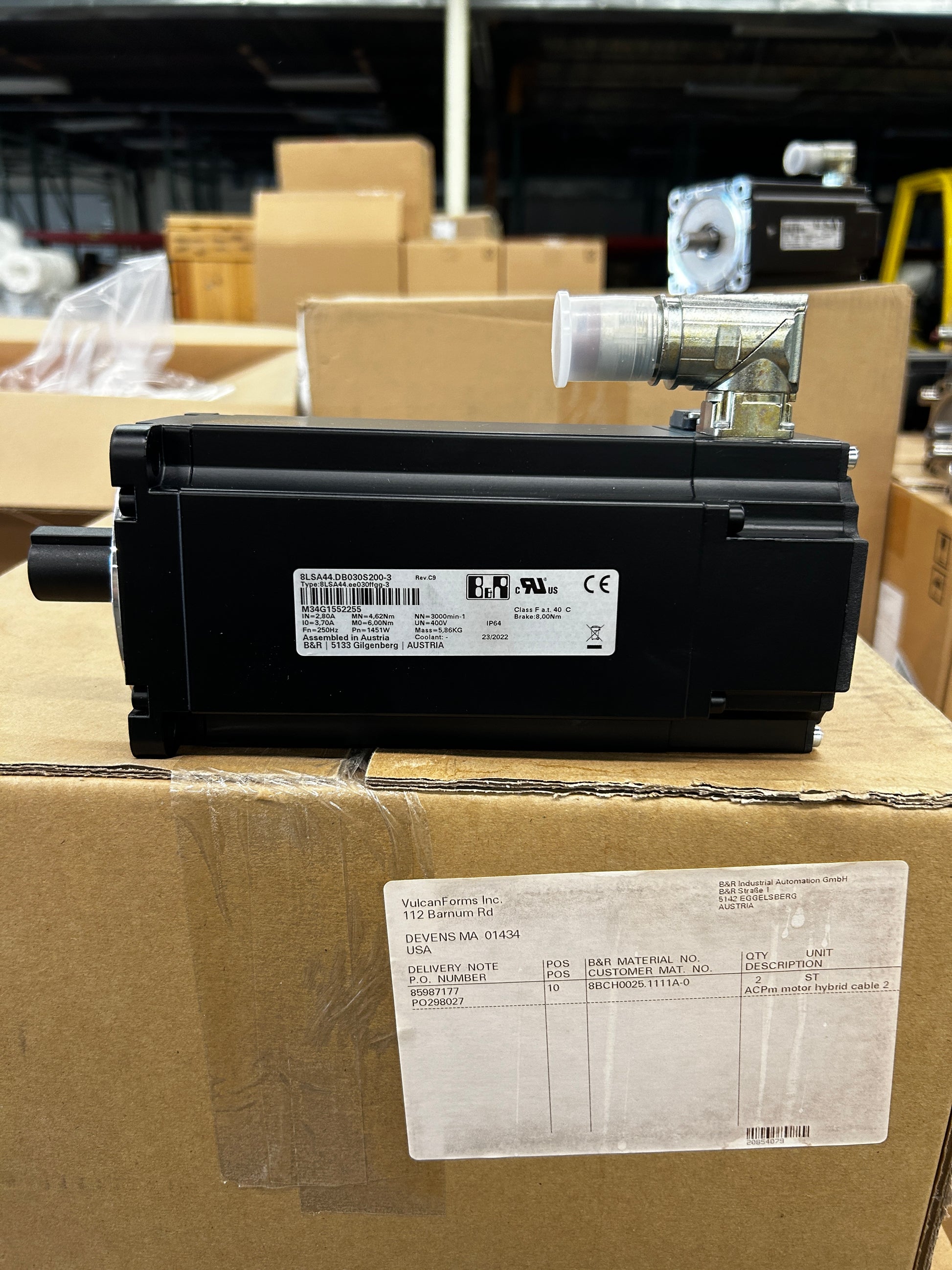

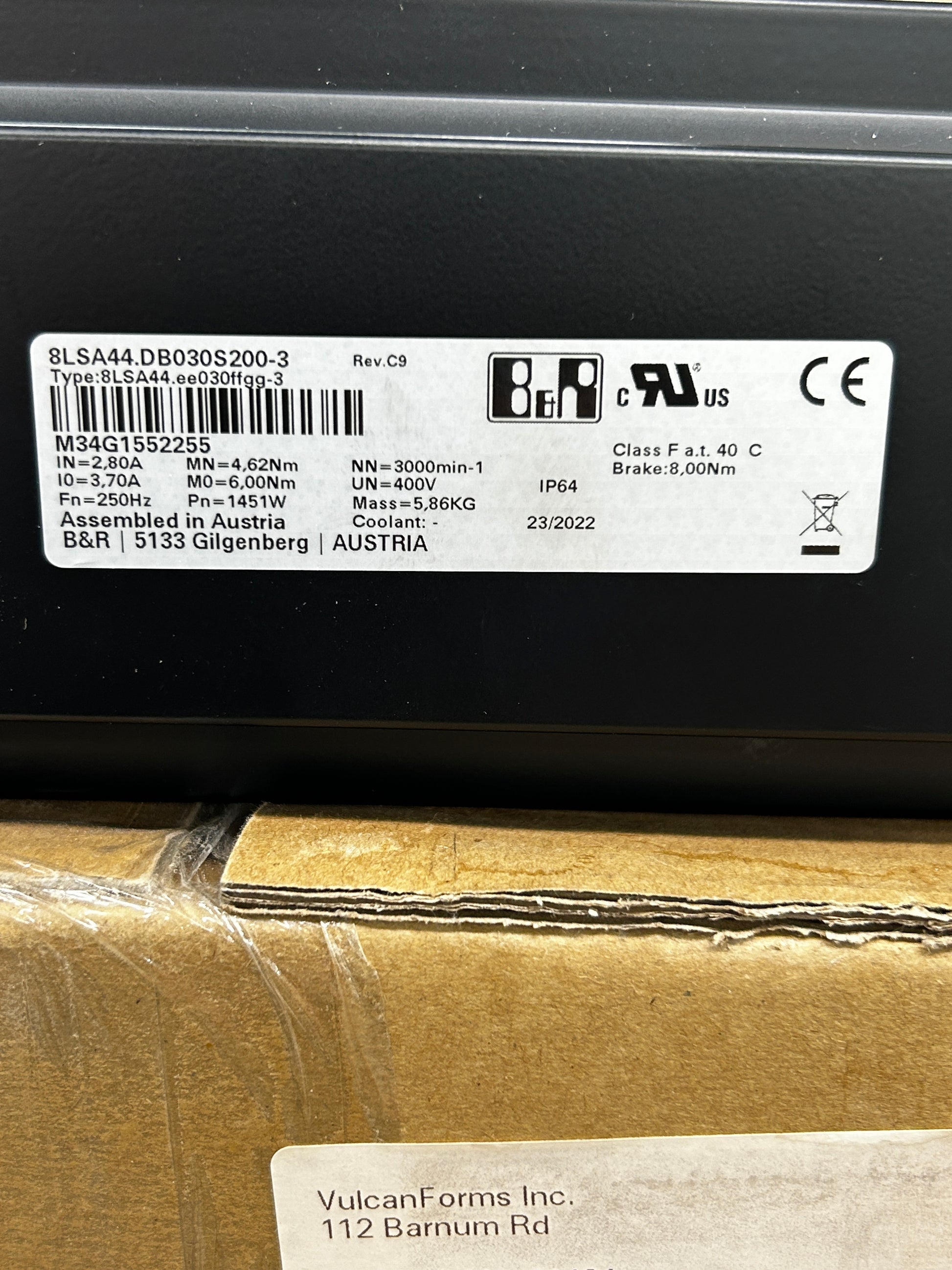

This B&R 8LSA44.DB030S200-3 is a three phase synchronous servo motor from the 8LS series, identified by part number 8LSA44.DB030S200-3 and type designation 8LSA44.ee030ffgg-3. The nameplate confirms a rated speed of 3000 min-1, rated voltage of 400 V, rated power of 1451 W, rated torque of 4.62 Nm, and standstill torque of 6.00 Nm, with a rated current of 2.80 A. The unit is equipped with an integrated holding brake rated at 8.00 Nm, carries Class F insulation at 40 C, and is built to IP64 protection. Serial number M34G1552255 and revision Rev. C9 are marked on the plate, with a date code of 23/2022 and a listed mass of 5.86 kg. Buyers matching an exact B&R 8LS catalog number for replacement, spare inventory, or maintenance sourcing can use the visible nameplate data and serial number to compare this motor to their existing equipment.
