B&R Automation Servo Motor 8LSA46.DB030S300-3 - 1 kW 3000 RPM
B&R Automation Servo Motor 8LSA46.DB030S300-3 - 1 kW 3000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 8LSA46.DB030S300-3
Stock #: Stock # 0626-01732
Product Specifications
- Manufacturer: B&R
- MPN / Model: 8LSA46.DB030S300-3
- Product Type: Synchronous Servo Motor
- Series: 8LS Synchronous Motor
- Voltage: 400 VAC
- Nominal Speed: 3000 rpm
- Maximum Speed: 12000 rpm
- Nominal Torque: 7.7 Nm
- Stall Torque: 10.0 Nm
- Maximum Torque: 38.0 Nm
- Rated Current: 4.7 A
- Stall Current: 6.1 A
- Pole Pairs: 5
- Construction Type: Type A, self cooling
- Centering Diameter: 95.00 mm, j6 fit
- Flange Square Dimension: 100.00 mm
- Brake Holding Torque: 8.00 Nm
- Shaft Key: d=19.00 k6 x 40.00 mm, without oil seal
- Feedback: EnDat 2.2, EQI 1331 FS
- Protection Rating: IP64
- Insulation Class: F
Product Description

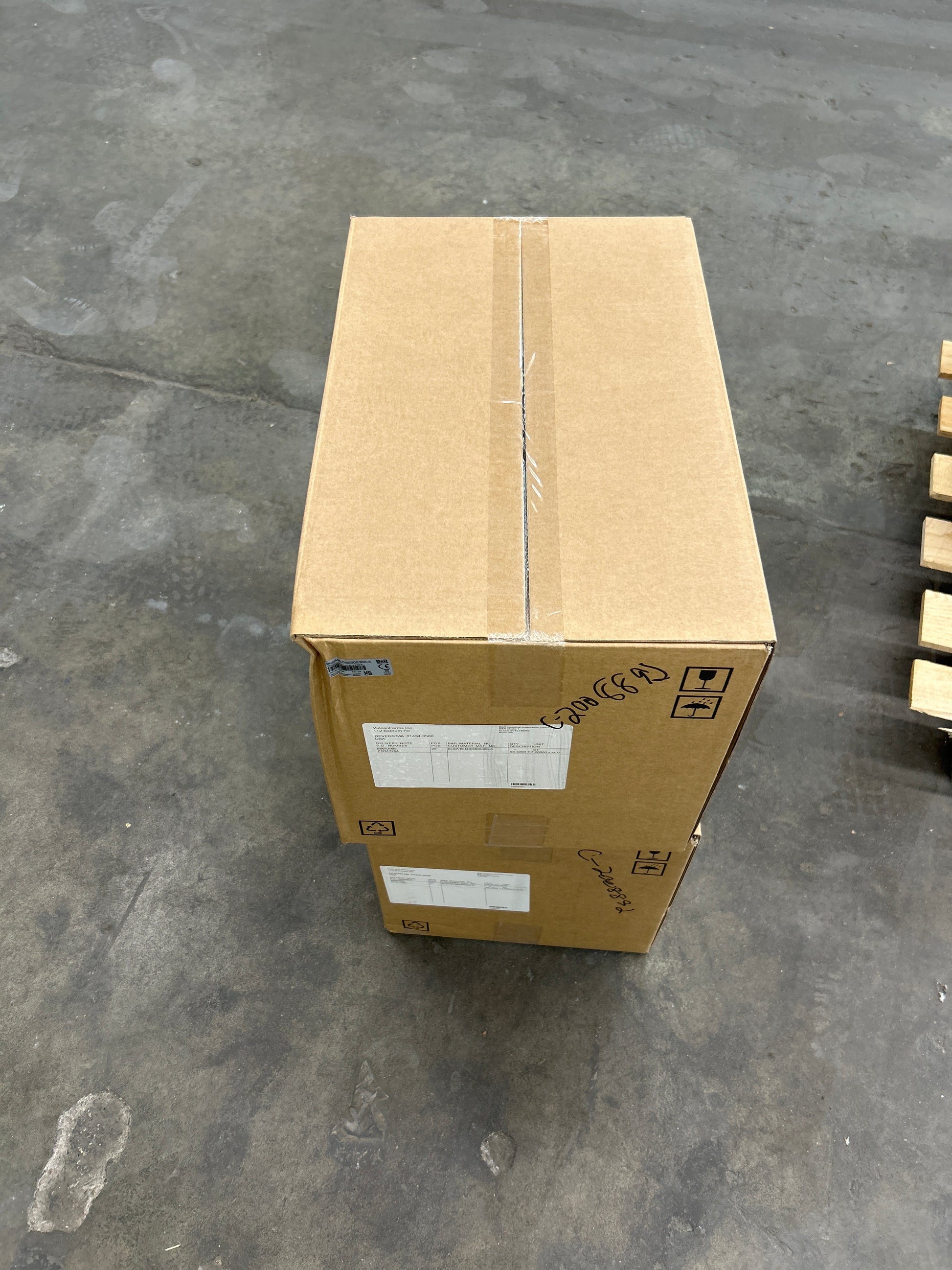

B&R part number 8LSA46.DB030S300-3 is a synchronous servo motor from the 8LS Synchronous Motor series, supplied in sealed original factory packaging. The motor is built as a self cooling Type A construction rated for 400 VAC operation, with five pole pairs, a nominal speed of 3000 rpm, and a maximum speed of 12000 rpm. It provides 7.7 Nm nominal torque, 10.0 Nm stall torque, and 38.0 Nm maximum torque, drawing 4.7 A at rated load and 6.1 A at stall.

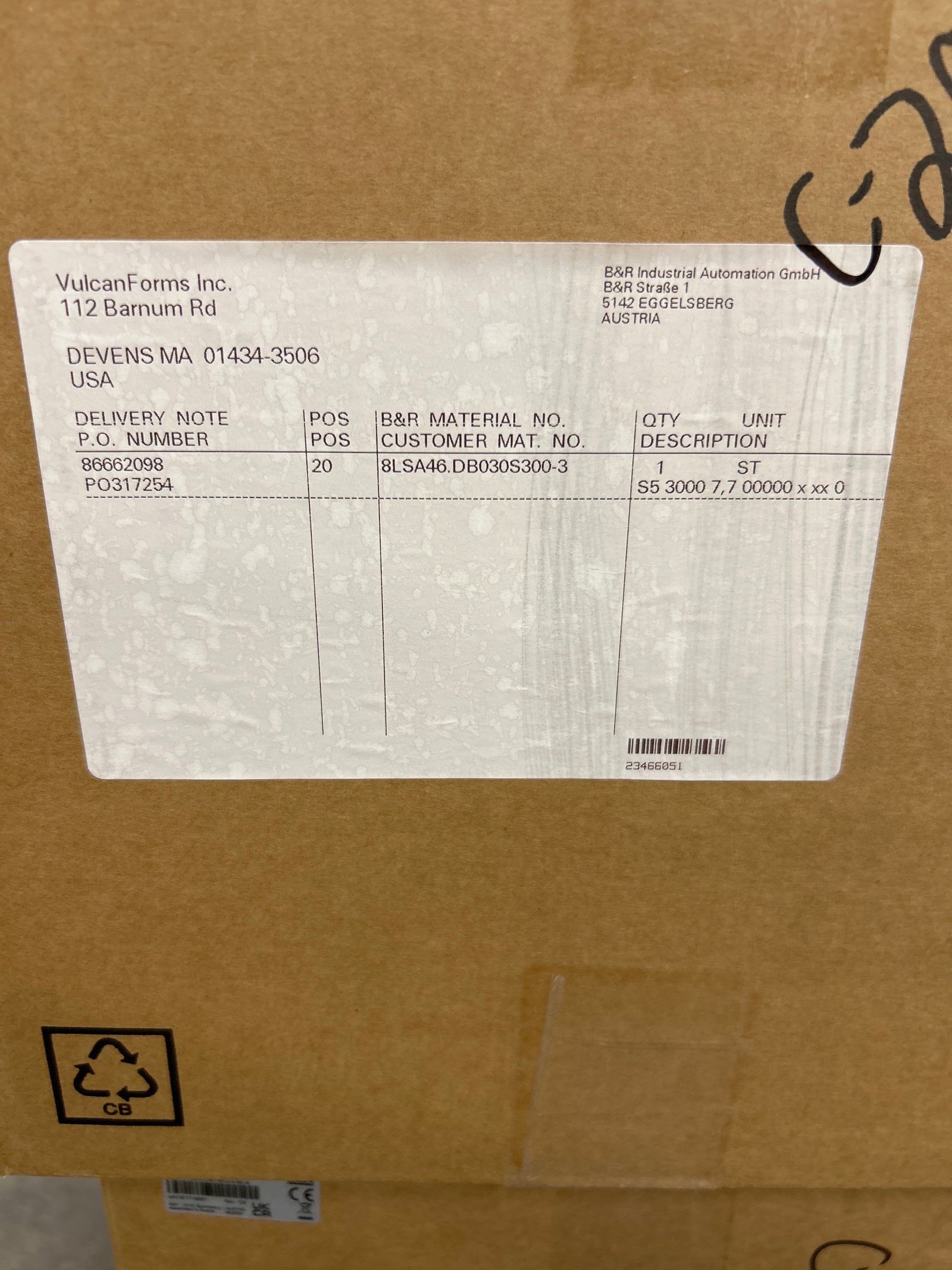

The motor carries an EnDat 2.2 absolute encoder (EQI 1331 FS), an integrated holding brake rated at 8.00 Nm, a 95.00 mm j6 centering diameter, a 100.00 mm square flange, and a 19.00 mm keyed shaft without oil seal. Protection is rated IP64 with Class F insulation. Buyers matching an exact B&R 8LS catalog number for replacement, spare inventory, or maintenance sourcing can use the MPN and the visible factory carton labeling to confirm the part against their existing motor configuration.
Stock # 0626-01732
