B&R Automation Servo Motor 8MSA3S.E1-B6 - 1 kW 3000 RPM

$1,899.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

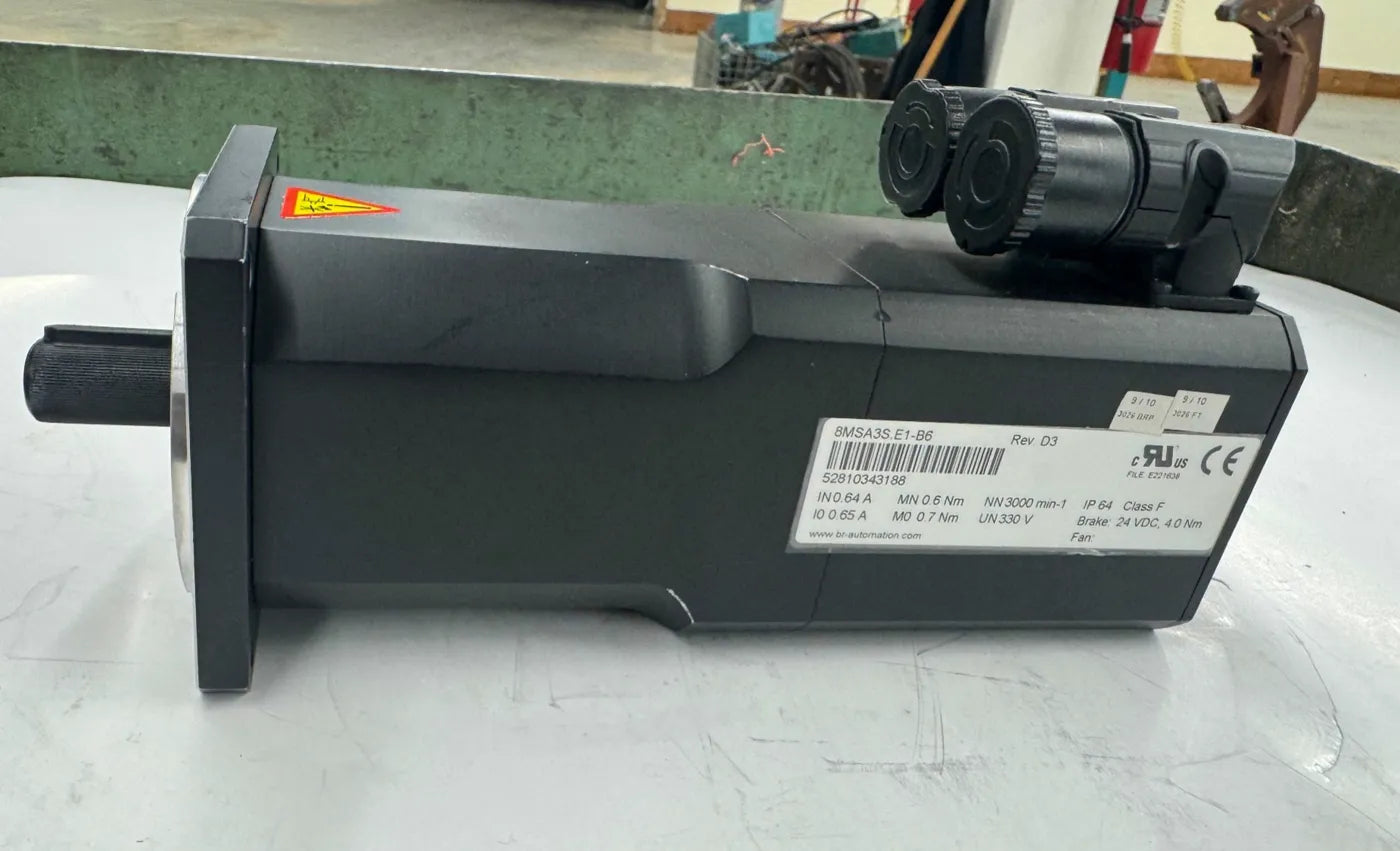

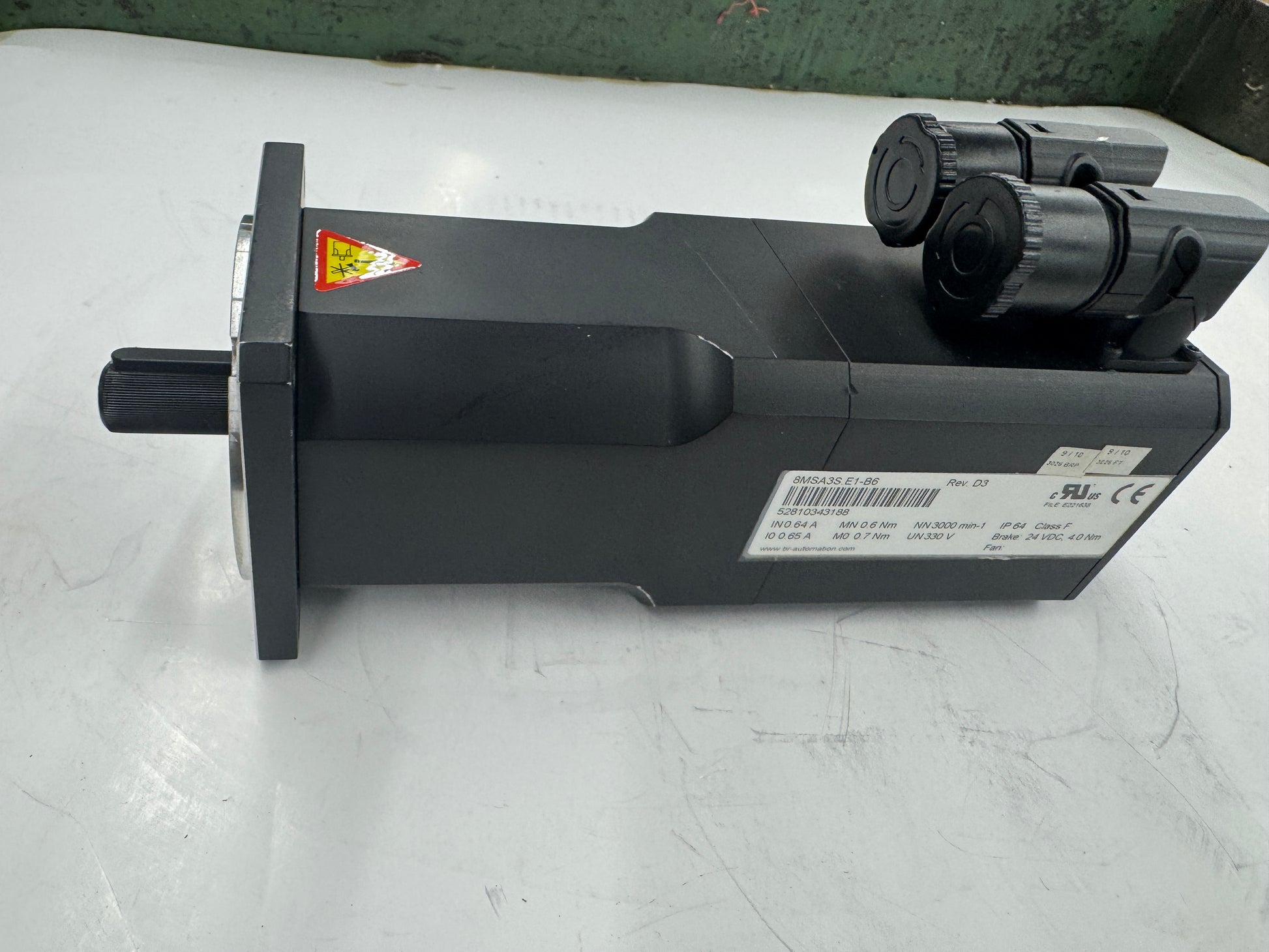

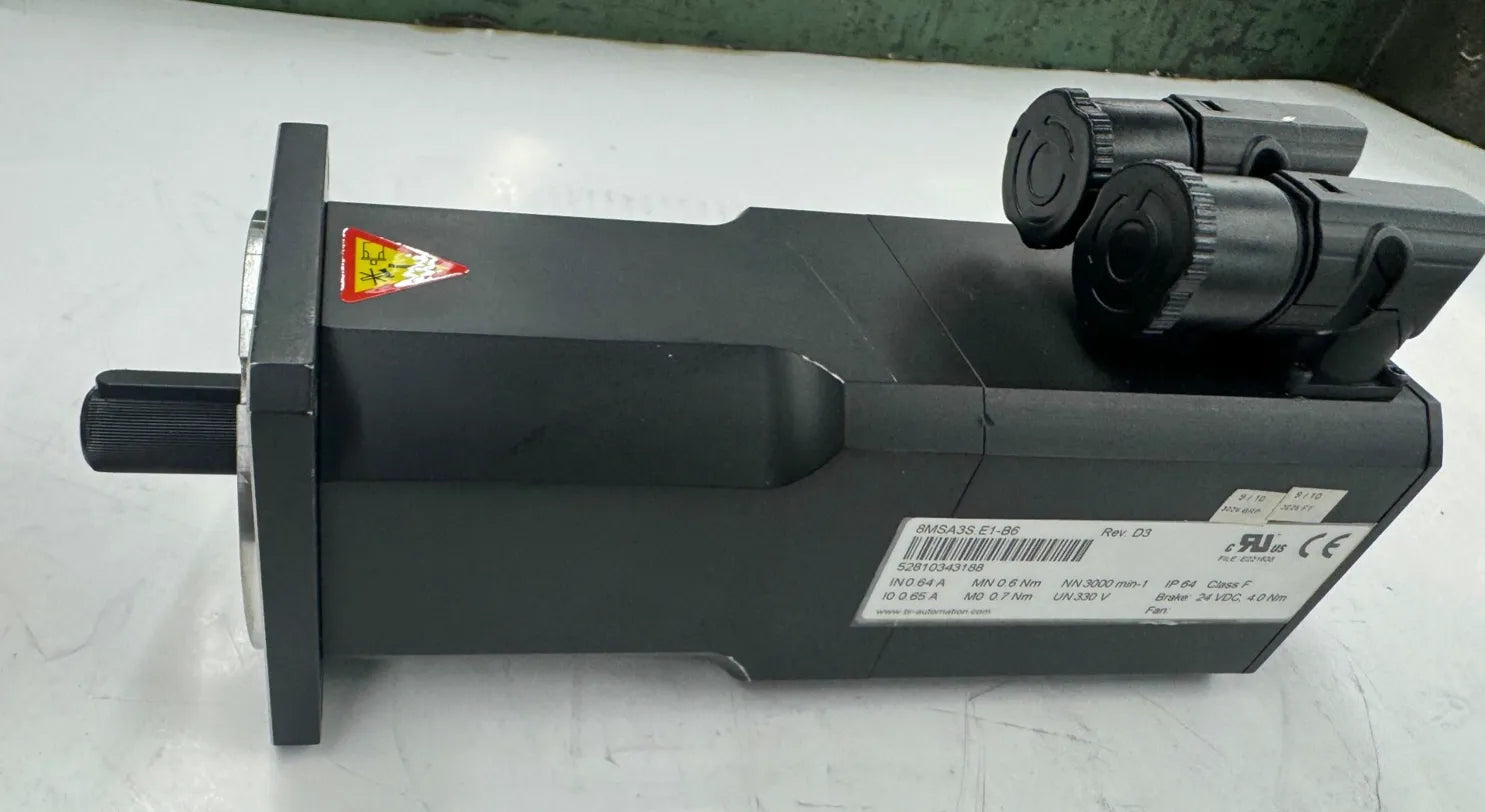

The B&R 8MSA3S.E1-B6 is a three-phase synchronous servo motor from B&R's 8MS series, designed for use with ACOPOS servo drives in precision automation and packaging machinery. The nameplate identifies this as Size 3, Small rated torque configuration, with a nominal current (IN) of 0.64 A, a peak current (IO) of 0.65 A, a nominal torque (MN) of 0.6 Nm, and a peak torque (MO) of 0.7 Nm. Rated speed (NN) is 3000 min-1 and supply voltage (UN) is 330 V. The motor carries IP64 ingress protection and an insulation Class F rating. It is equipped with a 24 VDC holding brake rated at 4.0 Nm, making it suitable for applications requiring secure position hold at rest. Encoder system is EnDat multiturn, as indicated by the E1 designation in the part number. A fan module connection is present, visible via the dual connector assembly at the rear of the motor. Revision is D3, with serial number 52810343188. The motor is manufactured to UL and CE standards as shown on the nameplate. Connector interfaces at the rear are circular M-series style, consistent with standard B&R ACOPOS cabling. Part number 8MSA3S.E1-B6 as confirmed on the nameplate label. Website reference: www.br-automation.com.

Stock # 0326-1174
