B&R Automation Servo Motor 8MSA4L.E1-68 - Variable 4500 RPM m01172

$3,999.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition: Surplus inventory. Photos show current condition and details.

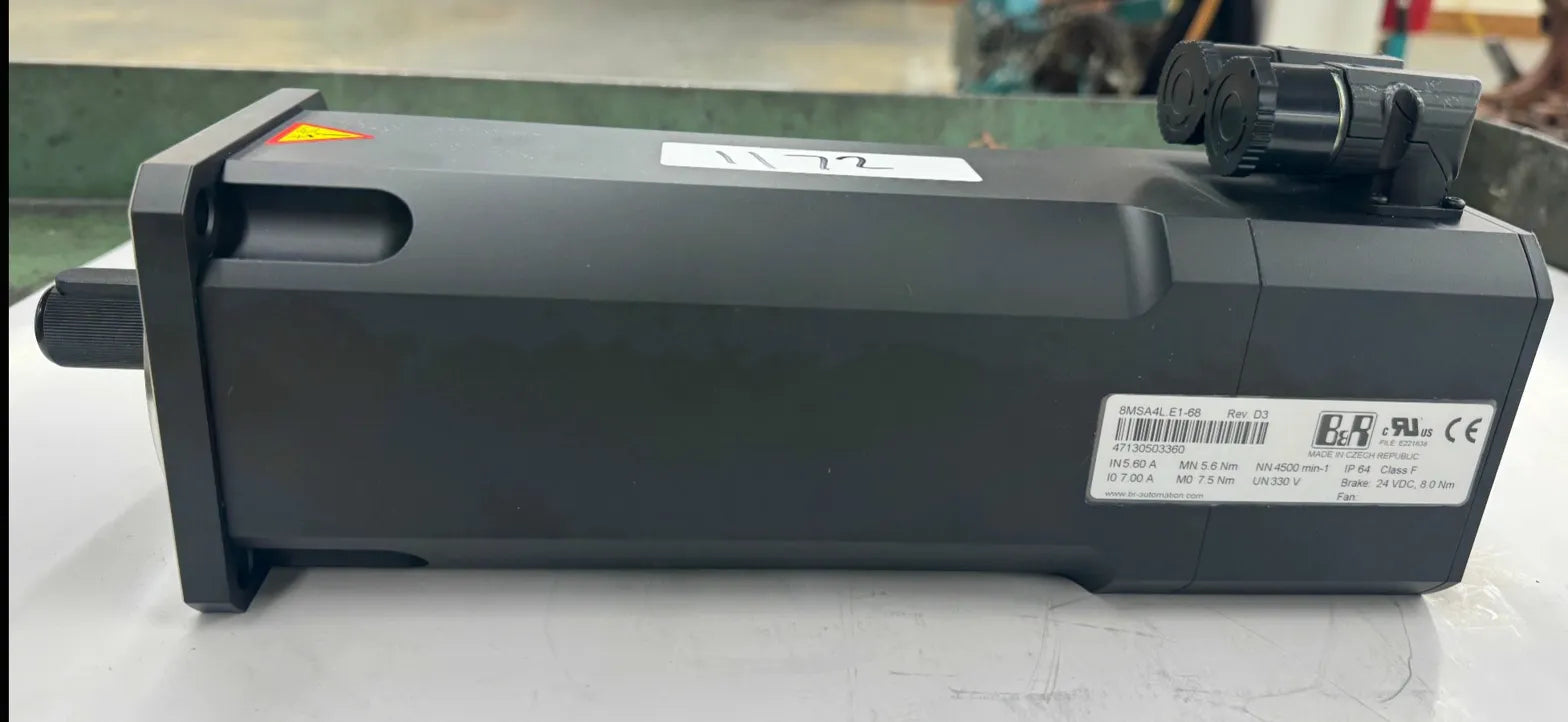

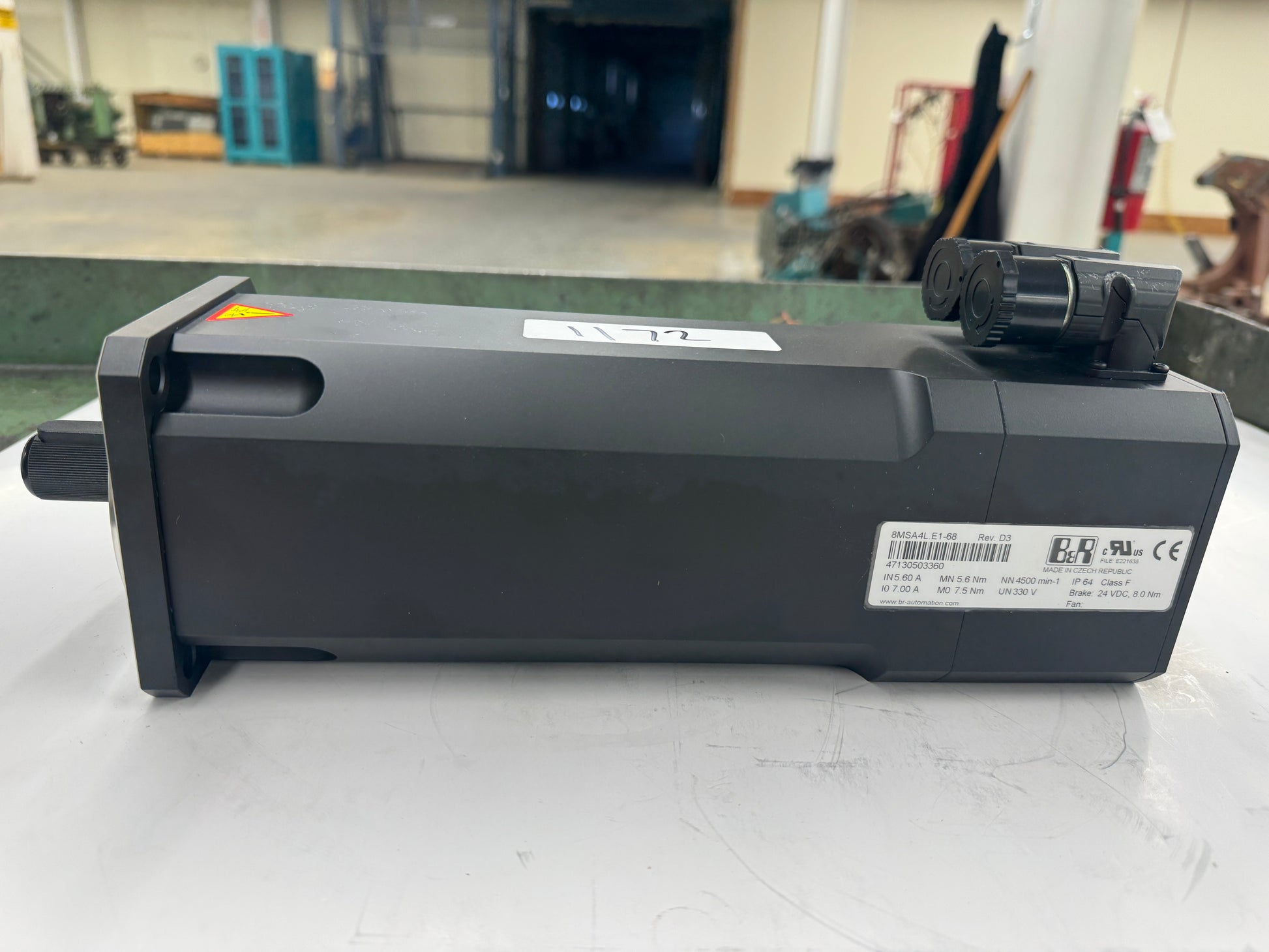

The B&R 8MSA4L.E1-68 is a three-phase synchronous servo motor from the 8MS series, manufactured in the Czech Republic and designed for use with ACOPOS servo drives in automation and packaging applications. It belongs to the Size 4 Large (4L) frame class and features self-cooling (Cooling Type A), with no fan fitted as confirmed by the nameplate.

Nameplate specifications: rated current IN 5.60 A, stall current I0 7.00 A, rated torque MN 5.6 Nm, stall torque M0 7.5 Nm, rated speed NN 4500 min-1, supply voltage UN 330 V. Insulation class F (maximum 155 degrees C), IP 64 protection rating. The holding brake is rated 24 VDC with a braking torque of 8.0 Nm. The "E1" encoder designation identifies a 512-line EnDat single-turn feedback system. Revision D3. Serial number 47130503360.

The "68" motor option suffix encodes a combination of 4500 RPM rated speed, holding brake, keyed shaft end, and B-side (rear) cable connection direction per the B&R 8MS motor ordering system. This configuration is commonly used in pharmaceutical packaging machinery, including Korber and Mediseal platforms, as well as general industrial automation systems. The motor carries cULus and CE certifications, UL file E221638.

Stock # 0326-1172

View full details

Surplus inventory sold as described. Please review photos, specifications, and compatibility details carefully before purchase. Reach out with any questions prior to ordering.
