Brook Crompton 3 Phase Induction Motor BA4M7.5V4 / Type WPN-DA132SM-4 - 7 HP 1800 RPM
Brook Crompton 3 Phase Induction Motor BA4M7.5V4 / Type WPN-DA132SM-4 - 7 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

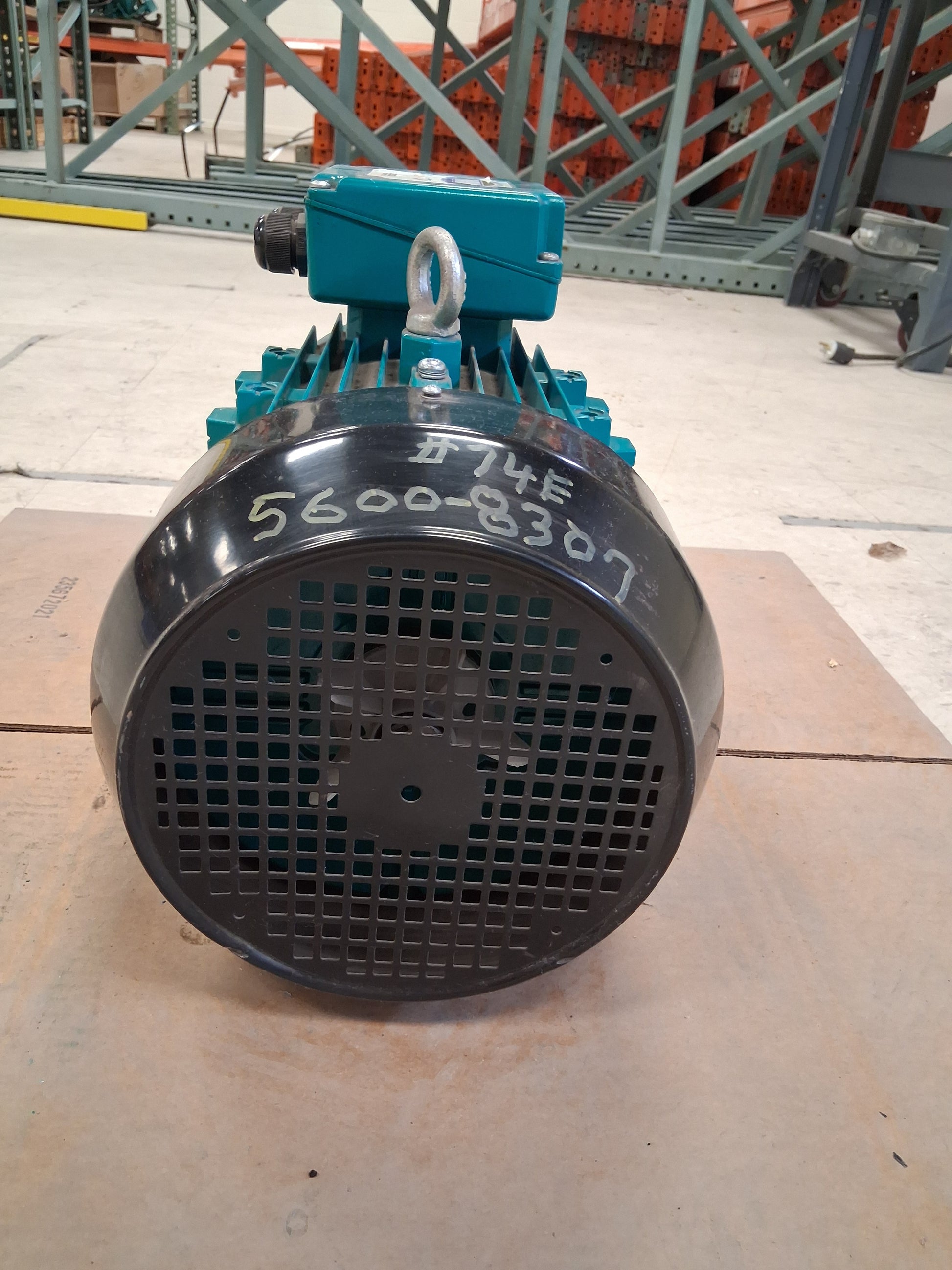

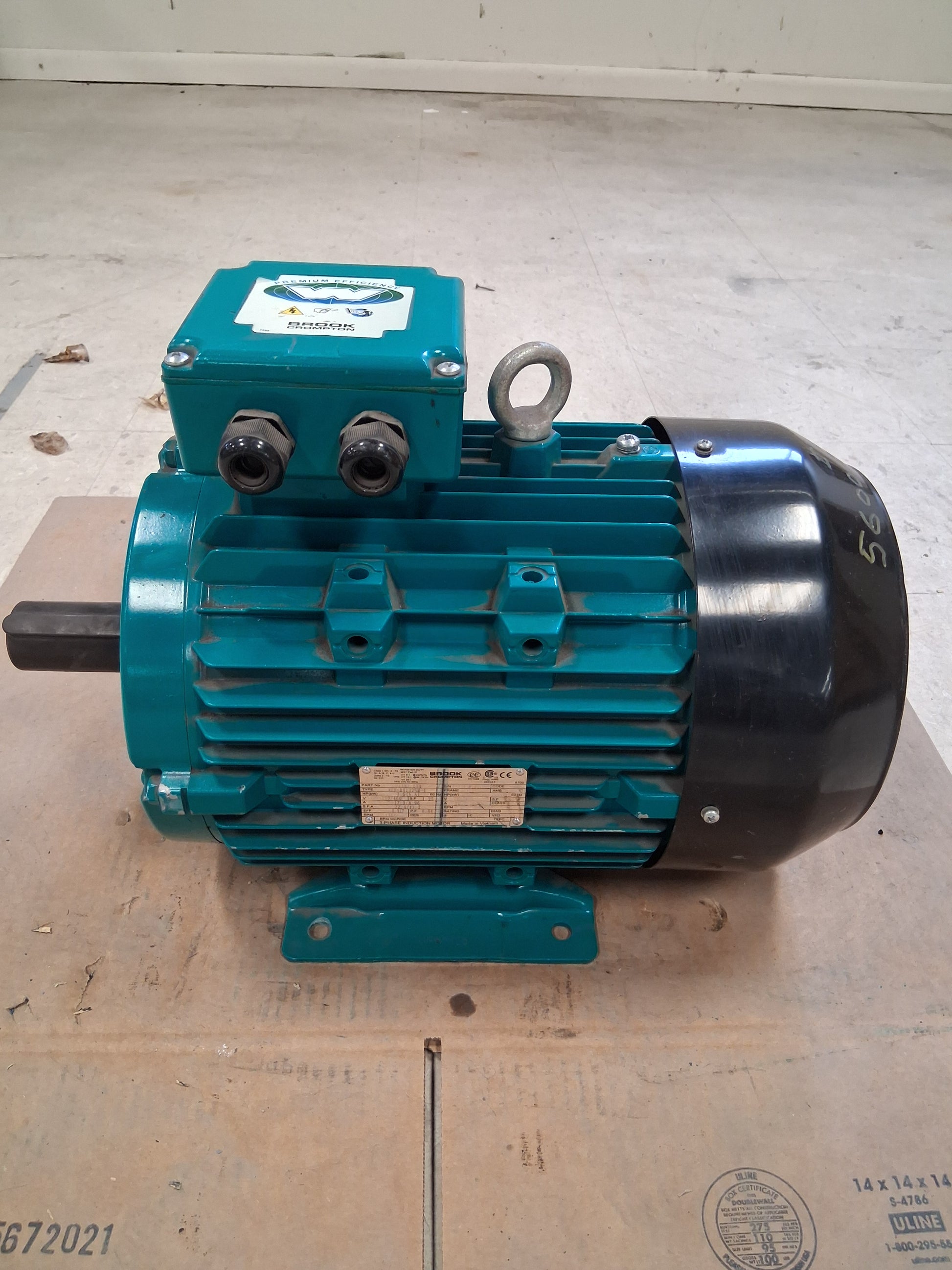

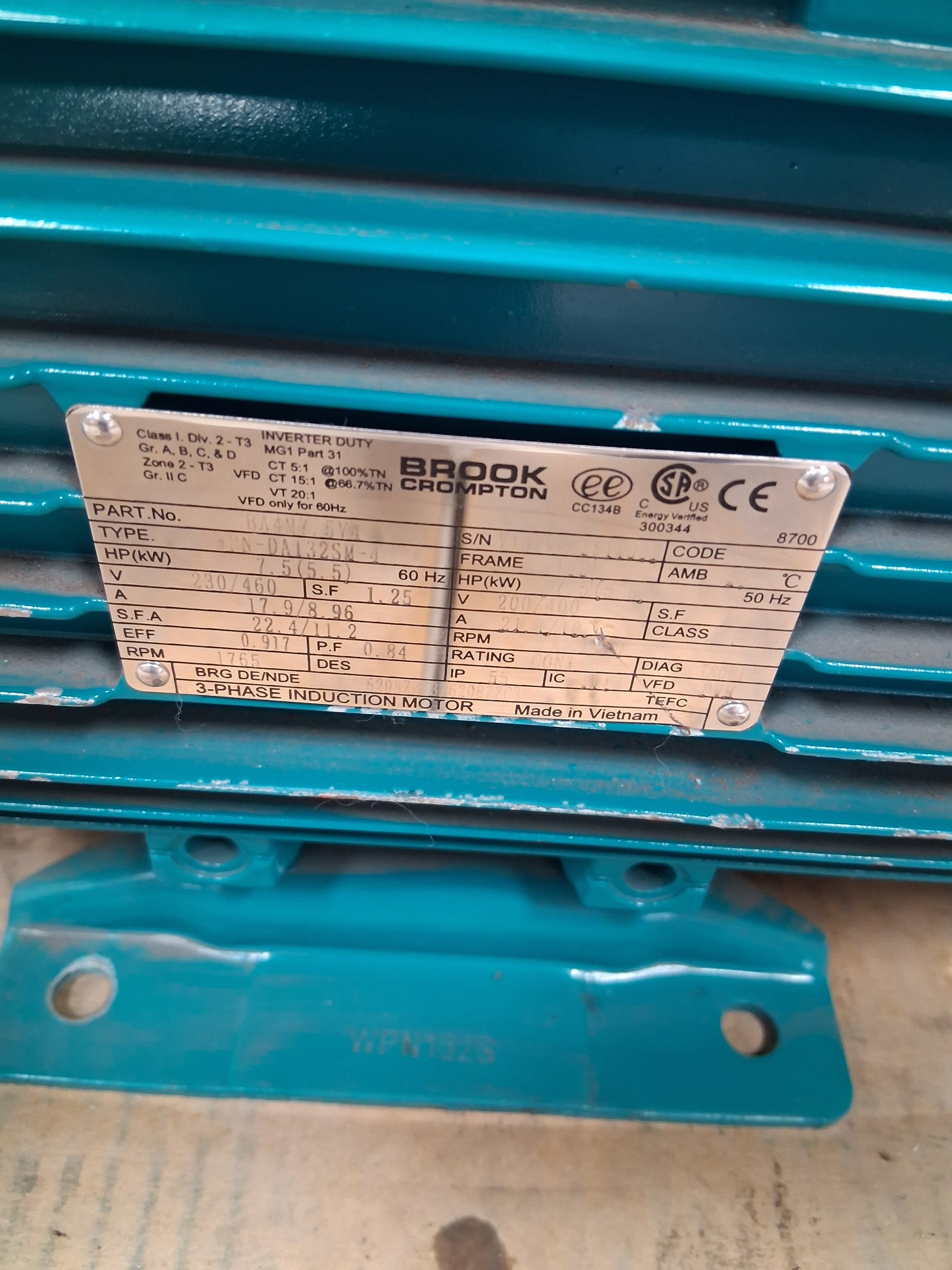

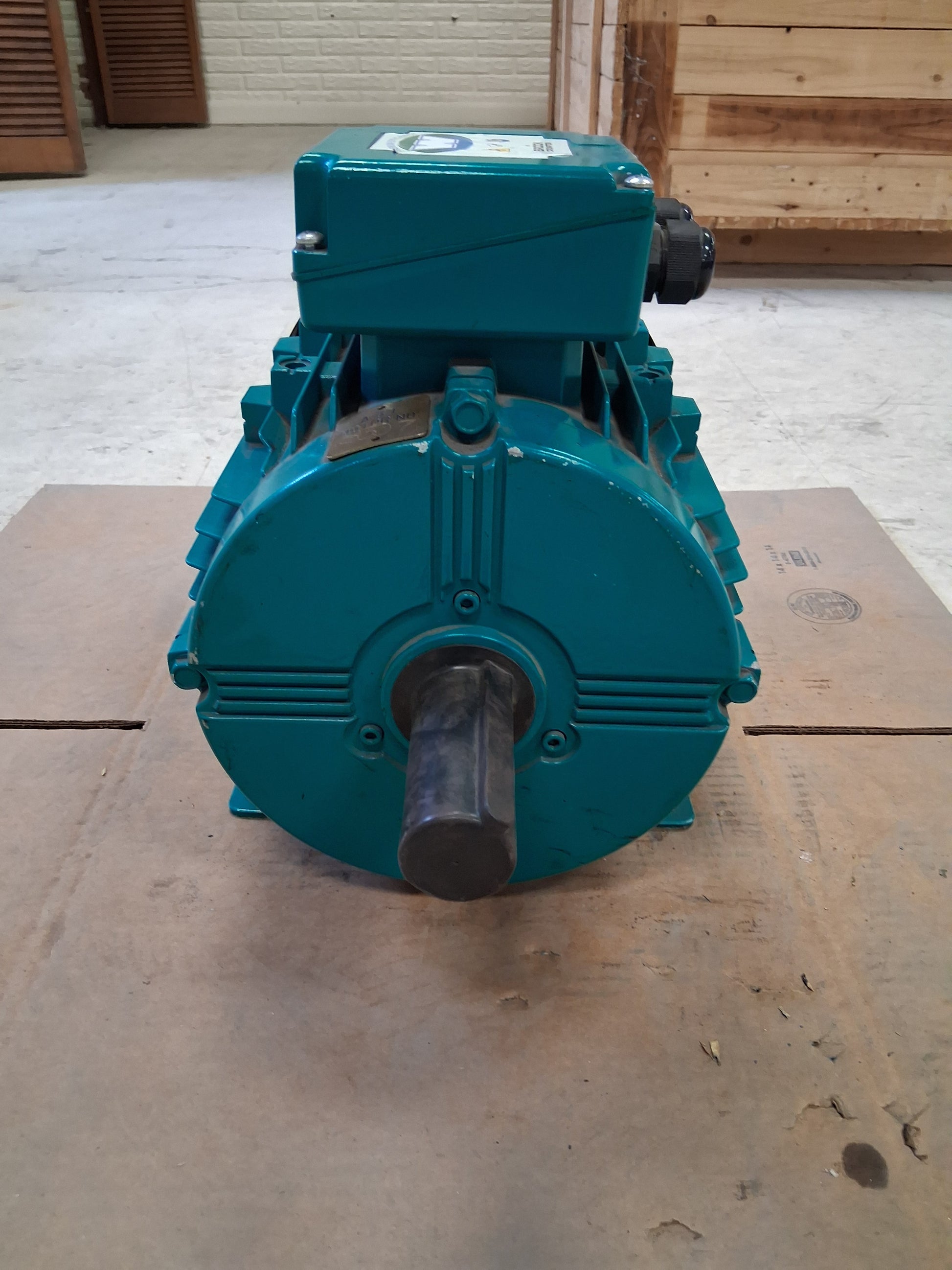

The Brook Crompton WPN-DA132SM-4 is a 7.5 HP (5.5 kW) three phase induction motor manufactured at the Brook Crompton facility in Vietnam. Part number begins with BA4M7.5 series and is configured for 230/460 VAC operation at 60 Hz with a full load current rating of 17.9/8.96 amps and a service factor of 1.25. At service factor amps the motor draws 22.4/11.2 amps. Nameplate rated full load speed is 1765 RPM, placing this unit in the 4 pole, 1800 RPM synchronous family. The motor carries an efficiency rating of 91.7 percent and a power factor of 0.84. Construction is TEFC (totally enclosed fan cooled) with an IP55 ingress protection rating and continuous duty (CONT) operation. The 132SM IEC frame size features a cast aluminum body with integral cooling fins, a foot mount base, and a top mounted terminal box with cable gland entries. The unit is also rated for inverter duty per NEMA MG1 Part 31, with VFD operating ratios of CT 5:1 at 100 percent torque, CT 15:1 at 66.7 percent torque, and VT 20:1. Bearings are 6208ZZ at both drive end and non drive end. The motor is certified to Class I Division 2 T3 Groups A, B, C, and D, Zone 2 T3 Group IIC, and carries CE, CSA, and EE markings. Applications include pumps, fans, blowers, compressors, conveyors, and other industrial machinery requiring premium efficiency three phase power.
Stock # 0526-02314
