Brook Hansen AC Motor 2900287-00 - 2 HP 1800 RPM
Brook Hansen AC Motor 2900287-00 - 2 HP 1800 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 2900287-00
Stock #: 0226-00574

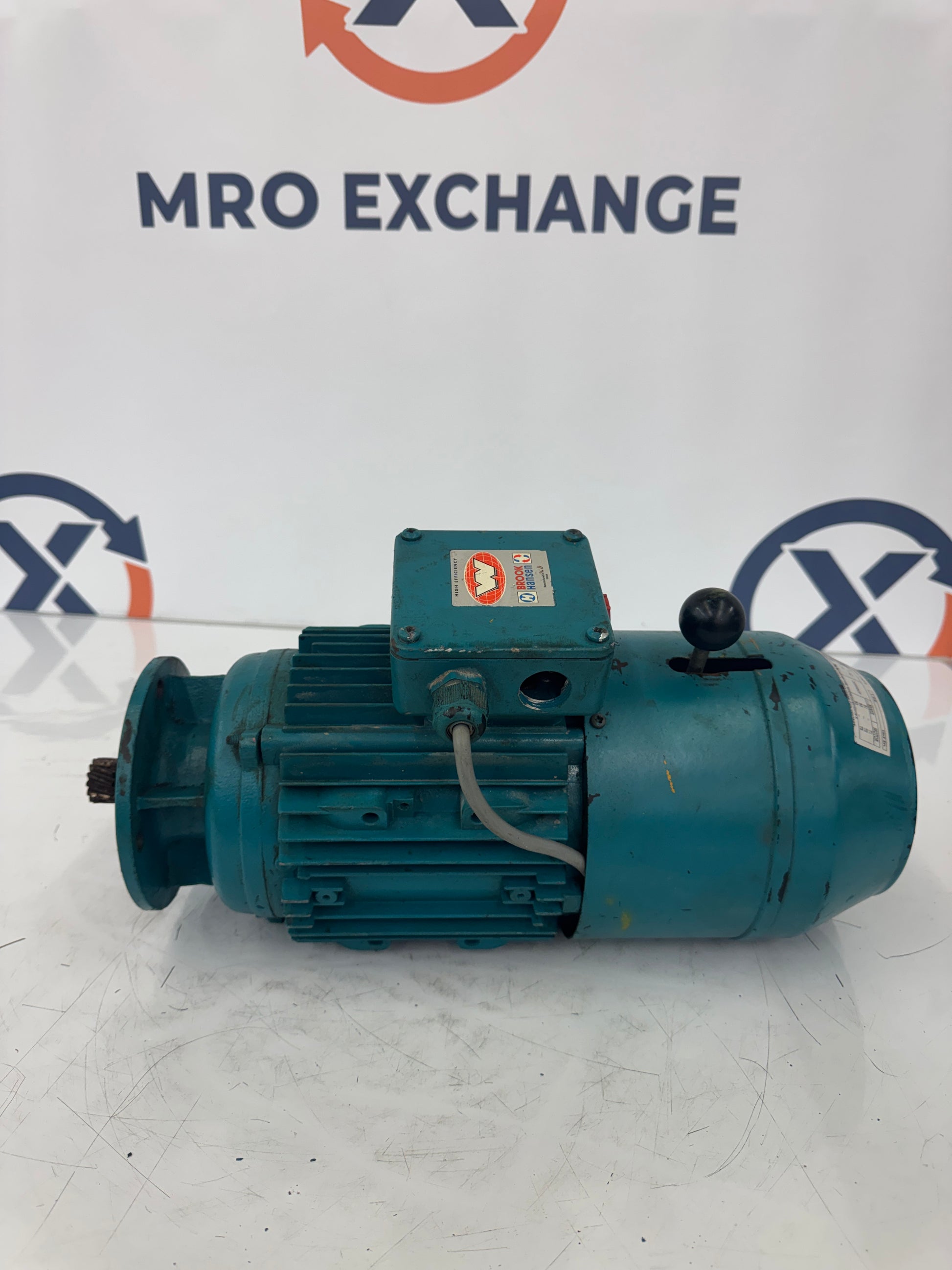

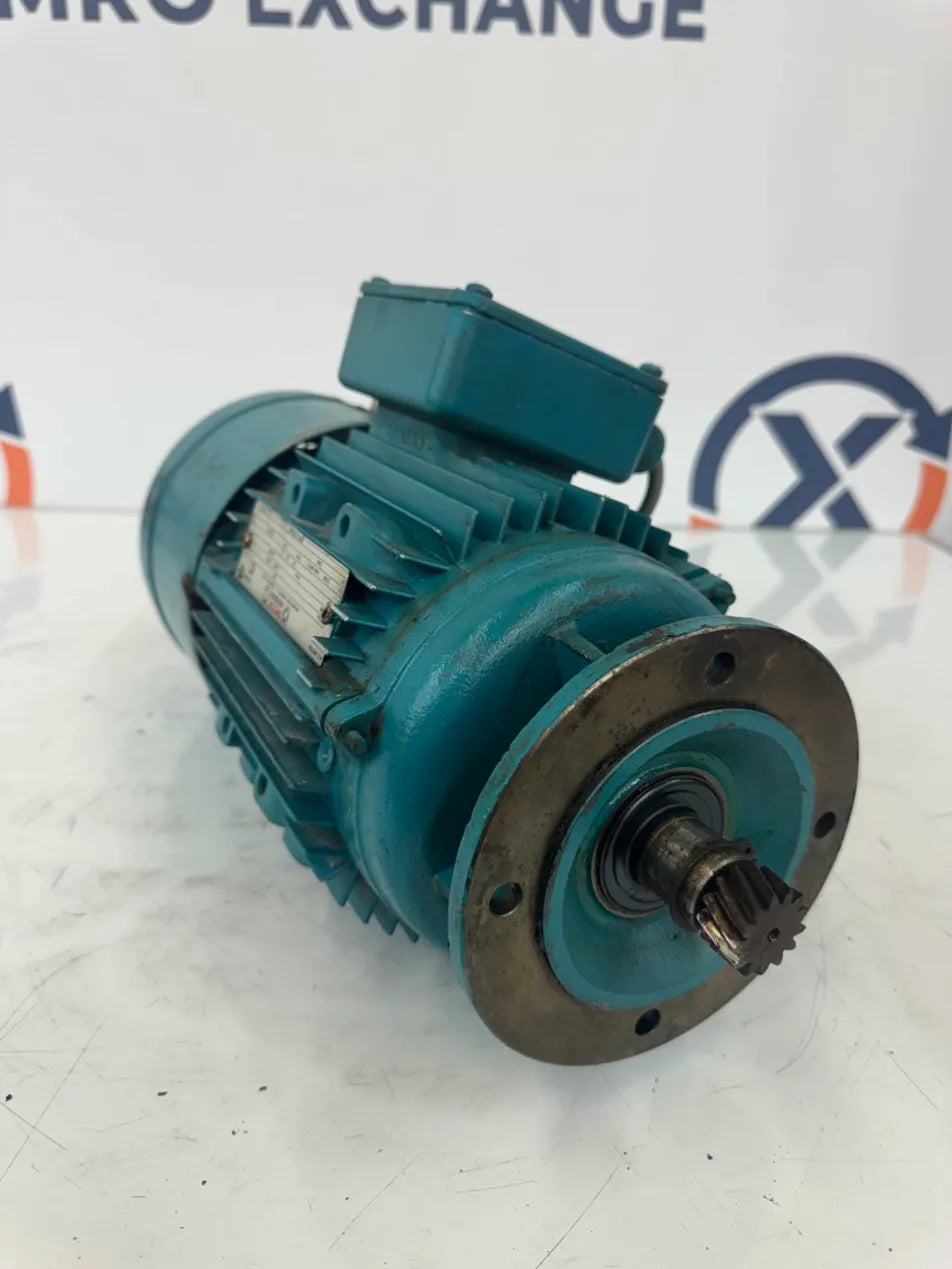

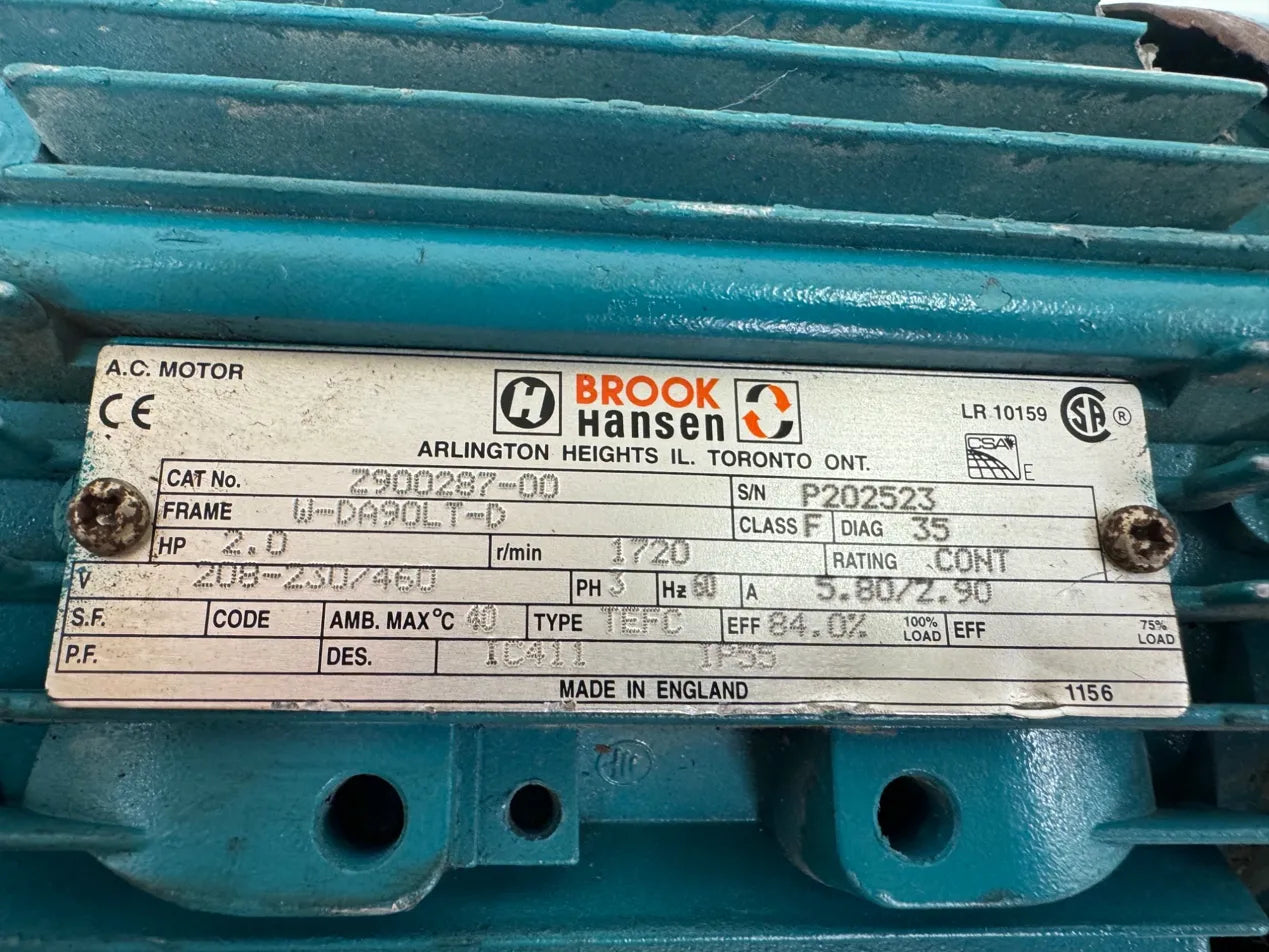

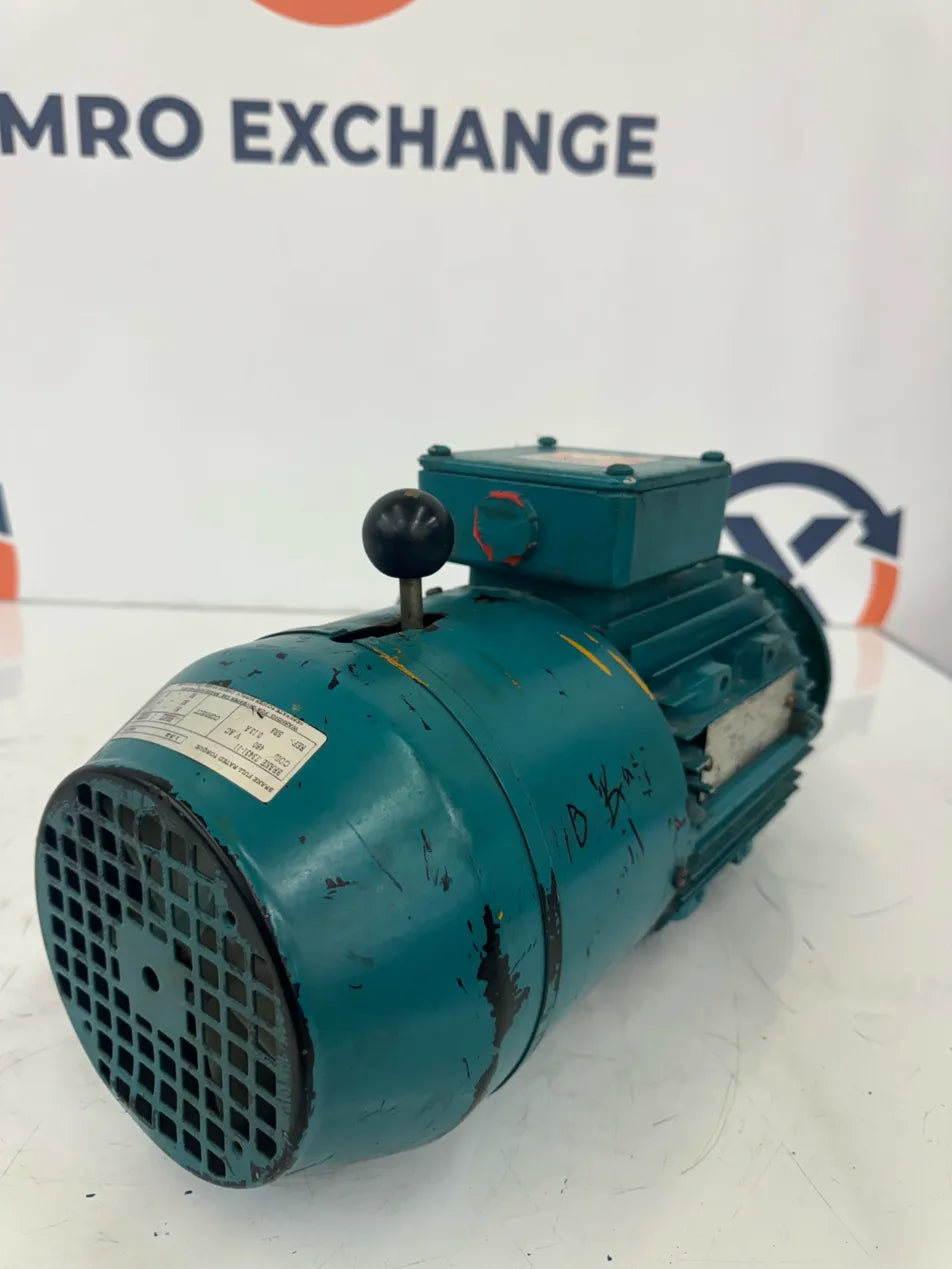

Used in general industrial applications requiring three-phase AC power, the Brook Hansen 2900287-00 is a 2 HP totally enclosed fan-cooled motor rated for continuous duty. The nameplate identifies frame designation W-DA90LT-D with a synchronous speed resulting in 1720 r/min at nameplate conditions. Voltage configuration is 208-230/460V, three-phase, 60 Hz, with a current draw of 5.80/2.90 amps. Insulation is Class F, and the enclosure is rated IC411 and IP55, providing protection against dust and water ingress. The motor carries CSA certification (LR 10159) and bears a CE mark, and was manufactured in England. A pinion gear is visible on the output shaft in the photos, and a manual brake release knob is present on the non-drive end, indicating this unit includes an integral brake. The junction box is mounted on the top of the frame. Brook Hansen, now operating as Brook Crompton, is a long-established manufacturer of industrial electric motors used across manufacturing, processing, and machine tool applications. The catalog number 2900287-00 and serial number P202523 are confirmed from the nameplate. Frame size W-DA90LT-D corresponds to a metric IEC 90 frame in the Brook Hansen designation system.
Stock # 0226-574
