Campbell Hausfeld Air Receiver Surge Tank AR8019 1/2, 3/4, 1-1/2, and 2 In. NPT 175 PSI
Campbell Hausfeld Air Receiver Surge Tank AR8019 1/2, 3/4, 1-1/2, and 2 In. NPT 175 PSI
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

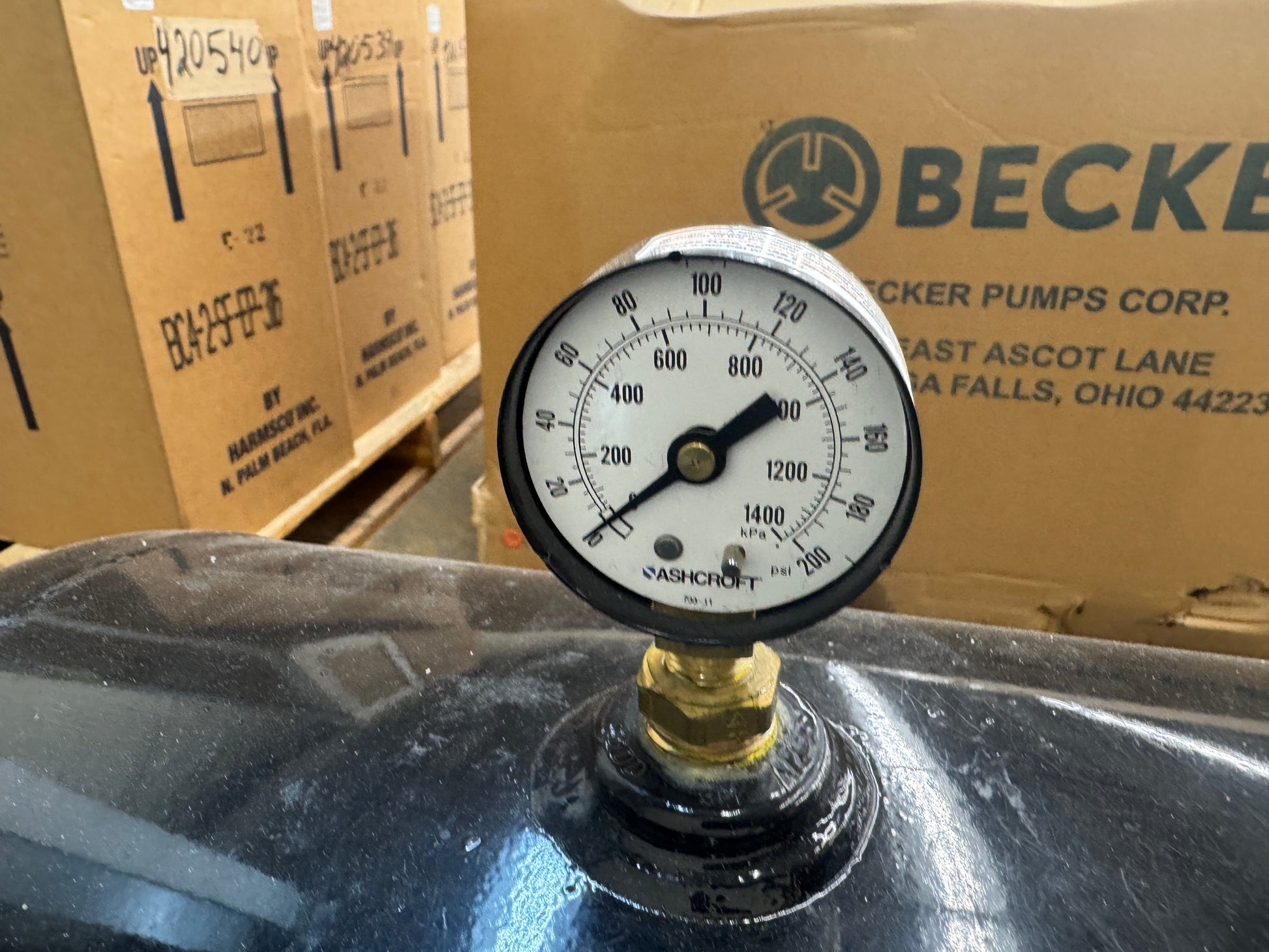

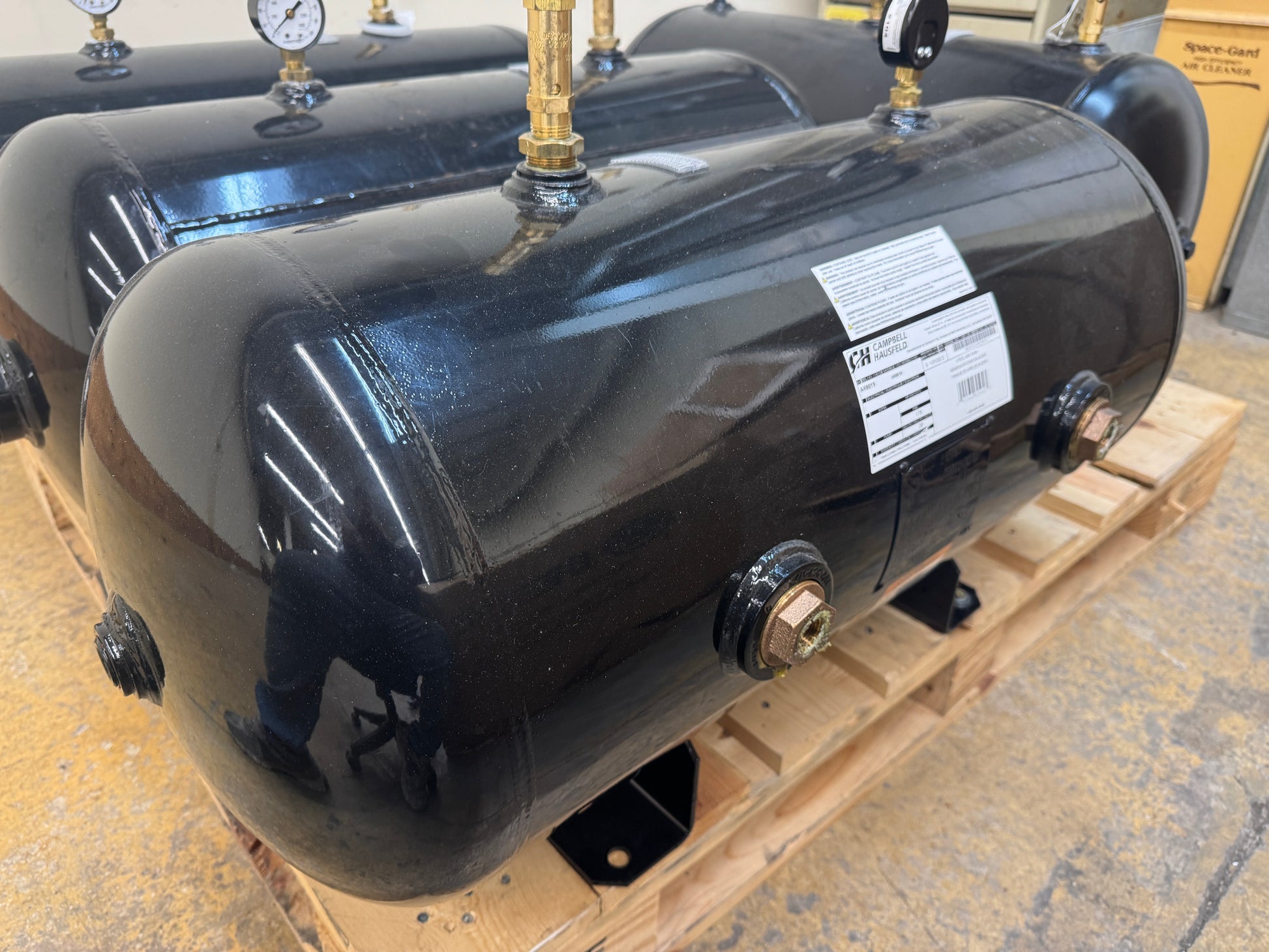

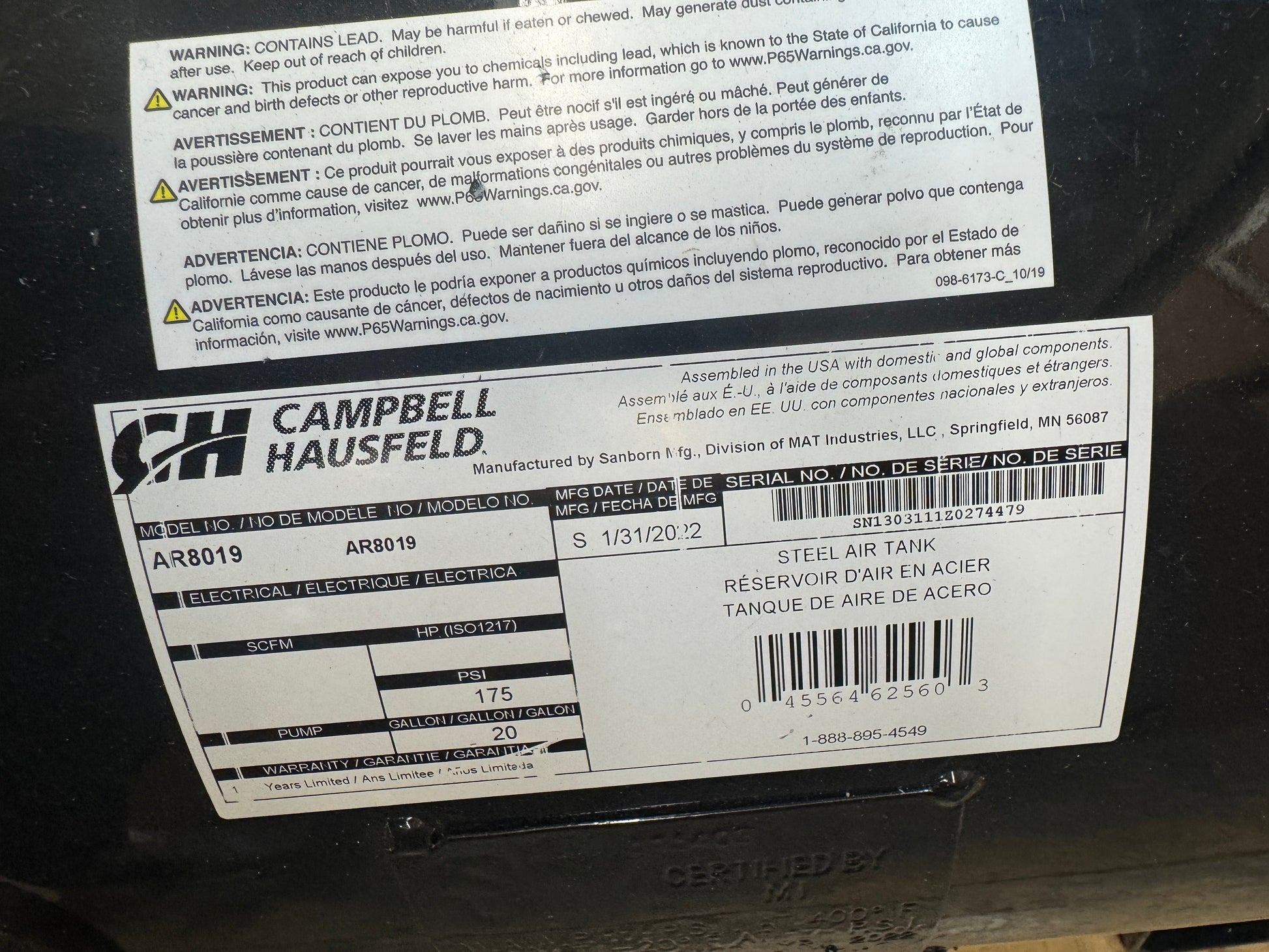

Used in compressed air systems requiring supplemental point-of-use storage, the Campbell Hausfeld AR8019 is a 20-gallon horizontal steel air receiver and surge tank rated for 175 PSI maximum working pressure. The tank is ASME code compliant and features multiple port openings in 1/2, 3/4, 1-1/2, and 2 inch NPT thread sizes, with plugs included for unused ports. Overall dimensions per manufacturer published specifications are 32 inches in length by approximately 16 inches in height by 14 inches in diameter, with an actual weight of approximately 58 pounds. The nameplate identifies this unit as a Steel Air Tank, manufactured by Sanborn Manufacturing, a division of MAT Industries, LLC, assembled in the USA with domestic and global components. The manufacturing date shown on the nameplate label is January 31, 2022, and the serial number is SN13031120274479. An Ashcroft pressure gauge rated to 200 PSI and 1400 kPa is visible mounted to the top port. The tank shell is finished in black and sits on a formed steel mounting foot bracket. Port fittings visible in photos include brass hardware at multiple port locations. This model is compatible with a range of air compressor installations where additional downstream storage capacity or pressure stabilization is needed.
Stock # 0326-922
