Cincinnati Milacron I/O Backplane Board 502-03571-00 / 501-04564-00 REV1 2/89

$239.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

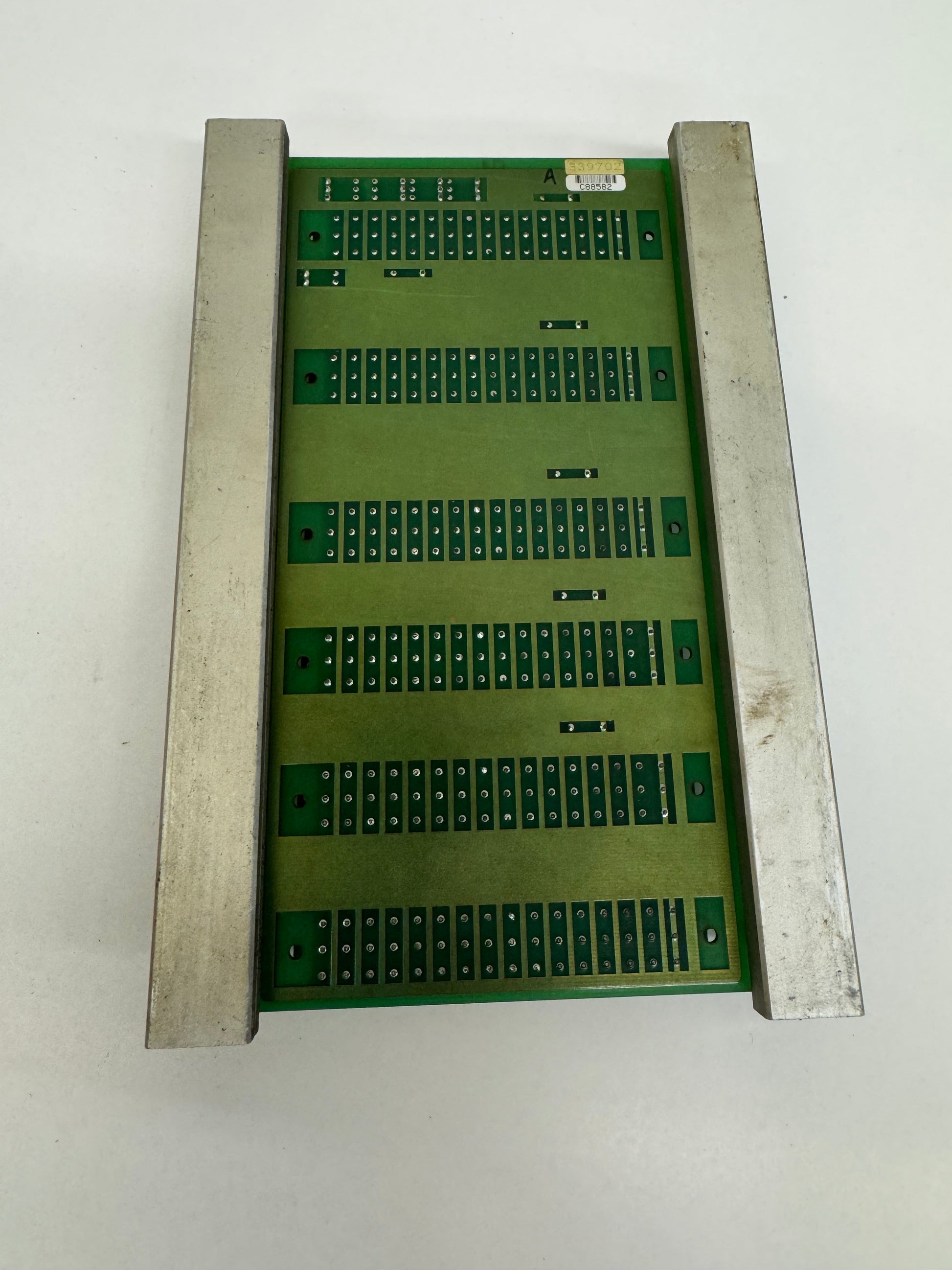

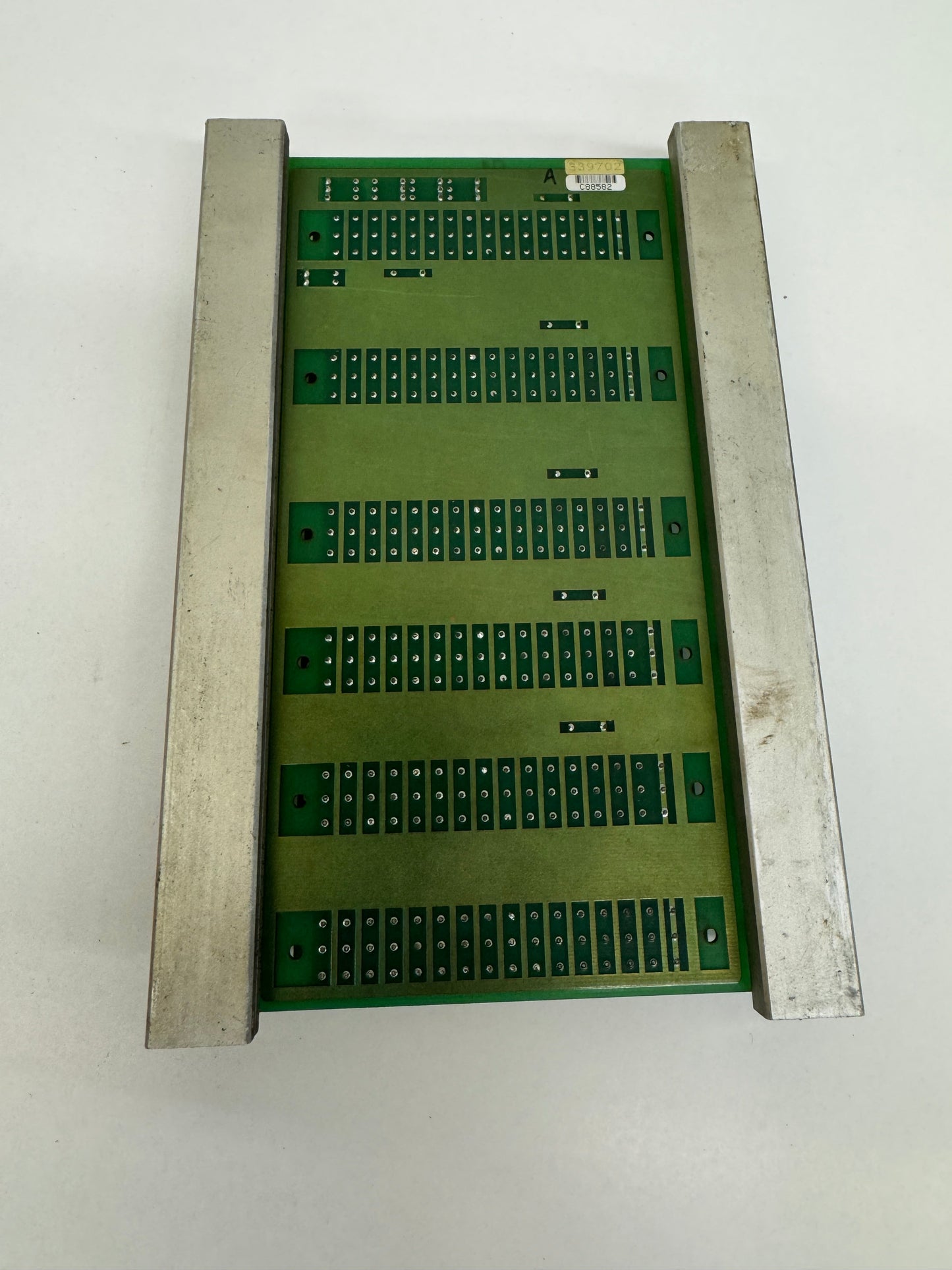

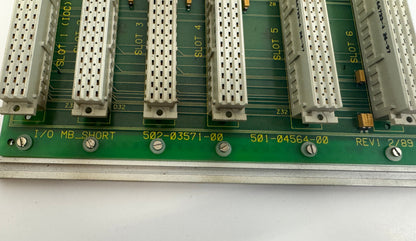

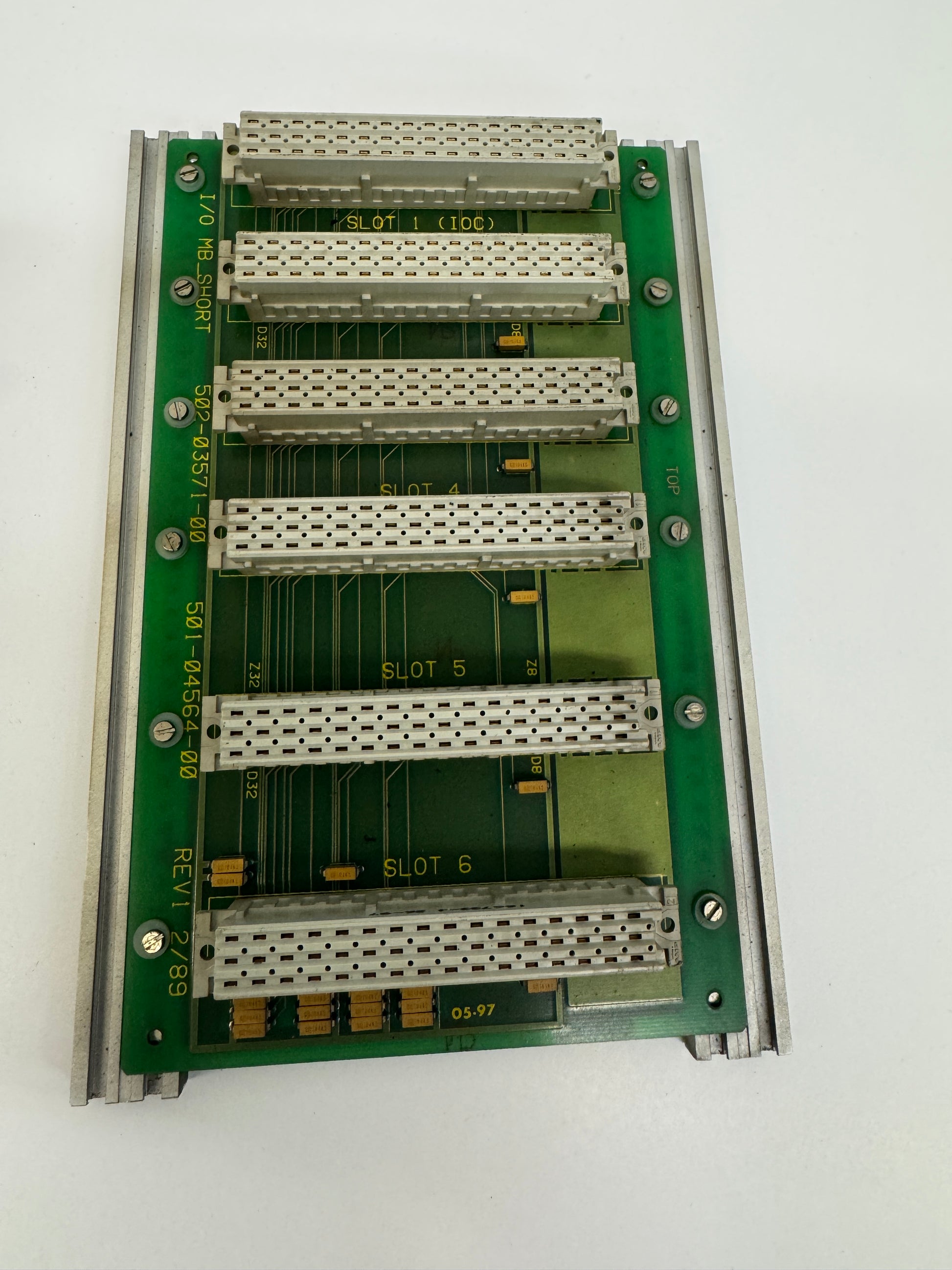

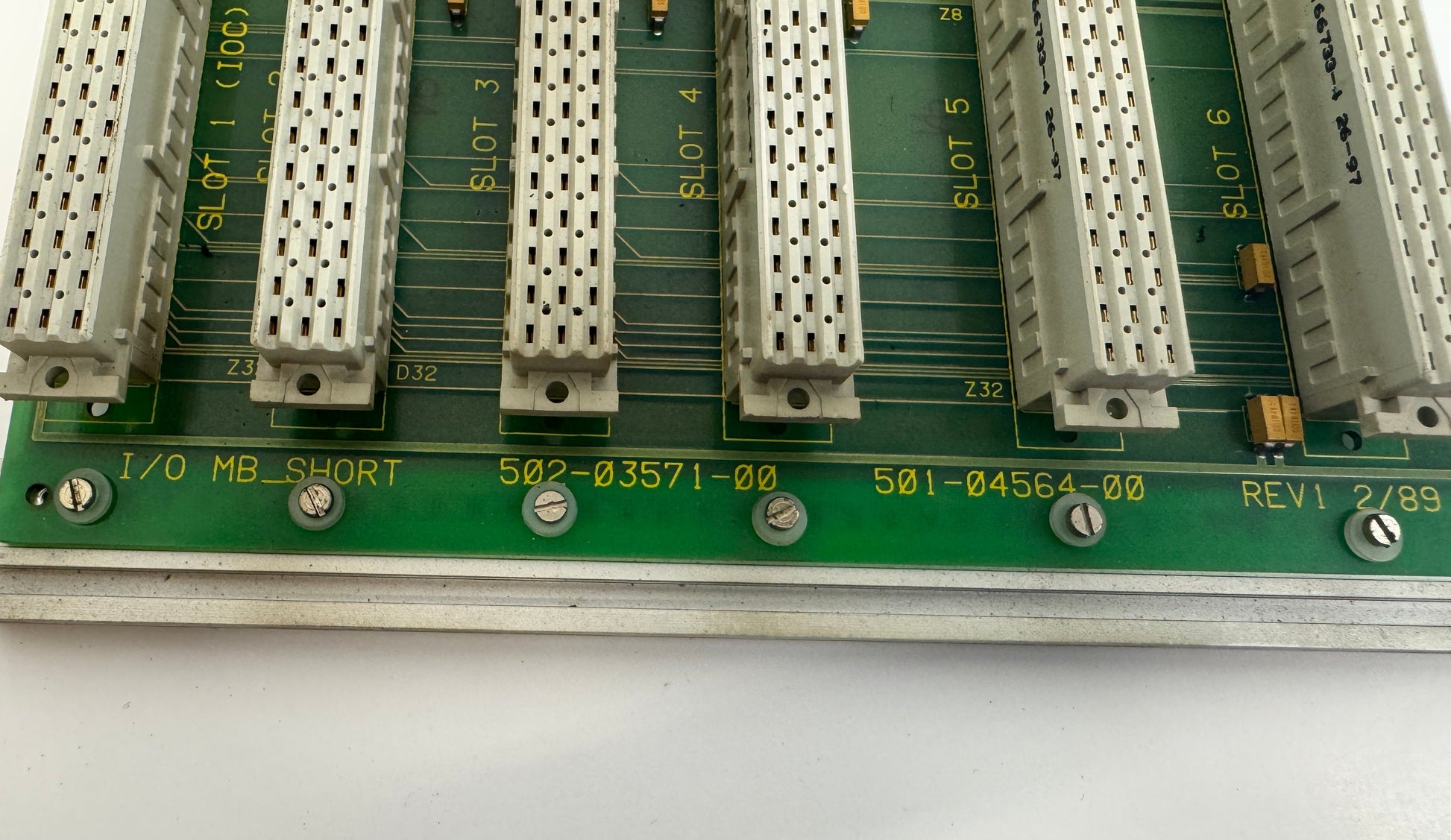

Used in Cincinnati Milacron Acramatic CNC control systems, the I/O MB_SHORT backplane board provides the physical and electrical interconnect infrastructure for I/O module cards within the control chassis. The board carries part number 501-04564-00 with a secondary fabrication reference of 502-03571-00, revision 1, dated February 1989. Six card slots are silkscreened and labeled on the board face, with Slot 1 designated as the IOC (I/O Controller) position. The remaining slots are labeled 2 through 6 and accept compatible I/O module cards. DIN-style 96-pin connectors are populated at each slot position. The board is mounted to an aluminum rail frame that provides structural support and chassis registration. Solder-side construction is visible in the reverse photos, showing through-hole solder joints consistent with the board revision period. The silkscreen designation I/O MB_SHORT indicates this is the short form factor variant of the Acramatic I/O motherboard, distinguished from longer multi-slot versions used in larger control configurations. Compatible with Cincinnati Milacron machining centers equipped with the Acramatic 850 or related CNC control platforms that use this backplane architecture.
