Consolidated Bearings Angular Contact Ball Bearing 7216 TG P/4 80 x 140 x 26 mm

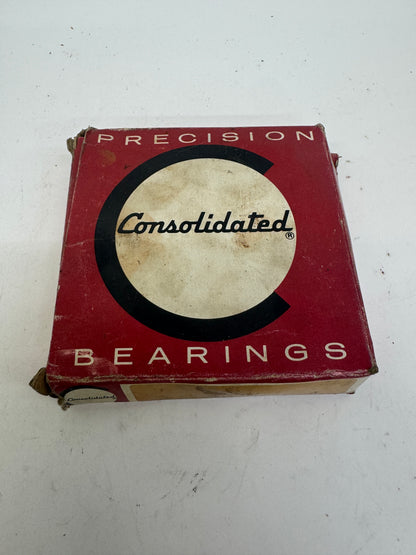

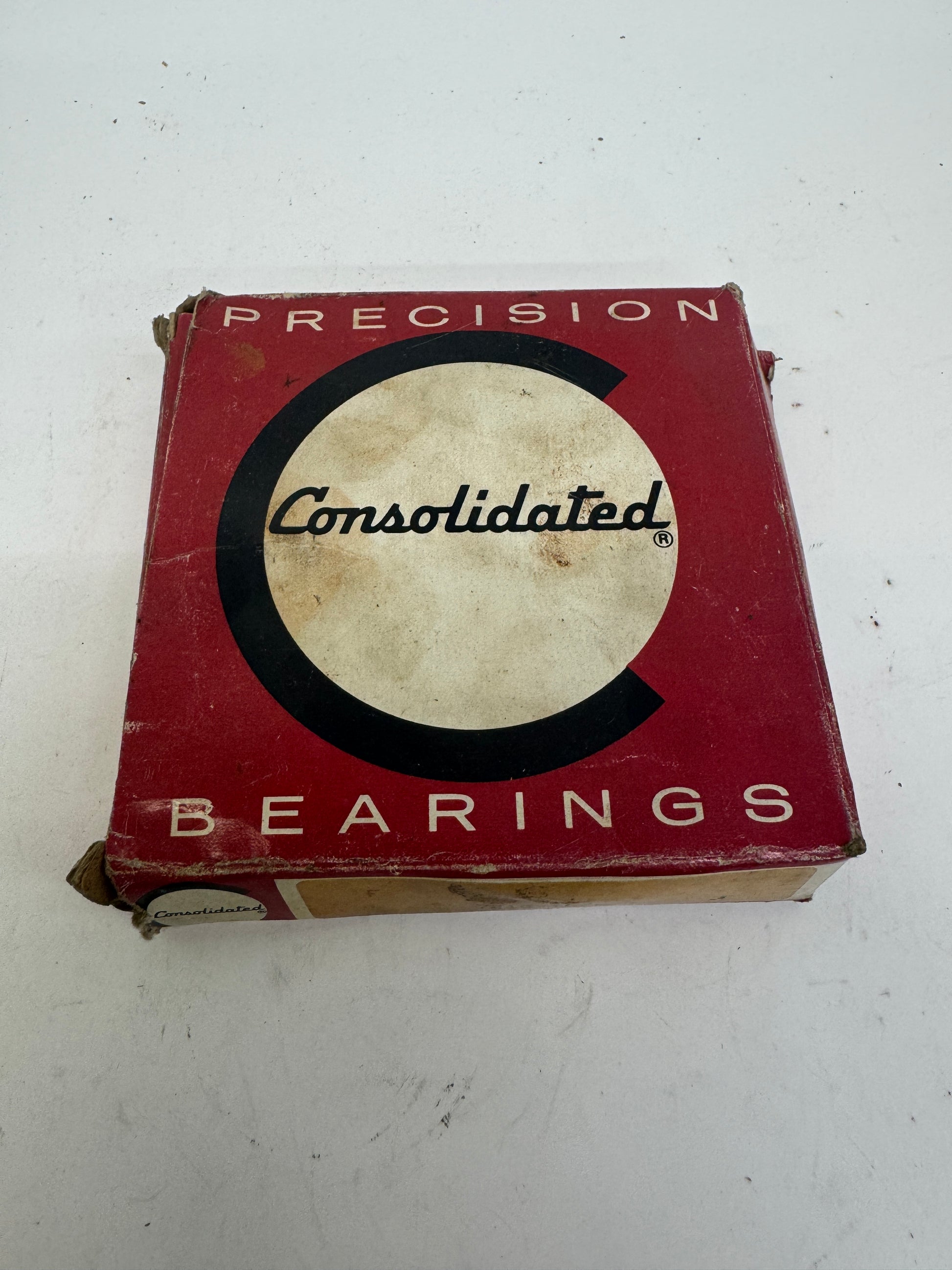

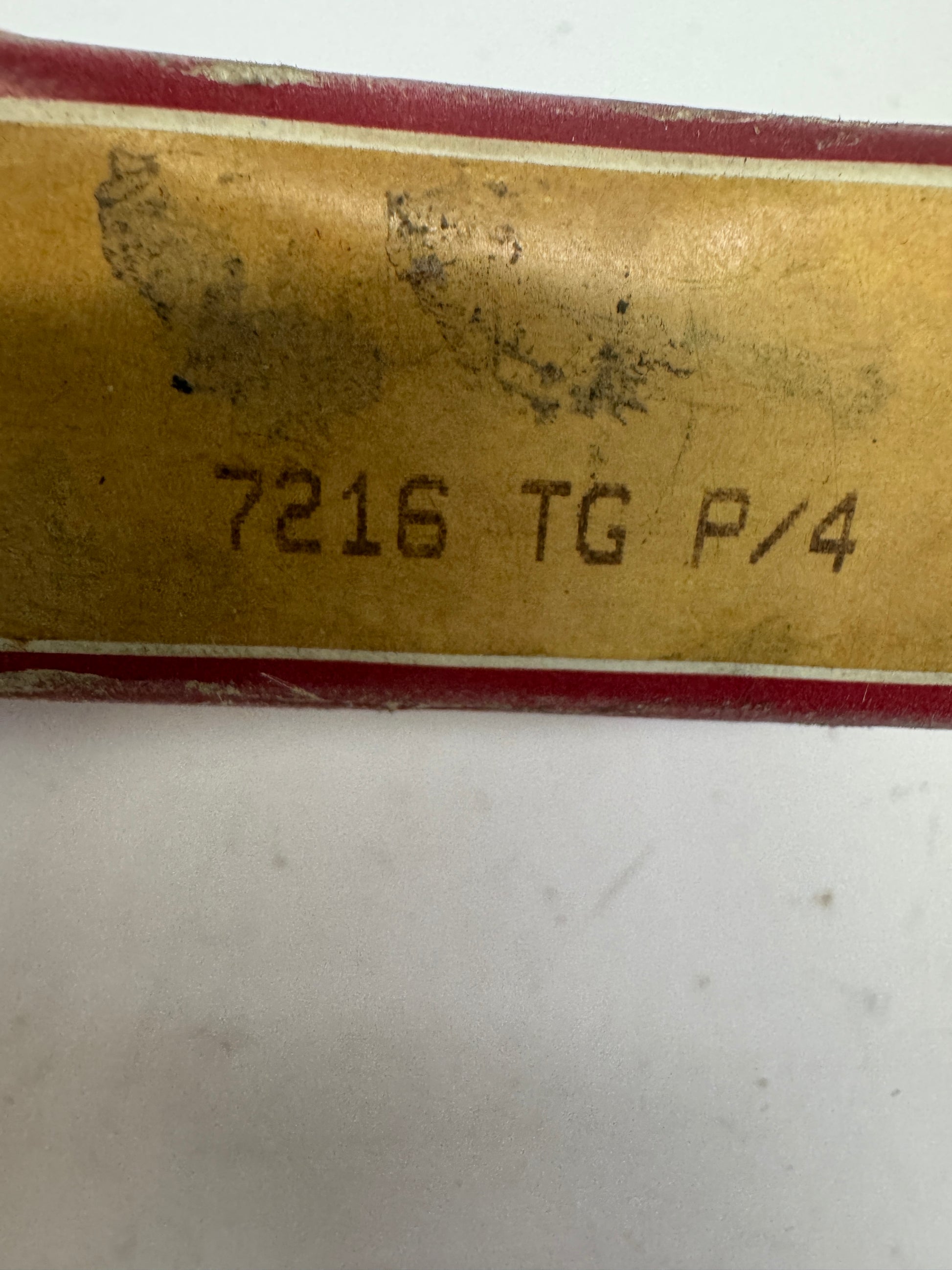

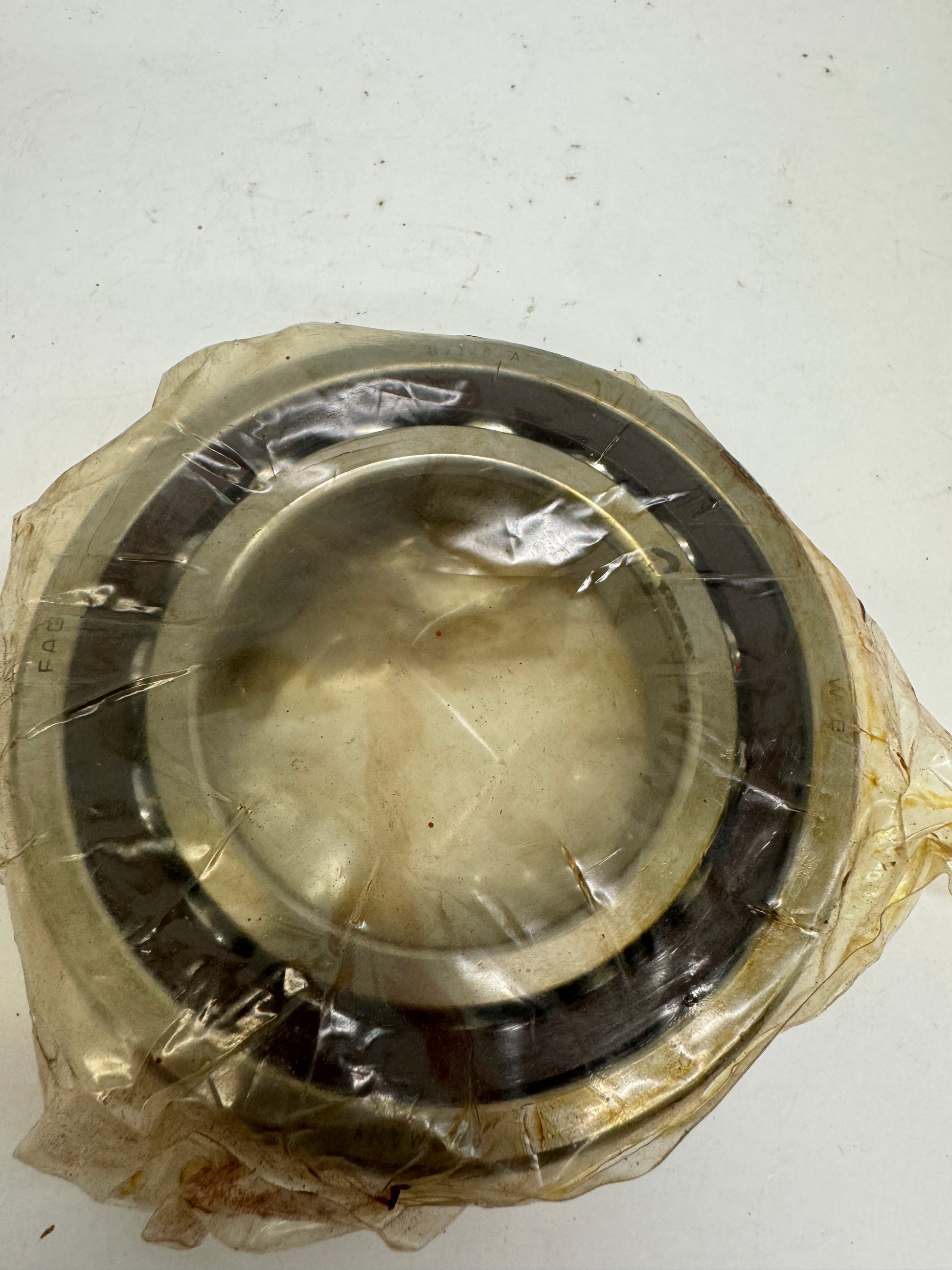

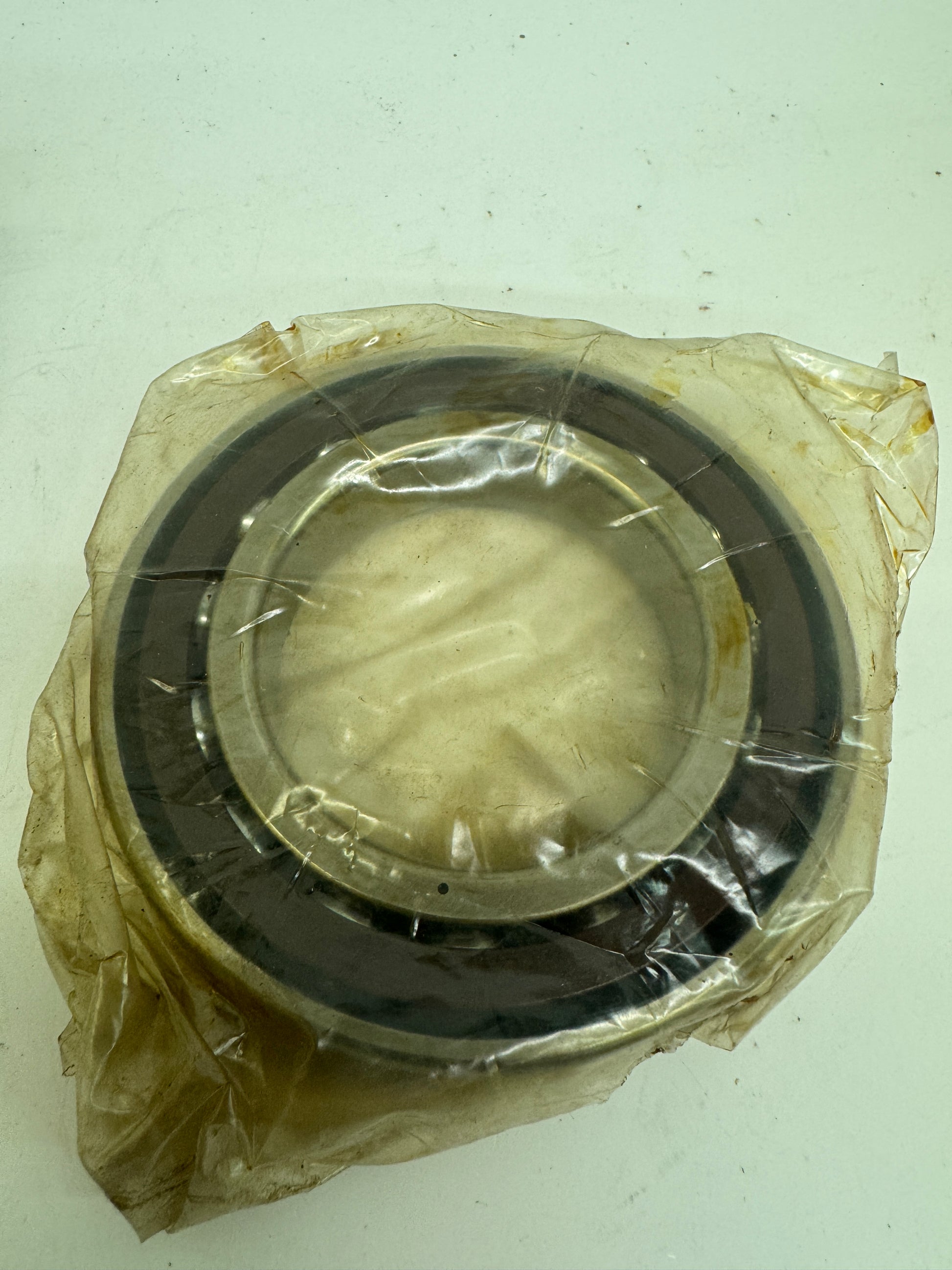

The Consolidated Bearings 7216 TG P/4 is a single-row angular contact ball bearing manufactured to ABEC-7 (ISO P4) precision standards. It measures 80 mm bore diameter, 140 mm outer diameter, and 26 mm width, conforming to the standard 7216 series dimensional envelope used across machine tool and industrial equipment applications. The TG suffix designates a phenolic cage that rides on the outer ring, and the flush-ground faces on both sides make this bearing suitable for back-to-back, face-to-face, or tandem mounting arrangements without additional modification. The P/4 precision class specifies tighter tolerances on dimensional accuracy and running characteristics compared to standard ABEC-1 or ABEC-3 grades, making it appropriate for applications where rotational precision and low vibration are required. The 15-degree contact angle allows the bearing to carry combined radial and axial loads with the axial component supported in one direction. Part number 7216 TG P/4 cross-references to equivalent P4-class angular contact bearings from other major manufacturers in the same bore and OD range. This bearing is presented in its original factory wax-paper protective wrap and original Consolidated Precision Bearings box. Consolidated Bearings is a US-based manufacturer and distributor with a long history supplying precision and standard anti-friction bearings to industrial and machine tool markets.

Stock # 0426-01326
