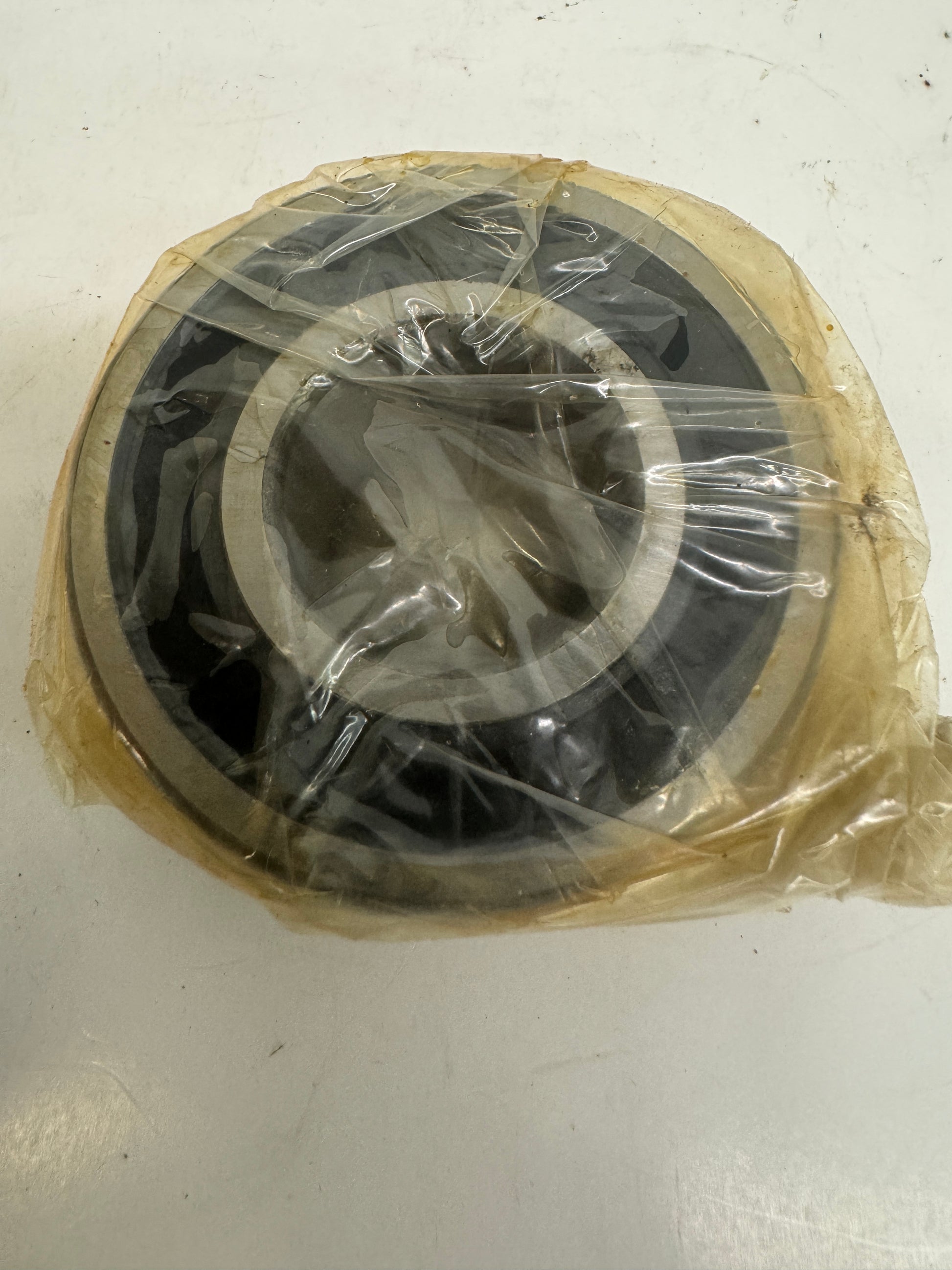

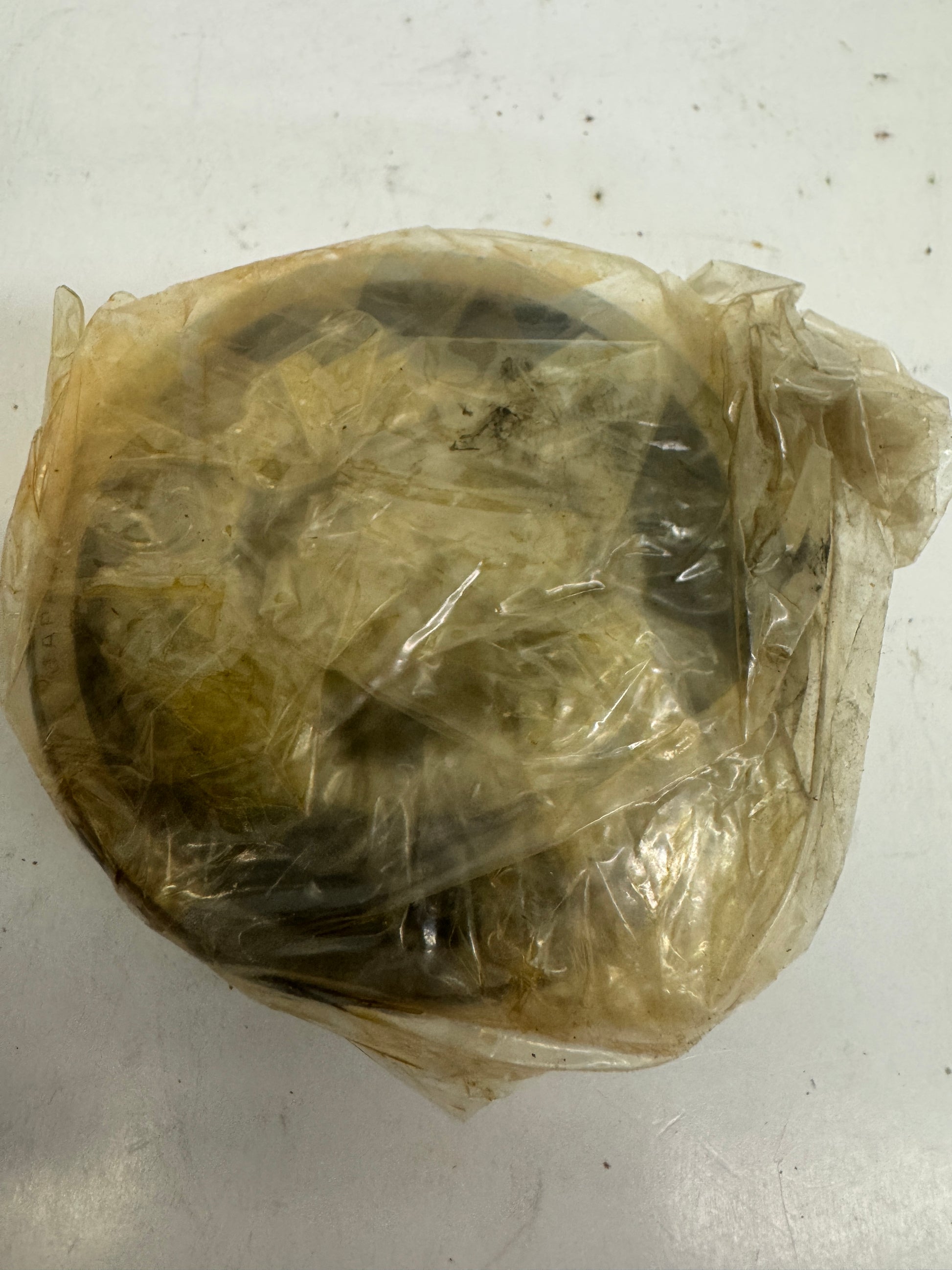

Consolidated Bearings Double Row Angular Contact Ball Bearing 5307-2RS C/3 35 x 80 x 34.9 mm
Consolidated Bearings Double Row Angular Contact Ball Bearing 5307-2RS C/3 35 x 80 x 34.9 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 5307-2RS C/3
Stock #: 0426-01331

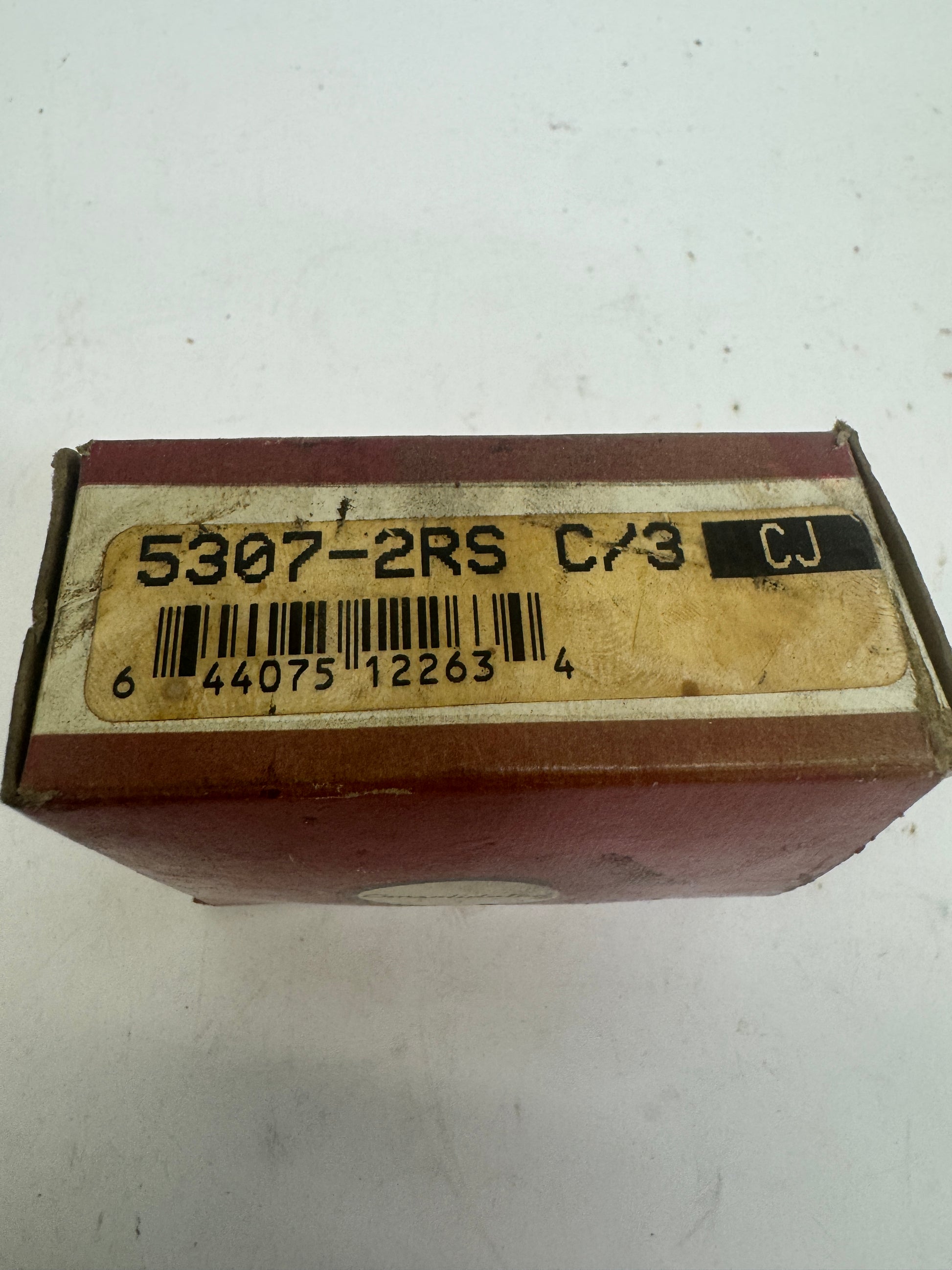

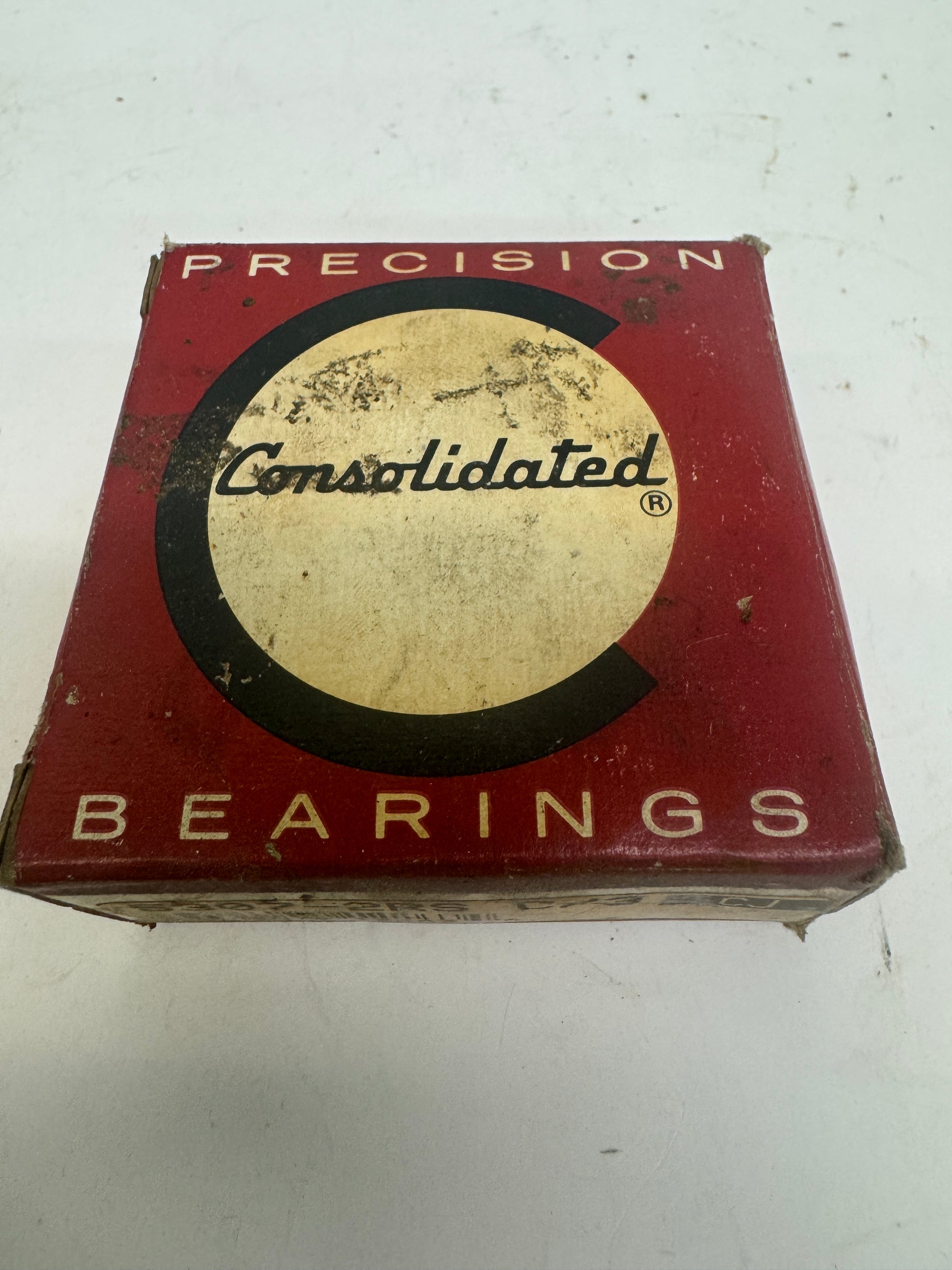

The Consolidated Bearings 5307-2RS C/3 is a double row angular contact ball bearing with a 35 mm bore diameter, 80 mm outer diameter, and 34.9 mm width. The 2RS designation indicates rubber seals on both sides of the bearing, providing protection against contamination and retaining lubrication. The C/3 suffix denotes C3 internal clearance, which is greater than standard CN clearance and accommodates thermal expansion and higher operating temperatures. Double row angular contact bearings of this series are designed to handle combined radial and axial loads simultaneously and in both axial directions, making them well suited for applications where load direction is variable or where shaft rigidity is required. Common applications for this bearing series include electric motors, pumps, compressors, gearboxes, conveying equipment, and CNC machinery. The 5307 series conforms to standard metric dimensions and is interchangeable with cross-reference numbers including 3307, 3307A, 3307B-2RSR, and NSK equivalent 5307-2RSTNC3 among others. The item is housed in original Consolidated Precision Bearings packaging.
Stock # 0426-01331
