Consolidated Bearings Double Row Angular Contact Bearing 5211 NR C/3 55 x 100 x 33.3 mm

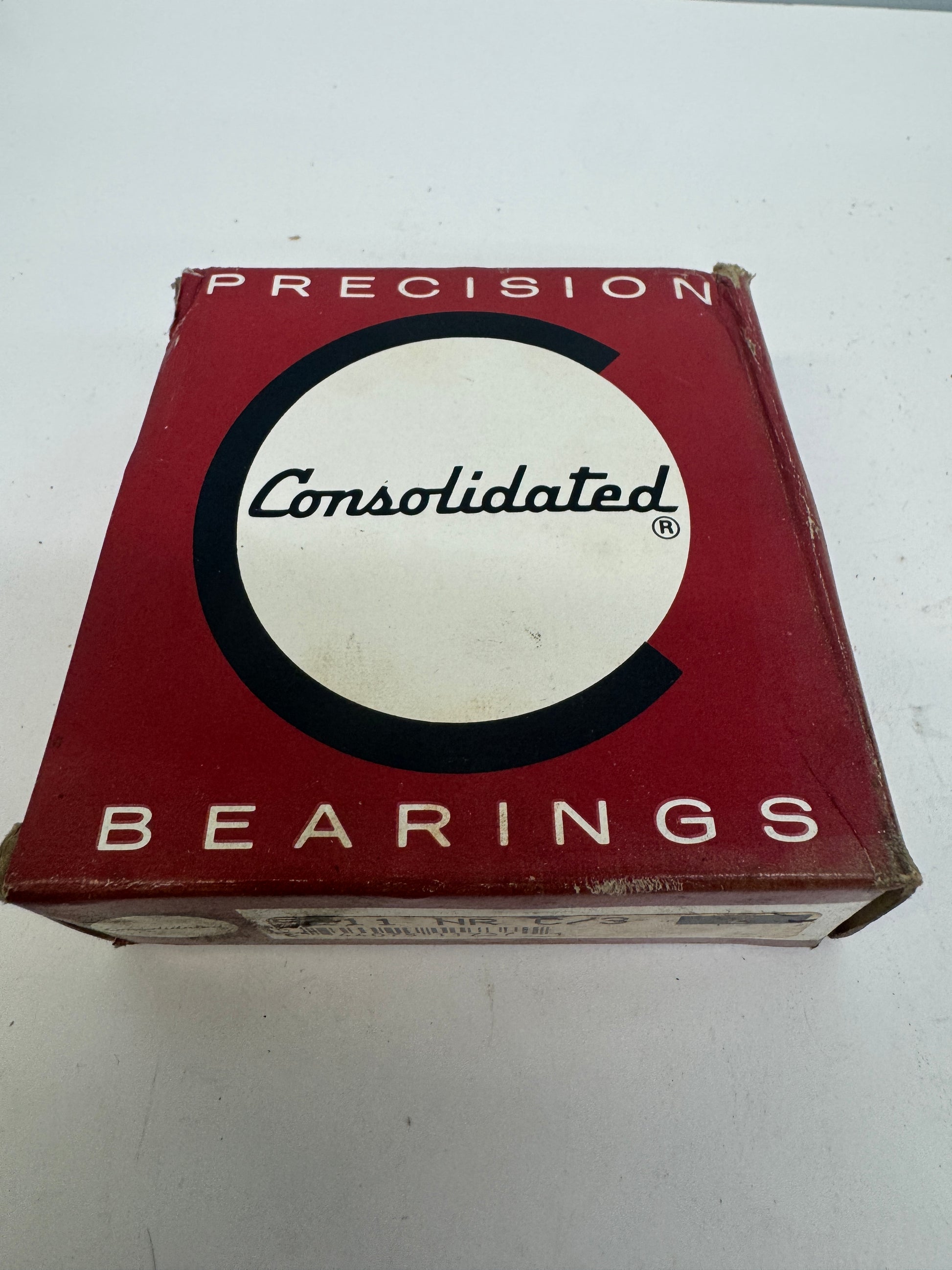

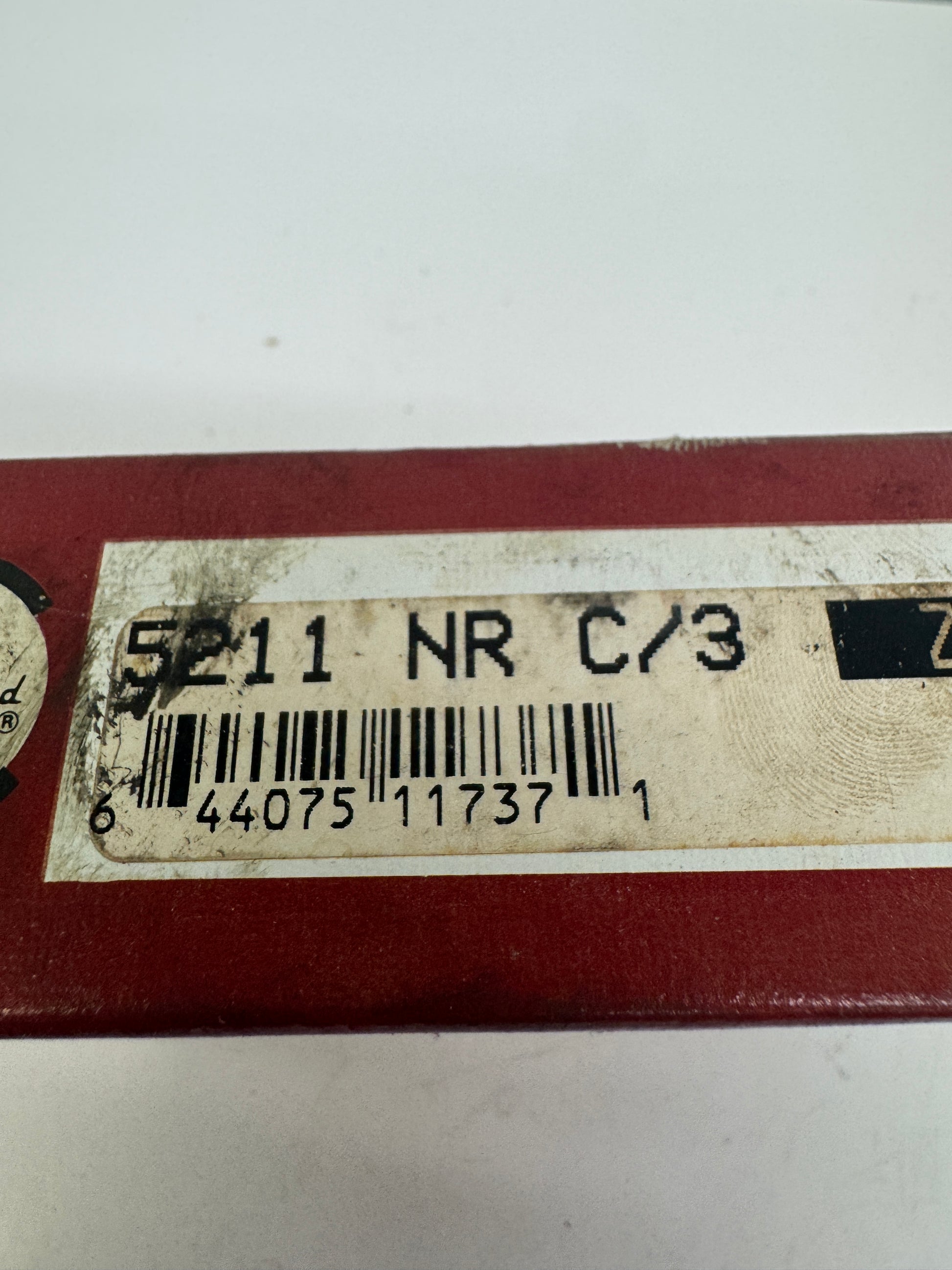

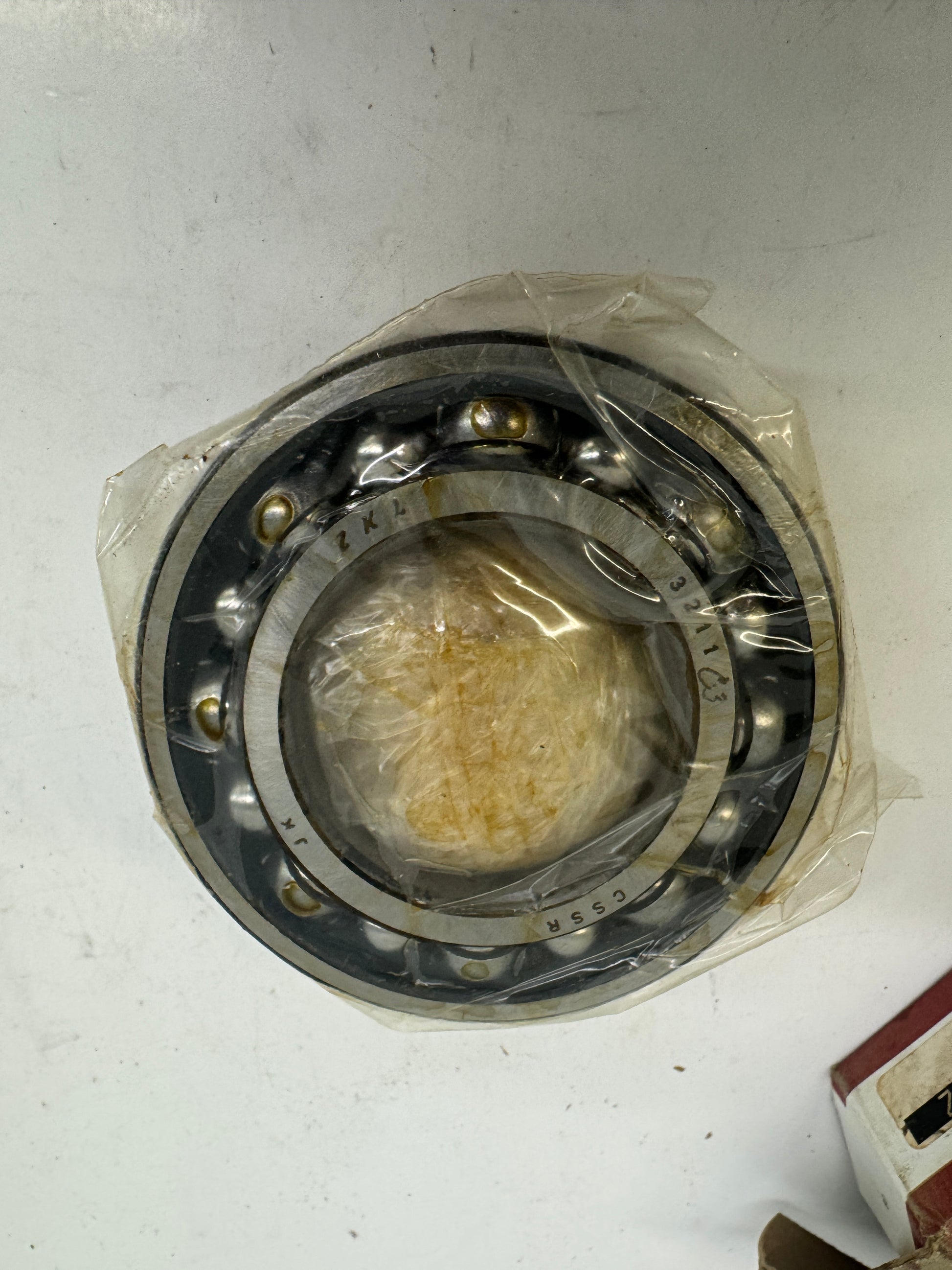

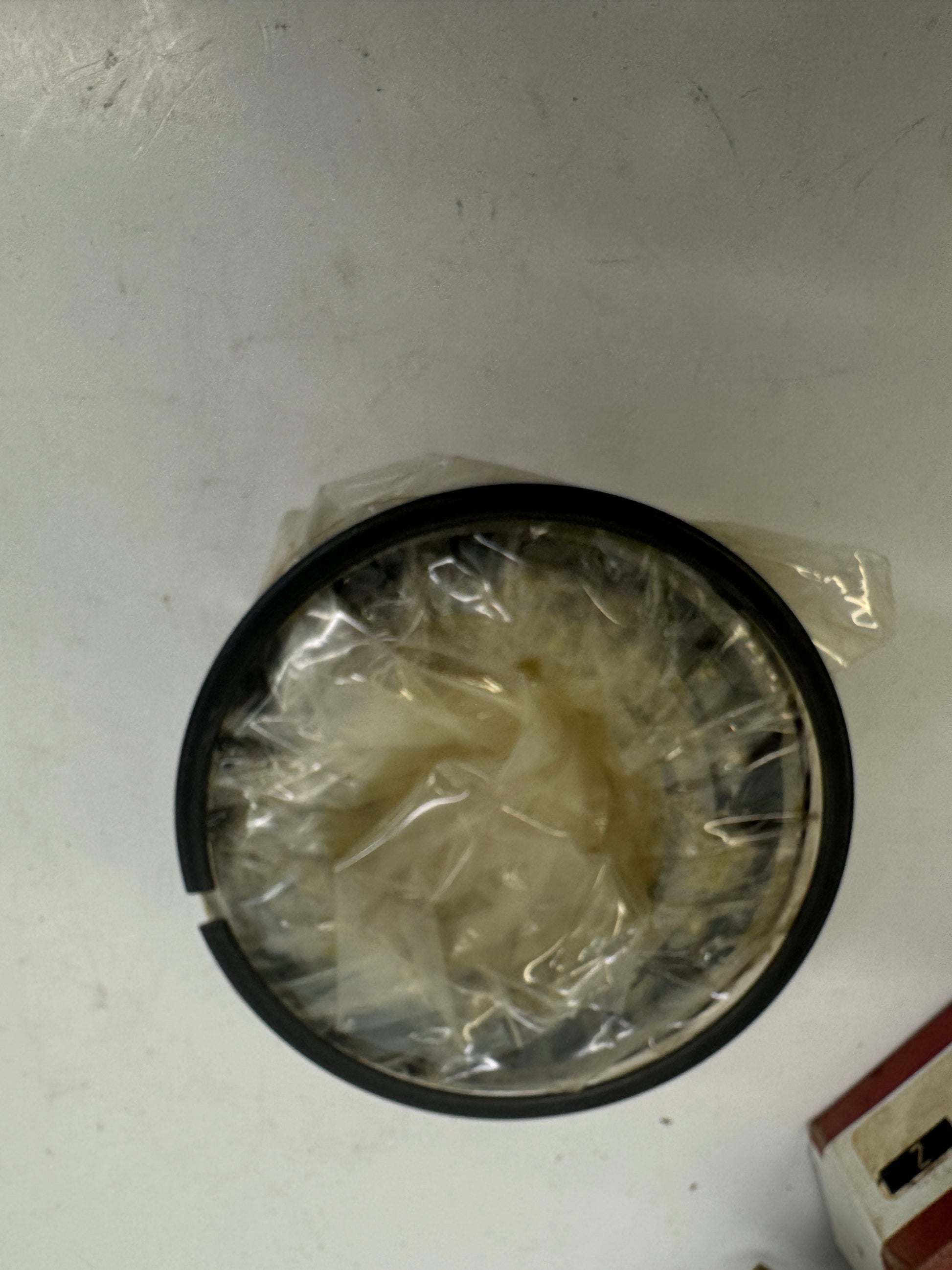

The Consolidated Bearings 5211 NR C/3 is a double row angular contact ball bearing with an open design and snap ring (NR) on the outer ring. Dimensions are 55 mm bore, 100 mm outside diameter, and 33.3 mm width, conforming to the standard 5211 series metric profile. The C/3 designation indicates greater than normal internal radial clearance, making this bearing suited for applications involving elevated operating temperatures or interference fits where thermal expansion is a factor. The snap ring allows positive axial retention within a housing without a separate circlip groove machining requirement. Double row angular contact construction enables the bearing to handle combined radial and axial loads simultaneously from both directions, a characteristic common to gearbox output shafts, conveyor drive rollers, and general industrial rotating machinery. Consolidated Bearings Company is a US-based importer and wholesaler of precision bearings, and the 5211 NR C/3 is a recognized equivalent to corresponding offerings from SKF (5211A/C3), MRC (5211C), and FAG (3211). The bearing is presented in its original Consolidated packaging with VCI wrap. Part number 5211 NR C/3, also cross-referenced under industry designations 3211 NR C3. Suitable for use wherever a 55 mm bore double row angular contact bearing with snap ring retention and C3 clearance is specified.

Stock # 0426-01322
