Dayton AC Motor 48ZJ88 - 2 HP 1800 RPM
Dayton AC Motor 48ZJ88 - 2 HP 1800 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 48ZJ88
Stock #: 0226-00795

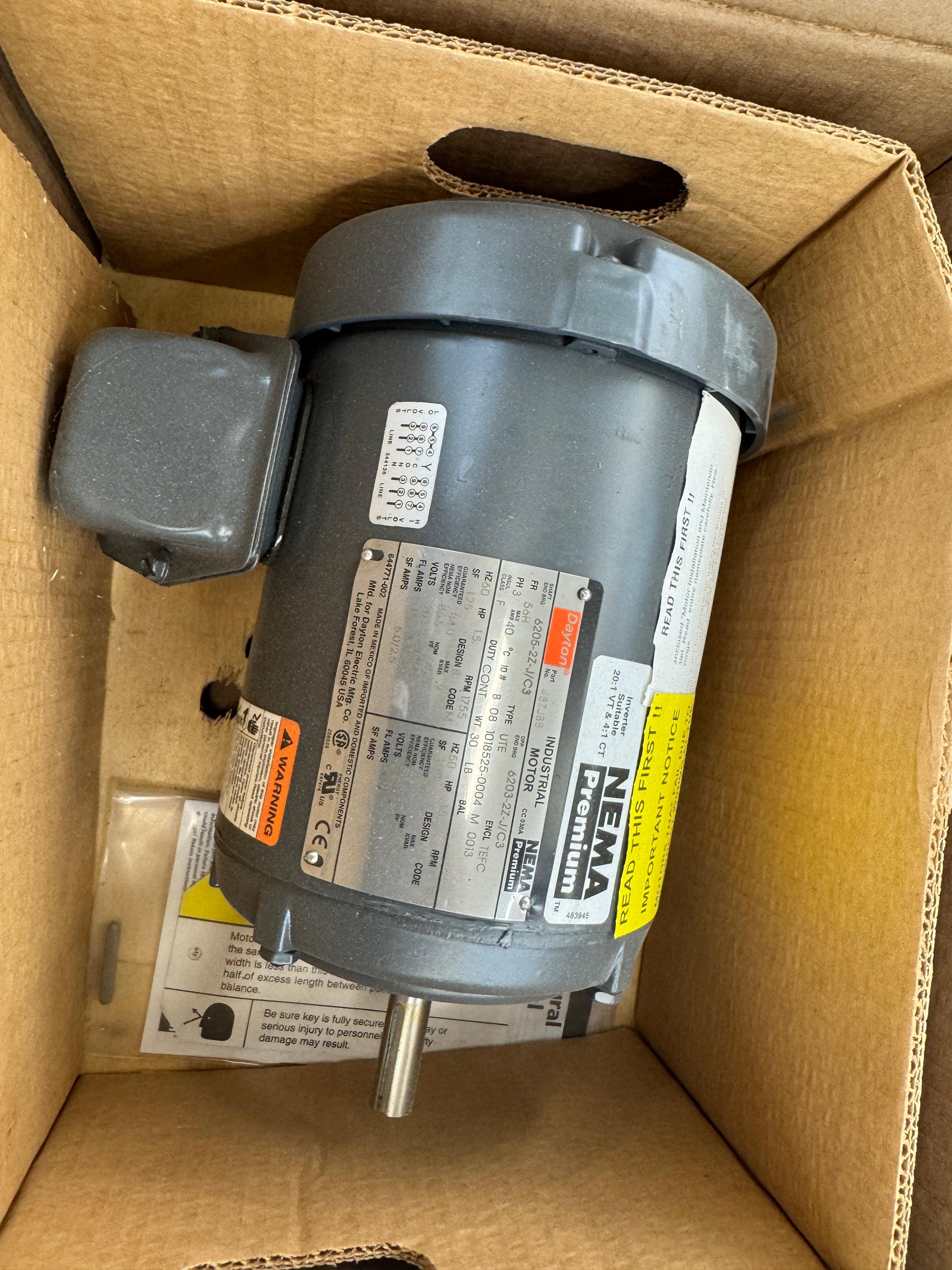

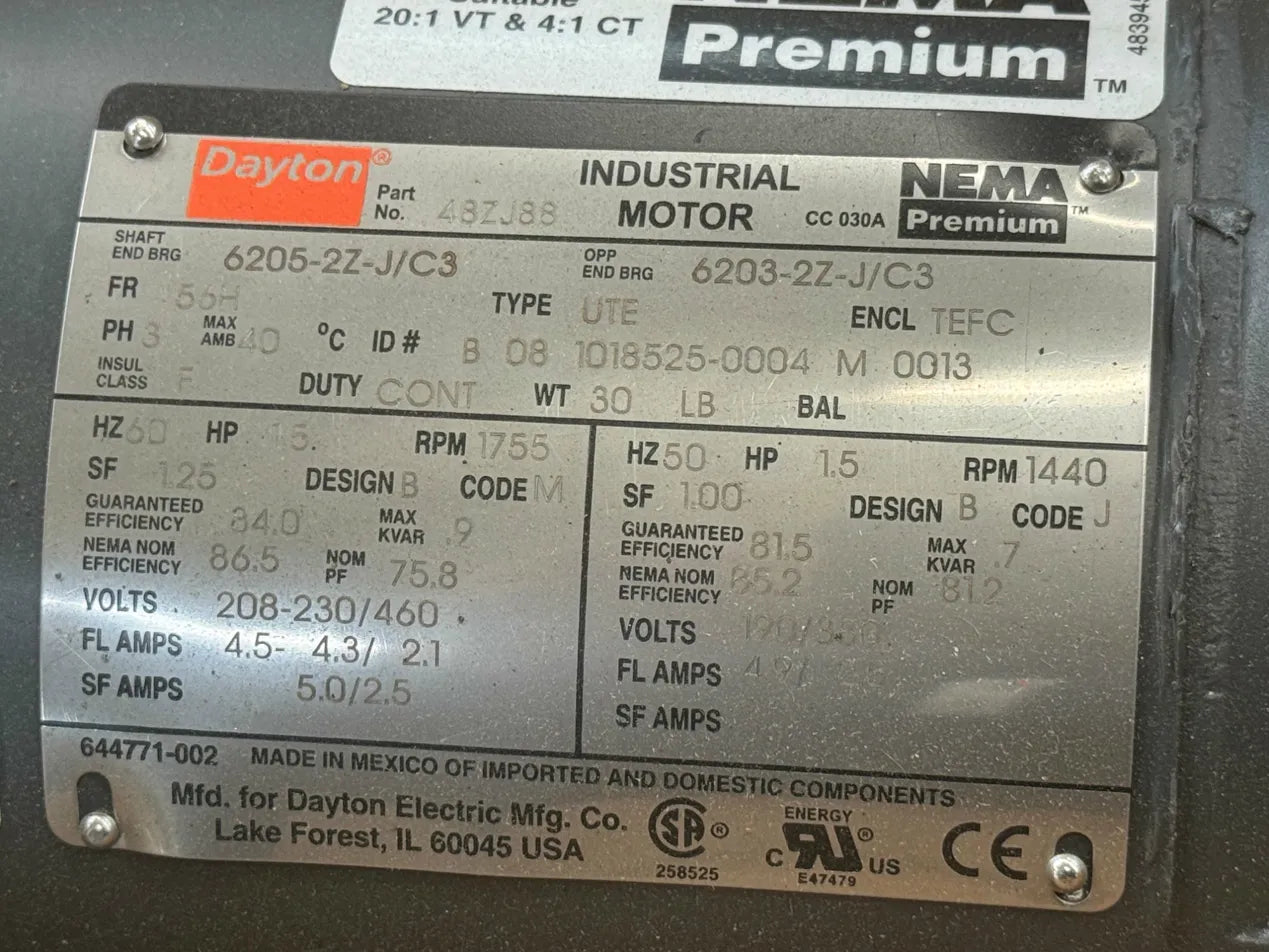

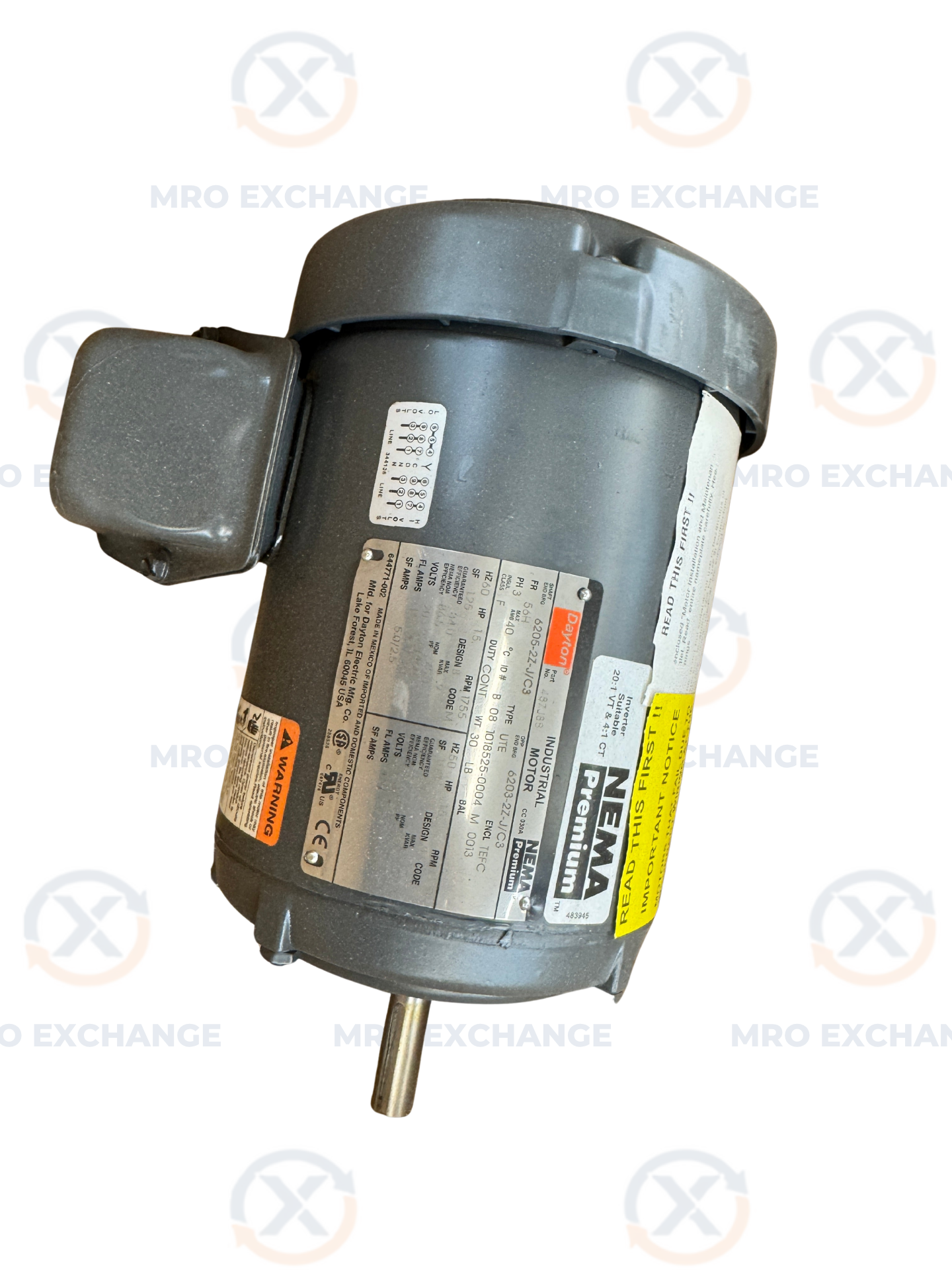

Used in general industrial, HVAC, pump, fan, and conveyor applications, the Dayton 48ZJ88 is a 1.5 HP three-phase NEMA Premium efficiency AC motor built to NEMA frame 56H specifications. It operates on 208-230/460V AC at 60 Hz, with full load amps of 4.5/4.3/2.1 A, and carries a service factor of 1.25. The motor is rated for continuous duty with a nameplate speed of 1,755 RPM and a Class F insulation rating. Enclosure type is TEFC (Totally Enclosed Fan-Cooled), suitable for dirty or wet environments where the motor must be protected from airborne contaminants. The unit is inverter rated and labeled for use with variable torque drives at a 20:1 speed range and constant torque drives at a 4:1 range, as shown on the nameplate sticker. Frame material is rolled steel with a 5/8 in. keyed shaft. The motor is identified by part number 48ZJ88 and carries a CC 030A designation consistent with NEMA Premium efficiency requirements. Shaft end bearing is 6205-2Z-J/C3 and opposite end bearing is 6203-2Z-J/C3 as confirmed on the nameplate. Manufactured for Dayton Electric Mfg. Co., Lake Forest, IL 60045 USA. Weight per nameplate is 30 lb.
Stock # 0226-795
