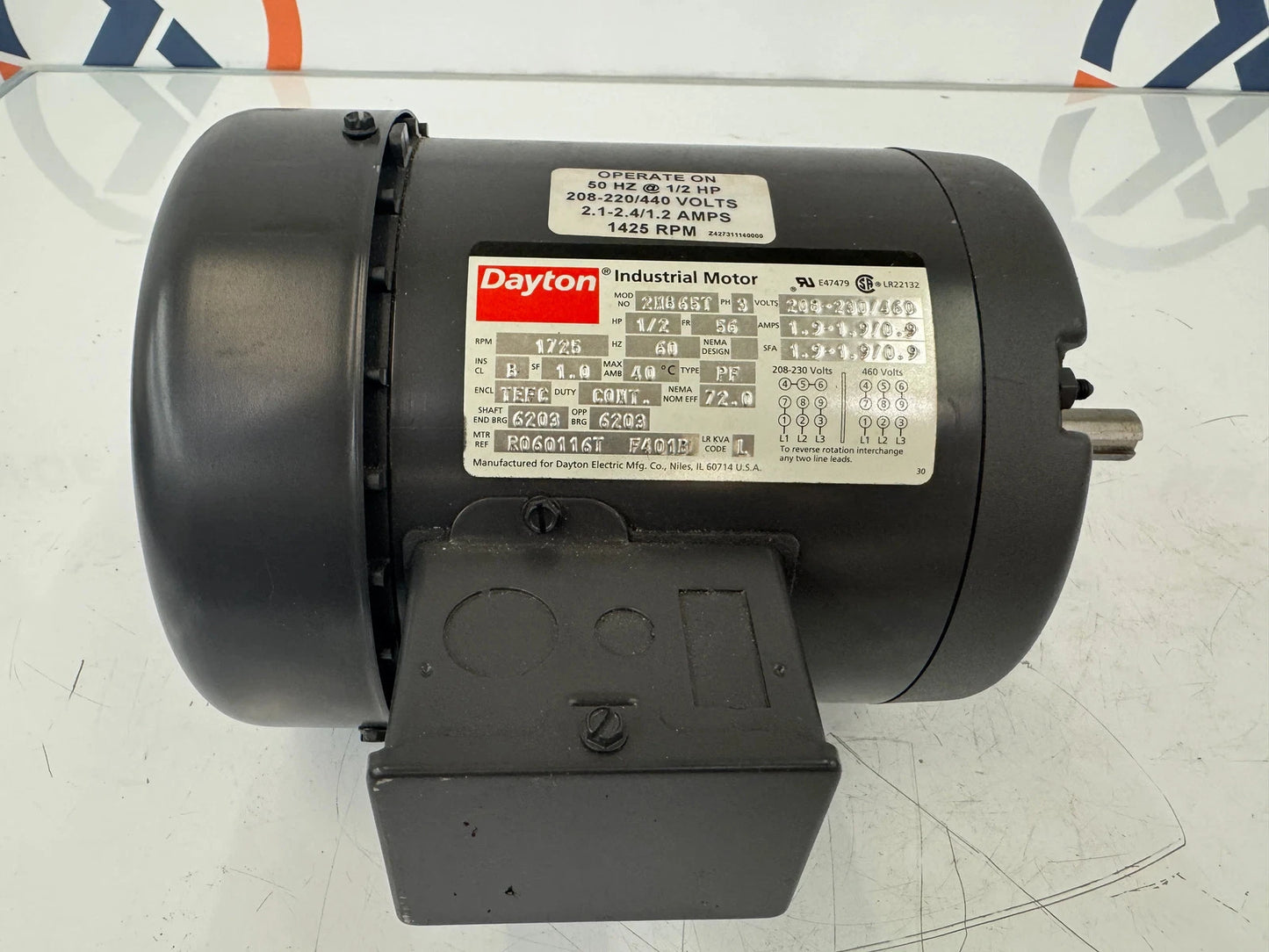

Dayton Industrial Motor 2M865T - 1/2 HP 1725 RPM AC Induction Motor

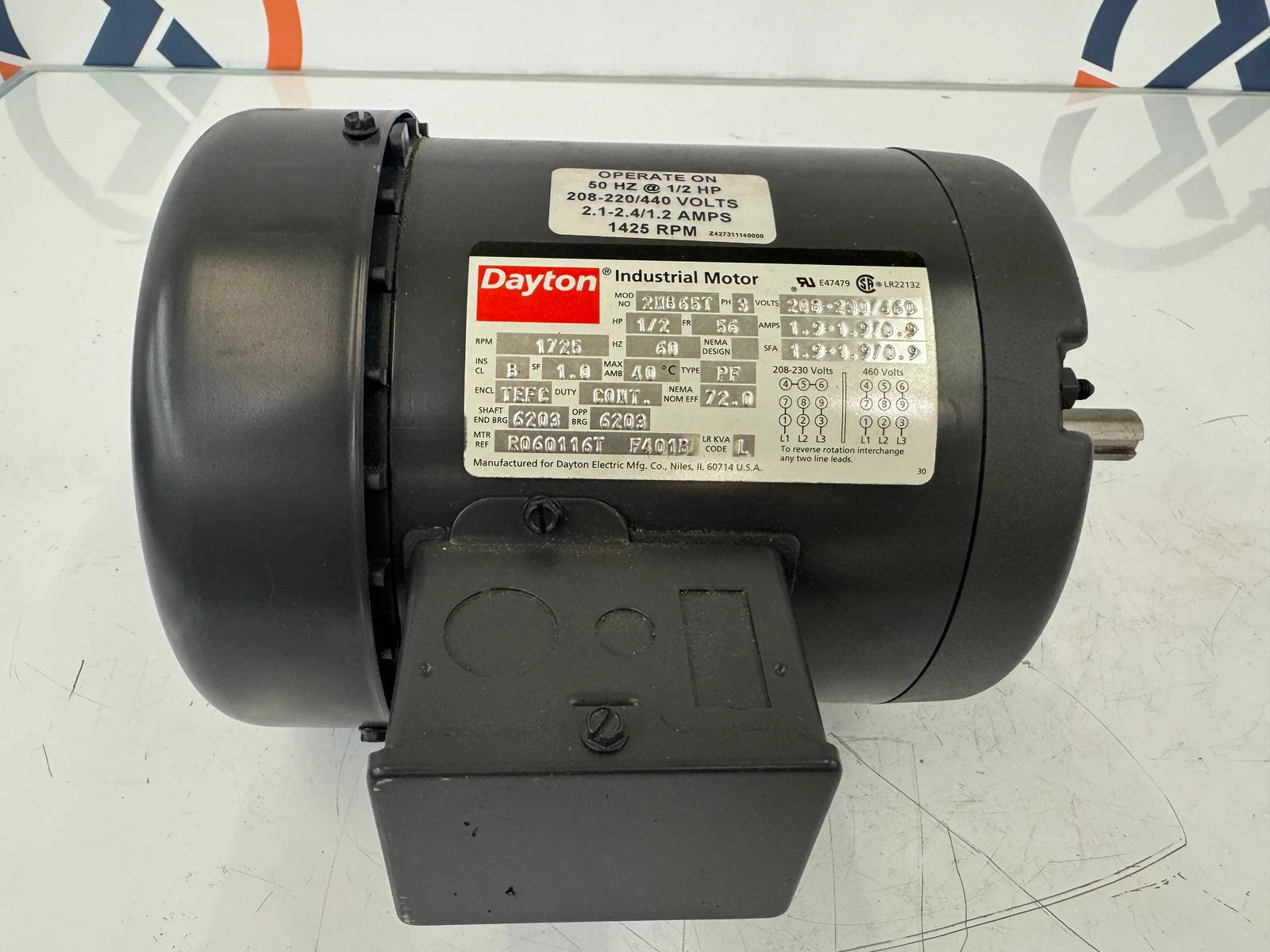

Dayton Industrial Motor, model 2M865T, three-phase AC induction motor rated 1/2 HP. Nameplate confirms 208-230/460V, 60/50 Hz operation, 1725 RPM at 60 Hz and 1425 RPM at 50 Hz. Full load amps per nameplate: 1.9/1.9 at 208-230V and 0.9A at 460V. NEMA Frame 56, TEFC (Totally Enclosed Fan Cooled) enclosure, Type PF. Insulation class B, service factor 1.0, maximum ambient temperature 40 degrees C, continuous duty. NEMA nominal efficiency 72.0. Shaft end bearing and opposite end bearing are both 6203. LR KVA code L. Motor reference R060116T, sub-reference F401B. Serial number Z427311140000. Manufactured for Dayton Electric Mfg. Co., Niles, IL 60714 USA. UL listed (E47479), CSA certified (LR22132). The secondary label on the motor housing confirms 50 Hz operation at 1/2 HP, 208-220/440V, 2.1-2.4/1.2 amps, 1425 RPM. The NEMA 56 frame is a widely used standard footprint compatible with a broad range of industrial and commercial equipment. This motor is suitable for general purpose three-phase applications including pumps, fans, compressors, and light conveyor drives. Reversing rotation is accomplished by interchanging any two line leads per the wiring diagram on the nameplate.

Stock # 0226-370
