DMG MORI DMG-HBG-2687447 30 Vdc Max Electronic Handwheel Pendant MPG m00056

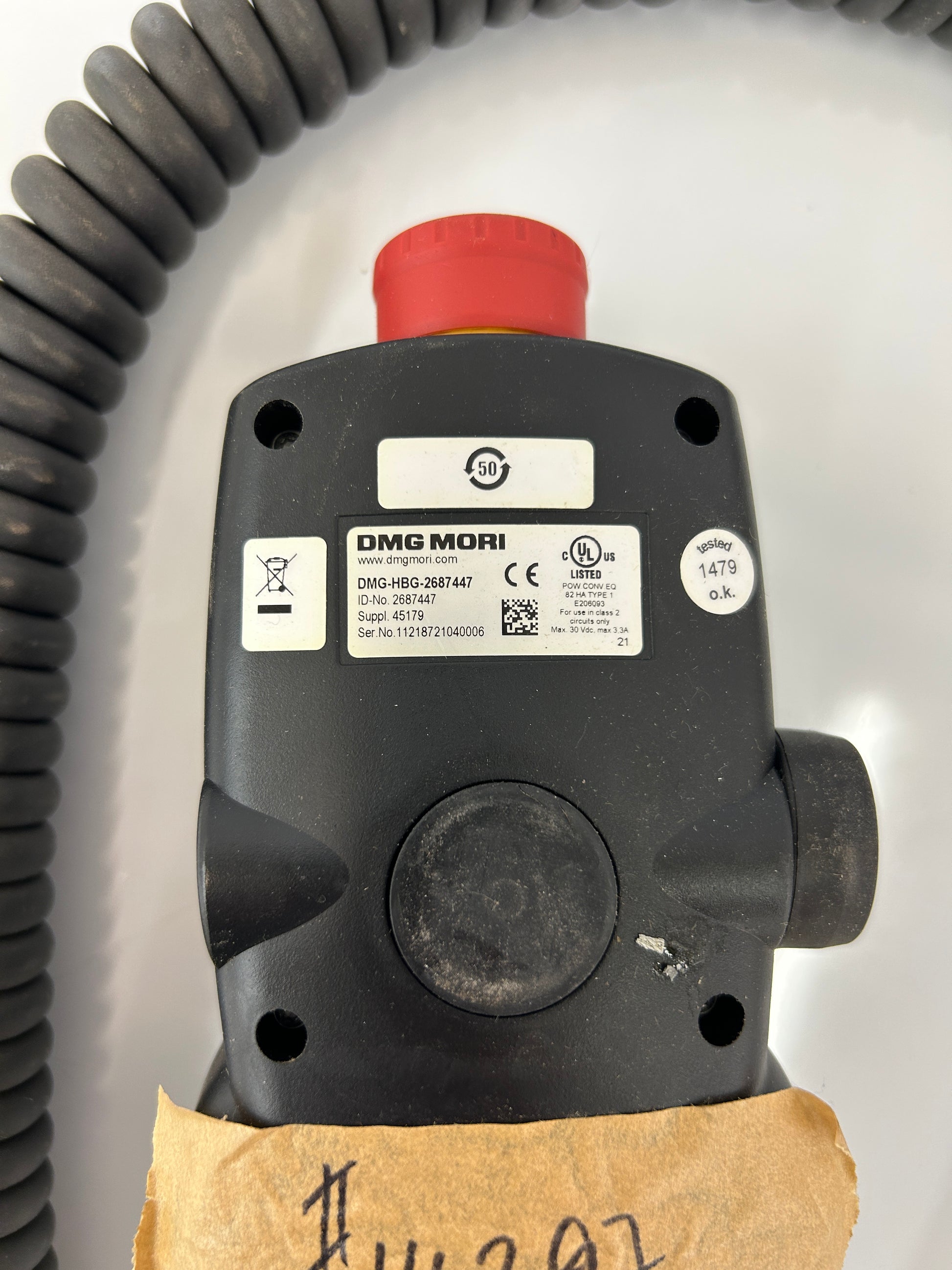

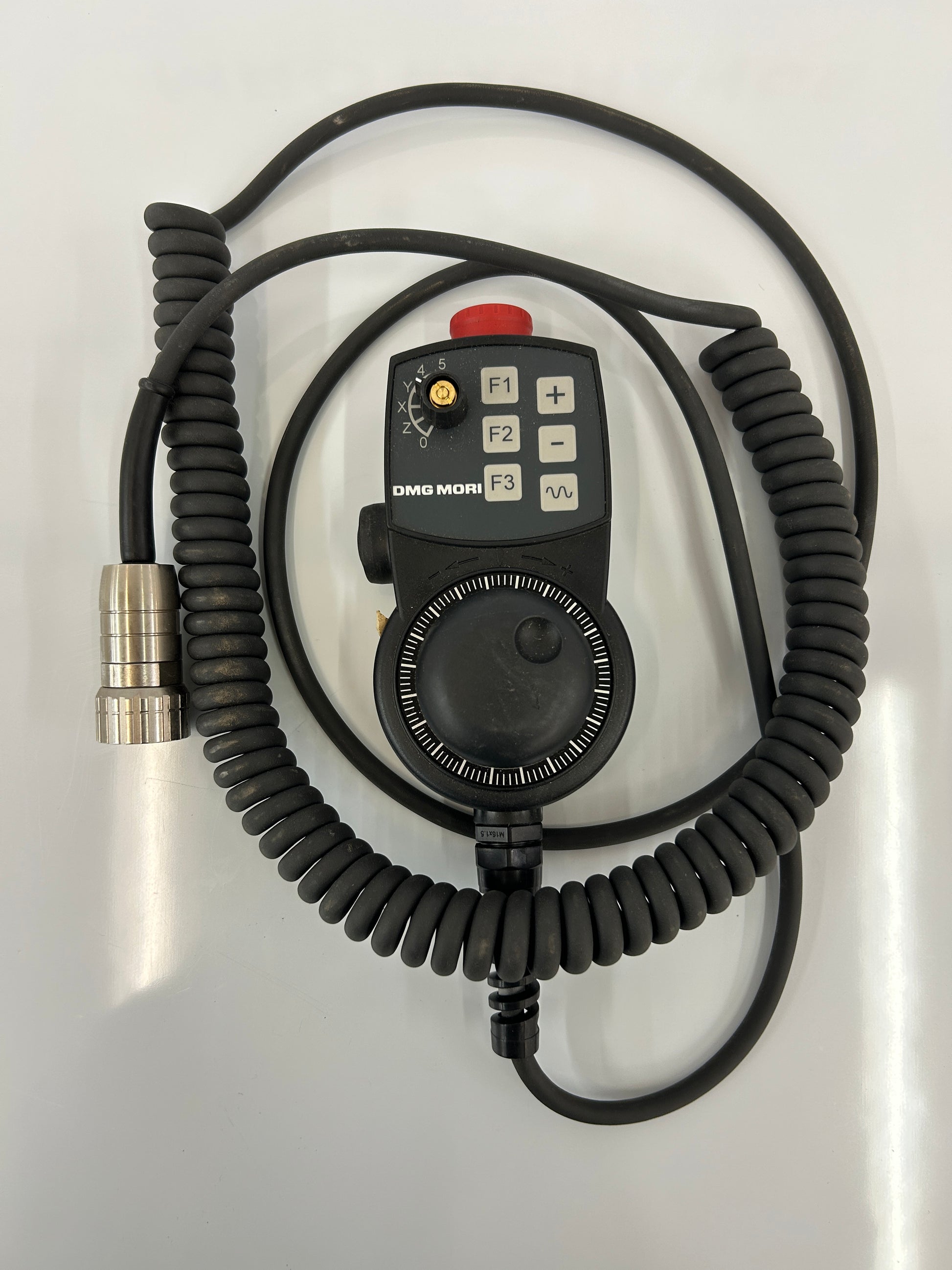

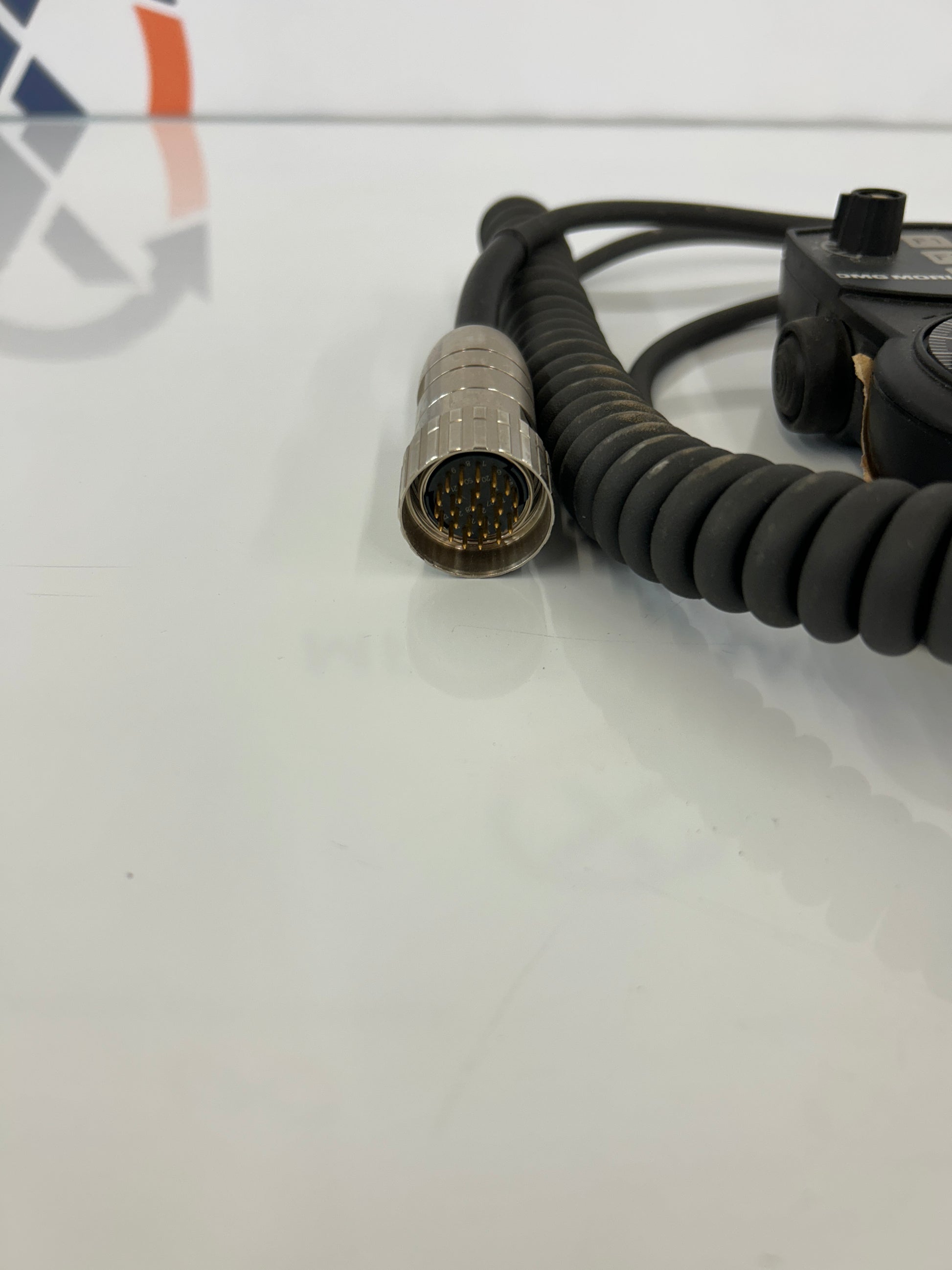

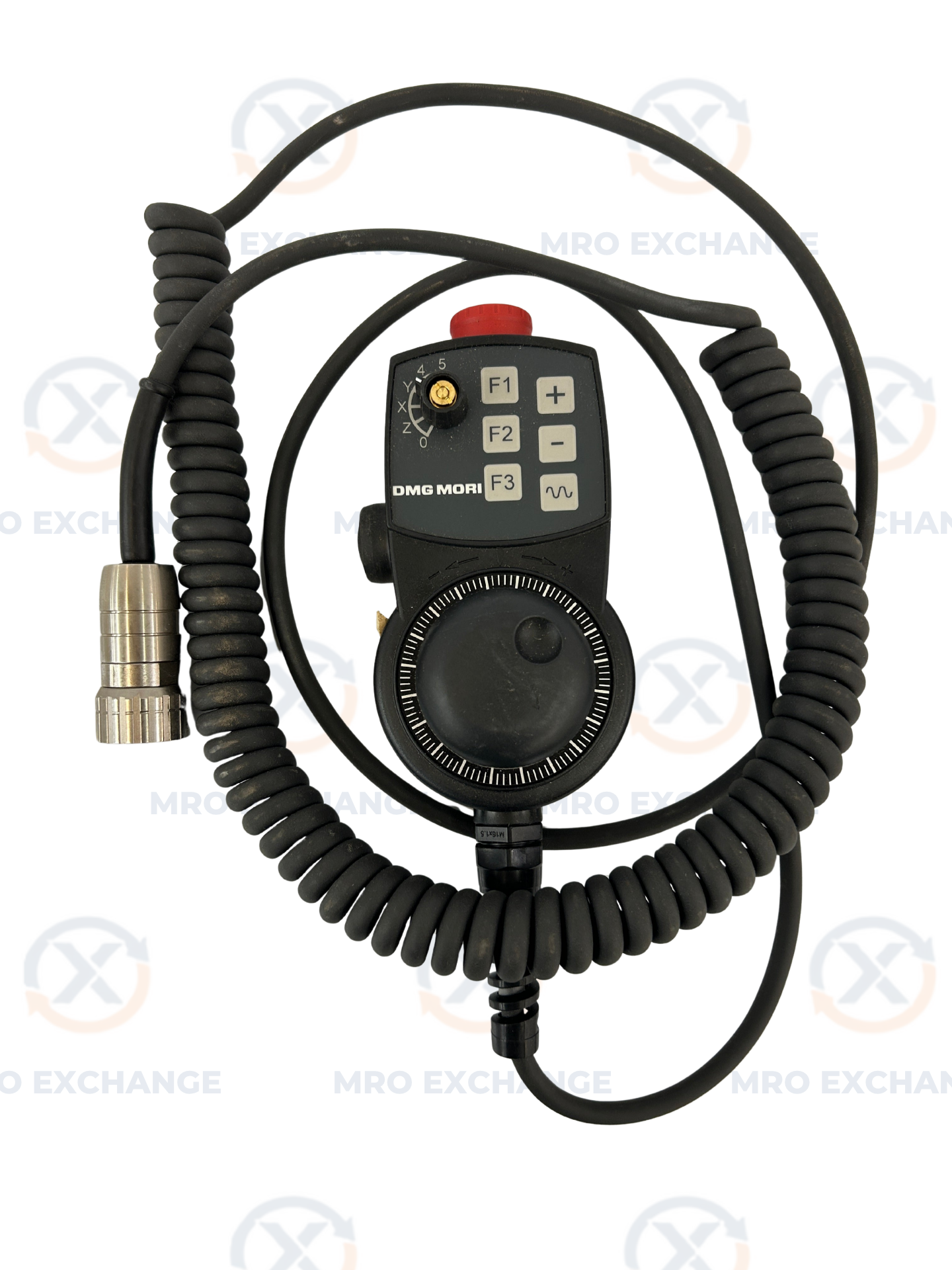

Designed for use as the external manual pulse generator on DMG MORI CNC machine tools, the DMG-HBG-2687447 pendant pairs a precision handwheel with a programmable button panel and an integrated emergency stop. The unit identification plate confirms ID No. 2687447, Suppl. 45179, Ser. No. 11218721040006, and the manufacturer URL www.dmgmori.com. The pendant is UL Listed under E206093, classified POW CONV EQ 62 HA Type 1, for use in Class 2 circuits only, with a maximum electrical rating of 30 Vdc and 3.3 A. The housing carries a CE mark and a factory applied "tested 1479 o.k." quality control sticker. The operator panel includes an axis selector rotary switch with positions 0, X, Y, Z, 4, and 5, three programmable function keys labeled F1, F2, and F3, a plus and minus feed override pair, and a dedicated waveform mode key. A red mushroom head emergency stop pushbutton is mounted at the top of the enclosure. The handwheel is a graduated pulse generator with a fine pitch dial and an integrated finger pocket for single hand jogging. The coiled tether cable terminates in a circular threaded metal connector and exits the pendant through a panel mount cable gland marked M16x1.5. Typical applications include manual axis jogging, tool setting, edge finding, and program setup at the machine envelope on DMG MORI machining centers running Siemens 840D and related control platforms. Buyers should verify cable pinout and connector compatibility against the target machine wiring diagram before installation.

Stock # 0226-056
