DMG MORI DMG-HBG-2687447 30 Vdc Max Electronic Handwheel Pendant MPG m00055

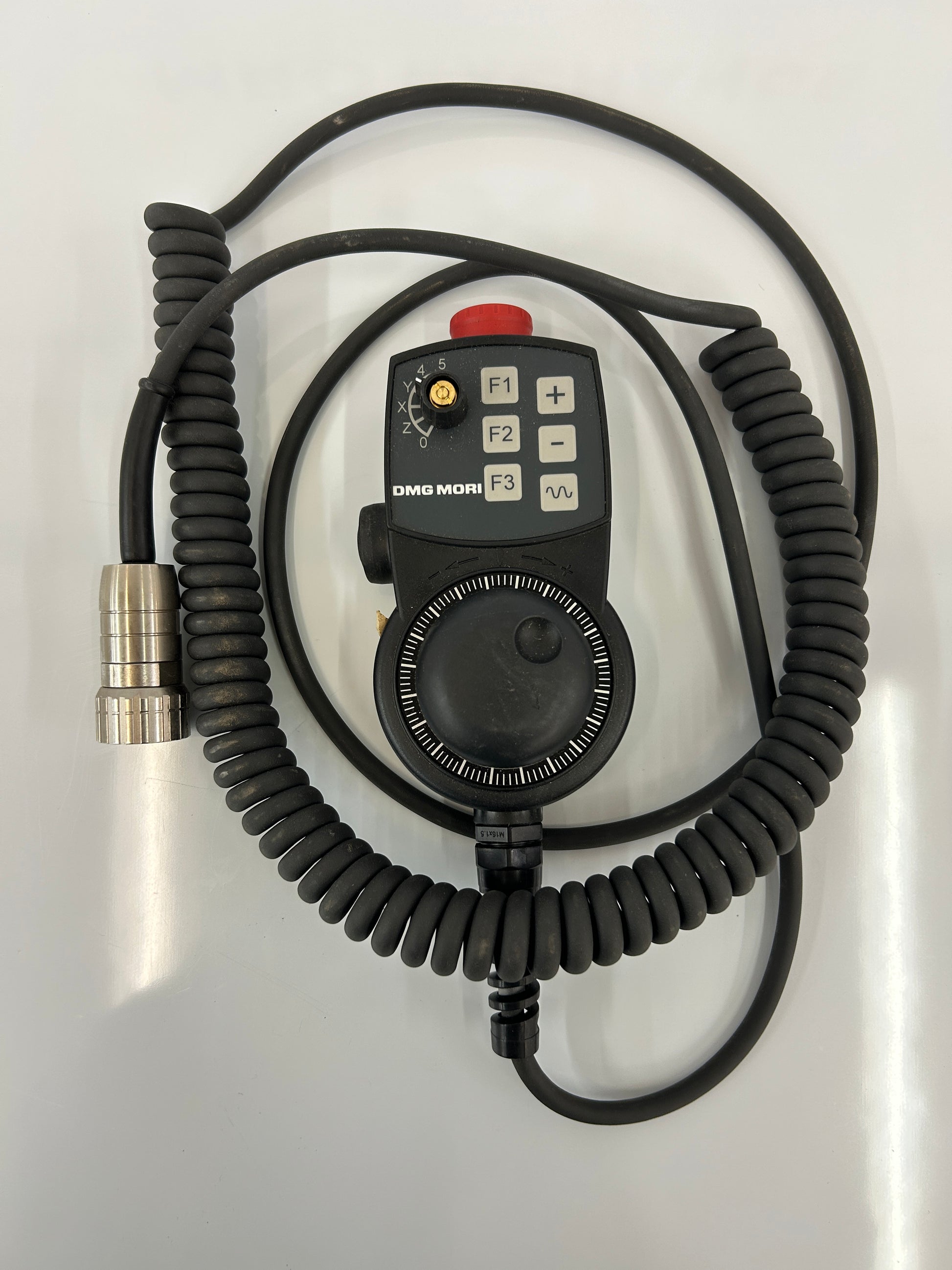

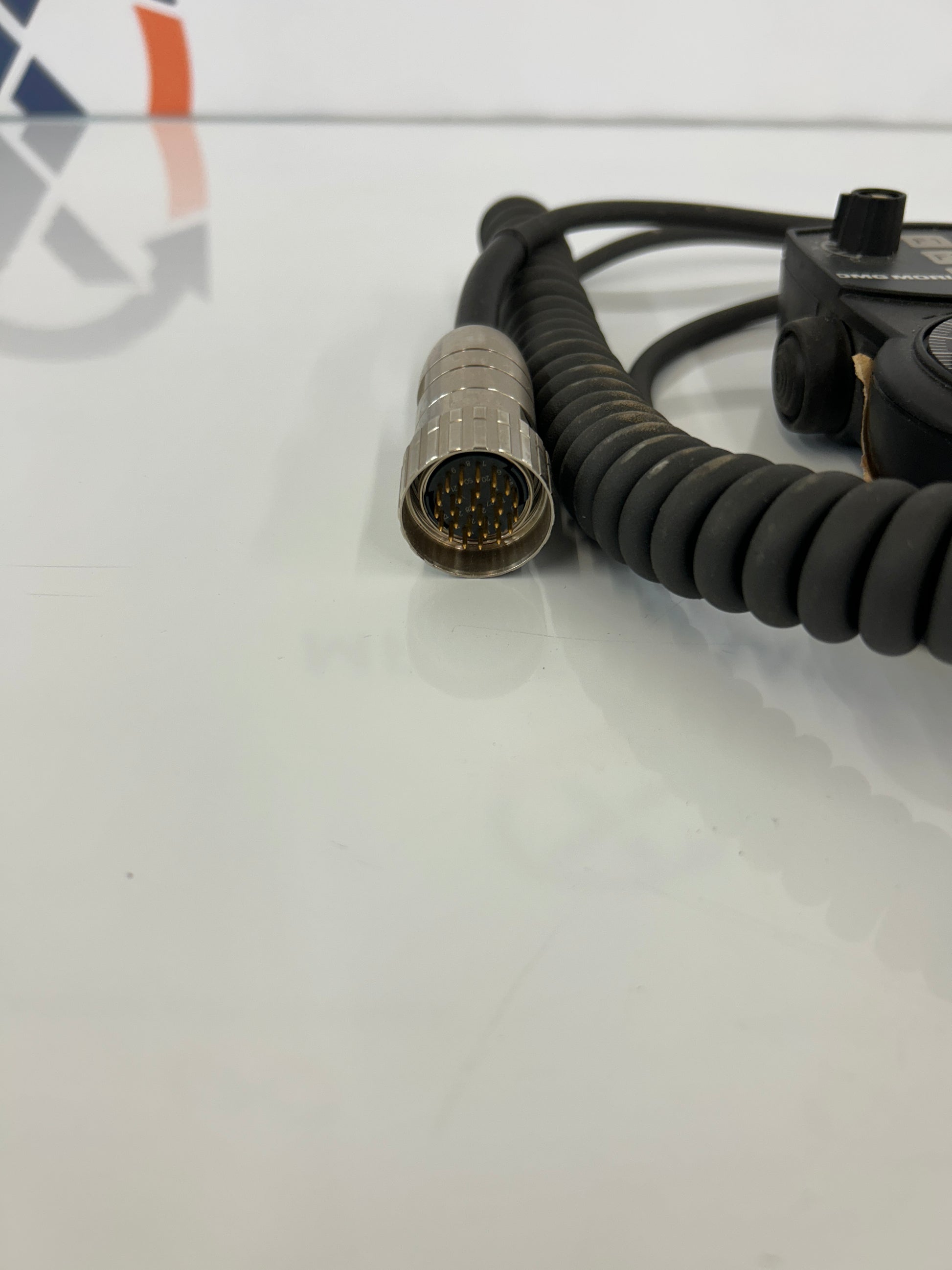

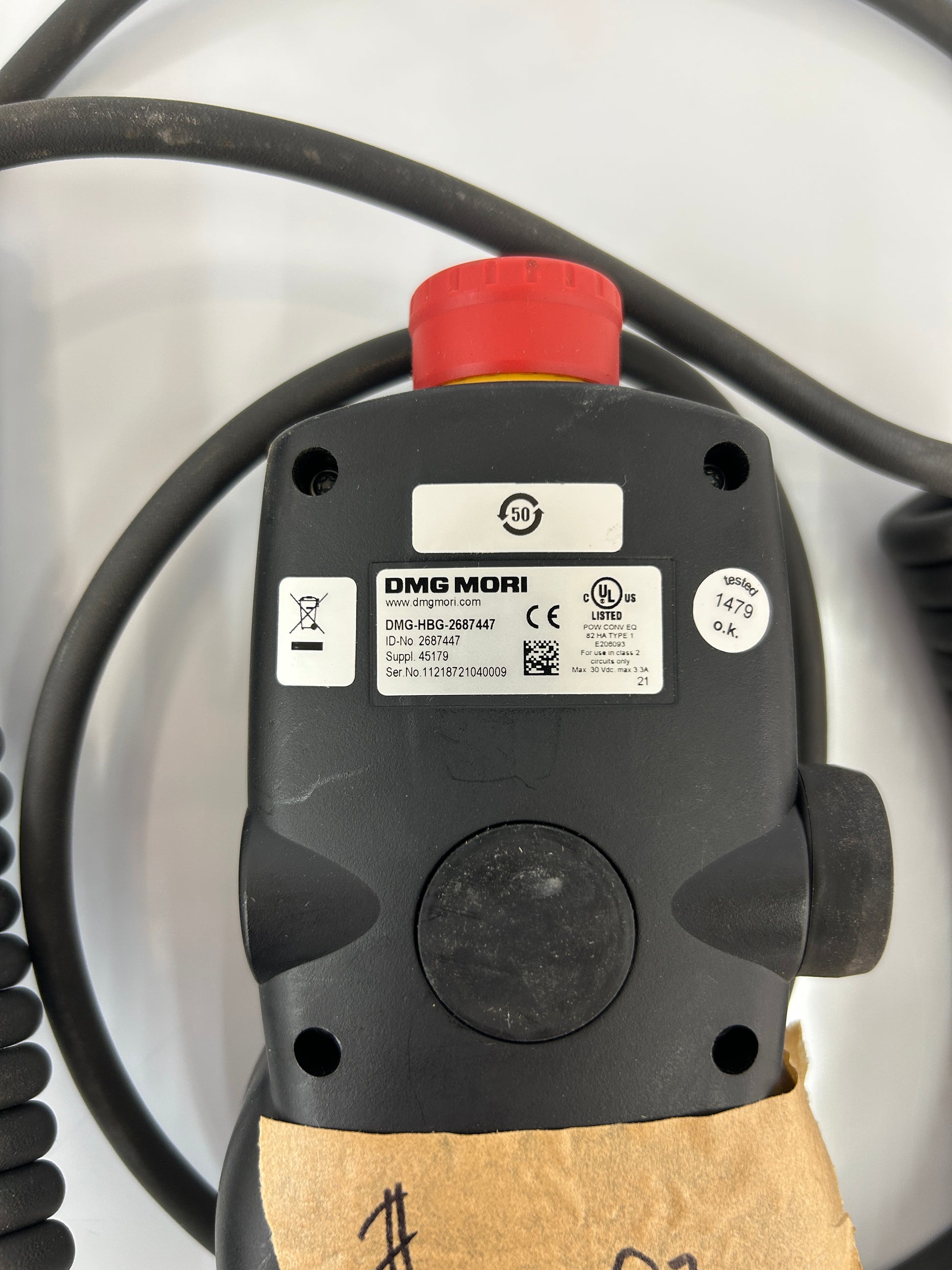

The DMG MORI DMG-HBG-2687447 is an electronic handwheel pendant used as the external manual pulse generator on DMG MORI CNC machine tools, including 5 axis machining centers running Siemens 840D and related control platforms. The unit pairs a precision pulse generator wheel with a hardened plastic housing, a coiled tether cable terminated in a circular threaded connector, and a panel mount cable gland marked M16x1.5. Identification data taken from the rating label includes ID No. 2687447, Suppl. 45179, Ser. No. 11218721040009, and the manufacturer URL www.dmgmori.com. The pendant is UL Listed under E205093, classified POW CONV EQ 62 HA Type 1, for use in Class 2 circuits only. Maximum electrical rating is 30 Vdc and 3.3 A. The front panel includes an axis selector rotary switch with positions X, Y, Z, 4, and 5, three programmable function buttons labeled F1, F2, and F3, a plus and minus feed override pair, a waveform mode button, and a top mounted emergency stop pushbutton with red mushroom head. The graduated handwheel includes a fine pitch dial and a finger pocket for one handed operation. Typical applications include manual axis jogging, tool setting, edge finding, and program setup tasks at the machine envelope. Compatible with DMG MORI integrated control packages that accept the HBG series feedback connection. Buyers should verify cable pinout and connector compatibility against the target machine wiring diagram.

Stock # 0226-055
