Dril-Quip HSRTB1 Hollow Spindle Rotary Table System 48 in, Hydraulic Power Unit, QuickPanel HMI

$19,999.99 USD

Sale Sold out

✓ 30-day returns on every item — return policy

ConditionSurplus - Untested MPN Stock #0226-00323

30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.

Shipping

This item ships by custom freight. Check out with local pickup, and we'll contact you with a custom shipping quote.

Same-Day Available
Real support team
Secure checkout

Product Specifications

Manufacturer: Dril-Quip
Product Type: Hollow Spindle Rotary Table System
Serial Number: HSRTB1
Date of Manufacture: June 2005
Weight: 6,840 lb (nameplate)
Face Plate Diameter: Approximately 48 in
Chuck Configuration: 4-jaw independent
Spindle: Hollow, large center bore
Drive: Hydraulic, dedicated hydraulic power unit
Control: Dril-Quip QuickPanel HMI touchscreen with push-button operator station
Condition: Surplus - Untested

Product Description

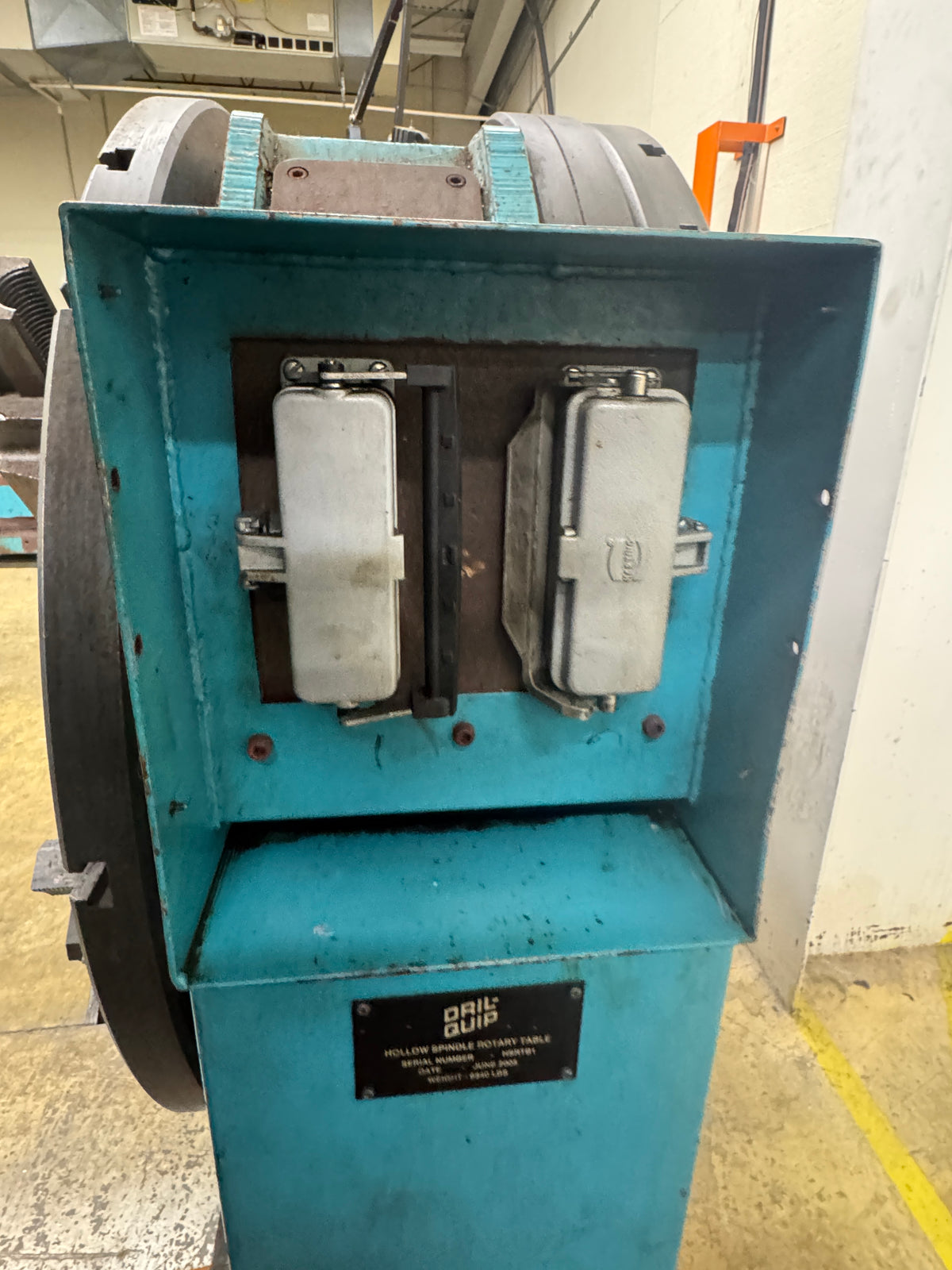

This Dril-Quip hollow spindle rotary table system is a complete, self-contained package consisting of the rotary table assembly and its dedicated hydraulic power unit with integrated control cabinet. The nameplate identifies serial number HSRTB1, a manufacture date of June 2005, and a weight of 6,840 lb.

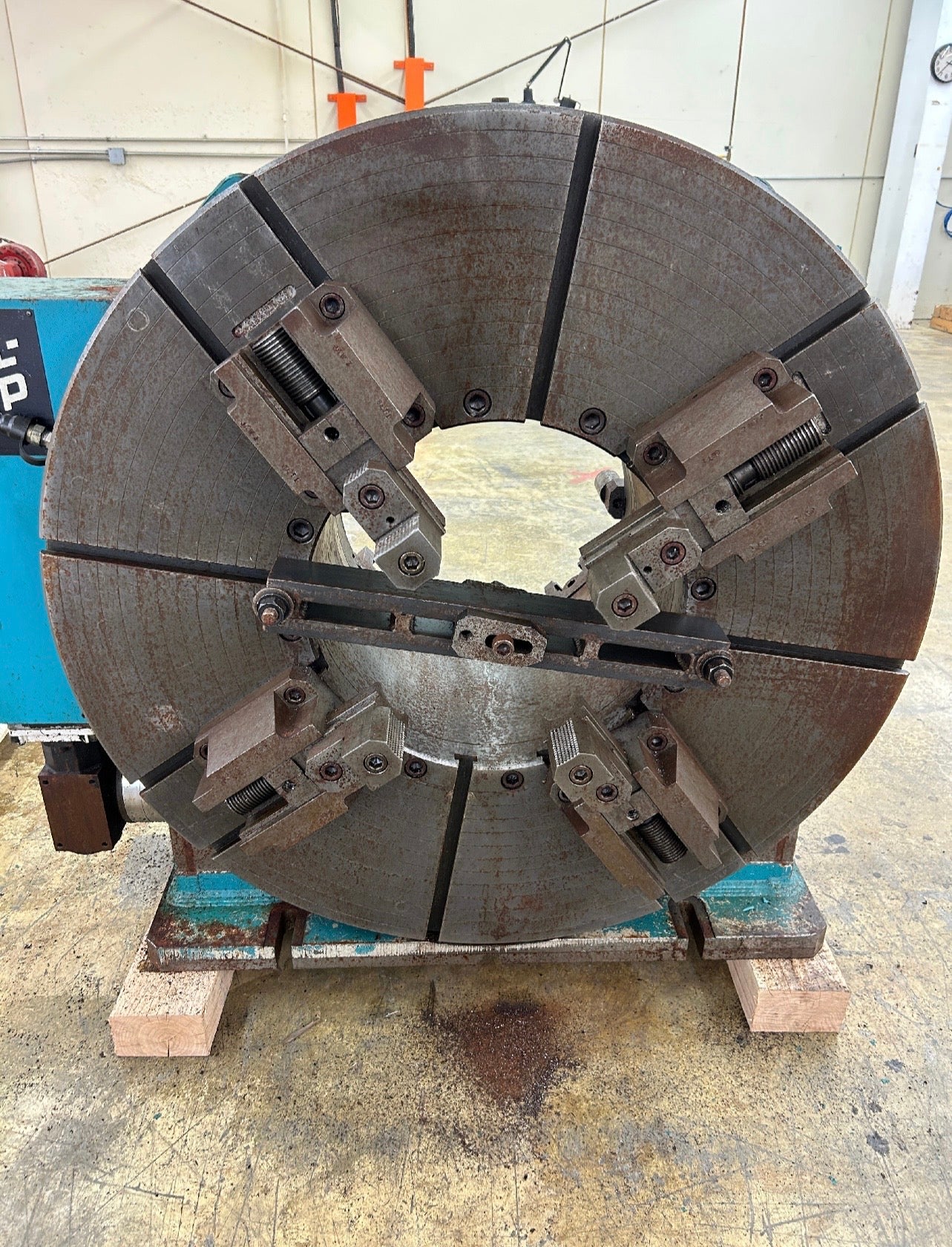

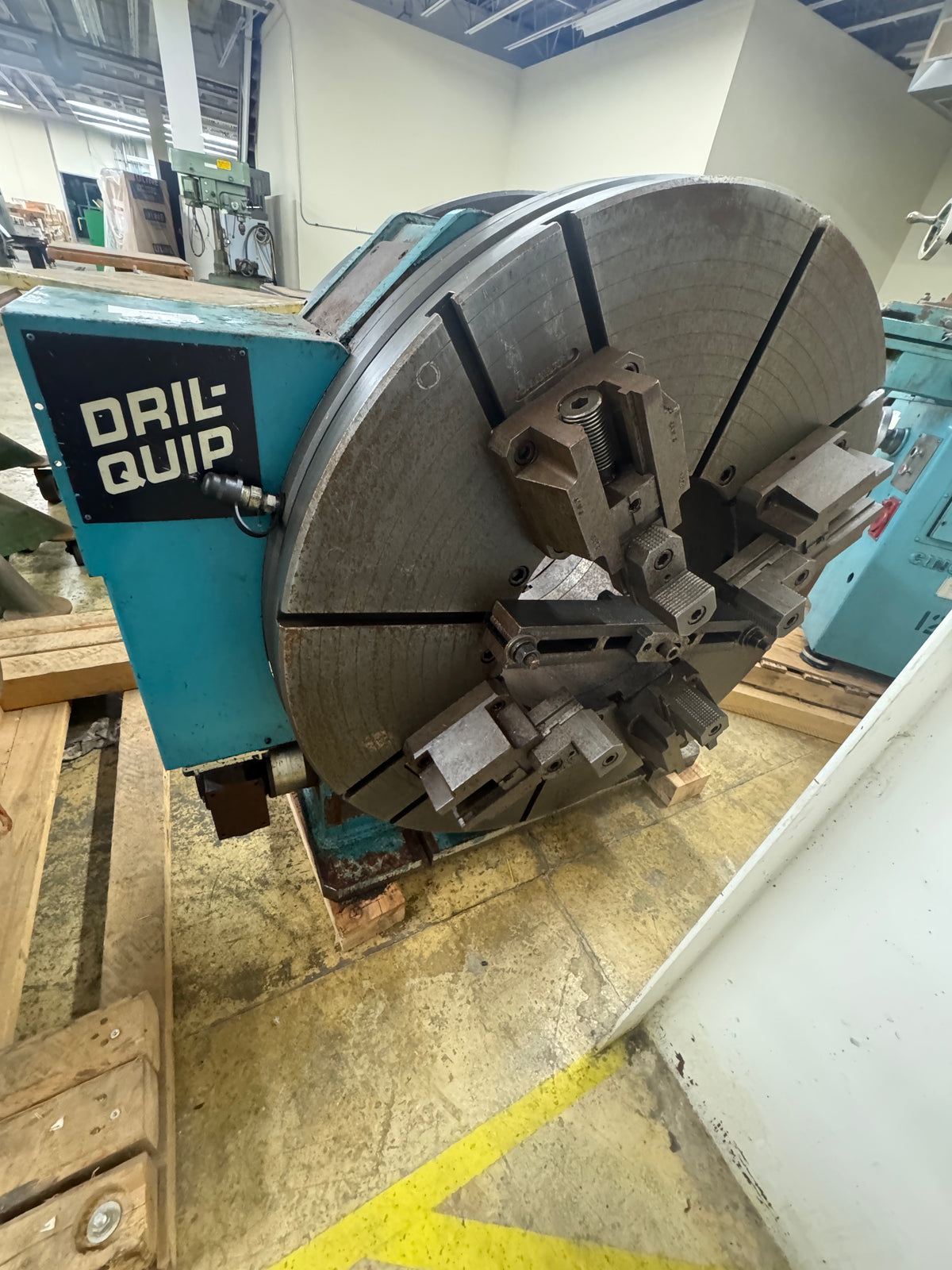

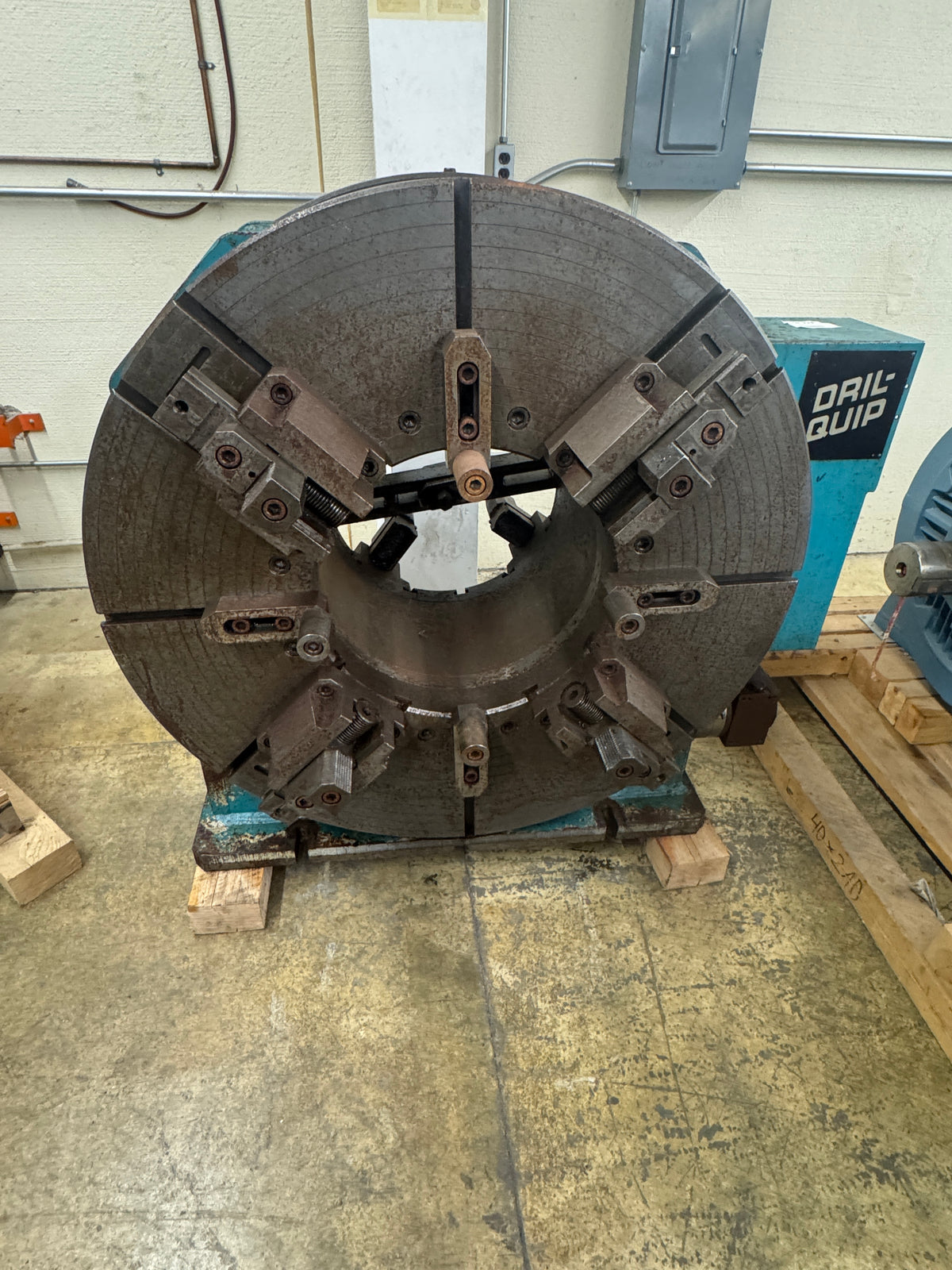

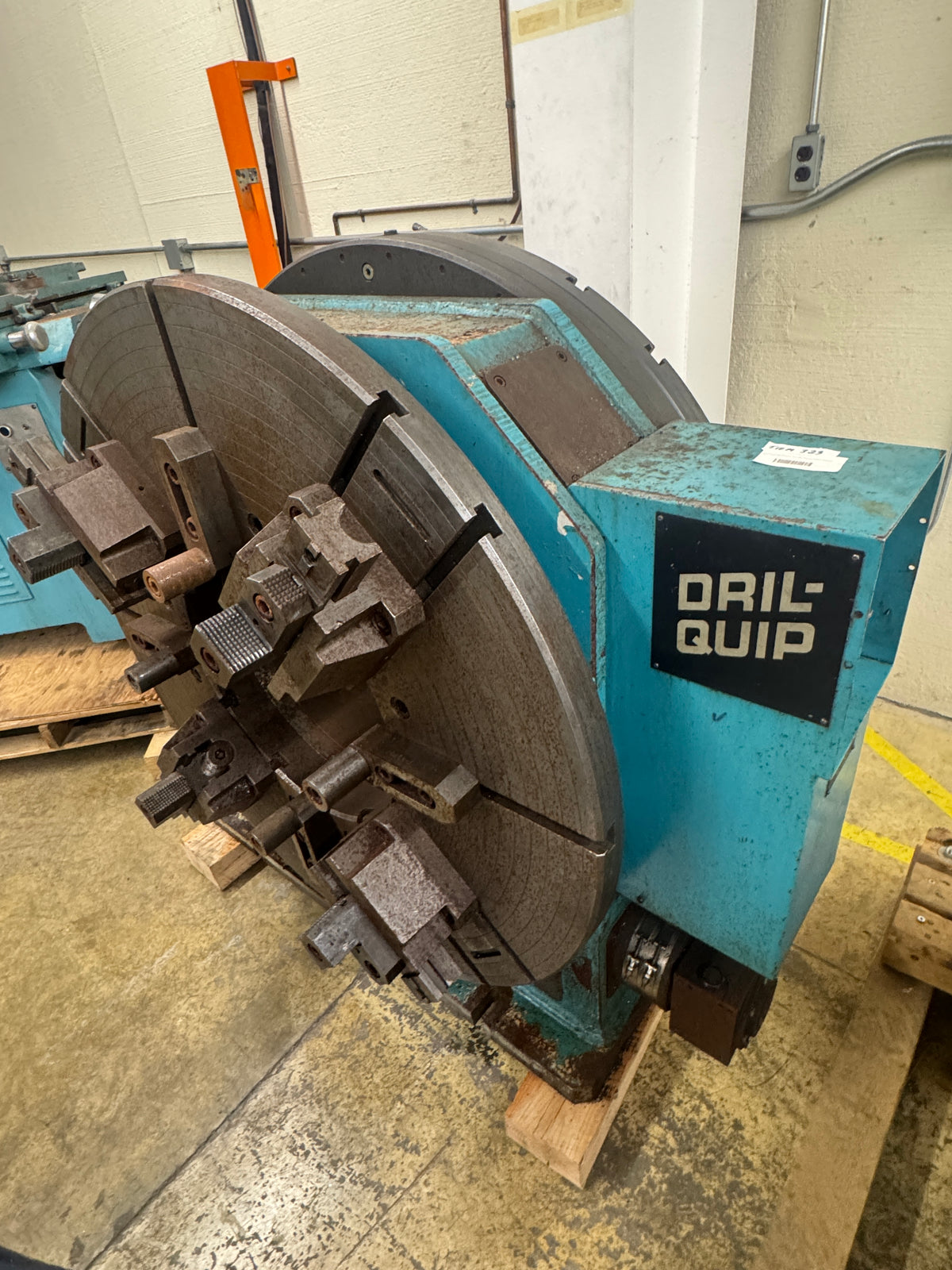

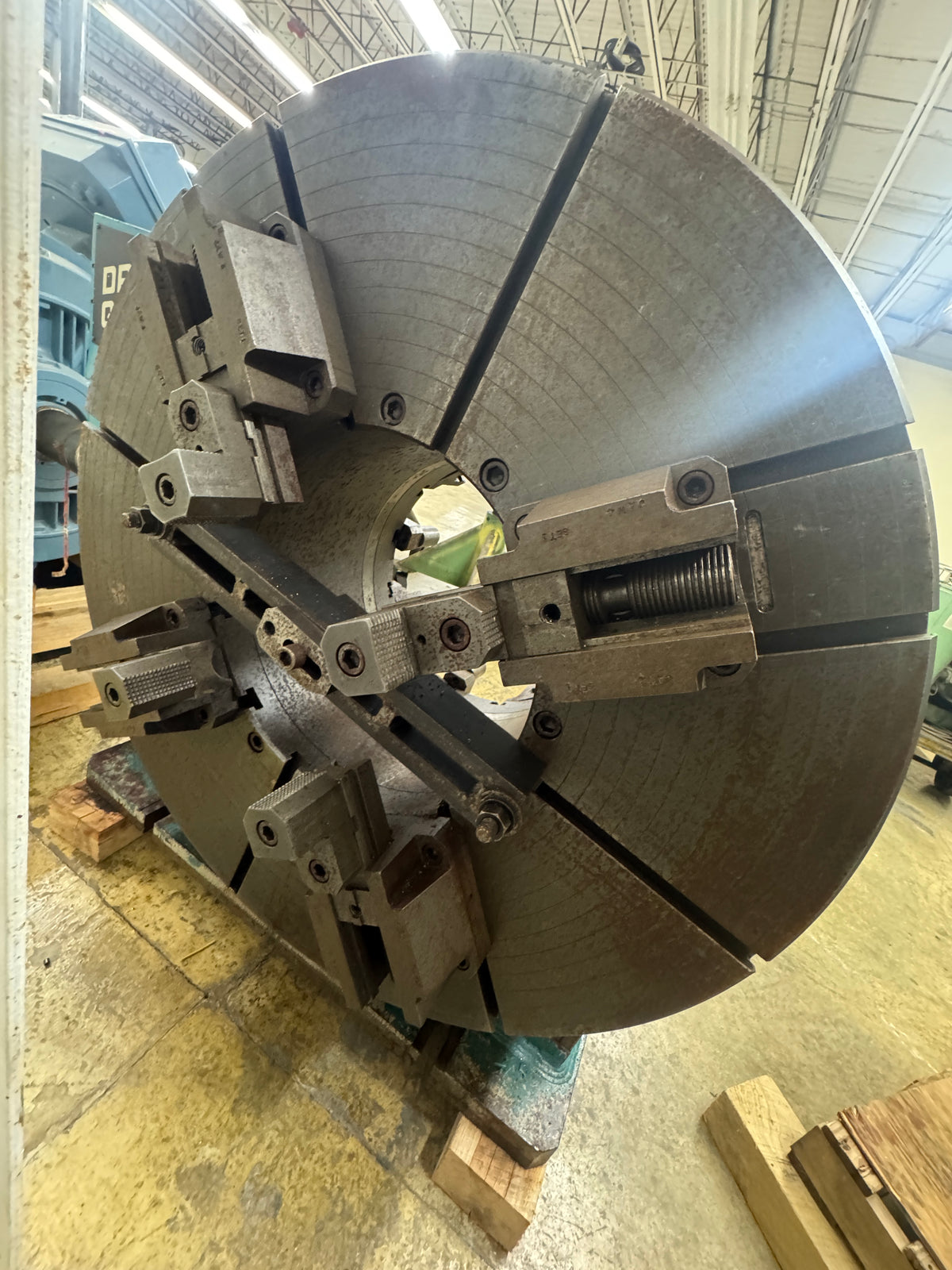

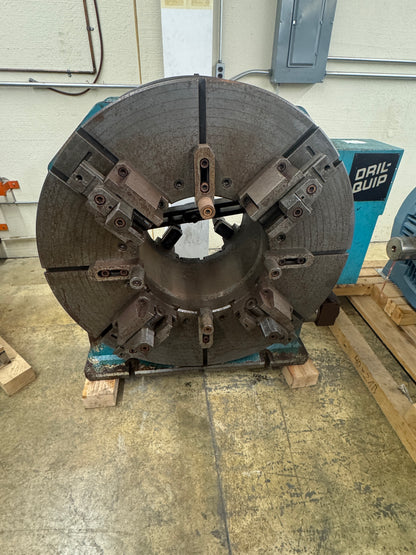

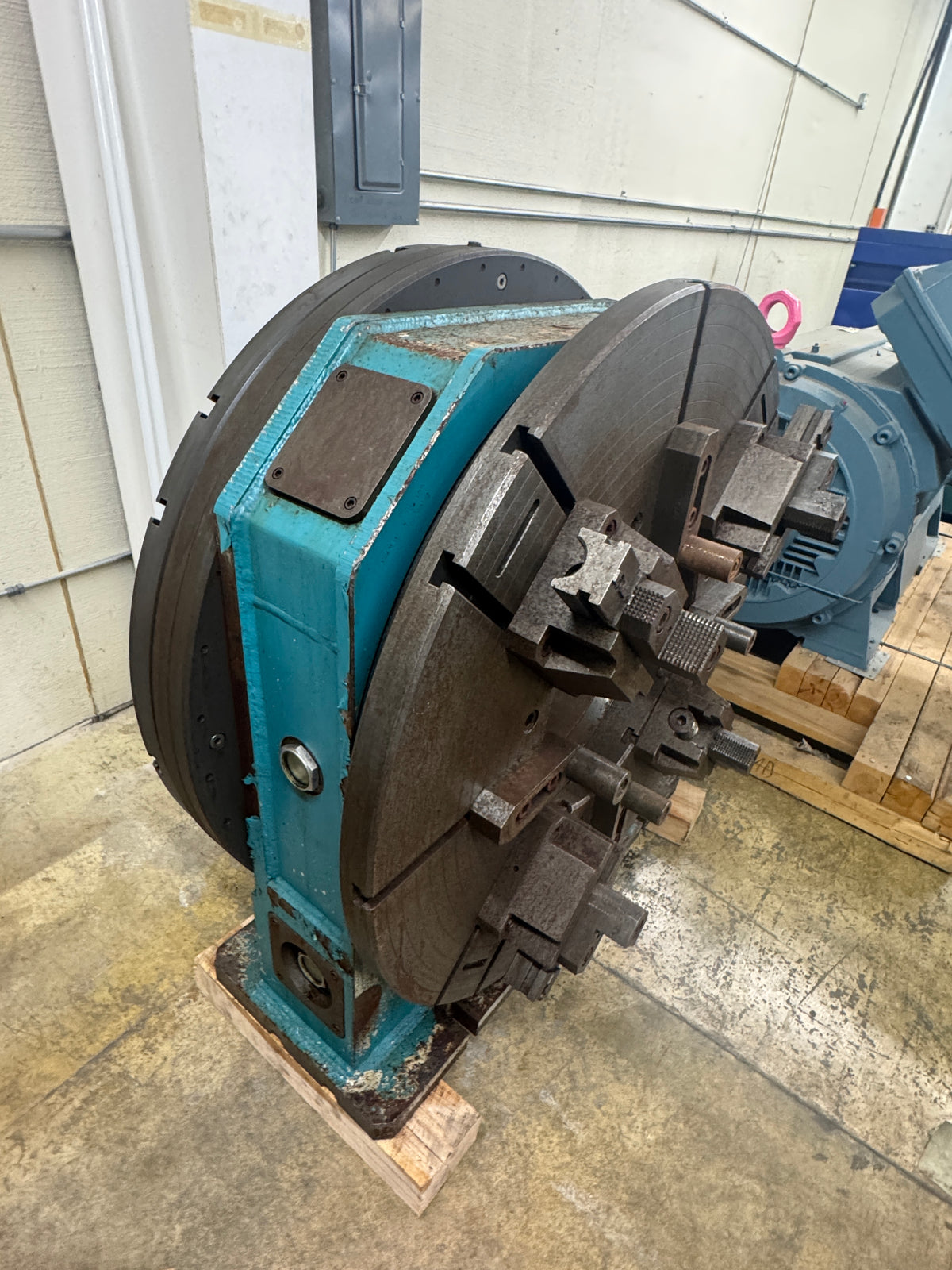

The rotary table carries a large diameter face plate, approximately 48 in, in a 4-jaw independent configuration with a large hollow center bore for pipe and tubular work. Construction is heavy cast iron to oilfield standards, and the table is drive-connected to its hydraulic power unit.

The hydraulic power unit and control cabinet are mounted on a heavy-duty fork-liftable diamond-plate skid with a lifting eye for crane handling. Controls include a Dril-Quip branded QuickPanel HMI touchscreen, push-button operator controls for zero, mode, drill and stop, dump, clockwise and counter-clockwise rotation and speed, and a red emergency stop. The pump and motor assembly and hydraulic line connections are integrated into the same skid.

Systems of this type are used for pipe rotation, casing make-up and break-out, and tubular handling in oilfield tubular running operations, pipe shop work, workover operations and casing inspection facilities. Dril-Quip manufactures subsea and surface wellhead equipment and specialty oilfield tools.

Sold as surplus, untested. Buyers matching this system for replacement or spare inventory should confirm the serial number and the required face plate diameter and bore against their existing setup. Buyer is responsible for inspection, rigging and removal.

Stock # 0226-323
