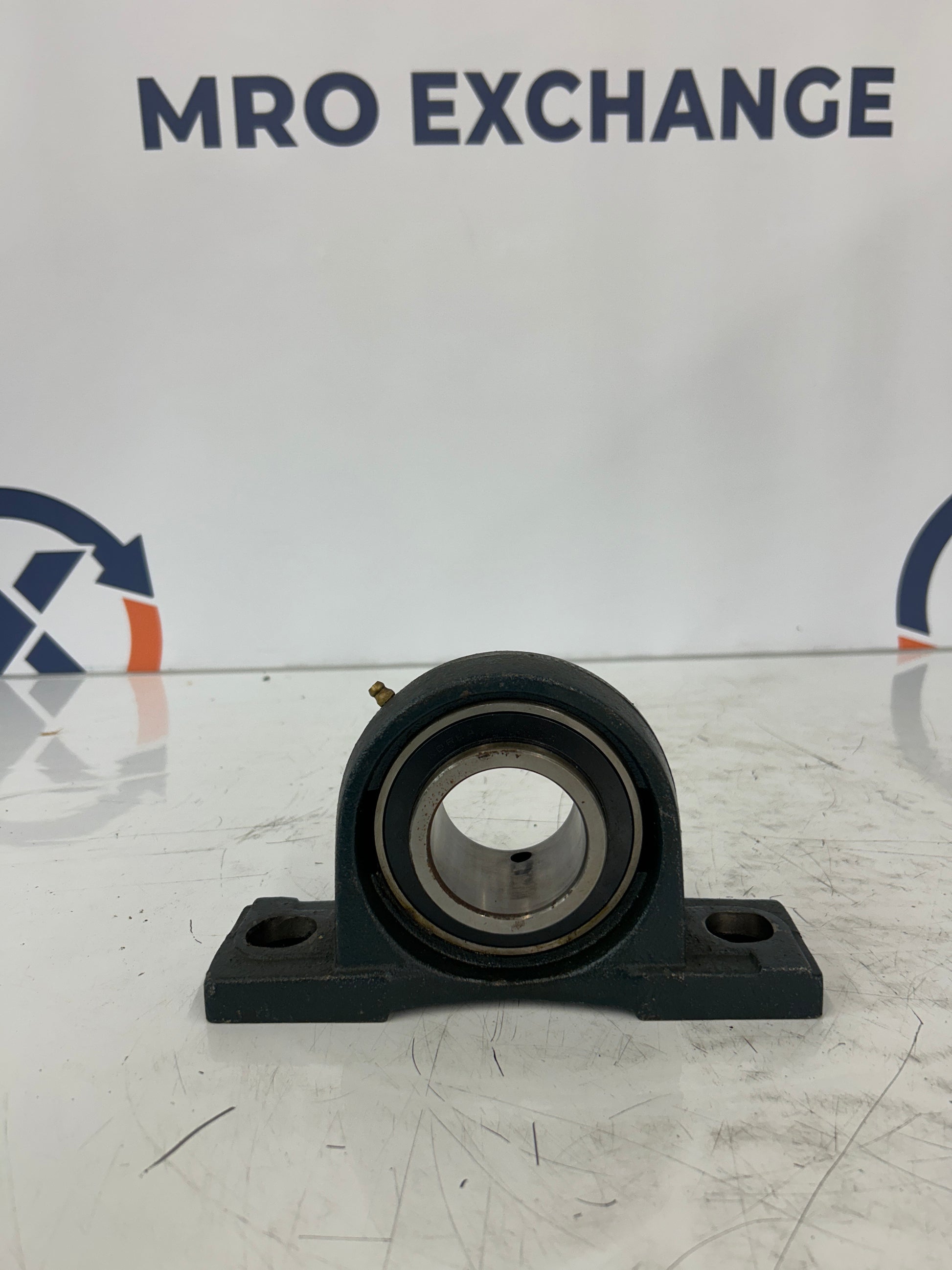

DSB Pillow Block Bearing UCP211-34 2-1/8 in. Bore, 2-Bolt, P211 Housing

Used in conveyor systems, agricultural equipment, manufacturing machinery, and general industrial shaft support, the UCP211-34 is a standard duty two-bolt pillow block bearing unit with a 2-1/8 in. bore. The housing designation is P211, constructed from cast iron, with the DSB brand cast directly into the base. The insert bearing carries the designation UC211-34 and is marked UNIDUS on the outer ring face. Shaft locking is accomplished via set screw acting directly on the shaft. A grease fitting (zerk) is installed at the top of the housing cap for field relubrication. Per published specifications for the UCP211-34 class: overall length 8.625 in. (219 mm), bolt hole center distance 6.719 in. (171 mm), base width 2.375 in. (60 mm), centerline height 2.500 in. (63.5 mm), bolt size 5/8 in. or M16. The insert bore through-length is 2.189 in. (55.6 mm). The spherical outer ring of the UC211-34 insert seats into the matching concave bore of the P211 housing, providing self-alignment to accommodate minor shaft deviation or angular misalignment. Radial dynamic load capacity is 9,700 lbf and static load capacity is 6,610 lbf per published data for this series. The UCP211-34 is a standard interchange designation shared across major bearing manufacturers and is directly interchangeable with AMI UCPX11-34, Browning VPS-334, Dodge P2B-SCM-111, and Sealmaster MP-34 equivalents.

Stock # 0226-675
