Used in CNC machining centers as a direct drop-in replacement for legacy 9-inch CRT displays, the Dynamic Displays QES1508-102 is an 8.4-inch Active Matrix TFT LCD industrial open-frame monitor configured for Fanuc 6, 6L, and 6M series CNC machine controls. The unit accepts TTL video signals via a Hirose (Honda) 20-pin input connector, eliminating the need for signal adapters when retrofitting Fanuc A61L-0001-0072 or Matsushita TR-9DK1-A CRT installations.

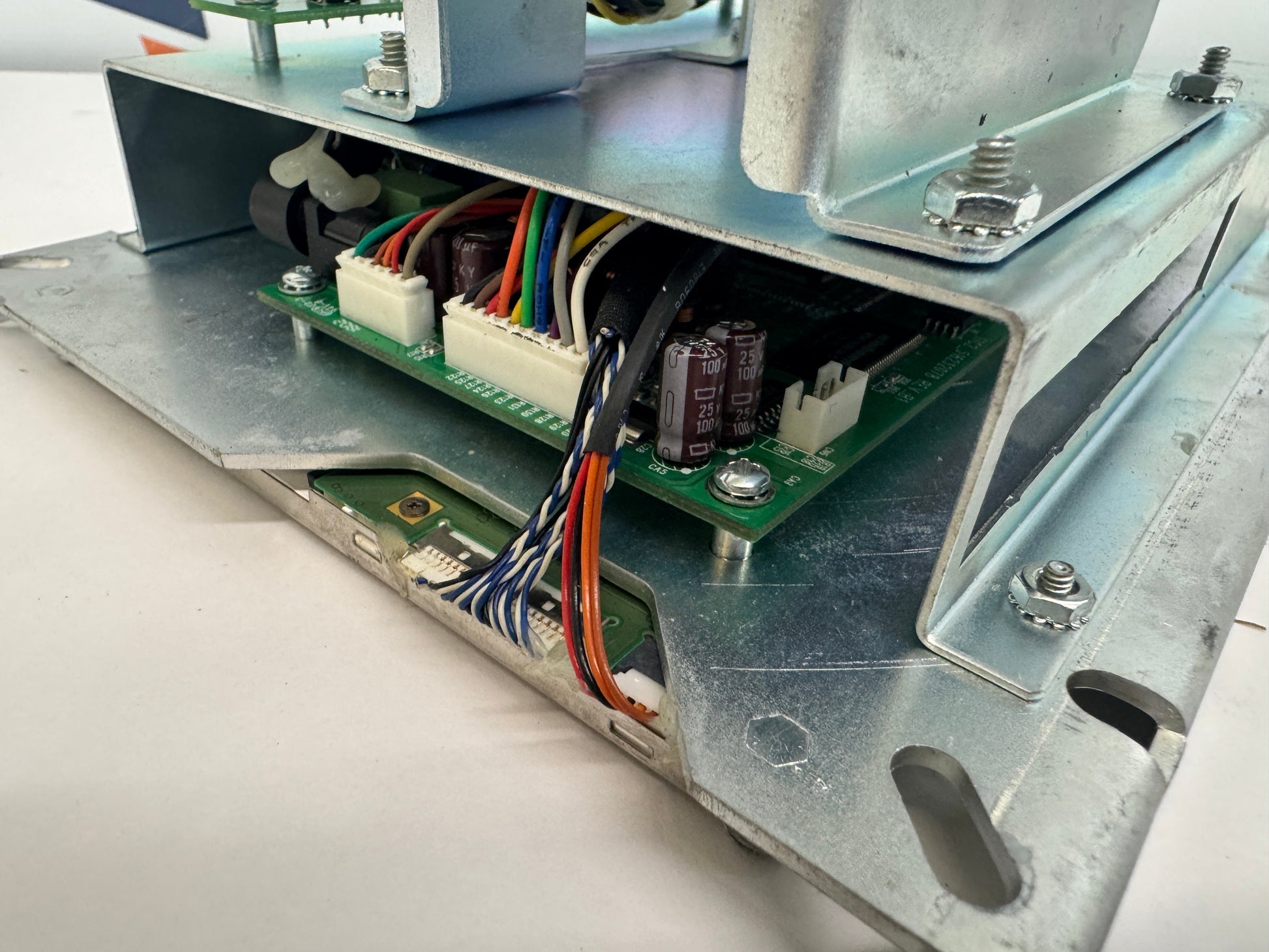

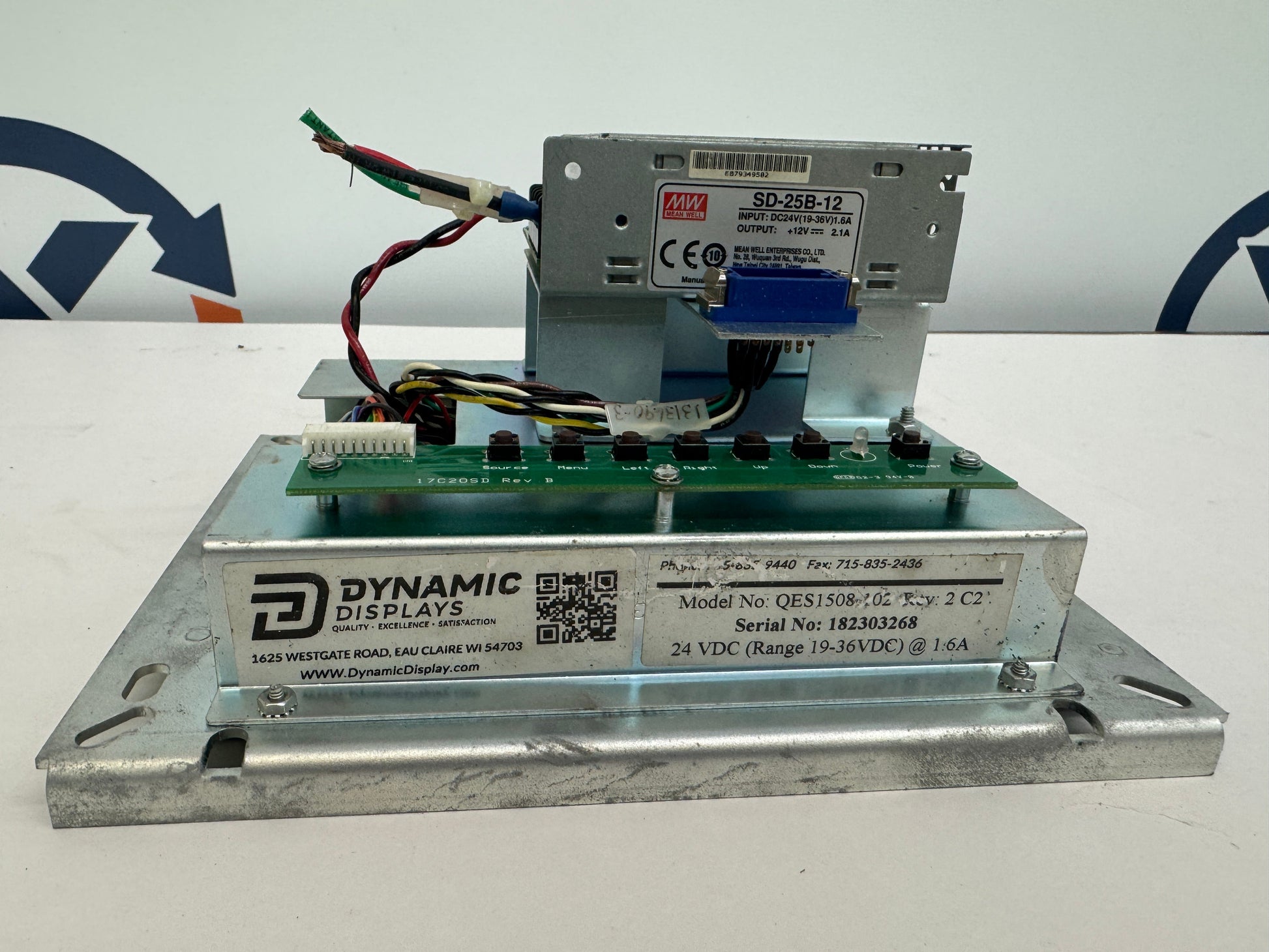

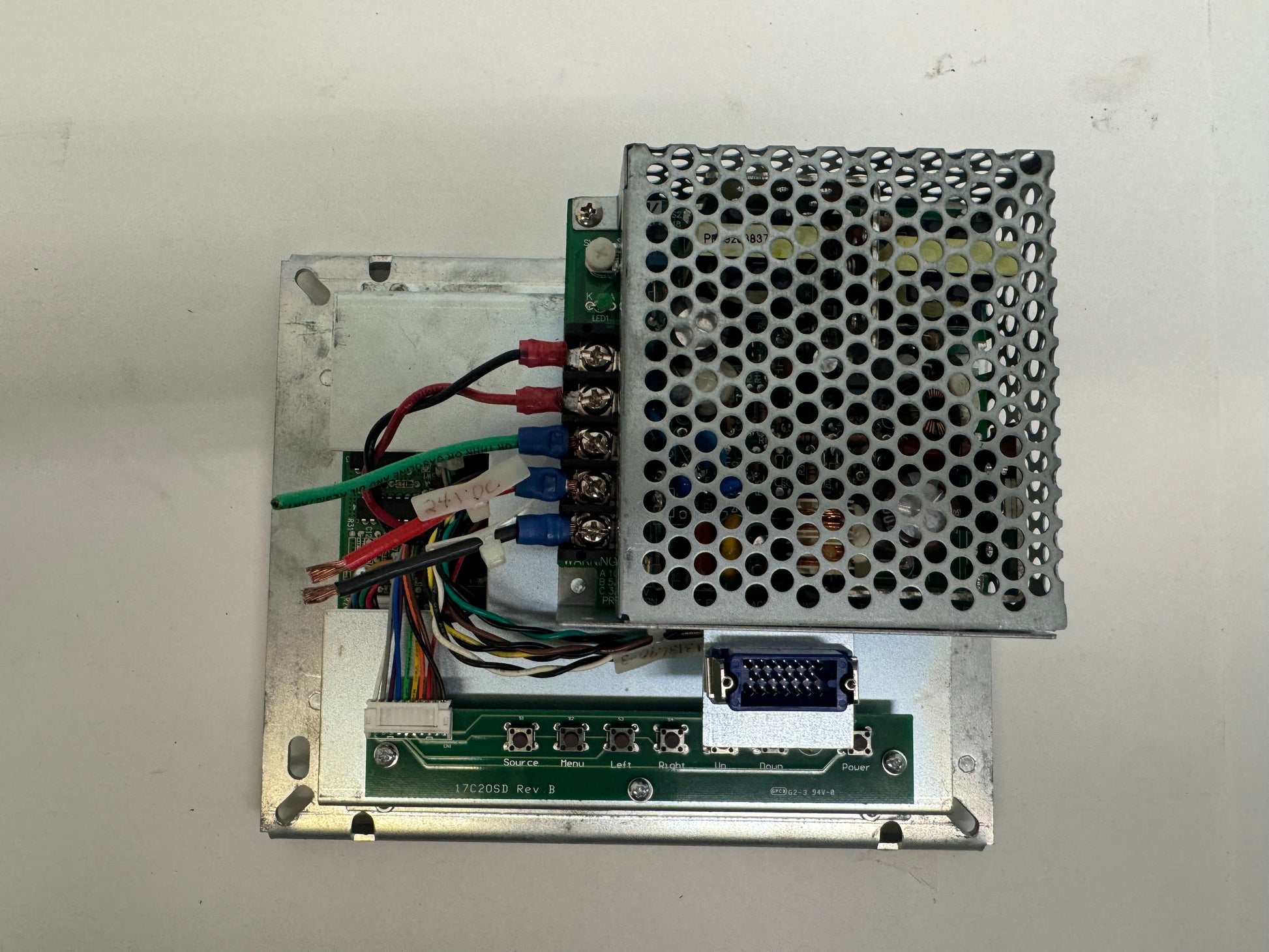

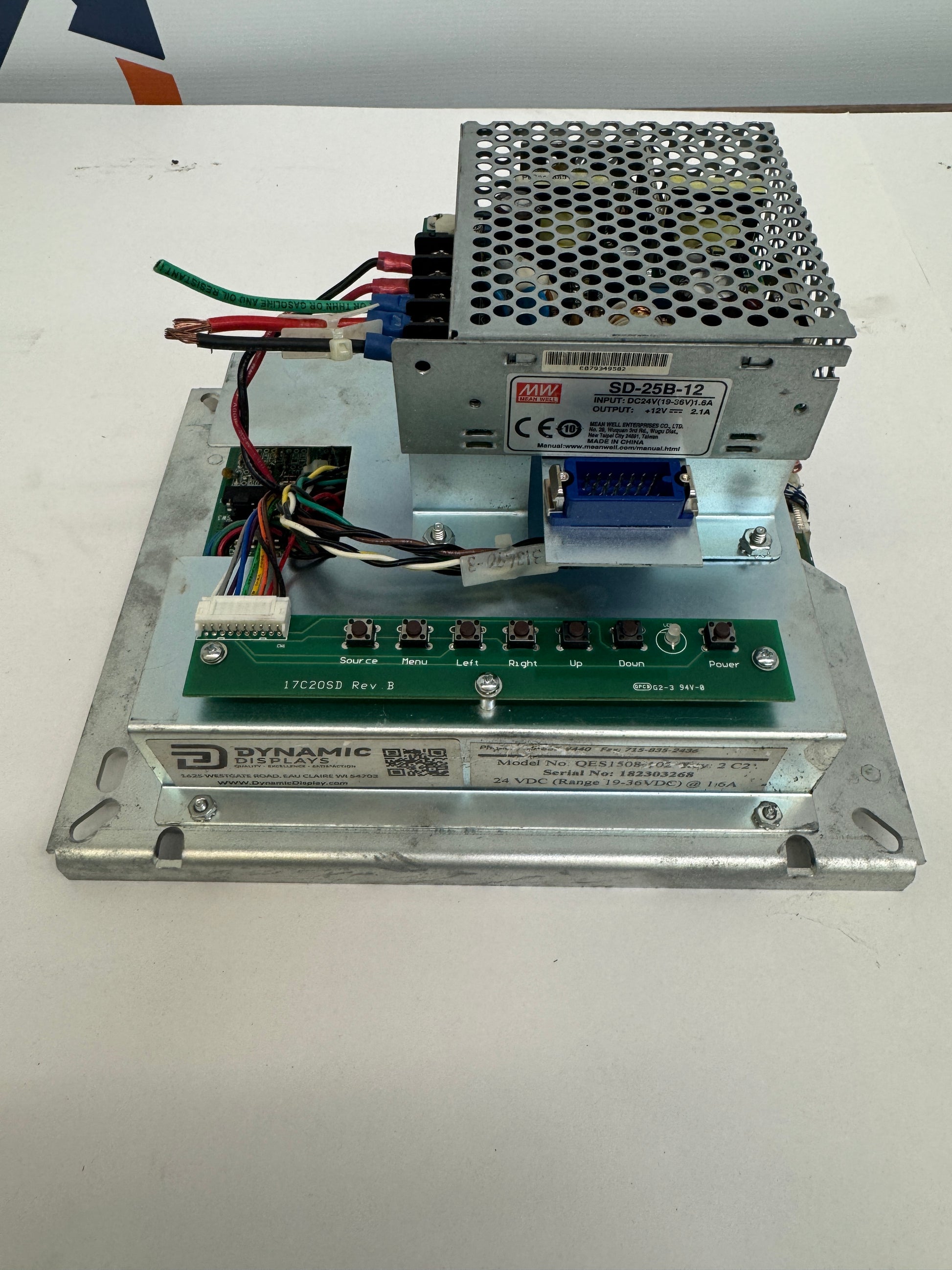

The assembly is built into a rugged steel open-frame chassis and includes a Mean Well SD-25B-12 DC-to-DC converter module rated at input DC 24V (19-56V) at 1.6A and output +12V at 2.1A. Nominal system input power is 24 VDC with an operating range of 19 to 36 VDC at 1.6A, as confirmed on the nameplate. The controller board is identified as 17C20SD Rev B with button functions labeled Source, Menu, Left, Right, Up, Down, and Power. A VGA-style connector is present on the assembly for video input. Serial number 182303268 is visible on the nameplate label.
The QES1508 platform is manufactured by Dynamic Displays, Inc., located in Eau Claire, Wisconsin. This variant, model QES1508-102 Rev 2 C2, is specifically configured for TTL video timing optimized for Fanuc control panels and is compatible with a range of other legacy TTL monitor timings.
